CV-110H

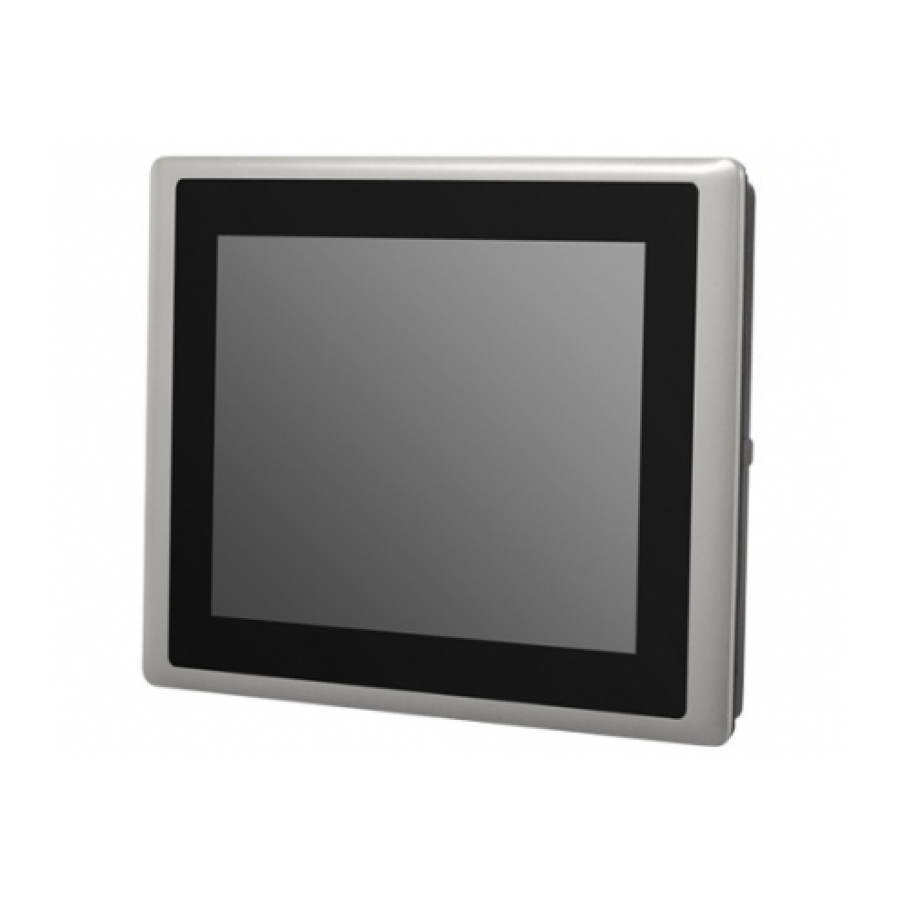

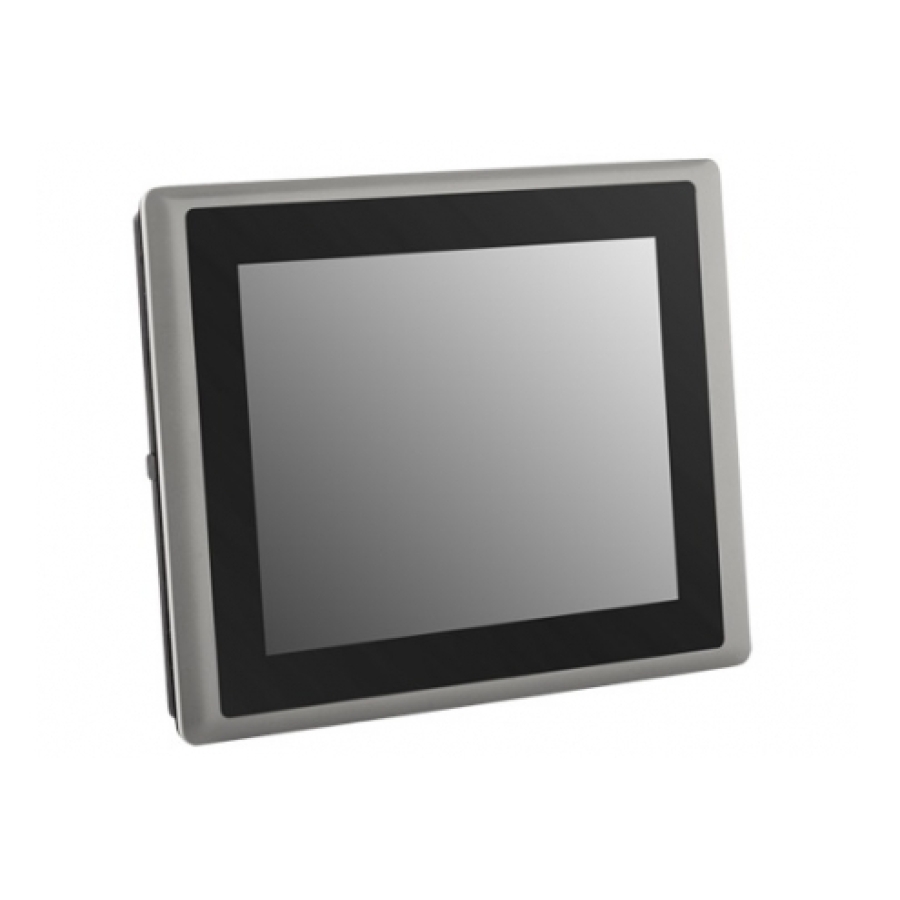

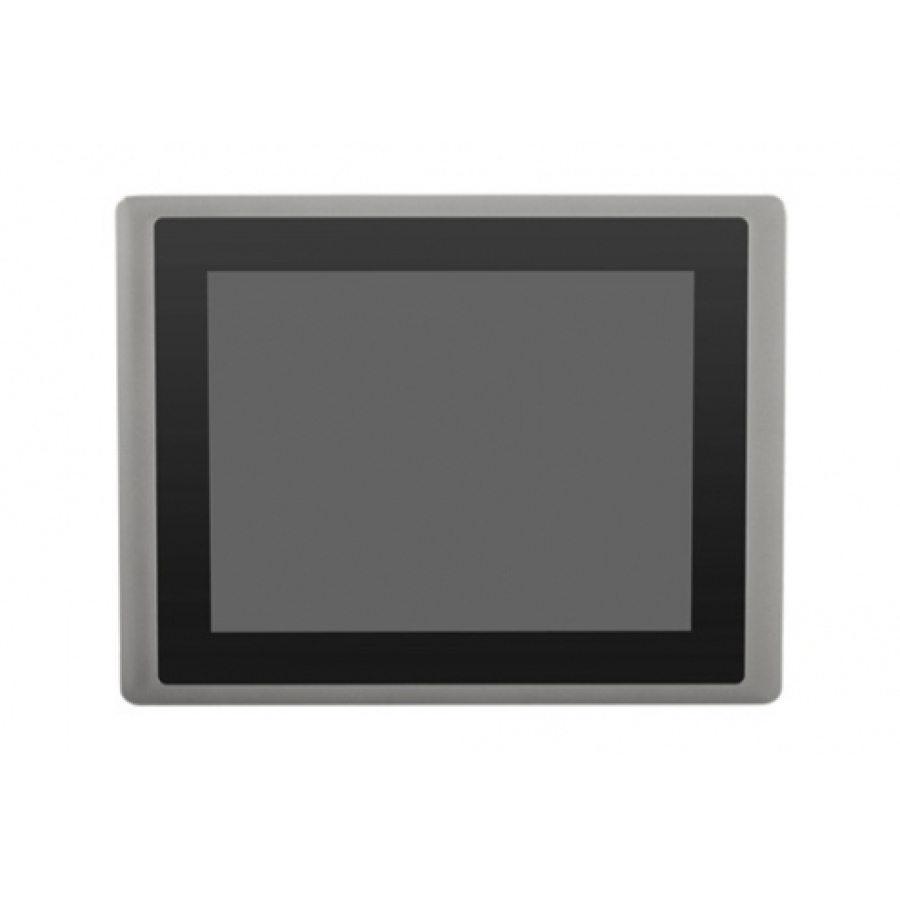

Cincoze CV-110H Industrial Touchscreen Monitor 10.4″ 800 x 600 (SVGA) 400 cd/m2

CV-110H

  • 10.4″ SVGA TFT 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
  • 70,000 hrs LED Backlight Life
  • Resolution up to 800 x 600 (SVGA)
  • 400 nits Brightness
  • Designed with Aluminium Die-cast Front Frame
  • IP 65 Compliant Front Panel
  • Convertible Display System (CDS) Supported
-
+

Details

CV-110 is 10.4" LCD display module with resistive 5-wire / projected capacitive touch screen. It offers resolution up to 800x600 (SVGA) and 400 nits brightness. CV-110 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminium die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CV-110 allows you to configure, upgrade and maintain your Convertible Display System easily.

Ordering Info

Available Models
Model No. Product Description
CV-110R 10.4″ TFT SVGA 4:3 Display Module with Resistive 5-wire Touch
CV-110C 10.4″ TFT SVGA 4:3 Display Module with Projected Capacitive Touch
Package Checklist
CV-110
√ CV-110 Display Module x 1
√ Panel Mounting Kit x 1

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Model Name CV-110
Model No. CV-110R CV-110C
Display LCD Size 10.4″ (4:3)
Max. Resolution 800 x 600 (SVGA)
Brightness (cd/m2) 400
Contrast Ratio 700 : 1
LCD Colour 16.2M
Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
Viewing Angle (H-V) 160 / 130
Backlight MTBF 70,000 hrs (LED Backlight)
Touch Resistive 5-wire V
Projected Capacitive V
Environment Operating Temperature Ambient with Air flow: -20°C to 75°C (with Industrial Grade Peripherals) Ambient with Air flow: -10°C to 70°C (with Industrial Grade Peripherals)
Storage Temperature -30°C to 80°C
Relative Humidity 80% RH @ 40°C (non-condensing)
IP Level IP65 Compliant Front Panel
Physical Dimension (WxHxD) 295 x 227.3 x 56.2 mm
Weight 2.24 kg
Construction Front Panel Die-cast Flat Surface
Certification Safety Certifications • CE• FCC Class A
Screen Size 1" to 10", 10.4"
Touch Technology Projected Capactive, Resistive
Ingress Protection IP65
Brightness 400nit, Standard
