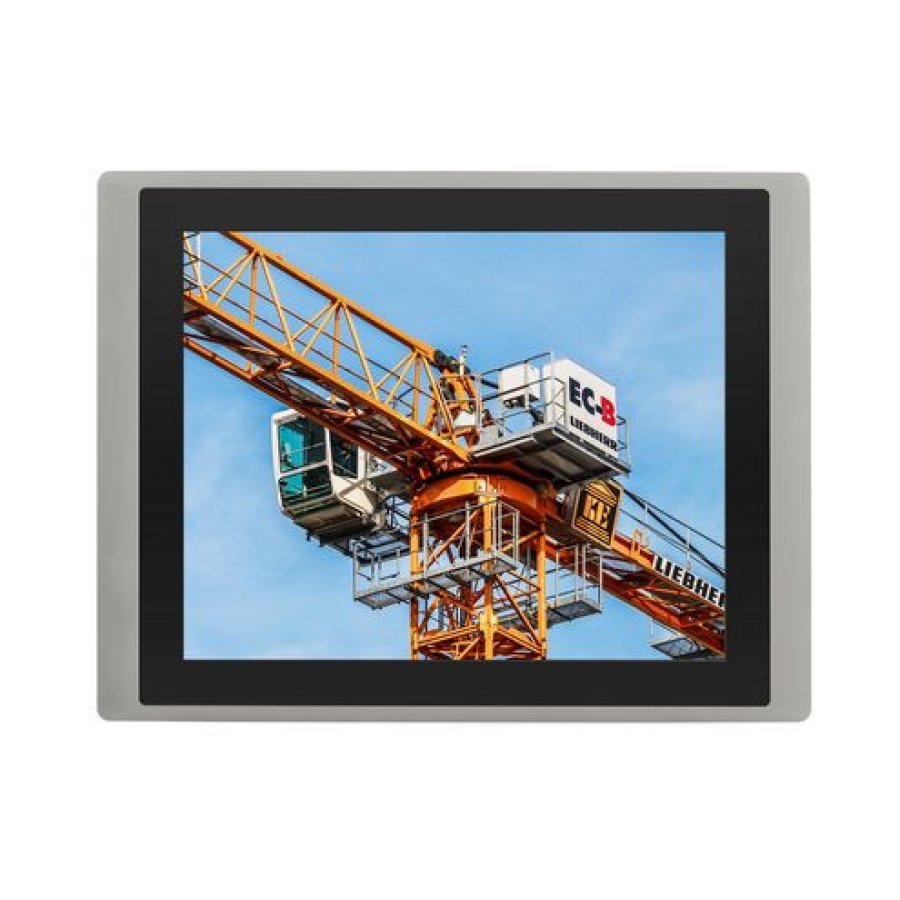

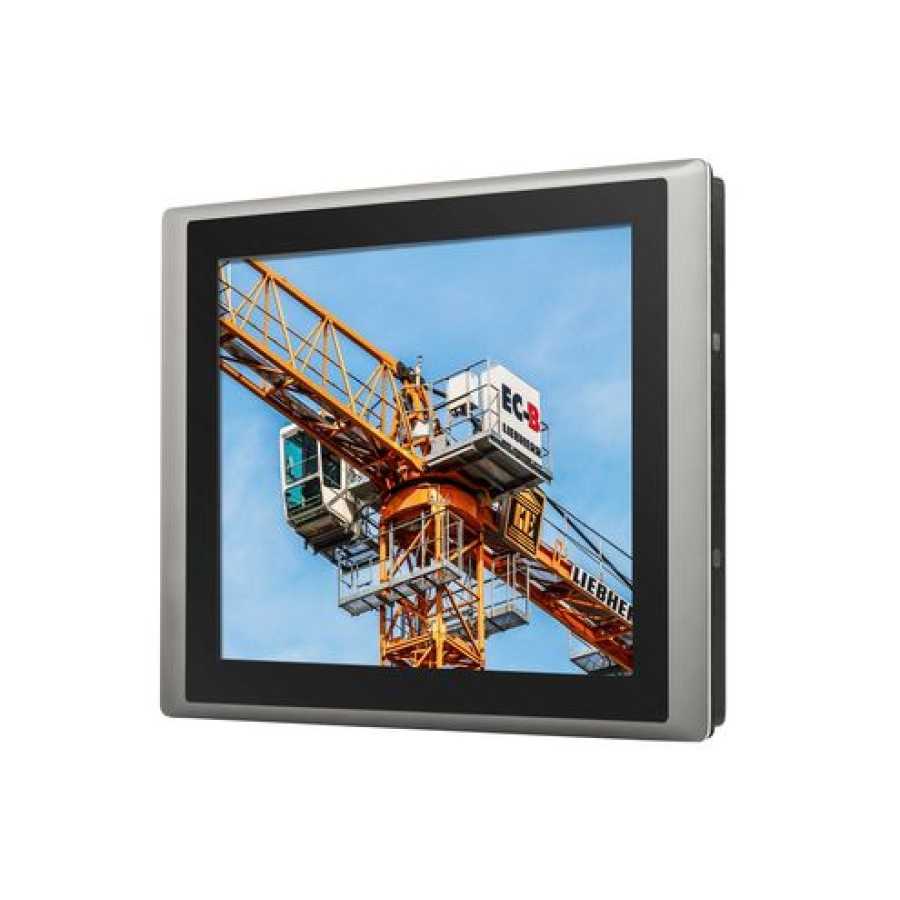

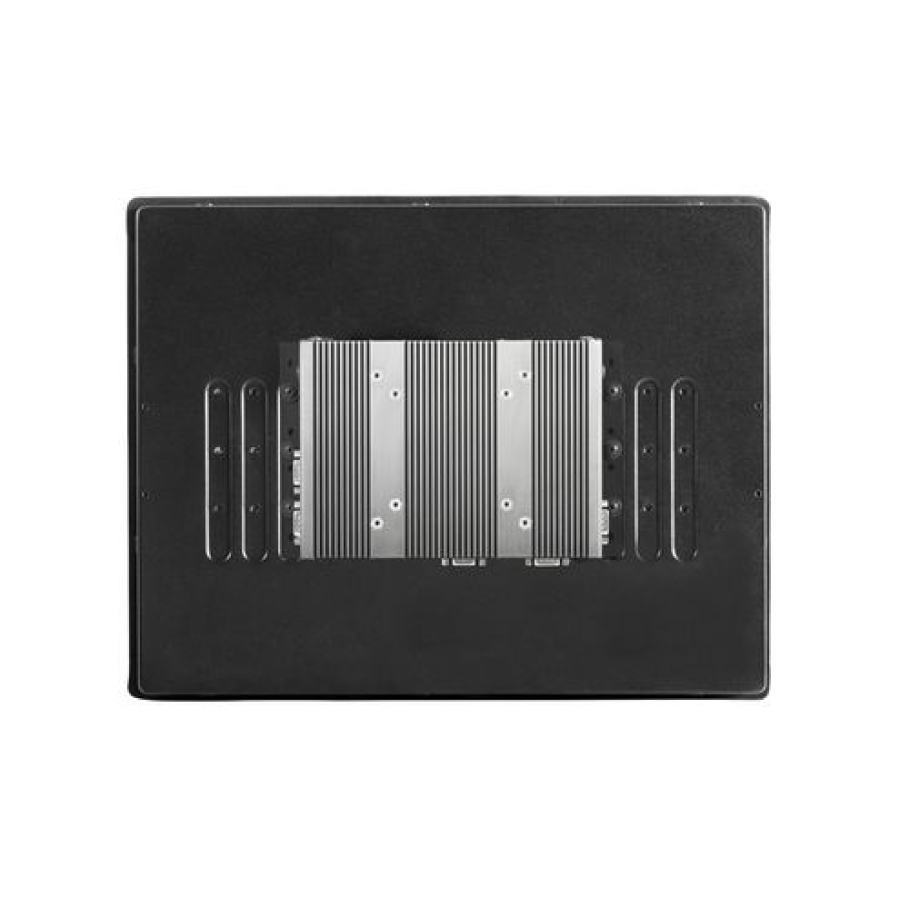

Cincoze CS-117/P1101 17″ Intel Atom/Pentium High Bright Touch Panel PC


  • 17” TFT-LCD SXGA with Ultra High Brightness up to 1,500 nits
  • Onboard Intel Atom / Pentium Processor
  • Triple Independent Displays (via VGA and DisplayPort outputs)
  • Rich I/O (2x GbE LAN, 4x USB 3.0, 4x COM, 8x Isolated DIO)
  • 2x Full Size Mini-PCIe, 1x 2.5” SATA Drive Bay, 1x mSATA Socket
  • Wide Range Operating Temperature -20°C to 70°C
  • Designed with Aluminum Die-casting Front Frame
  • True Flat IP65 Front Panel Protection
  • Supports CDS Technology, Ignition Sensing and Power over Ethernet
  • Supports Panel / VESA / Rack Mounting


CS-117/P1101 Series is a 17" TFT-LCD sunlight readable touch panel PC offering 1,500 nits ultra high brightness and 1280 x 1024 (SXGA) resolution. The system is based on Intel Atom / Pentium processor and supports triple independent displays (via VGA and DisplayPort outputs). CS-117/P1101 Series features extensive connectivity including 2x GbE, 4x USB 3.0, 4x COM, and 8x isolated DIO. It also offers 2x   full size   Mini-PCIe socket and 1x SIM socket for a variety of wireless data connections.Through the ready-to-use CFM modules, users can easily add power ignition sensing and Power over Ethernet (PoE) functions for a variety of applications. CS-117/P1101 Series also supports Convertible Display System (CDS) technology. Comparing with regular standalone panel PCs, it is more flexible and reduces maintenance cost dramatically.Featuring with rigorous industrial protections, wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), CS-117/P1101 Series is appropriate for harsh environments and critical applications.

Ordering Info

Available Models
Model No. Product Description
CS-117C-R10/P1101-E50-R10 17″ TFT-LCD 1500nits Sunlight Readable Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and P-Cap. Touch
CS-117C-R10/P1101-N42-R10 17″ TFT-LCD 1500nits Sunlight Readable Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and P-Cap. Touch
Package Checklist
 √ Panel PC x 1 √ Power Terminal Block Connector x 1
 √ Utility DVD Driver x 1 √ Remote Power On/Off Terminal Block Connector x 1
 √ Screw Pack x 1 √ DIO Terminal Block Connector x 1
 √ Panel Mounting Kit x 1 √ Thermal Pad (for CPU Thermal Block) x 1
Optional Accessories
Model No. Description
CFM-IGN101  CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm)
CFM-PoE02  CFM Module with PoE Control Function, Individual Port 25.5W
GST60A12-CIN1  Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
GST120A24-CIN  Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
SL2-SL3  US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3  EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3  UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
URM01 Universal 19″ Rack Mount Kit for Industrial Panel PC & Industrial Monitor


Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?


Model Series CS-117/P1101
Model Name CS-117C/P1101
Display LCD Size 17″ (5:4)
Max. Resolution 1280 x 1024
Brightness (cd/m2) 1500
Contrast Ratio 800 : 1
LCD Color 16.7M
Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
Viewing Angle (H-V) 160 / 140
Backlight MTBF 50000 hrs (LED Backlight)
Touch Resistive 5-wire
Projected Capacitive V
System Processor • Onboard Intel Atom x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel Pentium N4200 Quad Core Processor, up to 2.50 GHz
Memory • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Supports up to 8GB (un-buffered and non-ECC)
Graphics • Integrated Intel HD Graphics 505 • Supports Triple Independent Display (1x CDS, 1x VGA, 1x DisplayPort)
Audio Realtek ALC888-GR
I/O Interface VGA 1x VGA (1920 x 1200 @60Hz)
DP 1x DisplayPort (4K x 2K @60Hz)
LAN 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 – GbE1: Intel I210 – GbE2: Intel I210
Serial Port 4x RS-232/422/485, DB9 with Auto Flow Control (Supports 5V/12V), DB9
USB 4x USB 3.0 (Type-A)
Isolated DIO 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block
Line-Out 1x Phone Jack 3.5mm
Mic-In 1x Phone Jack 3.5mm
Power Button 1x ATX Power On/Off Button
Reset Button 1x Rest Button
AT/ATX Switch 1x AT/ATX Mode Switch
Clear CMOS Switch 1x Clear CMOS Switch
Remote Power On/Off Connector 1x Remote Power On/Off Connector, 2-pin Terminal Block
Storage SSD/HDD 1x 2.5” HDD/SSD Drive Bay (SATA 3.0)
mSATA 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket)
Expansion PCI / PCIe
CFM (Control Function Module) Interface – Optional CFM IGN Module for Power Ignition Function – Optional CFM PoE Module for Power over Ethernet Function
CDS (Convertible Display System) Technology 1x CDS Interface for Convertible Display Module
Mini PCI Express 2x Full-size Mini-PCIe Sockets
SIM Socket 1x SIM Socket
Antenna Holes 4x Antenna Holes
Other Function Instant Reboot Support 0.2sec
Super Cap SuperCap Integrated for CMOS Battery Maintenance-free Operation
OSD Function LCD On/Off, Brightness Up, Brightness Down
Internal Speaker AMP 2W + 2W
Watchdog Timer Software Programmable Supports 256 Levels System Reset
Power Requirement Power Type AT/ATX
Power Input Voltage 9~48VDC
Connector 3-pin Terminal Block
Power Adaptor Optional AC/DC Adapter .AC/DC 12V/5A, 60W .AC/DC 24V/5A, 120W (Optional)
Physical Dimension (WxHxD) 450 x 350 x 76.35 mm
Weight Information 7.13 kg
Front Panel Construction Flat Rugged Aluminum Die-casting Bezel
Mounting Panel / VESA / *Rack Mounting (*with optional mounting kit)
Fanless Design Yes
Protection Reverse Power Input Protection V
Over Voltage Protection Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 15A
ESD Protection +/-8kV (air), +/-4kV (contact)
Surge Protection 3.84 kV (impedance  12 ohm  1.2/50us waveform)
Operating System Windows Windows® 10
Linux Support by project
Environment Operating Temperature Operating Temperature: -20°C to 70°C (with extended temperature peripherals; Ambient with air flow)
Storage Temperature  -20°C to 70°C
Relative Humidity 80% RH @ 40°C (Non-Condensing)
Shock Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
Vibration Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
IP Level IP 65 Compliant Front Panel
Touch Technology Projected Capacitive
Ingress Protection IP65
Brightness 1500nit, High
Resolution 1280x1024, Special/Other
GPU Integrated GPU
Memory Capacity Up to 8GB
Serial Ports (COM) 4 Ports, 4 Ports, RS-232/422/485
USB Ports 4 Ports, 4 Ports, USB 3.0
Ethernet Ports (LAN) 2 Ports, 2 Ports
Wireless Cellular, Wi-Fi
Audio Yes
Video Ports 1x VGA, 1x DisplayPort, 2 Ports
Digital I/O 8 DIO
Storage Type 1, 1, 2, 2.5", mSATA
Expansion Type 2, 2, Any Expansion Type, Mini PCI Express
Input Voltage 9-48 VDC, ATX Powered, Yes
Mounting Options Panel-mount, Rack-mount, VESA-mount
Operating Temperature -20°C to 70°C, Wide
Certifications CE/FCC
OS Support Linux, Windows 10, Windows 10 IoT, Windows 10 Pro
