CS-117/P1001

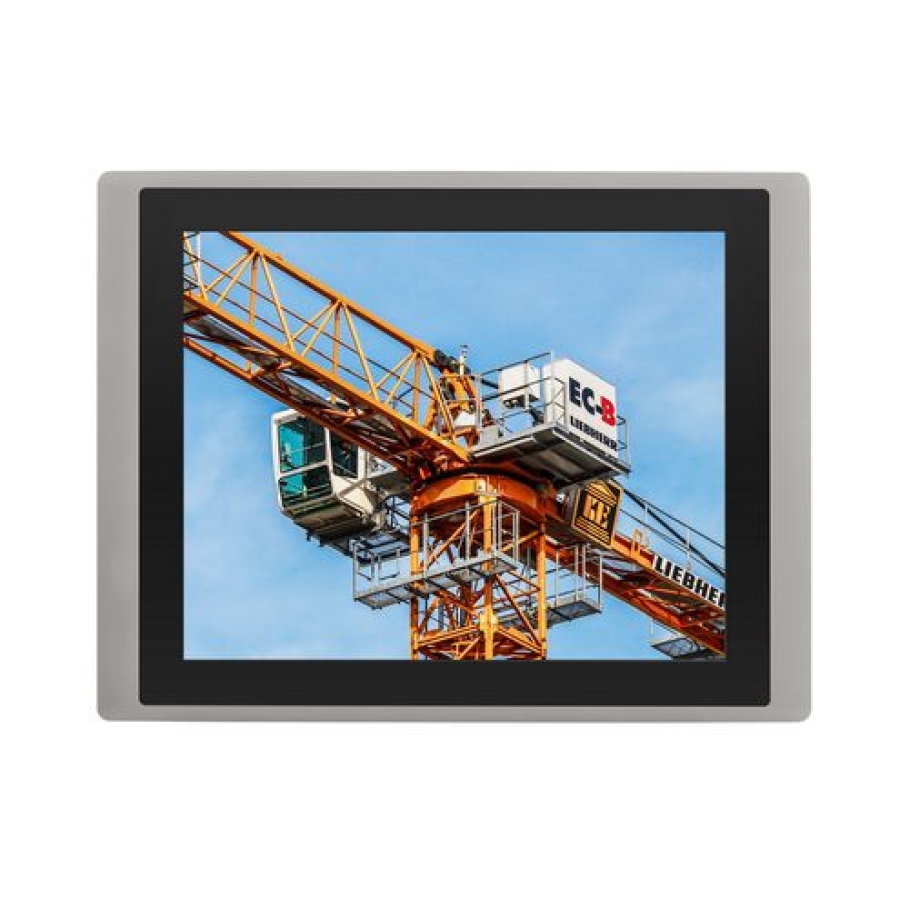

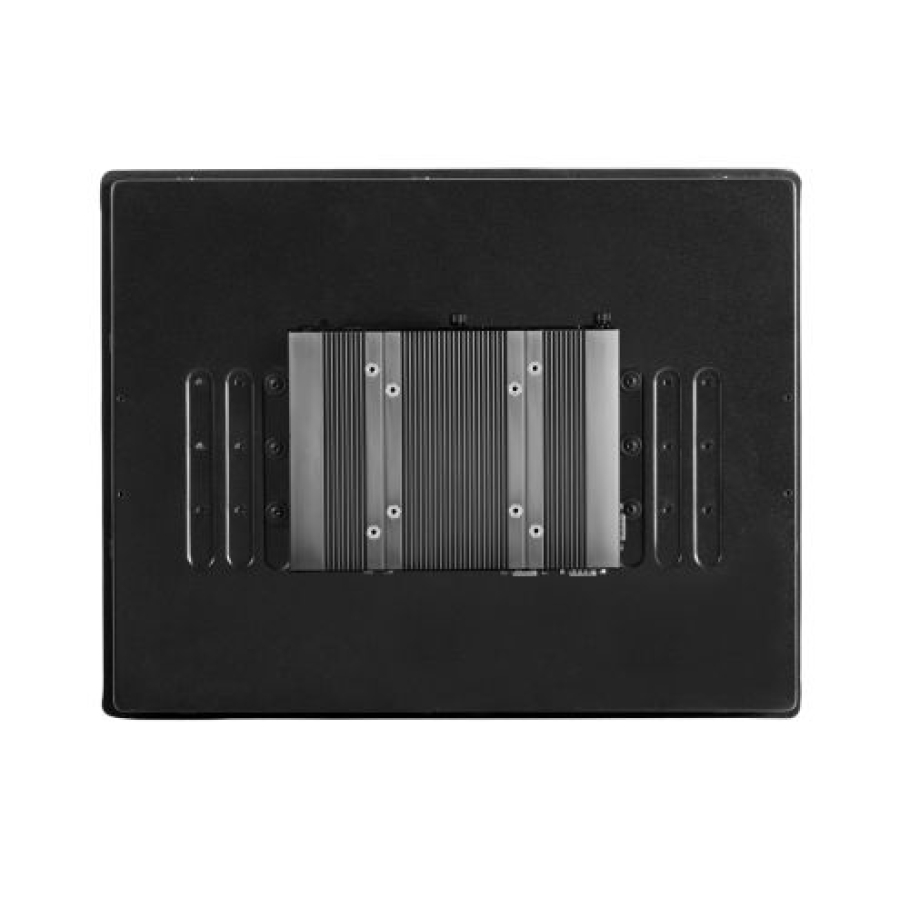

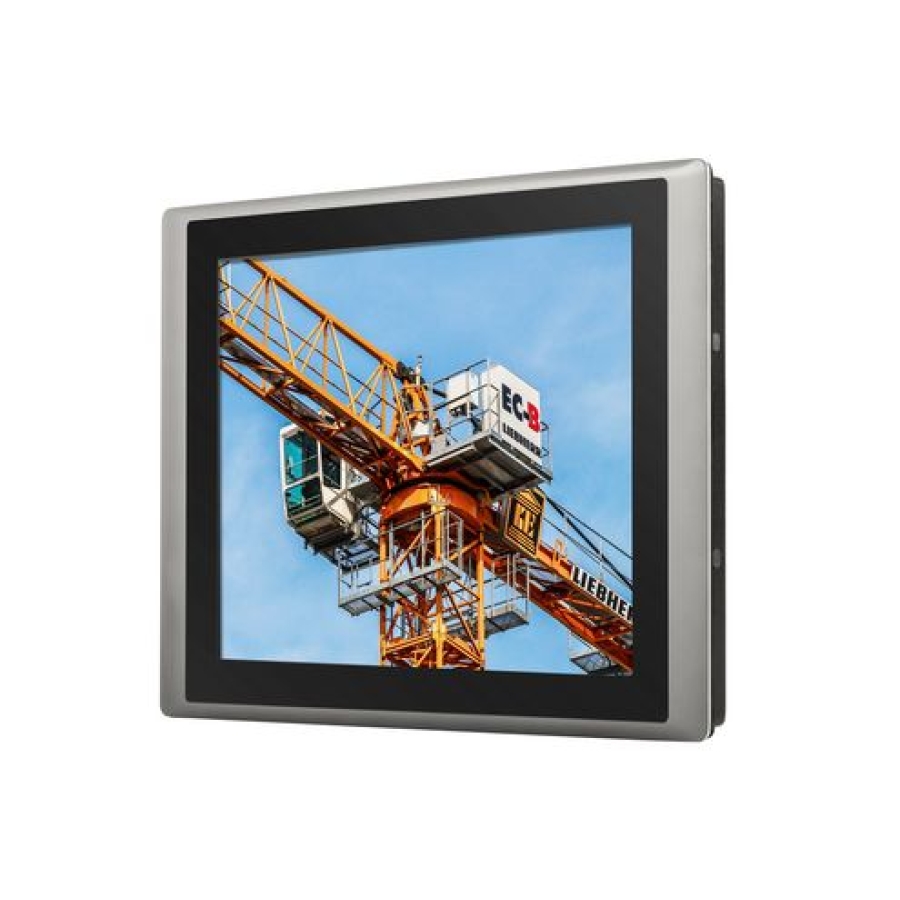

Cincoze CS-117/P1001 17″ Intel Atom E3845 High Bright Touch Panel PC

CS-117/P1001

  • 17” TFT-LCD with Ultra High Brightness up to 1,500 nits and 1280 x 1024 (SXGA) Resolution
  • Onboard Intel Atom E3845 Processor Quad Core, 1.91GHz
  • Supports 1x DDR3L SO-DIMM Socket, up to 8 GB
  • 1x 2.5” SATA Drive Bay, 1x CFast Card and 1x SIM Card Socket
  • 2x GbE LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
  • 1x Mini-PCIe Expansion Socket for Wireless and I/O Expansion
  • Wide Range Operating Temperature -20°C to 70°C
  • Designed with Aluminum Die-casting Front Frame
  • True Flat IP65 Front Panel Protection
  • Supports Panel / VESA / Rack Mounting
  • Convertible Display System (CDS) Technology Supported
-
+

Details

CS-117/P1000 Series is a 17" TFT-LCD sunlight readable touch panel PC offering 1,500 nits ultra high brightness and 1280 x 1024 (SXGA) resolution. The system is equipped with Intel Atom E3845 processor and provides extensive I/O including 2x GbE, 4x USB, 2x RS232/422/485, 4x DI/4x DO, 1x VGA and 1x DisplayPort. It also supports 1x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 2 types of storage devices including 2.5" SATA HDD and CFast. The accessible design of these storage devices allows quick data access and easy maintenance.CS-117/P1000 Series supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime.Furthermore, CS-117/P1000 Series is a truly rugged display system supporting wide range operating temperature (-20°C to 70°C), IP65 dust/water proof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.

Ordering Info

Available Models
Model No. Product Description
CS-117C-R10/P1001-R10 17″ TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Atom™ E3845 Quad Core Processor and P-Cap. Touch
Package Checklist
 √ Panel PC x 1 √ Power Terminal Block Connector x 1
 √ Panel Mounting Kit x 1 √ HDD Screw Pack x 1
 √ Utility DVD Driver x 1 √ Mini PCIe Screw Pack x 1
 √ DIO Terminal Block Connector x 1
Optional Accessories
Model No. Description
GST60A12-CIN1 Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
SL2-SL3 US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3 EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3 UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
URM01 Universal 19″ Rack Mount Kit for Industrial Panel PC & Industrial Monitor

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Model Name CS-117/P1001
Model No. CS-117C/P1001
Display LCD Size 17″ (5:4)
Max. Resolution 1280 x 1024
Brightness (cd/m2) 1500
Contrast Ratio 800 : 1
LCD Color 16.7M
Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
Viewing Angle (H-V) 160 / 140
Backlight MTBF 50000 hrs (LED Backlignt)
Touch Resistive 5-wire
Projected Capacitive V
Processor System CPU Intel Atom E3845
Core Number 4
Frequency 1.91 GHz
Cache 2 MB
Watts 10W
Memory Transfer Rate DDR3L 1066/ 1333MHz (un-buffered and non-ECC)
Max. Capacity 8 GB
Socket 1x 204-Pin SODIMM
Graphics Chipset Intel HD Graphics
Dual Display VGA + DP VGA + CDS DP + CDS
Audio Interface Realtek ALC888-GR, High Definition Audio
I/O Interface VGA 1x DB-15 connector, CH7517, Up to 1920×1080@60Hz
DP 1x DP connector, Up to 1920×1080@60Hz
LAN 2x 10/100/1000 Mbps, RJ45 GbE1: Intel I210 GbE2: Intel I210 Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE
POE+
Serial Port 2x RS-232/422/485, DB9 Support 5V/12V
USB 3.0 1x USB 3.0, Type-A
USB 2.0 3x USB 2.0, Type-A
DIO 4 in/4 out
Line-Out 1x Phone Jack 3.5mm
Mic-In 1x Phone Jack 3.5mm
Power on/off switch V
Reset Button V
AT/ATX Switch V
Remote Power On/Off Connector
External FAN Connector
Storage SSD/HDD 1x Internal SATA port for 2.5” HDD/SSD
mSATA
CFast 1
Expansion PCI
PCIe
CFM Interface (Control Function Module)
Mini PCI Express 1x Full-size Mini PCIe
Universal I/O Bracket
SIM Socket 1(internal)
Antenna Holes 2
Other Function CDS Function V
OSD Function LCD On/Off, Brightness Up/Down (With Display Module)
Power Ignition Sensing
Internal Speaker AMP 2W + 2W
Super Cap
Instant Reboot V
Watchdog Timer Software Programmable Supports 256 Levels System Reset
Power Requirement Power Type AT/ATX
Power Input Voltage 9~48VDC
Connector 3-pin Terminal Block
Power Adaptor Optional AC/DC 12V/5A, 60W
Physical Dimension (WxHxD) 450 x 350 x 72 mm
Weight Information 6.98 kg
Construction Front Panel Die-cast Flat Surface
Mounting Panel / VESA / *Rack Mounting (*with optional mounting kit)
Fanless Design V
Cable-less Design
Jumper-less Design
Protection Reverse Power Input Protection V
Over Voltage Protection Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 20A
ESD Protection +/-8kV (air), +/-4kV (contact)
Operating Stystem Windows Windows 10 Windows 8.1 Windows 7
Linux Linux Kernel 3.X
Environment Operating Temperature Ambient with air flow: -20°C to 70°C (with Industrial Grade Peripherals)
StorageTemperature -30°C to 80°C
Relative Humidity 90% RH @ 40°C (Non-Condensing)
IP Level IP 65 Compliant Front Panel
EMC CE/ FCC Class A
Touch Technology Projected Capacitive
Ingress Protection IP65
Brightness 1500nit, High
Resolution 1280x1024, Special/Other
GPU Integrated GPU
Memory Capacity Up to 8GB
Serial Ports (COM) 2 Ports, 2 Ports, RS-232/422/485
USB Ports 1 Port, 3 Ports, 4 Ports, USB 2.0, USB 3.0
Ethernet Ports (LAN) 2 Ports, 2 Ports
Wireless Cellular, Wi-Fi
Audio Yes
Video Ports 1x VGA, 1x DisplayPort, 2 Ports
Digital I/O 8 DIO
Storage Type 1, 1, 2, 2.5", CFast
Expansion Type 1, Any Expansion Type, Mini PCI Express
Input Voltage 9-48 VDC, ATX Powered, Yes
Mounting Options Panel-mount, Rack-mount, VESA-mount
Operating Temperature -20°C to 70°C, Wide
Certifications CE/FCC
OS Support Windows 10, Windows 10 IoT, Windows 10 Pro, Windows 7, Windows 8.1
