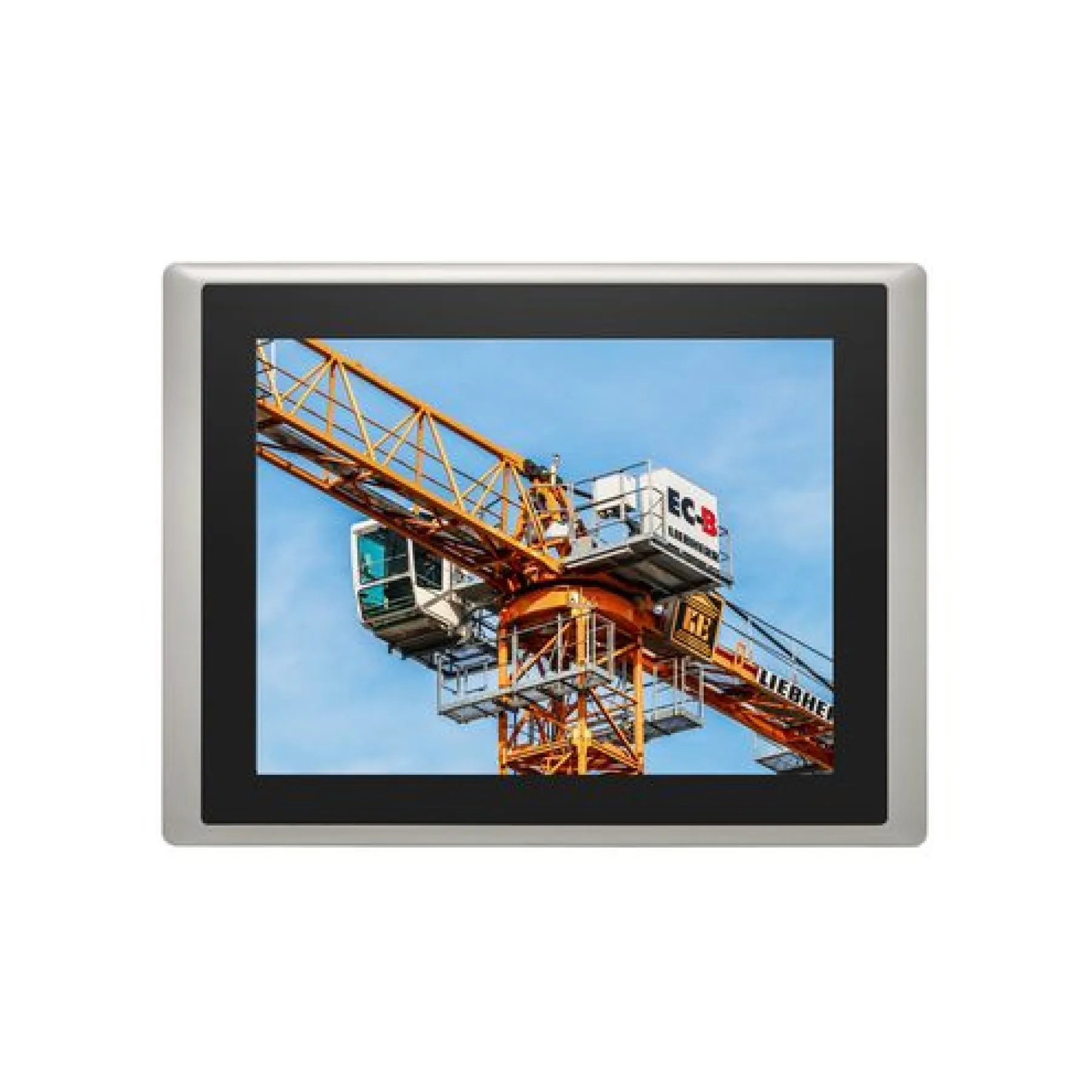

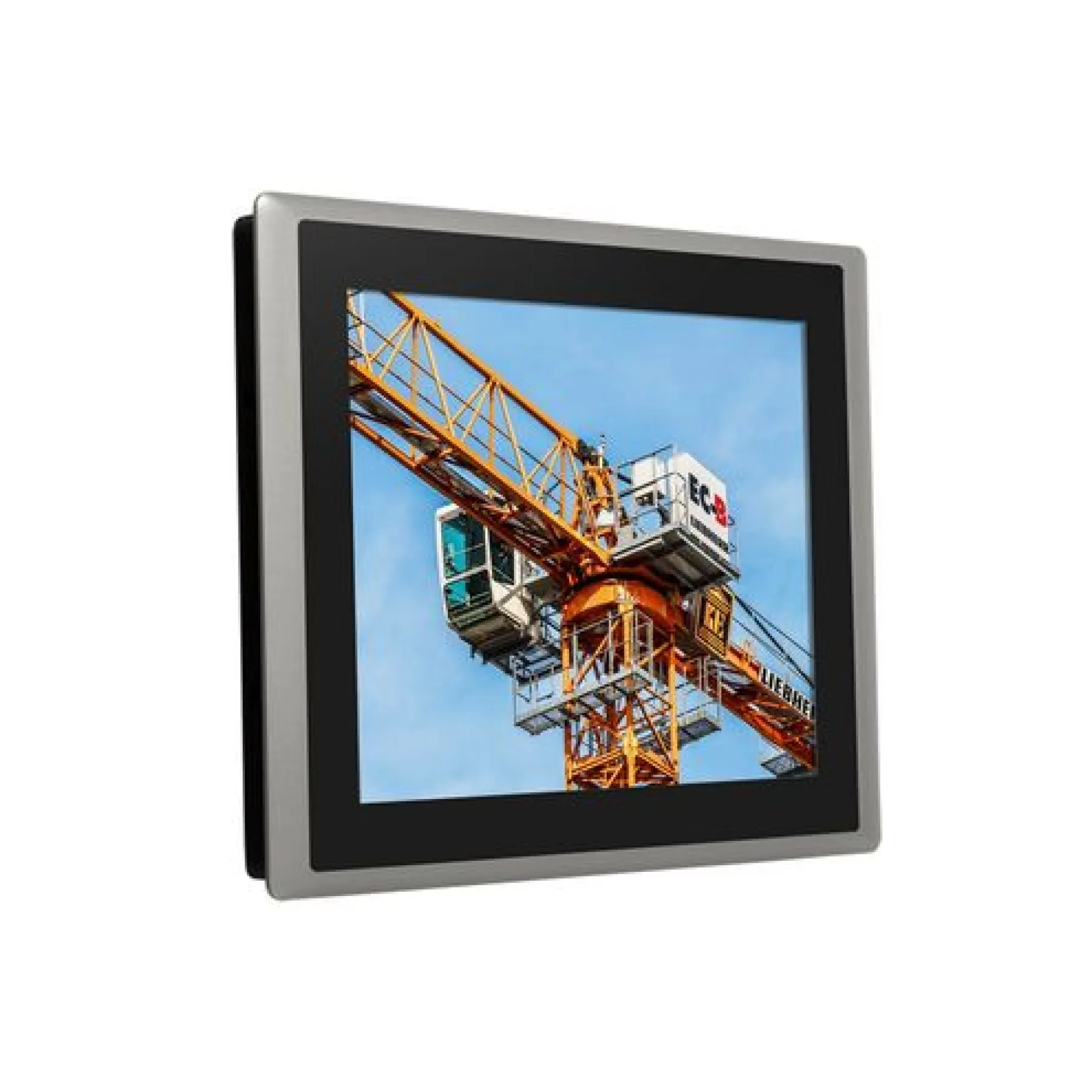

Cincoze CS-112H/P2102E 12.1″ 8th Gen Intel Core U Series High Bright Panel PC

CS-112H/P2102E

  • 12.1” TFT-LCD with Ultra-high Brightness up to 1,500 nits and 1024 x 768 (XGA) Resolution
  • Onboard 8th Generation Intel Core U Series Processor
  • 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
  • Supports Triple Independent Display
  • Integrated USB 3.2 Gen 2 supports up to 10Gbps
  • M.2 E Key Socket for Wireless Module or Intel CRF Module
  • Supports Ignition Sensing Function (IGN) (with optional CFM module)
  • Supports 2x PoE+ Function (with optional CFM module)
  • 1x PCI or 1x PCIe Slot for Add-on Card Expansion: Max. Length 180mm including Bracket (with optional riser card)
  • Wide Range Operating Temperature -20°C to 70°C
  • Designed with Rugged Aluminum Die-casting Front Bezel
  • True Flat IP65 Compliant Front Panel Protection
  • Supports Panel / VESA / Rack Mounting
-
+

Details

The CS-112H/P2102E is a 12.1" TFT-LCD sunlight readable panel PC that offers sufficient screen brightness for better image quality in outdoor usage. The panel PC is powered by Intel 8th generation Core U series processor that brings outstanding computing performance boost up to 84% at a TDP of 15 watts, compared to 6th generation Intel Core U series. To enable faster responsiveness and deal with multi tasks with ease, the CS-112H/P2102E is equipped with two DDR4 2400 SODIMM sockets for up to 64 GB memory. For expansion requirements, the CS-112H/P2102E has 1x PCI/PCIe x4, 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to increase desired functions. Besides, the CS-112H/P2102E supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications.Featuring rigorous industrial protections, wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the CS-112H/P2102E is appropriate for tough outdoor applications under direct sunlight. Furthermore, the CS-112H/P2102E supports Cincoze patented Convertible Display System (CDS) technology, allowing users to replace display module or computer module on-site easily and thereby reducing maintenance costs and downtime.

Ordering Info

Available Models
Model No. Product Description
CS-112HC-R11/P2102E-i5-R10 12.1″ 1500nits TFT-LCD Sunlight Readable, Modular and Expandable Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch
CS-112HC-R11/P2102E-i3-R10 12.1″ 1500nits TFT-LCD Sunlight Readable, Modular and Expandable Panel PC with 8th Gen. Intel Core i3-8145UE Quad Core Processor and P-Cap. Touch
Package Checklist
√ CS-112H/P2102E Panel PC x 1
√ Utility Driver DVD x 1
√ Thermal Pad (for CPU Thermal Block) x 1
√ Screws Pack x 5
√ Power Terminal Block Connector x 1
√ Panel Mounting Kit x 1
√ Remote Power On/Off Terminal Block Connector x 1
√ PCI / PCIe Card Installation Kit x 1
√ DIO Terminal Block Connector x 2
Optional Modules & Accessories
Model No. Description
CFM-IGN101 CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable
CFM-PoE05 CFM Module with PoE Control Function, Individual Port 25.5W
RC-E4-02 Riser Card with 1x PCIe x4 Slot for P2102E
RC-PI-02 Riser Card with 1x PCI Slot for P2102E
MEC-COM-M212-TDB9/UB1203 Mini-PCIe Module with 2x RS-232 Ports, 1x Thin DB9 Cable / 1x Universal Bracket with 2x DB9 Cutout for P2102E
MEC-COM-M334-TDB9/2xUB1203 Mini-PCIe Module with 4x RS-232/422/485 Ports, 2x Thin DB9 Cable / 2x Universal Bracket each with 2x DB9 Cutout for P2102E
MEC-USB-M102-30/UB1214 Mini-PCIe Module with 2x USB 3.0 Ports, 1x 30cm cable / 1x Universal Bracket with 2x USB Cutout for P2102E
MEC-LAN-M102-30/UB1211 Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for P2102E
GST120A24-CIN Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
GST220A24-CIN Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI
SL2-SL3 US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3 EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3 UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
URM01 Universal 19″ Rack Mount Kit for Industrial Panel PC & Industrial Monitor

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Model Name CS-112H/P2102E
Model No. CS-112HC/P2102E
Display LCD Size 12.1″ (4:3)
Max. Resolution 1024 x 768
Brightness (cd/m2) 1500
Contrast Ratio 700 : 1
LCD Color 16.2M
Pixel Pitch (mm) 0.24 (H) x 0.24 (V)
Viewing Angle (H-V) 160 / 160
Backlight MTBF 30000 hrs (LED Backlight)
Touch Projected Capacitive Touch
Processor System Onboard 8th Intel Core U Processors (Whiskey Lake) – Intel Core i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) – Intel Core i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) – TDP: 15 W
Memory 2x DDR4 2400 MHz 260-Pin SO-DIMM Socket Supports up to 64 GB (un-buffered and non-ECC)
Graphics Integrated Intel UHD Graphics 620
Supports Triple Independent Display (via VGA and DisplayPort Outputs)
Audio Realtek ALC888-GR
High Definition Audio
I/O Interface 1x VGA (1920 x 1200 @60Hz)
1x DisplayPort (4096 x 2304 @ 60Hz)
2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 – GbE1: Intel I219-LM – GbE2: Intel I210
3x USB 3.2 Gen2 (Type A)
2x USB 2.0 (Type A)
4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block
1x Speaker-out & 1x Mic-in, Phone Jack 3.5mm
1x AT/ATX Mode Switch
1x Clear CMOS Switch
1x Remote Power On/Off Connector, 2-pin Terminal Block
16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block
1x Ignition DIP Switch (12V/24V, need to work with CFM module)
Storage 2x 2.5” HDD/SSD Drive Bay (SATA 3.0), Supports RAID 0/1
Expansion 2x Full-size Mini-PCIe Socket
1x M.2 2230 E Key for Socket Wireless Module, Supports Intel CRF Module
2x Control Function Module (CFM) Interface
1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card)
2x Universal I/O Bracket
1x Front Accessible SIM Socket
4x Antenna Hole
Other Function Watchdog Timer: Software Programmable Supports 256 Levels System Reset
Internal Speaker AMP 2W + 2W
OSD Function: LCD On/Off, Brightness Up, Brightness Down
SuperCap Integrated for CMOS Battery Maintenance-free Operation
Supports Instant Reboot Technology (0.2 sec)
Power Requirement Support AT/ATX Power Mode
Power Input Voltage 9~48VDC
1x 3-pin Terminal Block
Power Adapter (Optional): AC/DC 24V/5A 120W or AC/DC 24V/9.2A 220W
Physical Dimension (WxDxH, mm): 345 x 265.3 x 89 mm
Weight: 5.9 kg
Construction: Rugged Aluminum Die-casting Front Bezel and Heavy Duty Metal Chassis
Mounting: Panel / VESA / *Rack Mounting (*with optional mounting kit)
Fanless Design
Jumper-less Design
Protection Reverse Power Input Protection
Over Voltage Protection: Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection: 15A
ESD Protection: +/-8kV (air), +/-4kV (contact)
Surge Protection: 3.84 kV (impedance 12 ohm 1.2/50μs waveform)
Operating Stystem Windows 10
Linux: Supports by project
Environment Operating Temperature: -20°C to 70°C (with Extended Temperature Peripherals; Ambient with Air Flow)
Storage Temperature: -20°C to 70°C
Relative Humidity: 80% RH @ 40°C (Non-condensing)
IP Level: IP65 Compliant Front Panel
Shock: Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
IP Level: IP65 Compliant Front Panel
EMC: CE, FCC Class A
Touch Technology Projected Capacitive
Ingress Protection IP65
Brightness 1500nit, High
Resolution 1024x768, Special/Other
GPU Integrated GPU
Memory Capacity Up to 64GB
Serial Ports (COM) 4 Ports, 4 Ports, RS-232/422/485
USB Ports 2 Ports, 3 Ports, 5 Ports, USB 2.0, USB 3.2
Ethernet Ports (LAN) 2 Ports, 2 Ports
Wireless Cellular, Wi-Fi
Audio Yes
Video Ports 1x DisplayPort, 1x VGA, 2 Ports
Digital I/O 16 DIO
Storage Type 2, 2, 2.5"
Expansion Type 1x M.2, 2, 3, Any Expansion Type, M.2, Mini PCI Express
Input Voltage 9-48 VDC, ATX Powered, Yes
Mounting Options Panel-mount, Rack-mount, VESA-mount
Operating Temperature -20°C to 70°C, Wide
Certifications CE/FCC
