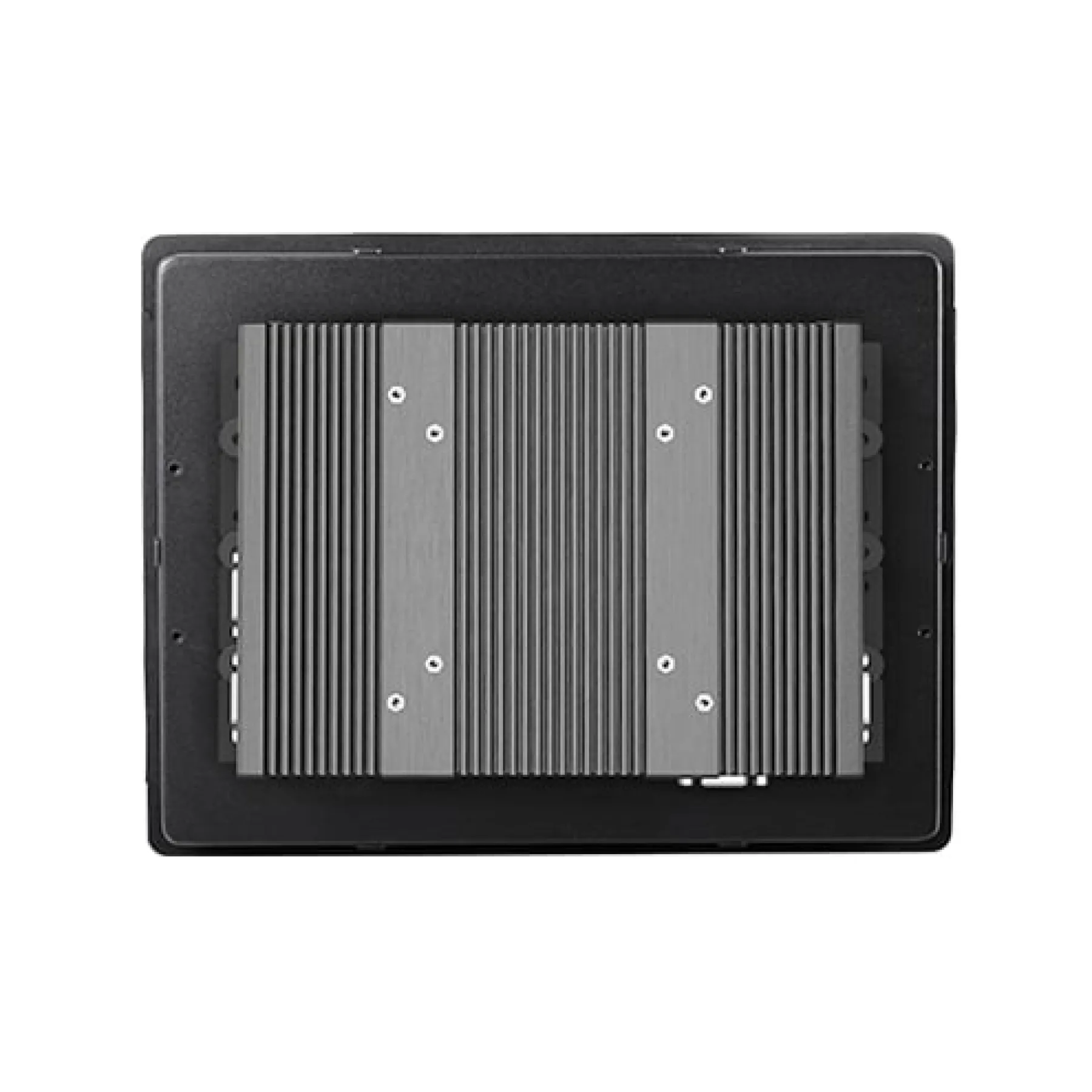

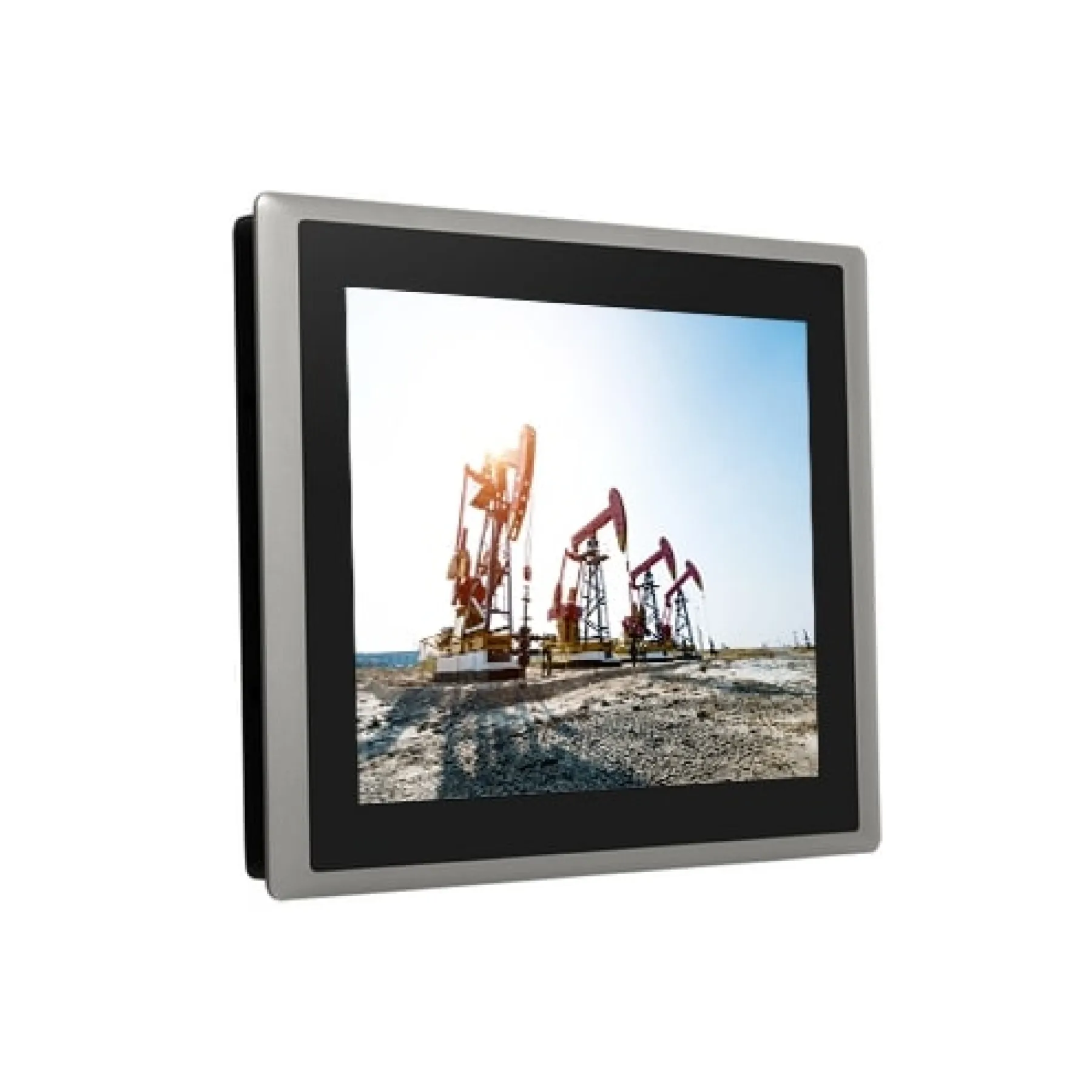

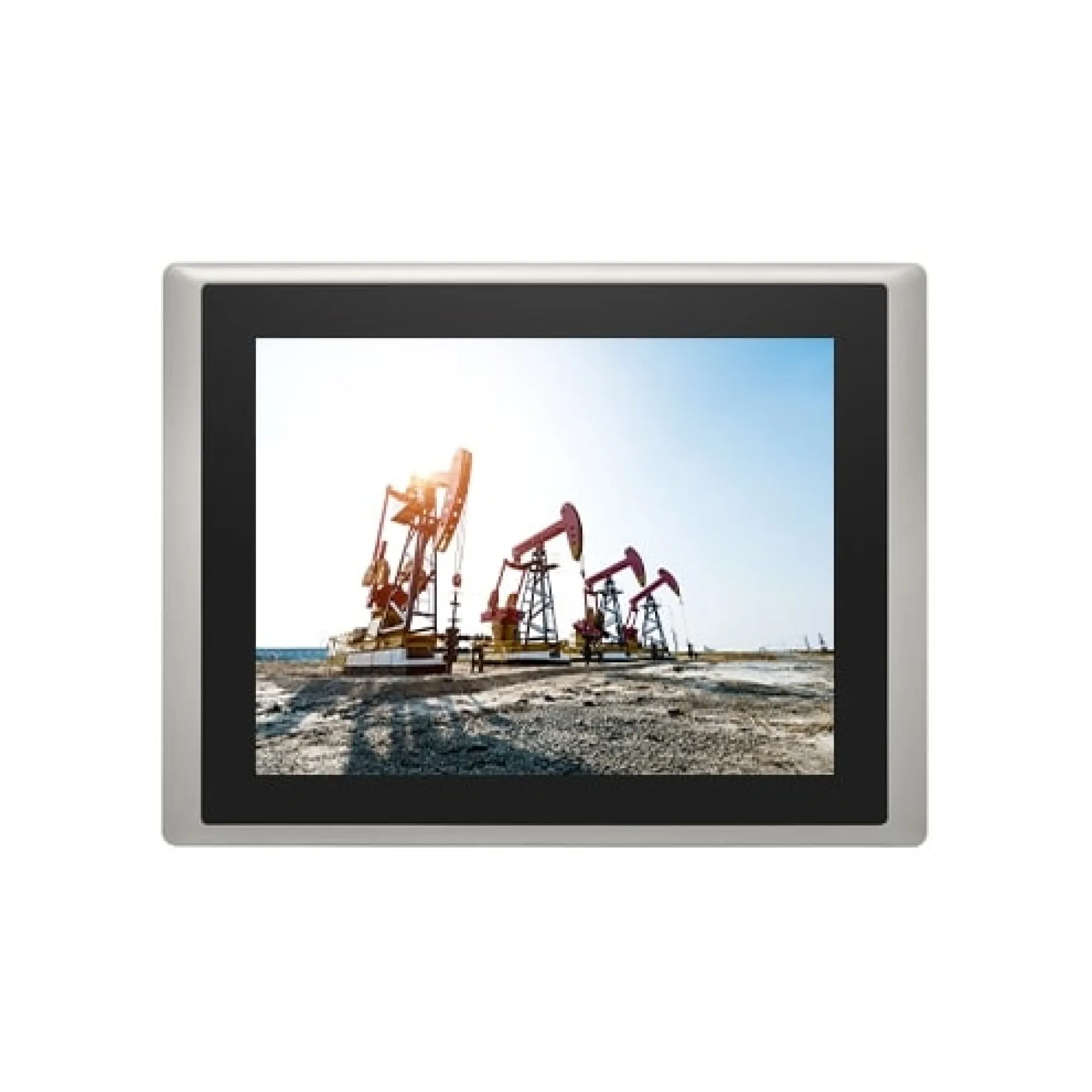

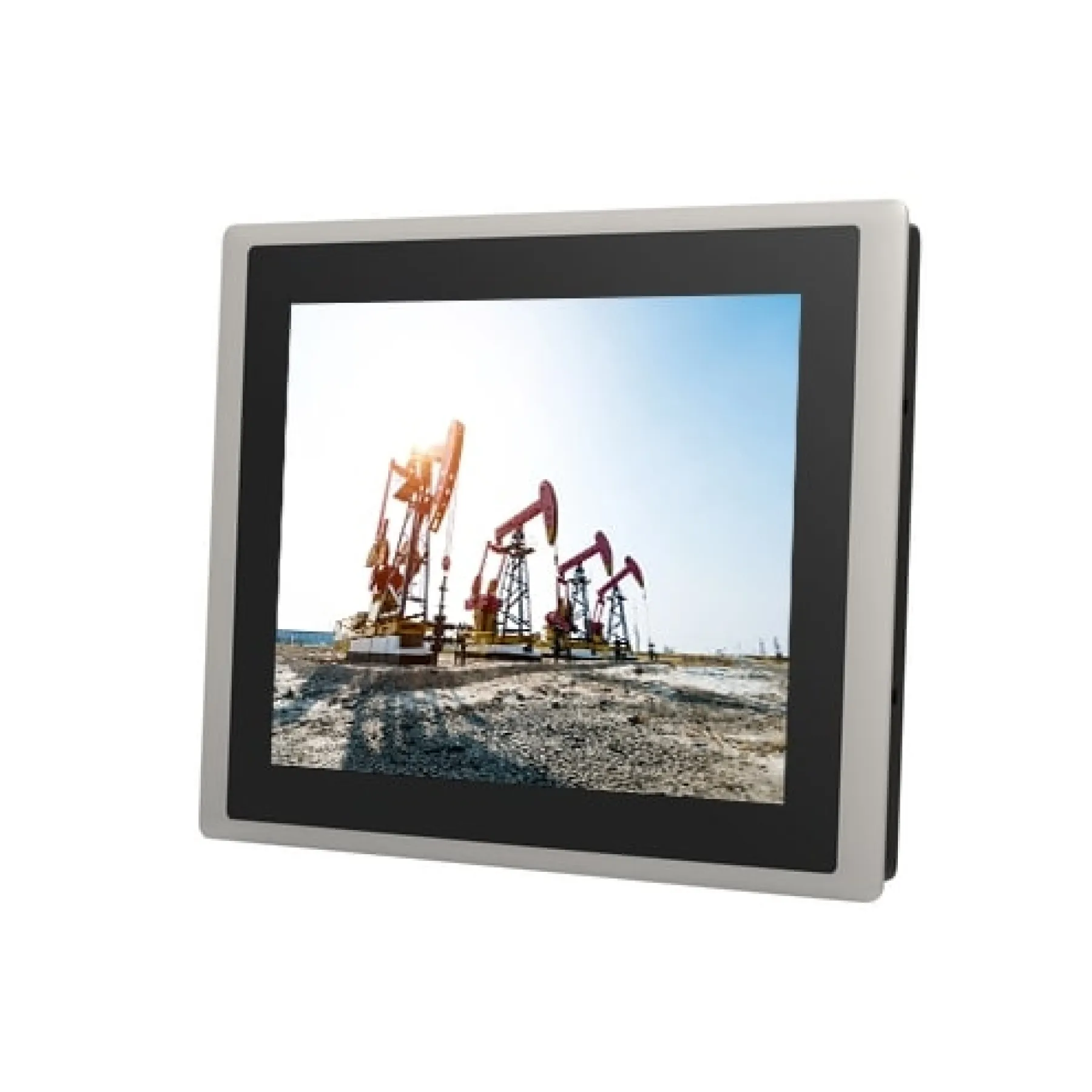

Cincoze CS-110H/P1201 10.4″ 10th Gen Intel Atom Sunlight Readable and Modular Panel PC


  • 10.4″ TFT-LCD XGA with Ultra High Brightness up to 1,500 nits
  • Intel Elkhart Lake Atom x6425E/x6211E Processor
  • 1x DDR4 SO-DIMM
  • Designed with Rugged Aluminum Die-casting Front Bezel
  • Support Panel / VESA / Rack Mount
  • Front Panel IP65 Compliant
  • Wide Operating Temperature
  • Cincoze Patent CDS Technology Support


The CS-110H/P1201 is a sunlight-readable panel PC with an Intel Atom (Elkhart Lake) processor and a maximum screen brightness of 1,600 nits. Available in a selection of screen sizes, aspect ratios, and brightnesses, the CS-100/P1201 has flexible expansion options, including rich native I/O interfaces (GbE LAN, USB 3.2, COM, and DIO), Mini PCIe and M.2 Key E Type 2230 expansion slots, and exclusive CFM expansion to add functions such as PoE and IGN. Cincoze’s exclusive patented Convertible Display System (CDS) technology enables further flexible future computer performance upgrades and screen replacements. The robust CS-100/P1201 series is well-suited for outdoor kiosks or HMI applications. The CS-110H/P1201 supports up to an Intel Atom x6425E (Elkhart Lake) 4-core processor, with 1.7 times the single-thread performance, 1.5 times the multi-thread performance, and double the graphics performance of the previous-generation Apollo Lake processor. Up to 32 GB of 3200 MHz DDR4 is supported. Convertible Display System (CDS), the patented technology that connects the CS-100 display module to the P1201 embedded computer, has the advantages of easy maintenance in the field and easy future upgrades because the screen size can be changed and performance can be improved by only replacing a single part, rather than the whole system, saving on upgrade costs. The CS-110H/P1201 series has a diverse selection of screen sizes (8.4” to 24”), full HD resolution, a high brightness backlight of up to 1,600 nits, and a multi-point capacitive touchscreen to suit various application needs. The CS-110H/P1201 series has industrial-grade protections, including wide operating temperature (-20 to 70°C), wide-range DC power input (9 to 48 VDC), and IP65 front panel dust and water resistance, to face harsh outdoor environments and unpredictable climates such as on-site HMI and production process visualization.


Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Video Ports >>> 1 Port
Touch Technology Projected Capacitive
Ingress Protection IP65
Brightness 1500nit, High
Resolution 1024x768, Special/Other
GPU Integrated GPU
Memory Capacity Up to 32GB
Cooling Type Fanless, Yes
Serial Ports (COM) 3 Ports, 3 Ports, RS-232/422/485
USB Ports 1 Port, 3 Ports, 4 Ports, USB 2.0, USB 3.2
Ethernet Ports (LAN) 2 Ports, 2 Ports
Wireless Cellular, Wi-Fi
Audio Yes
Video Ports 1x DisplayPort, 1 Port, 1x VGA, 3 Ports, CDS
Digital I/O 8 DIO
Storage Type 1, 1, 2, 2.5", mSATA
Expansion Type 1, 1x M.2, 2, Any Expansion Type, M.2, Mini PCI Express
Input Voltage 9-48 VDC, ATX Powered, Yes
Mounting Options DIN-mount, VESA-mount, Wall-mount
Operating Temperature -40°C to 70°C, Extra-Wide
Certifications CE/FCC
OS Support Linux, Windows 10, Windows 10 IoT, Windows 10 Pro

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

Cincoze: Warranty and Service Information

Founded in 2011, Assured Systems are an official EMEA Partner of Cinzone. For all Cinzone products supplied we are proud to offer a comprehensive 2 year warranty, with optional extensions available upon request. Our warranty also covers systems that have been customised by Assured Systems.
