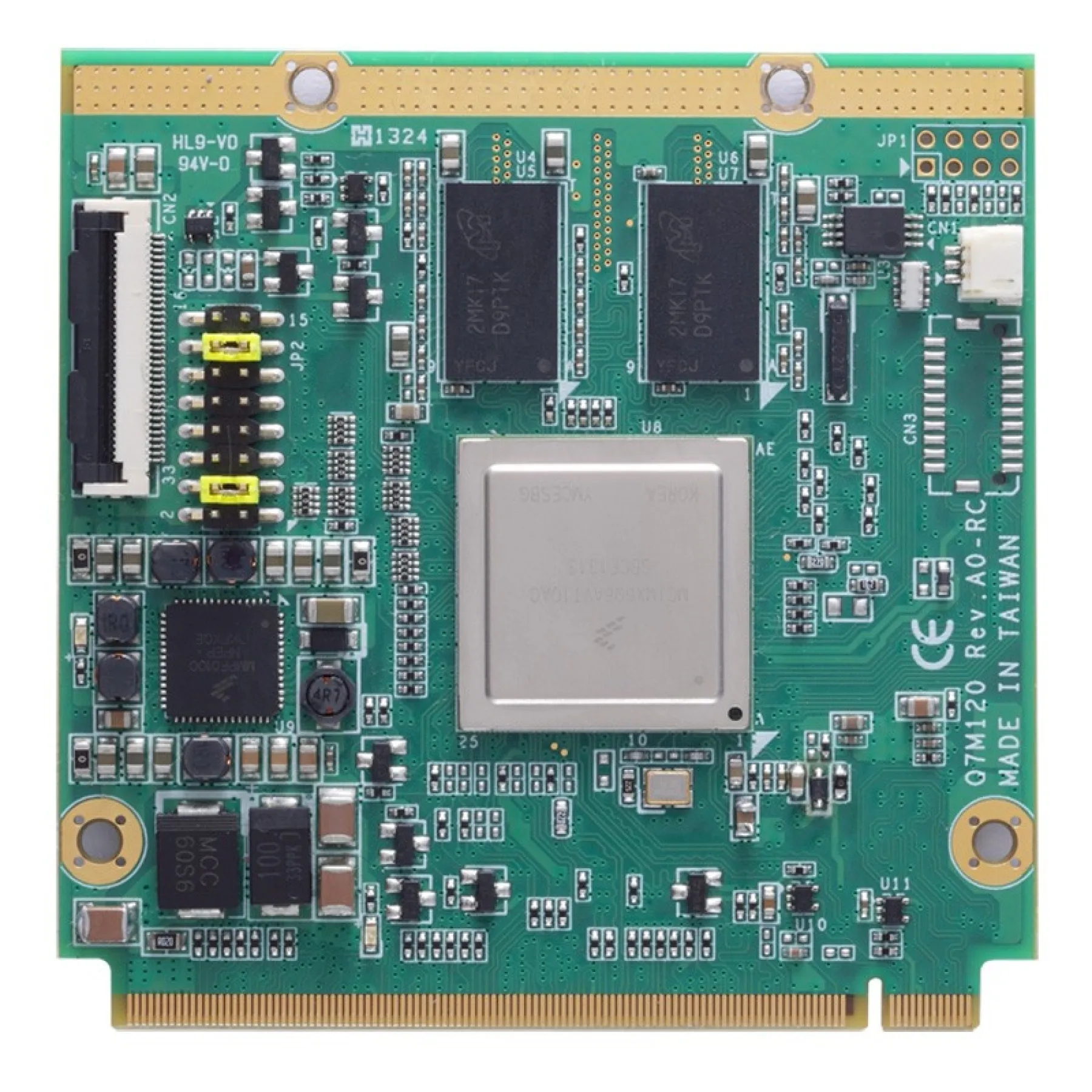

Axiomtek Q7M120 Qseven v2.0 SoM with Quad/DualLite 800 MHz

Q7M120

  • Ultra low power consumption Cortex™-A9
  • High flexibility Qseven v2.0 compliant design
  • 2 CAN
  • 24-bit TTL signal
  • LVDS/HDMI 1080P
  • 10/100/1000 Mbps Ethernet
  • Linux 3.0.35/Android 4.3
  • Audio

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The Axiomtek Q7M120 is a Qseven v2.0 SoM with Quad/DualLite 800 MHz (Industrial) SoC, 1GB Memory, 4GB eMMC, Gigabit Ethernet, Audio and CAN.

Ordering Info

Q7M120- DualLite-I (P/N-E38Q120100)

Q7M120 with Freescale iMX6 DualLite 800 MHz (Industrial) SoC, 1GB Memory, 4GB eMMC, 1 GbE LAN, audio, and CAN

Q7M120- Quad-I (P/N-E38Q120102)

Q7M120 with Freescale iMX6 Quad 800 MHz (Industrial) SoC, 1GB Memory, 4GB eMMC, 1 GbE LAN, audio, and CAN

Q7M120-120-EVK DualLite-I

Evaluation kit board

Q7M120-120-EVK Quad-I

Evaluation kit board

Q7M120-Quad-T

Q7M120 with Freescale iMX6 Quad 1 GHz (Automotive) SoC, 1GB Memory, 4GB eMMC, 10/100/1000 Mbps Ethernet, audio, and CAN

P/N-5078Q120100E

Q7M120 heatspread (-40 ˚C ~70 ˚C)

P/N-5078Q120200E

Heatsink (-40 ˚C ~75 ˚C

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

CPU
  • Freescale i.MX6 Series SoC with Quad/DualLite/Solo ARM Cortex™-A9 CPU 800 MHz/ 1 GHz (only Solo)
Chipset
  • SoC integrated
System Memory
  • Onboard DDR3-1600, up to 1GB
BIOS
  • N/A
COM
  • 4 x COM with TX/RX/RTS/CTS (1 with 3.3V TTL level)
  • 1 x Console port
USB
  • 1 x USB 2.0
  • 1 x OTG client
Ethernet
  • 1 x 10/100/1000Mbps
Display
  • 1 x 24-bit TTL signal
  • 2 x Signal channel 24-bit LVDS
  • 1 x HDMI 1080P
Audio
  • Mic-in/Headphone
GPIO
  • 8 button-detect
I2C
  • 3 x I2C
CAN
  • 2 x CANBus 2.0B
SPI
  • 1 channel for 2 chip select
Storage
  • 1 x eMMC flash 4 GB
  • 1 x SDIO interface
  • SATA interface (Quad cores CPU)
Expansion
  • 1 x PCIe x1
Others
  • N/A
Battery
  • Battery on the Baseboard is required
Power Input
  • +5V, 1A
Watchdog Timer
  • N/A
Hardware Monitoring
  • N/A
Operating Temperature
  • -40ºC ~ 85ºC (-40°F ~ 185°F)
Relative Humidity
  • 10% ~ 95%, non-condensing
Dimensions
  • 70 x 70 mm
Board Thickness
  • 1.2 mm
Certifications
  • CE

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.
