OPS880-HM

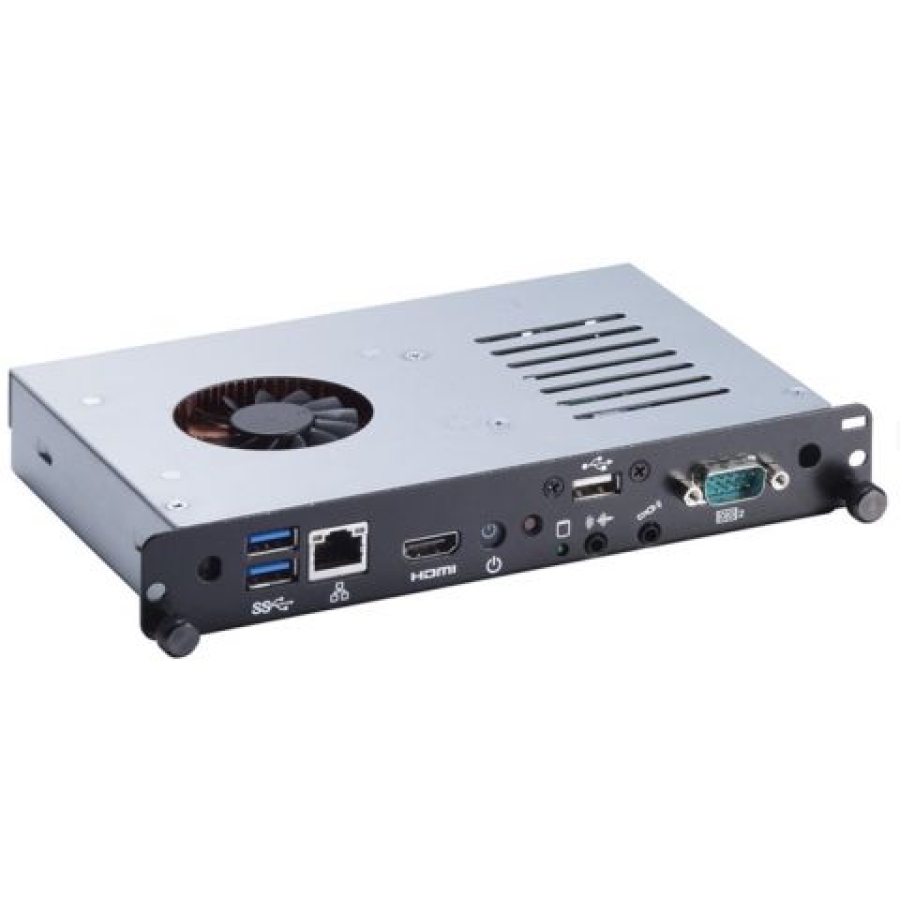

Axiomtek OPS880-HM Intel OPS System with 4th Generation Intel Core Processor

End of Life

4th Gen. Haswell Intel Core i3/i5 OPS Slot PC with HM86 Chipset, up to 8GB Memory, 4K Resolution, HDMI Port, 2 USB 3.0 Ports and 2 PCIe Mini Card Slots

  • Open Pluggable Specification (OPS) compliance
  • Supports 4th gen Intel Core i5/i3 processor (Haswell)
  • Intel HM86 chipset
  • DDR3L-1600 SO-DIMM, up to 8GB
  • 2 x USB 3.0 ports and 2 x PCIe Mini Card slots
  • HDMI for 2nd display
  • Supports 4K resolution
  • Supports TPM 1.2

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The Axiomtek OPS880-HM is powered by 4th Generation Intel Core i5 and i3 processors (codename: Haswell) with the Mobile Intel HM86 Express chipset. The OPS880-HM supports one DDR3L SO-DIMM socket with memory maximum up to 8GB. In addition, it features one mSATA interface as storage device and two PCI Express Mini Card slots for graphics-enhanced video card, wireless LAN card for 802.11 b/g/n and 3G/GPRS, and tuner/AV capture card. The outstanding OPS digital signage module is an ideal choice for various display applications in different environments, e.g., shopping mall, corporate, education, bank, transportation, retail store, restaurant, performing art center.

Ordering Info

OPS880-HM-i3 (P/N-E22M880104) OPS digital signage player supports 4th generation. Intel Core i3 processor onboard (i3-4100E)
OPS880-HM-i5 (P/N-E22M880103) OPS digital signage player supports 4th generation. Intel Core i5 processor onboard (i5-4400E)
AX93157 OPS docking board
AX93167 OPS docking board

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

CPU 4th Generation Intel® Core™ i5/i3 processor (Haswell)
Chipset Intel® HM86
System Memory 1 x 204-pin SO-DIMM DDR3L-1600, up to 8 GB
BIOS AMI
COM 1 x RS-232 (COM 2)
USB 2 x USB 3.0, 1 x USB 2.0
Ethernet 1 x 10/100/1000 Mbps (Intel® i217LM)
Display 1 x HDMI
Audio Line-out/ Mic in

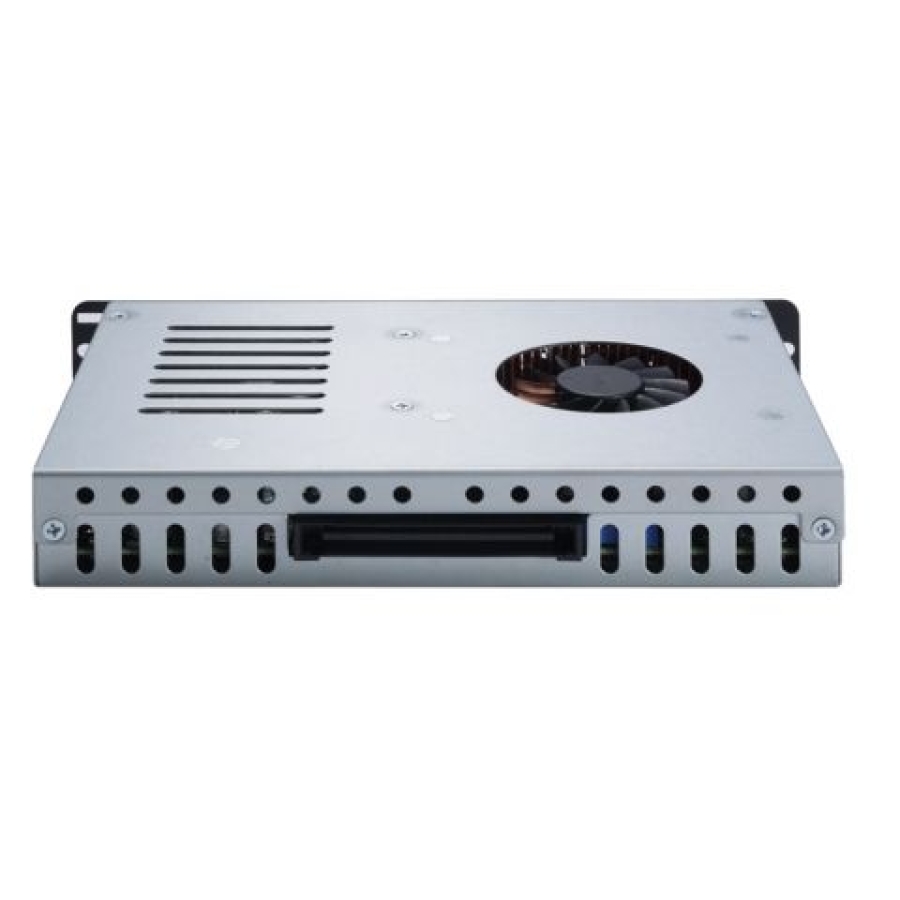

JAE Connector 1 x DisplayPort (via OPS JAE interconnector) (Pure DP), 2 x USB 2.0 (via OPS JAE interconnector), 1x USB 3.0 (via OPS JAE interconnector), 1 x HDMI/DVI (via OPS JAE interconnector), 1 x Audio (Line-out, via OPS JAE interconnector), 1 x UART (TX/RX, via OPS JAE interconnector) (COM1)
Wi-Fi Optional 802.11 b/g/n
Storage 1 x mSATA
Expansion 2 x full-size PCI Express Mini Card, 1 x SIM slot
Power Supply 12VDC ~ 19VDC
Watchdog Timer 255 levels, 1 ~ 255 sec.
Operating Temperature 0°C ~ +45°C (+32°F ~ +113°F)
Dimensions (W x D x H) 200 x 119 x 30 mm (7.87″ x 4.68″ x 1.18″)
Weight (net/gross) 1 kg (2.21 lb)/1.5 kg (3.3 lb)
Certifications CE
