eBOX638-842-FL

Axiomtek eBOX638-842-FL Intel Celeron J1900 Fanless Embedded System w/ 2x PCI

End of Life

  • Brand: Axiomtek
  • Intel Celeron J1900 2.0GHz CPU
  • Wide operating temperature
  • Wide power input
  • 2 x LAN
  • 6 x USB
  • 1 x HDMI, 1 x VGA
  • Size: 192 mm (W) x 230 mm (D) x 115.8 mm (H)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

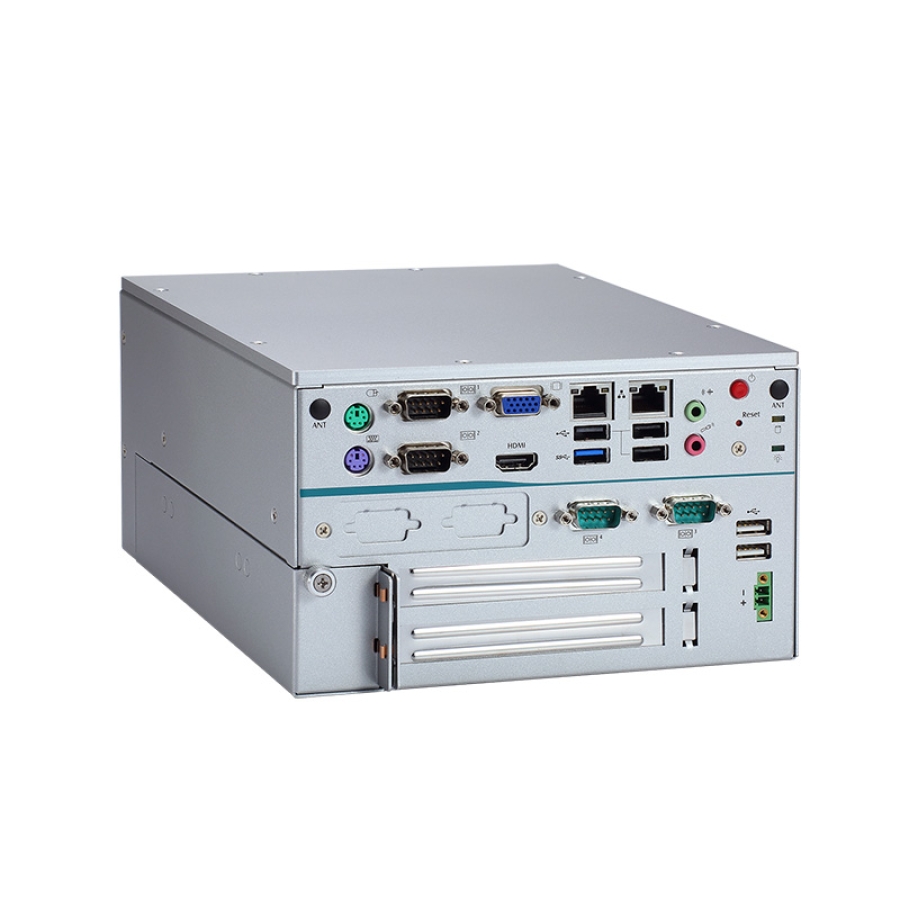

The eBOX638-842-FL from Axiomtek is a fanless embedded system powered by the Intel Celeron J1900 2.0 GHz processor. Designed with 2 x PCI expansion slots, the system is configurable to meet requirements in transportation, surveillance, automation and manufacturing applications.

The embedded box computer is fanless, has a wide operating temperature of between -10°C ~ +55°C and a wide power input of 9 ~ 36 VDC. I/O is plentiful with 4 x COM, 2 x LAN, 6 x USB, 1 x Audio (Mic in-line out), 1 x HDMI, 1 x VGA and 2 x SMA type connector openings for antenna. The expansion interface includes 2 x PCI slots, 1 x Full-size mini-PCIe (PCI Express + USB signal) and 1 x SIM slot.

Ordering Info

  • eBOX638-842-FL – Fanless Embedded System Intel Celeron J1900 CPU 2x PCI

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Construction: Aluminum extrusion and heavy-duty steel, IP40
  • CPU: Intel® Celeron® Quad-Core J1900 2.0 GHz
  • System Memory: 1 x 204-pin DDR3L-1066/1333 SO-DIMM, up to 8GB
  • Chipset: SoC integrated
  • BIOS: AMI
  • System I/O Outlet:
    • 2 x RS-232/422/485 (COM 1/COM 2)
    • 2 x RS-232 (COM 3/COM 4)
    • 1 x Flexible I/O Window
    • 2 x 10/100/1000Mbps Ethernet (Realtek 8111F)
    • 5 x USB 2.0
    • 1 x USB 3.0
    • 1 x Audio (Mic-in/Line-out)
    • 1 x PS/2 keyboard
    • 1 x PS/2 mouse
    • 1 x HDMI
    • 1 x VGA
    • 1 x VDC power input connector
    • 1 x ATX power switch
    • 2 x SMA type connector opening for antenna
  • Watchdog Timer: 255 levels, 1 ~ 255 sec.
  • Storage:
    • 1 x 2.5” SATA HDD drive bay, max. up 15 mm height
    • 1 x mSATA (optional)
  • Expansion Interface:
    • 2 x PCI slots
    • 1 x Full-size mini-PCIe (PCI Express + USB signal)
    • 1 x SIM slot
  • System Indicator:
    • 1 x green for system power
    • 1 x yellow LED for HDD active
  • Power Supply: 9 ~ 36 VDC
  • Operating Temperature: -10°C ~ +55°C (14°F ~ +131 F ) (with W.T. DRAM & SSD)
  • Humidity: 10% ~ 90%, non-condensing
  • Vibration Endurance: 2 Grms with SSD(5-500 Hz, X, Y, Z directions)
  • Dimensions: 192mm (7.56”) (W) x 230 mm (9.05”) (D) x 115.8 mm (4.56″) (H)
  • Weight: (net/gross) 4.1 kg (9.03 lb) /4.8 kg (10.58 lb)
  • Certificate: CE compliance
  • EOS support: WES7, Win10 IoT
