OFT-07WR1

Name: Avalue OFT-07WR1 7" RockChip RK3288W Open Frame Tablet
SKU: OFT-07WR1
Availability: InStock

Avalue

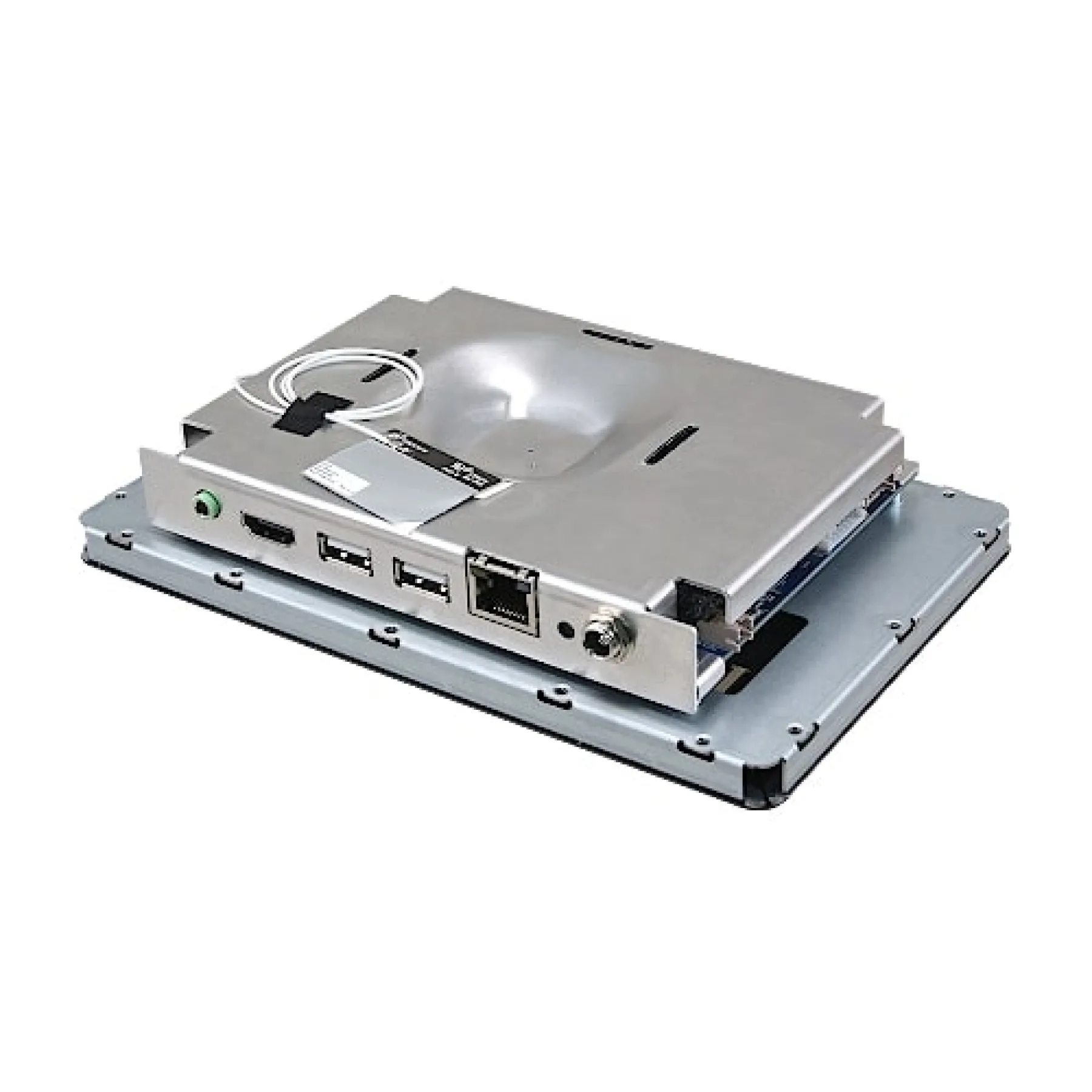

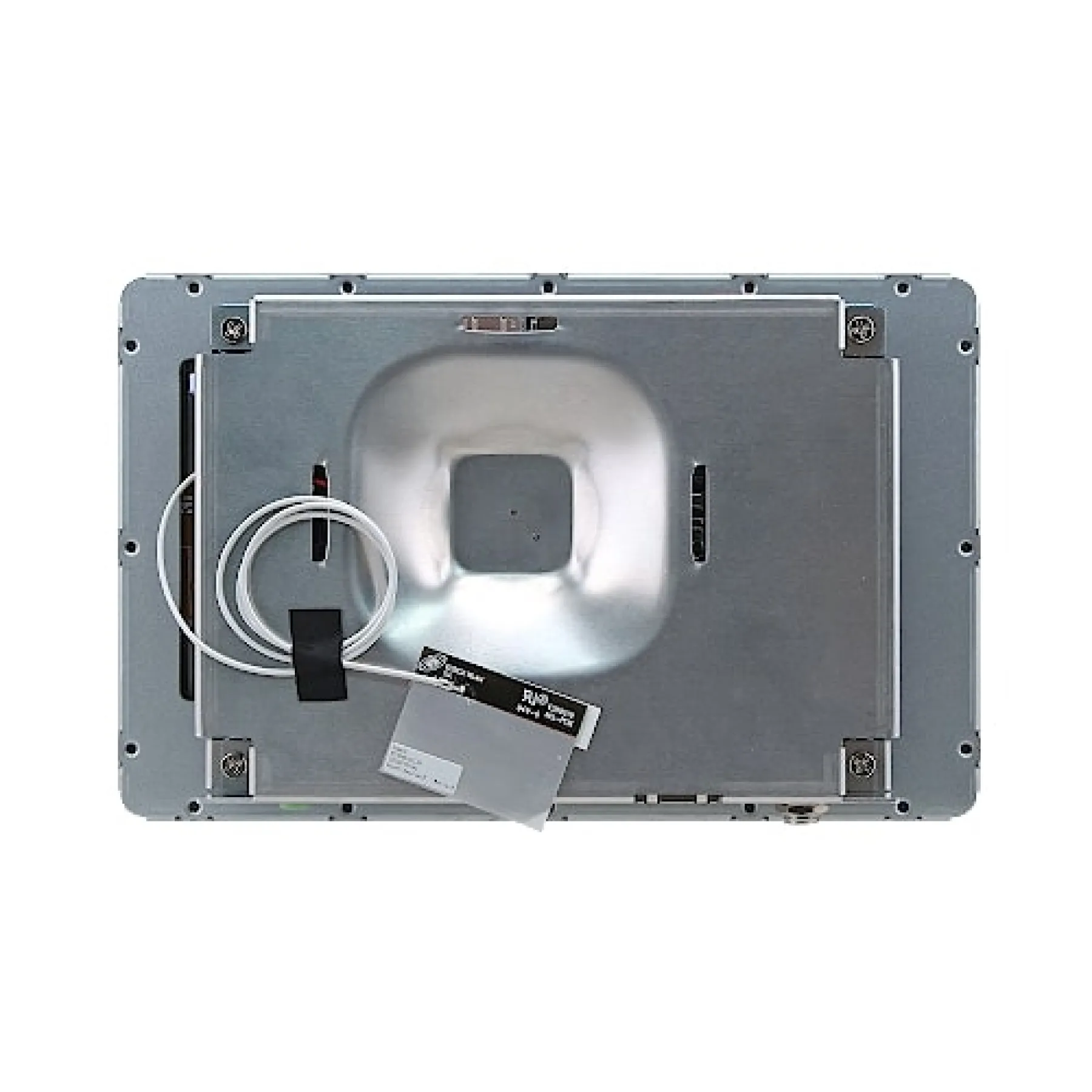

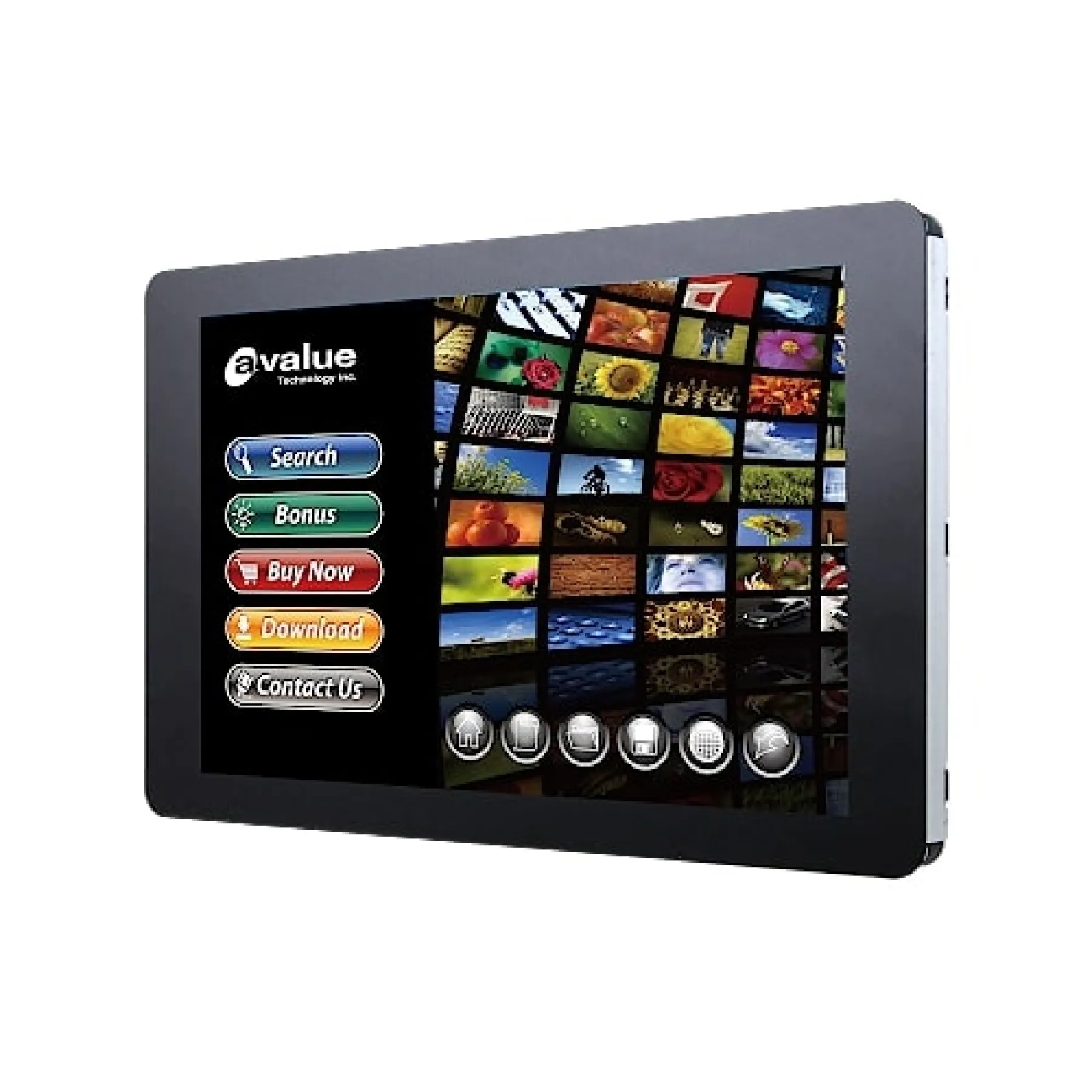

Avalue OFT-07WR1 7″ RockChip RK3288W Open Frame Tablet

OFT-07WR1

RockChip RK3288W Cortex-A17，Quad Core 1.6GHz
2GB RAM
16GB eMMC
PCAP Touch
10/100/1000 Ethernet
M.2 B-Key(3042) connector socket
802.11 b/g/n Wireless LAN
DC 12~24V Input
G sensor
Optional Powered LAN 802.3AT
OS Image support Android 8.1
Battery Charger Note : You need a 19v or a 24v power adapter to fully charge the battery. You cannot fully charge the battery with a 12v power adapter.

Product Code: OFT-07WR1

Categories: Avalue, Industrial Panel PCs, Industrial Touchscreen Computers, Open Frame Panel PCs, RISC Based HMIs

Range: Avalue

Details

The Avalue OFT-07WR1 is a 7″ Open Frame Tablet. This Panel PC supports RockChip RK3288W Cortex-A17 Processor.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

Datasheet (OFT-07WR1) (PDF)

0.13MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Touch Technology	Projected Capacitive
Brightness	300nit, Standard
Resolution	1280x800, HD
Memory Capacity	Up to 2GB
USB Ports	2 Ports, 2 Ports, USB Type-A
Ethernet Ports (LAN)	1x 1G
Wireless	Wi-Fi
Audio	Yes
Video Ports	1x HDMI, 1 Port, 2 Ports, MIPI
Storage Type	1, eMMC
Input Voltage	12-24 VDC
Operating Temperature	0°C to 40°C, Standard
Certifications	CE/FCC
OS Support	Android
