EMX-QM77

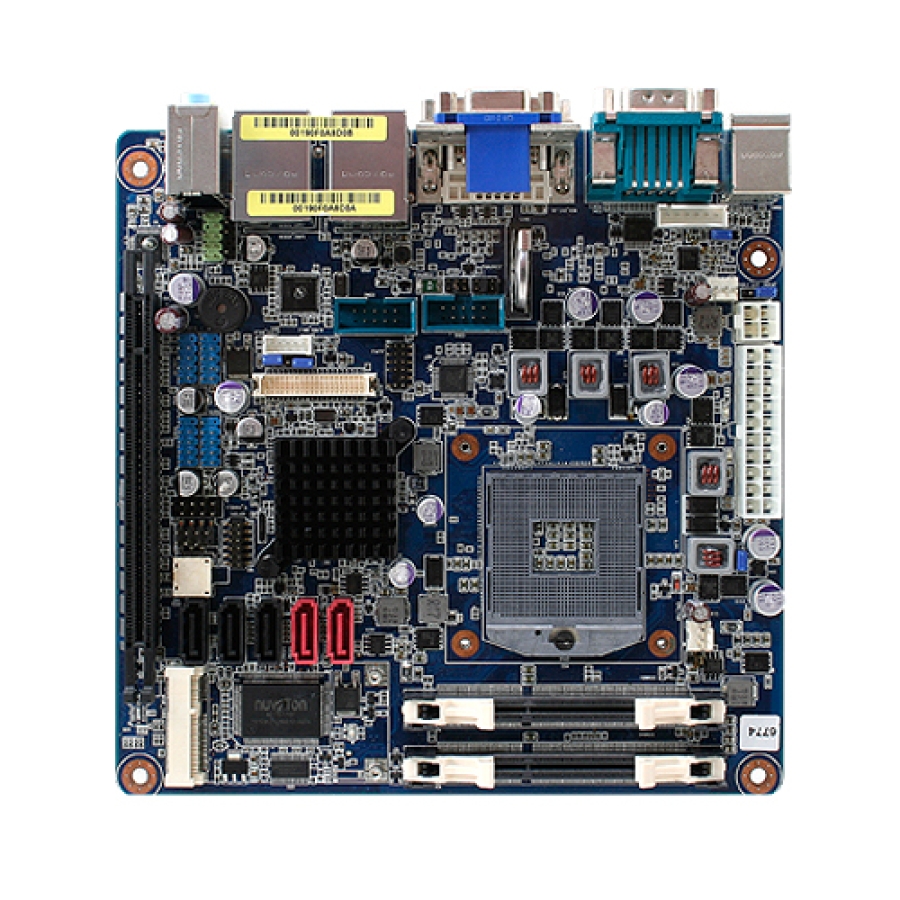

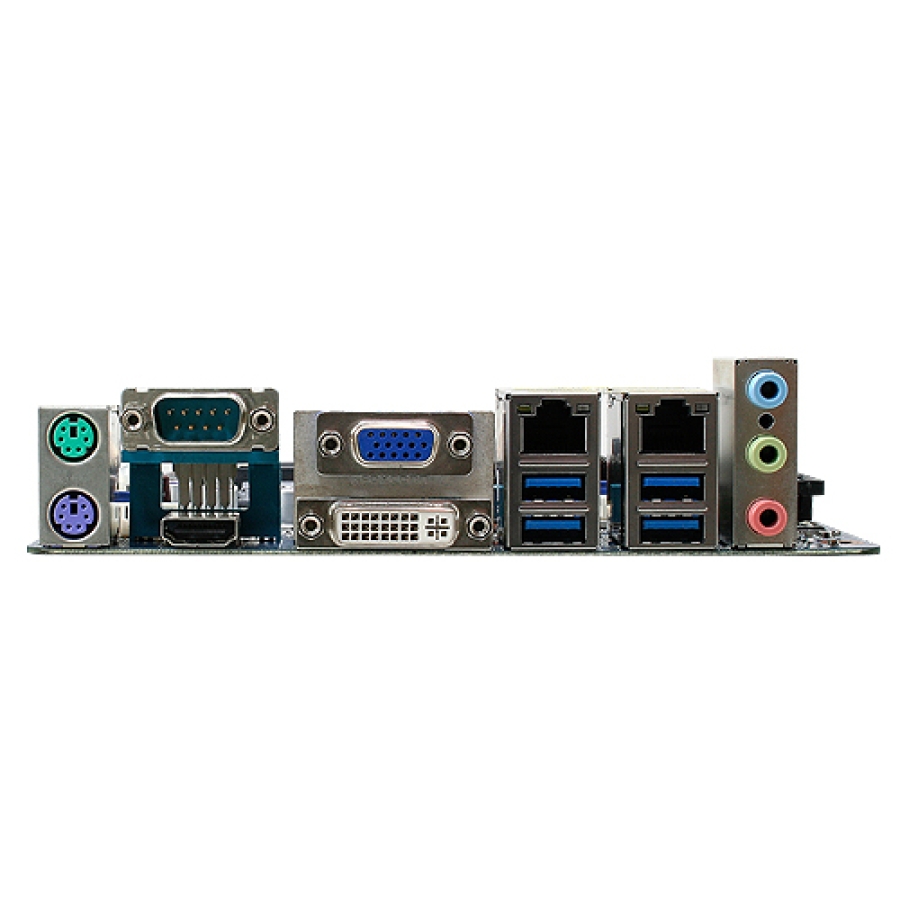

Avalue EMX-QM77 Intel 3rd Gen. Core i7/i5/i3 Mini ITX Motherboard

End of Life

  • Intel rPGA988 Socket Supports Intel 3rd Generation CoreTM i7/i5/i3 Processors
  • Intel QM77 Express Chipset
  • Two 204-pin SO-DIMM Sockets support up to 16GB Dual Channel, DDR3 1333/1600 MHz
  • VGA, HDMI, DVI, Dual-channel 18/24-bit LVDS
  • 1 x Intel 82583V PCI-e Gigabit Ethernet
  • 1 x Intel 82579LM PCI-e Gigabit Ethernet PHY
  • Realtek ALC892 Supports 5.1-CH HD Audio Codec
  • 1 x Mini PCI-e, 1 x PCI-e x 16, 1 x CFast
  • 2 x SATA III, 3 x SATA II
  • 4 x USB 3.0, 8 x USB 2.0
  • 3 x RS-232, 1 x 8-bit GPIO
  • iAMT 8.0
  • TPM 1.2
  • AT/ATX Power

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The Avalue EMX-QM77 comes with Intel rPGA988 Socket Supports Intel 3rd Generation CoreTM i7/i5/i3 Processors and Intel QM77 Express Chipset.

Ordering Info

EMX-QM77-A1R Intel 3rd Generation CoreTM i7/ i5/ i3 Mini ITX Motherboard with Intel QM77 Express Chipset

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Processor Intel® rPGA988 Socket Supports Intel® 3rd Generation CoreTM i7/i5/i3 Processors
System Chipset Intel® QM77 Express Chipset
System Memory 2 x 204-Pin DDR3 1333/1600 MHz SO-DIMM supports up to 16 GB
I/O Chip NCT6776F
BIOS AMI uEFI BIOS, 64Mbit SPI Flash ROM
Watchdog Timer H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
H/W Status Monitor Monitoring System Temperature and Voltage with Auto Throttling Control
Expansion 1 x PCI-e x 16, 1 x Mini PCI-e, 1 x Cfast
USB 4 x USB 3.0, 8 x USB 2.0
SATA 2 x SATA III, 3 x SATA II
COM Port 3 x RS-232
DIO 1 x 8-bit GPIO
MIO 1 x PS/2 Keyboard, 1 x PS/2 Mouse
Other TPM 1.2 SLB9635, 1 x S/PDIF-out Header
Chipset Intel® 2nd/ 3rd Generation CPU integrated VGA + LVDS, VGA + HDMI, VGA + DVI, HDMI + LVDS, HDMI + DVI, LVDS + DVI
Resolution VGA: 2048 x 1536 @ 60Hz HDMI: 1920 x 1200 @ 60HzLVDS: 1920 x 1200 @ 60HzDVI: 1920 x 1200 @ 60Hz
Chipset Realtek ALC892 supports 5.1-CH
Audio Interface Mic-in, Line-in and Line-out
Chipset 1 x Intel® 82583V , 1 x Intel® 82579LM
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ-45
Power Requirement +12V/+5V/5Vsb/+3.3V/-12V
Power Type AT/ATX
Operating Temp 0°C ~ 60°C (32°F ~ 140°F)
Storage Temp -40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Dimension (L x W) 6.69″ x 6.69″ (170mm x 170mm)
Weight 1.03lbs (0.47kg)
