EAX-Q87R

Avalue EAX-Q87R 4th Gen Intel Core i5/i7/i3, Pentium and Celeron ATX Motherboard

End of Life

  • Intel® LGA1150 Socket Supports 4 Generation Core Refresh i7/ i5/ i3, Pentium and Celeron Processors
  • Intel® Q87 Chipset (Co-lay C226 Chipset)
  • 4 x 240-pin DDR3 1333/1600 MHz DIMM supports up to 32GB
  • VGA, DP, DVI
  • Realtek ALC892 Supports 5.1-CH HD Audio Codec
  • 1 x Intel® I217LM PCI-e Gigabit Ethernet PHY
  • 1 x Intel® I210AT PCI-e Gigabit Ethernet
  • TI TPA3005D2 Stereo Class-D 6W x 2 Audio Amplifier
  • 1 x PCI-e x 16, 4 x PCI(Support 5V), 1 x PCI-e x 4, 1 x PCI-e x 1
  • 6 x SATA III, 4 x USB 3.0, 9 x USB 2.0

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

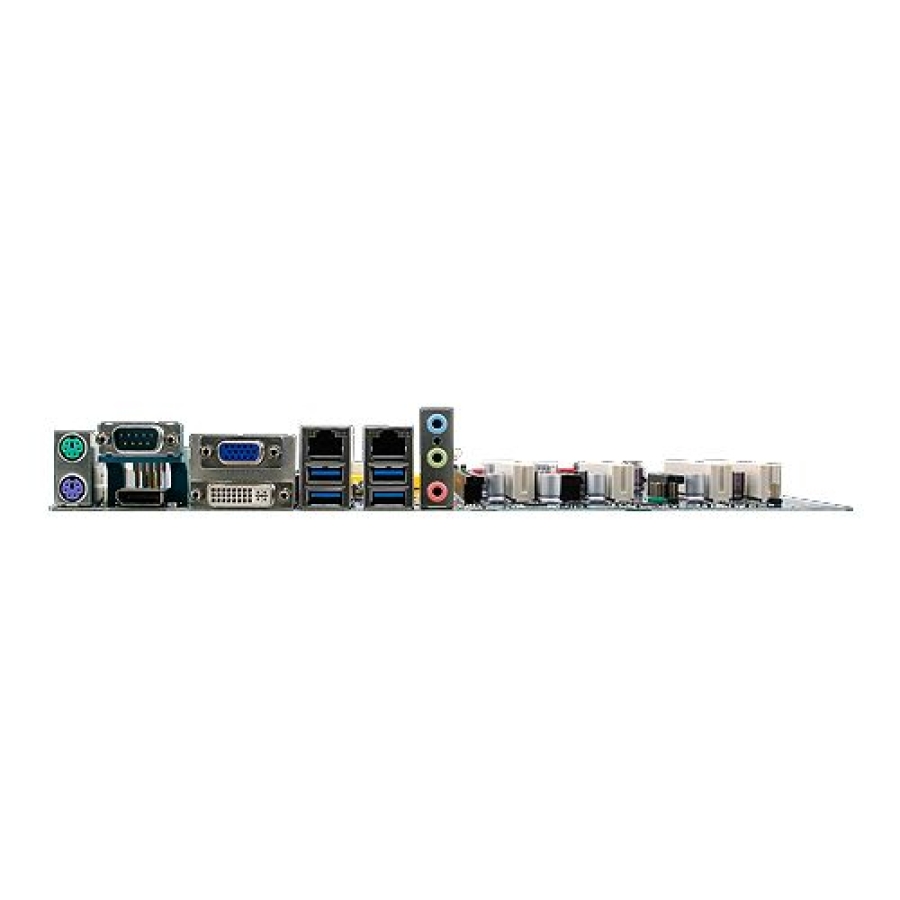

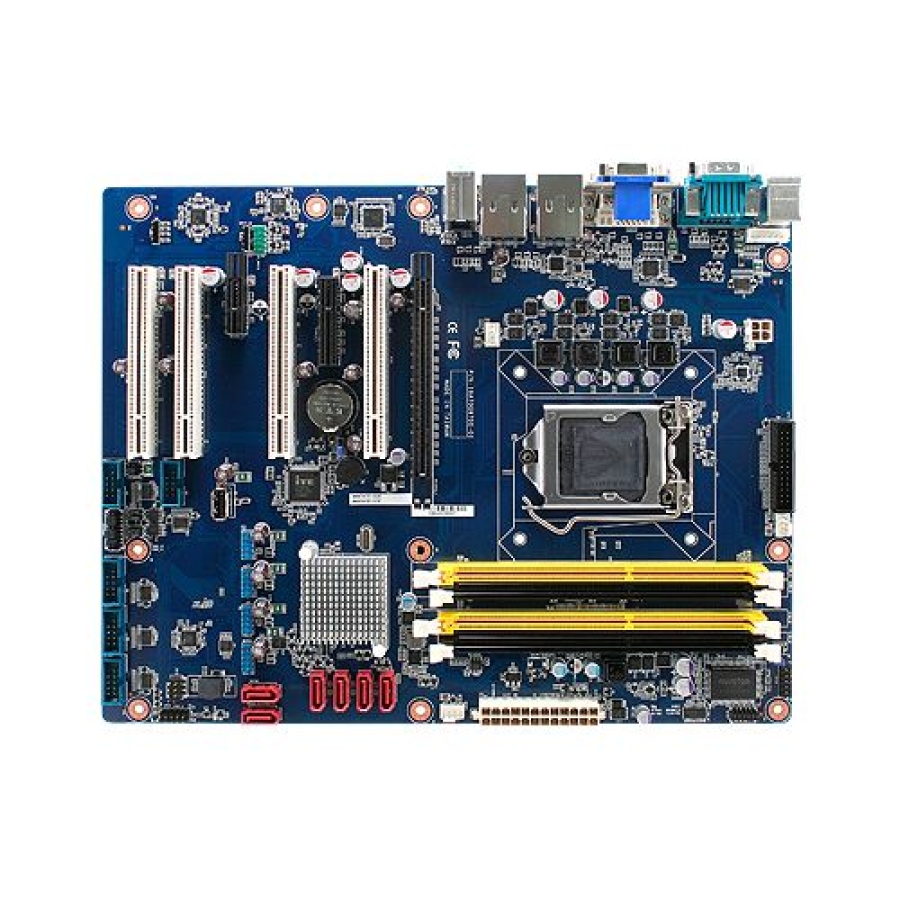

The Avalue EAX-Q87R is an industrial ATX motherboard powered by 4th Generation Intel Core i7/i5/i3, pentium and celeron processors with Intel Q87 Chipset. It contains 4 x 240-pin DDR3 1333/1600 MHz DIMM supports up to 32GB.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Processor Intel® LGA1150 Socket Supports 4th Generation Core™ Refresh i7/ i5/ i3, Pentium® and Celeron® Processors (Max. TDP at 95W)
System Chipset Intel® Q87 Chipset (Co-lay C226 Chipset)
System Memory 4 x 240-Pin DDR3 1333/1600 MHz DIMM supports up to 32 GB
I/O Chip Nuvoton NCT6776F
BIOS AMI uEFI BIOS, 64Mbit SPI Flash ROM
Watchdog Timer H/W Reset, 1sec. ~ 65535sec./min. 1sec. or 1min. Step
H/W Status Monitor Monitoring System Temperature and Voltage with Auto Throttling Control
Expansion 4 x PCI (Support 5V), 1 x PCI-e x 16, 1 x PCI-e x 4, 1 x PCI-e x 1
USB 9 x USB 2.0, 4 x USB 3.0
SATA 6 x SATA III
COM Port 5 x RS-232, 1 x RS-232/422/485
DIO 1 x 8-bit GPIO
MIO 1 x PS/2 Keyboard, 1 x PS/2 Mouse
Chipset Intel® 4th Generation CPU integrated
Resolution VGA: 1920 x 1200 @ 60HzDVI: 1920 x 1200 @ 60HzDP: 3840 x 2160 @ 24Hz
Chipset l x Realtek ALC892 supports 5.1-CH
Audio Interface Mic-in, Line-in and Line-out
Audio Amplifier TI TPA3005D2 Stereo Class-D 6W x 2 Audio Amplifier
Chipset 1 x Intel® I210AT, 1 x Intel® I217LM
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ-45
Power Requirement +12V/+5V/5Vsb/+3.3V/-12V
Power Type AT/ATX
Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Dimension (L x W) 12″ x 9.6″ (304.8 mm x 243.84 mm)
Weight 1.32lbs (0.6 kg)
Ordering Information EAX-Q87R-A1RIntel® LGA1150 Socket Supports 4th Generation Core™ Refresh i7/ i5/ i3, Pentium® and Celeron® Processors ATX Motherboard With Intel® Q87 Chipset
Power Requirement +12V/+5V/5Vsb/+3.3V/-12V
