EAX-H81P

Avalue EAX-H81P 4th Gen Intel Core i5/i7/i3, Pentium and Celeron ATX Motherboard

End of Life

  • Intel LGA1150 Socket Supports 4th Generation Core
  • Refresh i7/ i5/ i3, Pentium and Celeron Processors (Max. TDP at 95W)
  • Intel® H81 Chipset
  • 2x 240-pin DDR3 1333/1600MHz DIMM socket, supports up to 16GB Max
  • VGA, HDMI, DP++
  • 2 x SATA II, 2 x SATA III
  • 1 x PCI-e x16
  • 1 x PCI-e x2 (Using PCI-e x 4 slot broken hole type),1 x PCI-e x1 (Using PCI-e x 4 slot broken hole type)
  • 4 x PCI
  • 4 x USB 2.0 by pin header by HUB
  • 4 x USB 2.0 at I/O, 1 x USB 2.0 Type A connector.

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

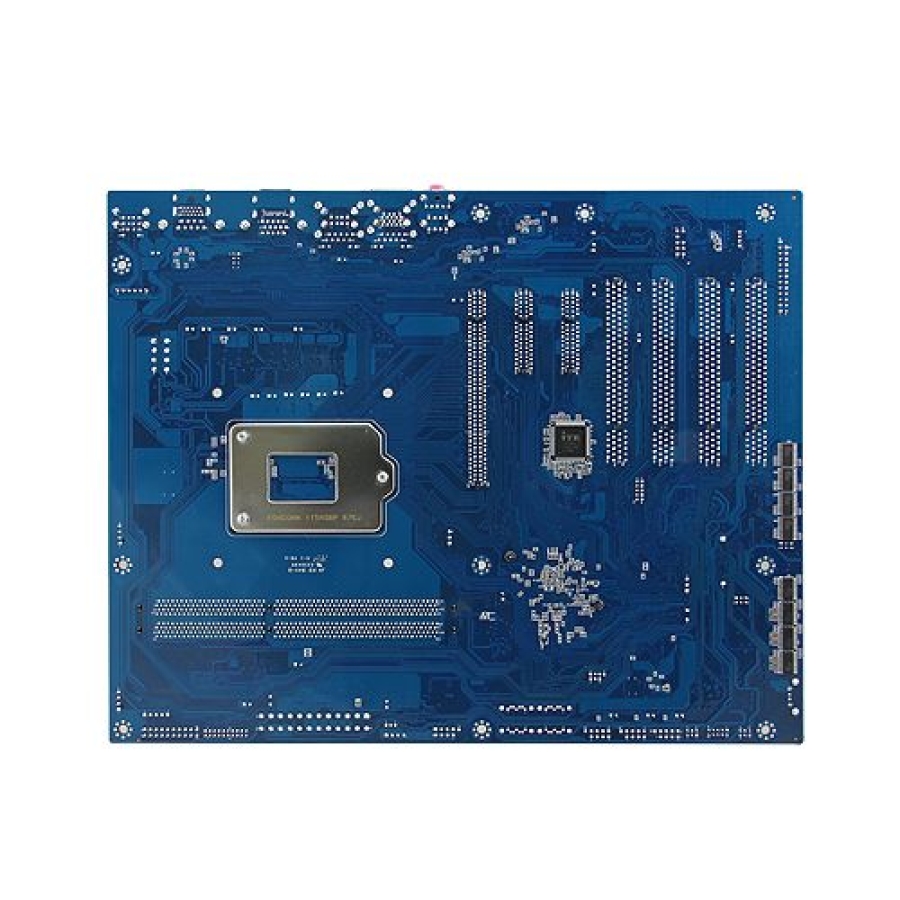

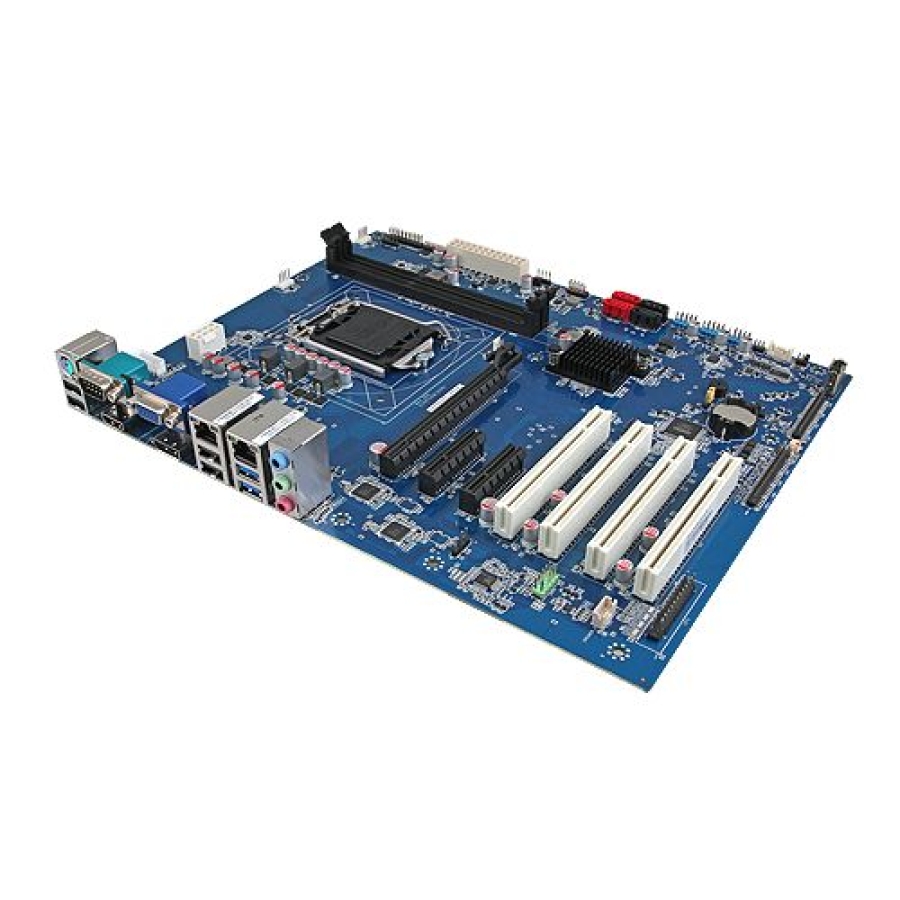

The Avalue EAX-H81P is an industrial ATX motherboard powered by Intel LGA1150 Socket Supports 4th Generation Core and Refresh i7/ i5/ i3, Pentium and Celeron Processors with Intel H81 Chipset. It contains 2x 240-pin DDR3 1333/1600MHz DIMM socket, supports up to 16GB Max.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Processor Intel® LGA1150 Socket Supports 4th Generation Core™ Refresh i7/ i5/ i3, Pentium® and Celeron® Processors (Max. TDP at 95W)
System Chipset Intel® H81 Chipset
System Memory 2x 240-pin DDR3 1333/1600MHz DIMM socket, supports up to 8GB Max
I/O Chip Nuvoton® NCT6106D
BIOS AMI uEFI BIOS, 64Mbit SPI Flash ROM
Watchdog Timer H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step
H/W Status Monitor CPU temperature monitoring, Voltages monitoring, CPU fan speed control
TPM Optional Onboard Infineon SLB9635TT1.2 support TPM 1.2
Board ATX Board
Expansion 4 x PCI, 1 x PCI-e x 16, 1 x PCI-e x2 (Using PCI-e x 4 slot broken hole type), 1 x PCI-e x1 (Using PCI-e x 4 slot broken hole type)
Storage 2 x SATA III 2 x SATA II
USB 6 x USB 2.0 by pin header, 4 x USB 2.0 at I/O, 1 x USB 2.0 Type A connector, 2 x USB 3.0 at I/O
SATA 2 x SATA III, 2 x SATA II
COM Port 10 x RS232 (2 x RS-422/485)
DIO 1 x 16-bit GPIO
MIO 1 x PS/2 Keyboard or PS/2 Mouse with Dual deck USB 2.0
Chipset Intel® H81 Express chipset
Resolution VGA: 2048 x 1536 @ 60 Hz, HDMI: 3840 x 2160 @ 30 Hz, 2560 x 1600@ 30 Hz, (Note: This resolution is actual test result. Intel resolution: 4096×2304 @ 24 Hz,2560×1600 @ 60 Hz), DP: 3840×2160@60Hz
Multiple Display Dual Display
Chipset Realtek ALC892
Audio Interface Line-in, Mic-in, Line-out
Audio Amplifier 1 x 3W Amplifier
Chipset 2 x Intel® I211AT PCI-e Gigabit Ethernet
LAN Port 2 x RJ-45
Power Requirement +12V / +5V / 5VSB /+3.3V / -12V
ACPI Single power ATX Support S0, S3, S4, S5
Power Type AT/ATX
Operating Temperature 0~60°C (32~140°F)
Storage Temperature -40 ~ 75°C
Operating Humidity 0%~90% relative humidity, non-condensing
Dimension (L x W) 12″ x 9.6″ (304.8mm x 243.84mm)
Weight 1.32lbs (0.6 kg)
Ordering Information EAX-H81P-A1R, Intel® LGA1150 Socket Supports 4th Generation Core™ Refresh i7/ i5/ i3, Pentium® and Celeron® Processors ATX Motherboard with Intel® H81 Chipset
