EL630-NR

DFI

DFI EL630-NR ATX Intel Q45 Core 2 Quad/Duo with 1 PCIe[x16],[x4] & 5 PCI

End of Life

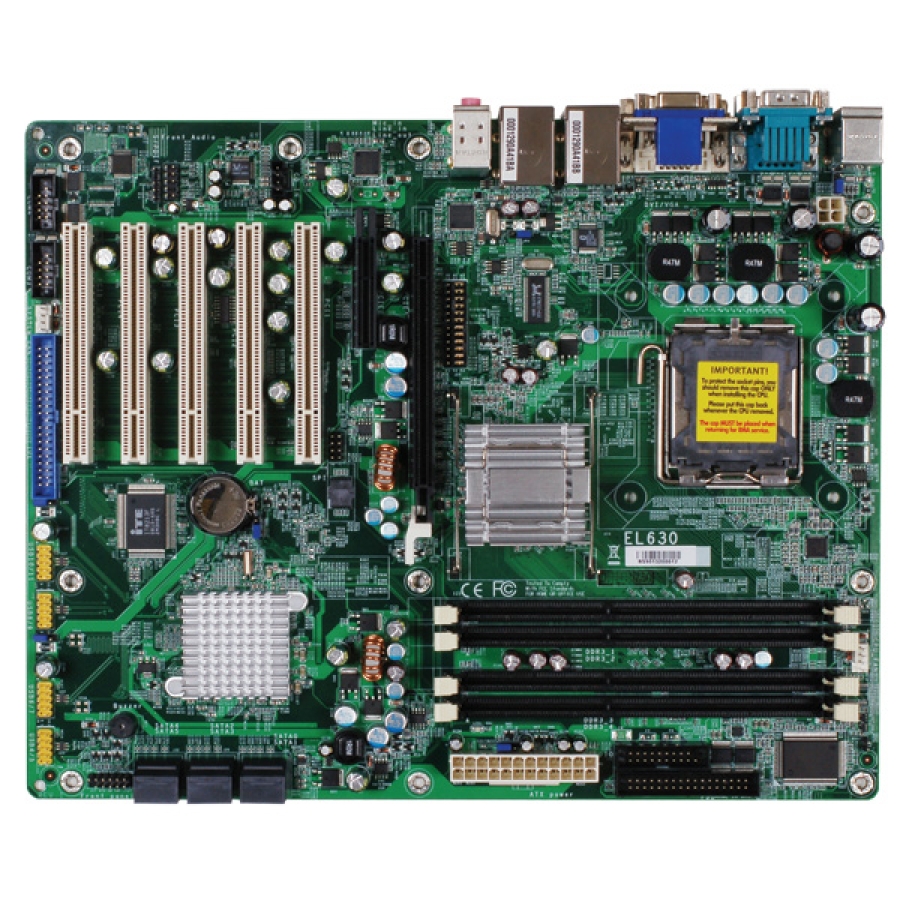

The EL630-NR from DFI is a long life cycle ATX motherboard designed for use in industrial applications. The board is based around Intel's Q45 chipset and LGA 775 socket for use with Intel Core 2 Quad, Core 2 Duo, Pentium and Celeron processors. The board is packed with features including support for 8GB of DDR3 memory, Intel GMA 4500 graphics with DVI-I & VGA, HD Audio, 6 x SATA ports supporting RAID 0/1/5/10, 1 x PCIe [x16], 1 x PCIe [x4], and 5 x PCI expansion slots. Connectivity is provided by 12 x USB, 2 x Gigabit LAN, 4 x COM and 8-bit Digital I/O.

  • Brand: DFI
  • Intel Core 2 Quad, Core 2 Duo, Pentium & Celeron CPU options
  • 12 x USB
  • 1 x PCIe [x16], 1 x PCIe [x4], and 5 x PCI expansion slots
  • Size: 305mm (W) x 244mm (D)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The EL630-NR from DFI is a long life cycle ATX motherboard designed for use in industrial applications. The board is based around Intel's Q45 chipset and LGA 775 socket for use with Intel Core 2 Quad, Core 2 Duo, Pentium and Celeron processors. The board is packed with features including support for 8GB of DDR3 memory, Intel GMA 4500 graphics with DVI-I & VGA, HD Audio, 6 x SATA ports supporting RAID 0/1/5/10, 1 x PCIe [x16], 1 x PCIe [x4], and 5 x PCI expansion slots. Connectivity is provided by 12 x USB, 2 x Gigabit LAN, 4 x COM and 8-bit Digital I/O.

Ordering Info

  • EL630-NR: Industrial ATX Intel Q45 Core 2 Quad/Duo with 1 x PCIe[x16],[x4] & 5 x PCI Slots

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • CPU: LGA 775 socket for Intel Core 2 Quad, Core 2 Duo, Pentium & Celeron processors
  • Chipset: Intel Q45+ICH10DO
  • Memory: 4 x 240-pin DDR DIMMs up to 8GB
  • Graphics: Intel GMA 4500 Graphics supporting DVI-I and VGA
  • Audio: Realtek ALC262 2-channel High Definition Audio
  • Serial: 4 x RS-232
  • USB: 12 ports
  • Ethernet: 2 x 10/100/1000
  • Digital I/O: 8 channels
  • Storage: 6 x SATA, 2 IDE
  • Expansion: 1 x PCIe[x16], 1 x PCIe[x4] & 5 x PCI Slots
  • Operating Temperature: 0-60 degrees centigrade
  • Compliance: CE, FCC
