M-508

Artila M-508 Linux-ready ARM9 Single Board Computer w/ 1x LAN & 4x Serial Ports

M-508

• Linux 2.6.14 compatible computing platform• 64MB SDRAM and 32MB NOR Flash• Ultra-low power consumption, less than 3 Watts• 1 x 10/100Mbps Ethernet port• 4 x 921.6Kbps RS-232 / 485 TTY ports• 2 x USB 2.0 host ports for functionality expansion• 1 x SD memory card slot inside for storage expansion• 32 x CMOS-level digital I/Os (GPIO)• Single 5V power input• GNU C / C++ toolchain for Linux / Windows environment

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

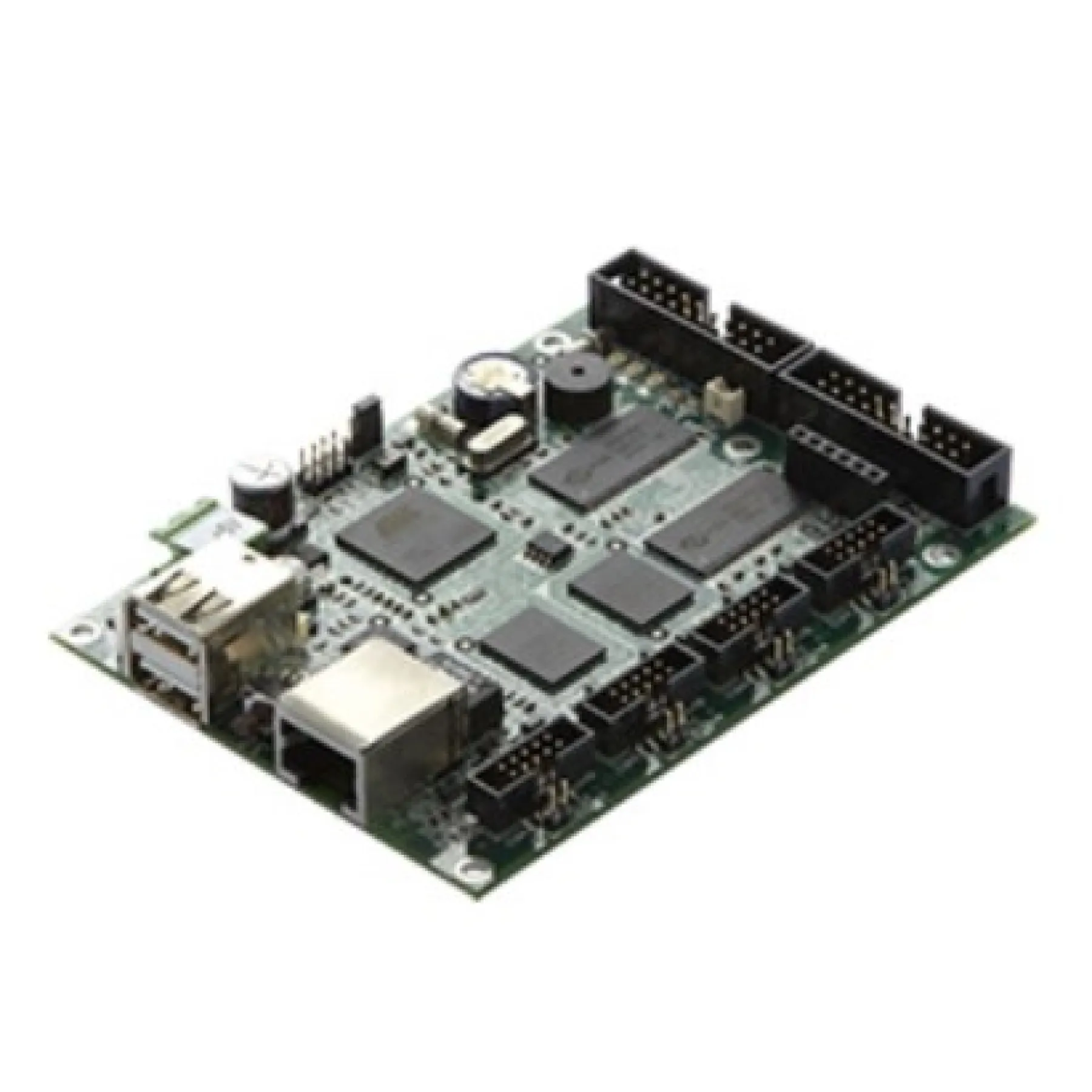

The Artila Electronics M-508 is a Linux-ready ARM9 single board computer. The M-508 provides up to 64MB SDRAM memory whilst also incorporating 4x Serial ports, 1x LAN and 2x USB ports. This single board computer also comes with the option for a wide operating temperature.

Ordering Info

M-508 Linux-ready ARM9 Single Board Computer with 32MB NOR Flash, 64MB SDRAM
M-508T Wide-temperature Linux-ready ARM9 Single Board Computer with 32MB NOR Flash, 64MB SDRAM, 512KB non-volatile SRAM

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

CPU ATMEL 180MHz AT91RM9200 (ARM9, w/ MMU)
Memory 64MB SDRAM, 32MB NOR Flash
SRAM 512KB, non-volatile (M-508T only)
Network Interface Type 1 x 10/100BaseT, RJ45 connector
Network Interface Protection 1.5KV magnetic isolation
TTY (Serial) Ports  – 4 x RS-232 / 485 ports, software select –  Port 2: Supports full modem signals –  Port 4: Also supports RS-422 mode –  Connector: 10-pin header, male
Serial Port Baud Rate  Up to 921.6 Kbps
Serial Port Parity  None, Even, Odd, Mark, Space
Serial Port Data Bits  5, 6, 7, 8
Serial Port Stop Bits 1, 1.5, 2
Serial Port Flow Control RTS / CTS, XON / XOFF, None
USB Host Ports 2, USB 2.0 compliant
USB Speed Supports low-speed (1.5Mbps) and full-speed (12Mbps) data rate
CMOS-level Digital I/Os (GPIO) No. of Pins: 32Each pin can be programmed as input or output
Mass Storage 1 x SD 1.0 compliant socket
Watchdog Timer Yes, for kernel use
Real Time Clock Yes
Buzzer Yes
Power Input  +5VDC, 600mA typical
Board Dimensions 105 x 75mm
Operating Temperature M-508: 0~70ºC (32~158ºF)M-508T: -20~80ºC (-4~176ºF)
Operating System Linux, kernel 2.6.14
Boot Loader U-Boot 1.1.2
File Systems JFFS2, ETX2 / ETX3, VFAT / FAT, NFS
Protocol Stacks IPv4, ICMP, ARP, DHCP, NTP, TCP, UDP, FTP, TELNET, HTTP, PPP, PPPoE, CHAP, PAP, SMTP, SNMP V1 / V2, SSL, SSH 1.0 / 2.0
Utilities bash: shell command tinylogin: login and user manager utilitytelnet: telnet client programbusybox: Linux utility collectionftp: ftp client program
Daemons pppd: dial in / out over serial port and PPPoEsnmpd: SNMP agent programtelnetd: telnet server programinetd: TCP server programftpd: ftp server programboa: web server programsshd: secured shell serveriptables: firewall service manageramgrd: Artila manager daemon
Toolchain for Linux GCC: C / C++ PC cross compiler for Linux, CygwinGLIBC: POSIX Library
Device Drivers SD / MMC, UART, Real Time Clock, Buzzer, Digital I/O, Ethernet, Watchdog Timer
USB Host Drivers Flash diskWiFi (IEEE-802.11b/g) RS-232 adapters
Memory Capacity 64MB
COM Ports 4x RS-232/485
LAN Ports 1 Port
USB Ports 2x USB 2.0
Storage 1x SD CARD
Operating Temperature -20°C to 80°C, 0°C to 70°C
