PPC-Z177

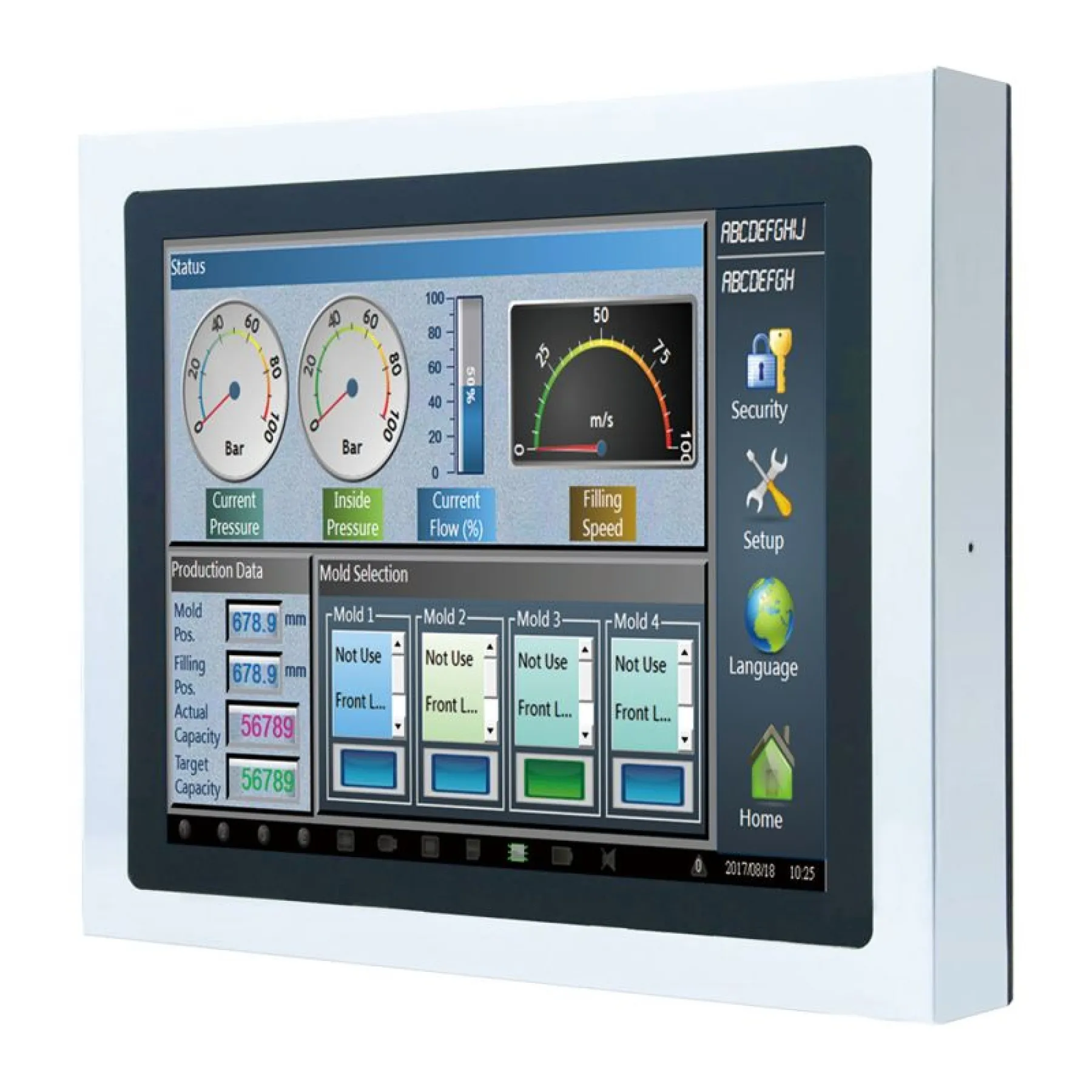

Arestech 17″ Intel Core/Celeron Fanless Multi-touch IP66 Full Waterproof Panel PC

PPC-Z177

  • Brand: Arestech
  • Intel Core i5-6200U Dual-Core up to 2.8 GHz or Intel Celeron 3955U Dual-Core up to 2.0 GHz CPU options
  • Supports two-finger touch control whilst wearing gloves
  • Stainless steel full IP66 enclosure
  • Size: 439mm (W) x 373mm (H) x 66.9mm (D)
-
+

Details

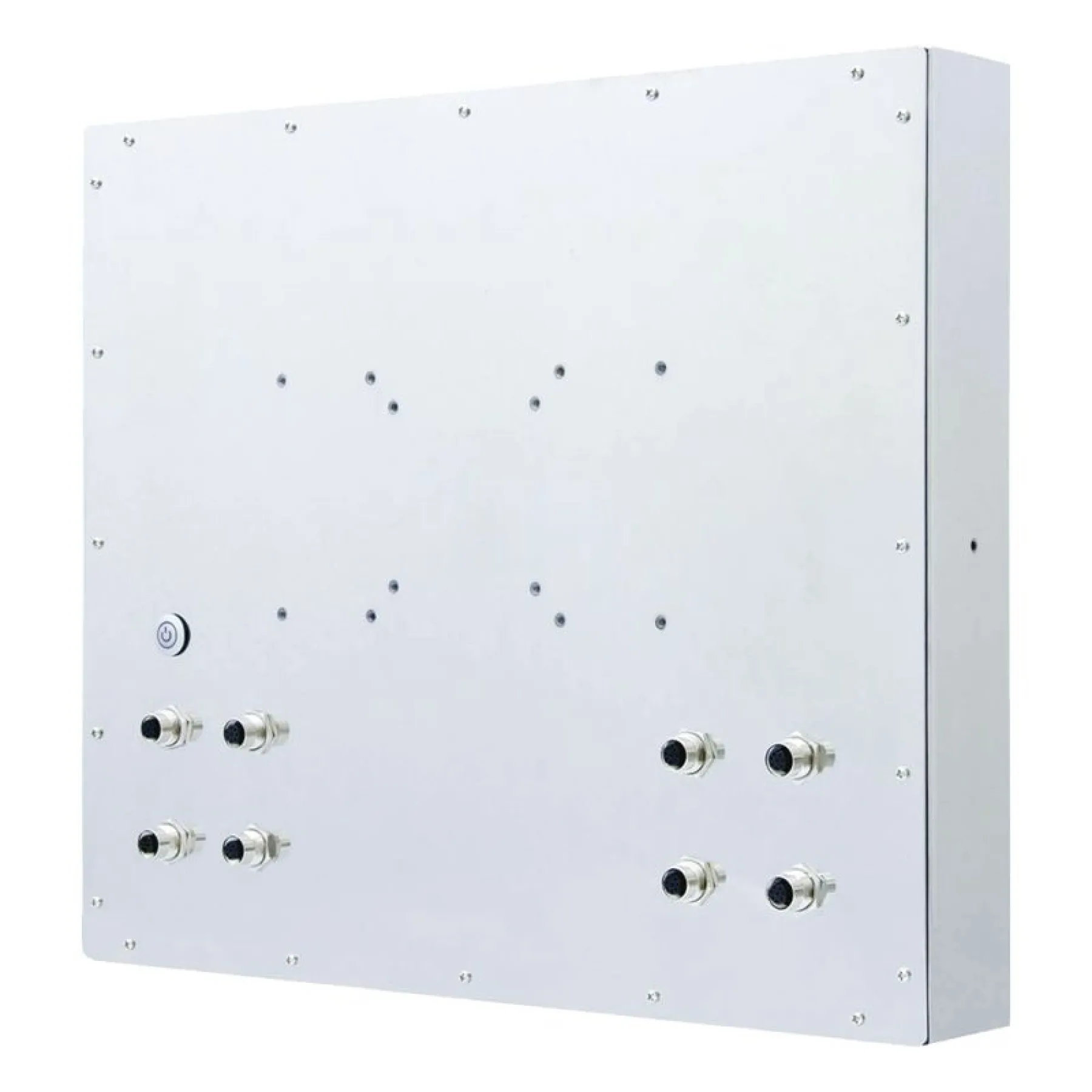

The PPC-Z177 from Arestech is a fully sealed, IP66 panel PC powered by a choice of 2 Intel (Skylake) dual core processors; the i5-6200U or Celeron 3955U. With M12 connectors and stainless steel enclosure, this system can be jet washed down for food & beverage, pharmaceutical, biopharmaceutical, chemical, oil or gas applications. The PPC-Z177 has a 17 inch LCD panel with a resolution of 1280 x 1024 and a brightness of 350 NITS. It has projected capacitive touch technology which supports two-finger touch whilst wearing gloves. I/O includes 4 x USB 2.0, 2 x GbE LAN and 2 x COM which have M12 connectors and there is 1 x full size Mini PCIe for expansion. The operating temperature is between -20~60° C and the power supply range is between 12-28 V DC.

Ordering Info

  • PPC-Z177P-1A1 – 17” Fanless Projected Capacitive Touch Panel PC, Full IP66 Protection, Intel® Core™ i5 6200U Processor, 2 GbE LAN, 4 USB 2.0, 2 COM, M12 Connectors
  • PPC-Z177P-2A1 –  17” Fanless Projected Capacitive Touch Panel PC, Full IP66 Protection, Intel® Celeron® 3955U Processor, 2 GbE LAN, 4 USB 2.0, 2 COM, M12 Connectors

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Display: 17” SXGA LCD Panel
  • Touchscreen: Projected Capacitive
  • Resolution: 1280 x 1024 (SXGA)
  • Brightness: 350 nits
  • CPU: Intel Core i5-6200U Dual-Core up to 2.8 GHz or Intel Celeron 3955U Dual-Core up to 2.0 GHz
  • Memory: DDR4 2133 MHz SDRAM 4Gb
  • USB: 4 USB 2.0, M12 Connector
  • COM: 2 COM (1 RS-232, 1 RS-232/422/485), M12 Connector
  • Storage: 1 Internal 2.5” HDD/SSD
  • Expansion: 1 Mini PCIe (Full-size), 2 M.2 Slot
  • Ethernet: Dual GbE, 10/100/1000 Mbps (Intel i211), M12 Connector
  • Power: 12-28 V DC input
  • Operating Temp: -20~60° C (-4~140° F) w/ 2.5” Extended Temperature SSD
  • Vibration: 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Touch Technology Projected Capacitive
Ingress Protection IP66
Stainless Steel Yes
Brightness 350nit, Standard
Resolution 1280x1024, Special/Other
GPU Integrated GPU
Memory Capacity Up to 4GB
Cooling Type Fanless, Yes
Serial Ports (COM) 1 Port, 1 Port, 2 Ports, RS-232, RS-232/422/485
USB Ports 4 Ports, 4 Ports, USB 2.0
Ethernet Ports (LAN) 2 Ports, 2 Ports
Video Ports 1 Port, 1x VGA, 2 Ports, LCD
Storage Type 1, 2.5"
Expansion Type 1, 2, 3, Any Expansion Type, M.2, Mini PCI Express
Input Voltage 12-28 VDC
Mounting Options VESA-mount
Operating Temperature -20°C to 60°C, Wide
Certifications CE/FCC
OS Support Linux, Windows 10, Windows 10 IoT, Windows 10 Pro, Windows 7, Windows 8.1
