FPC-7911/7912/7913

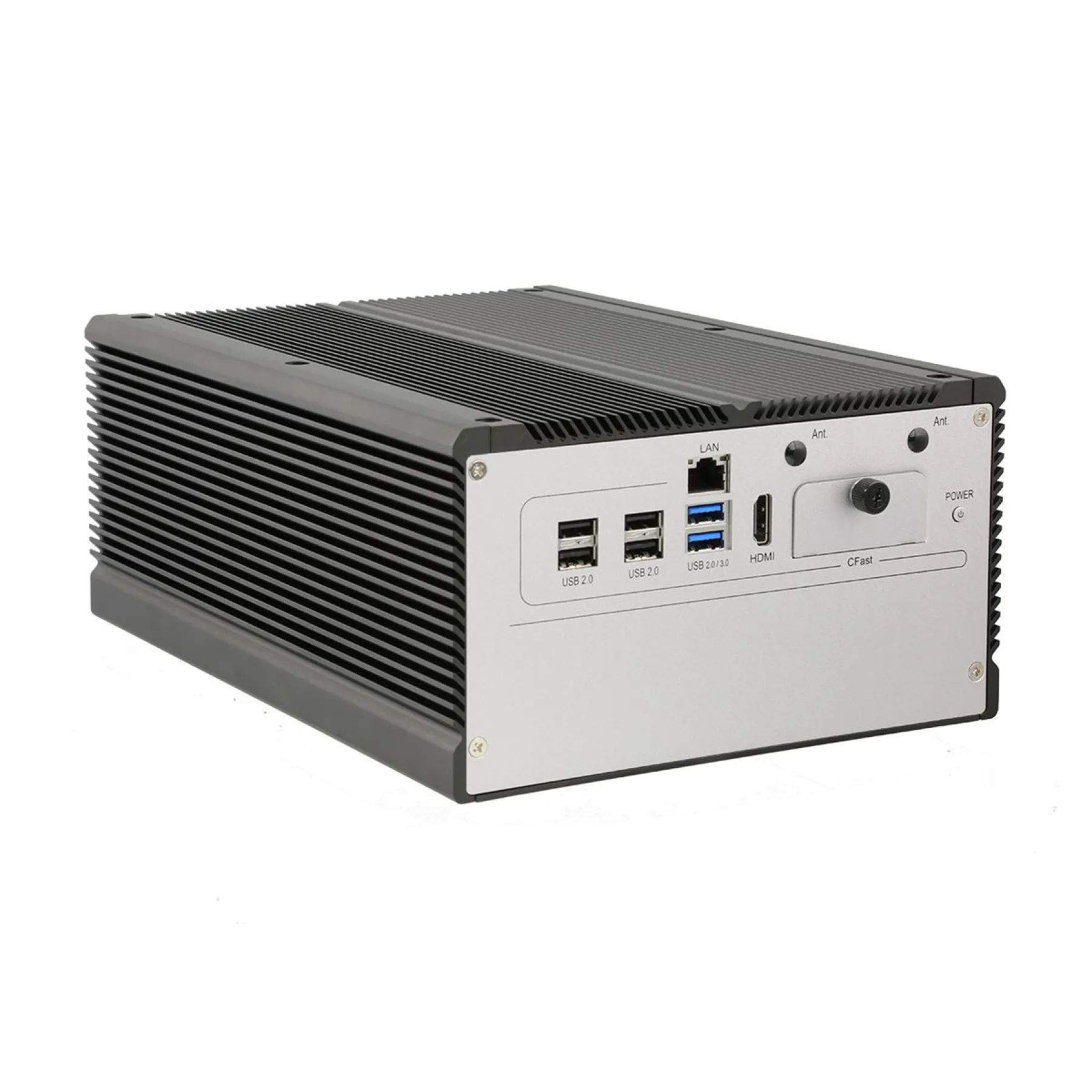

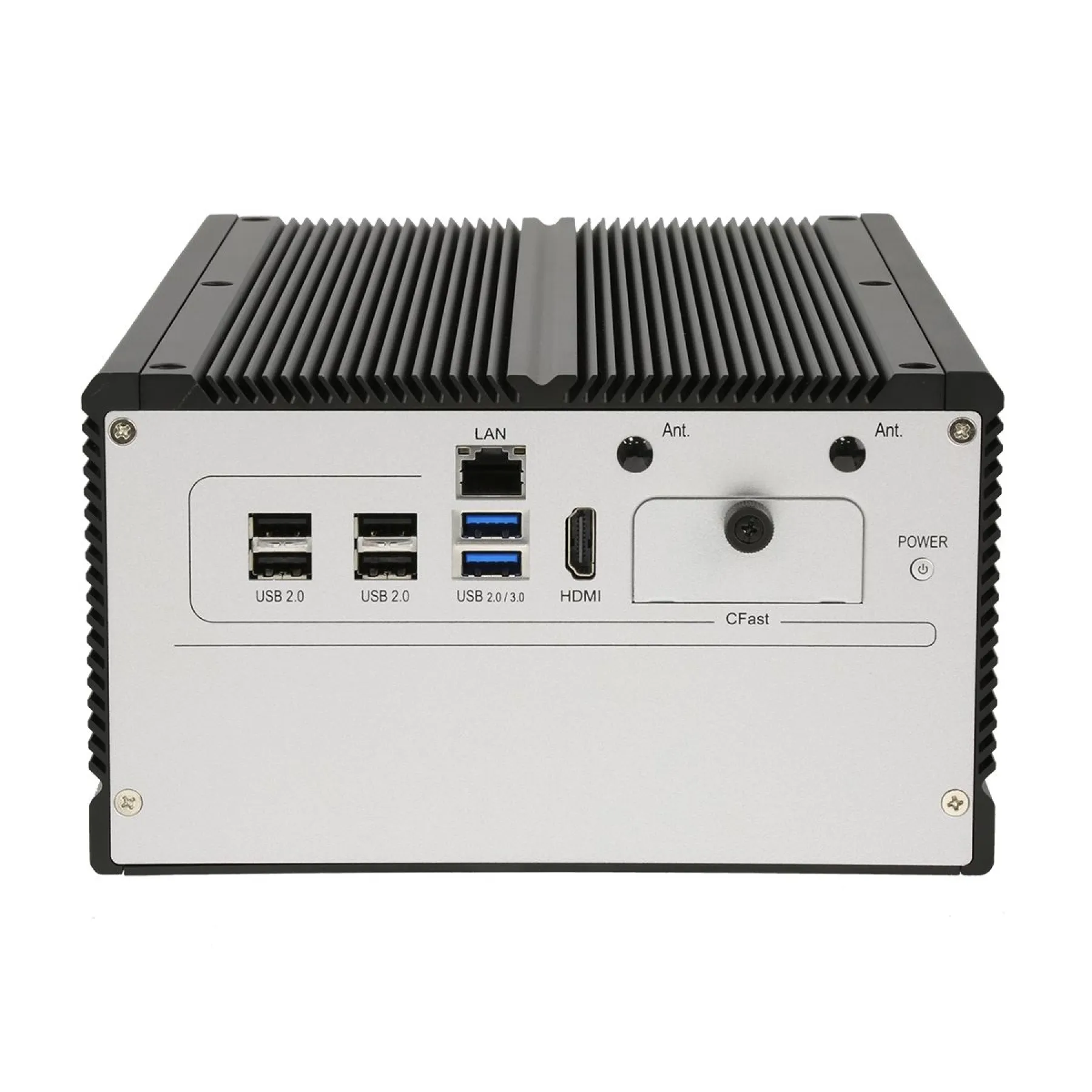

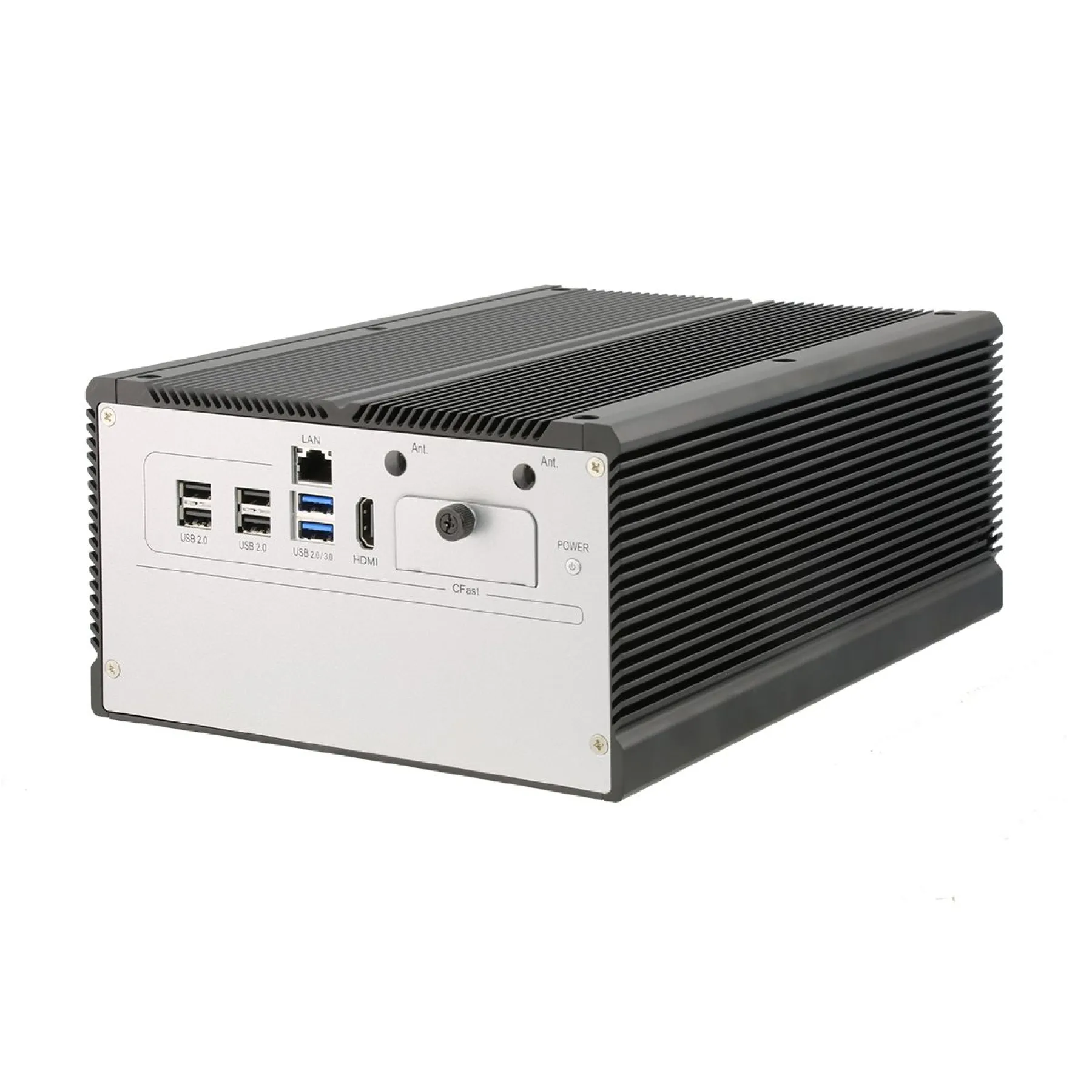

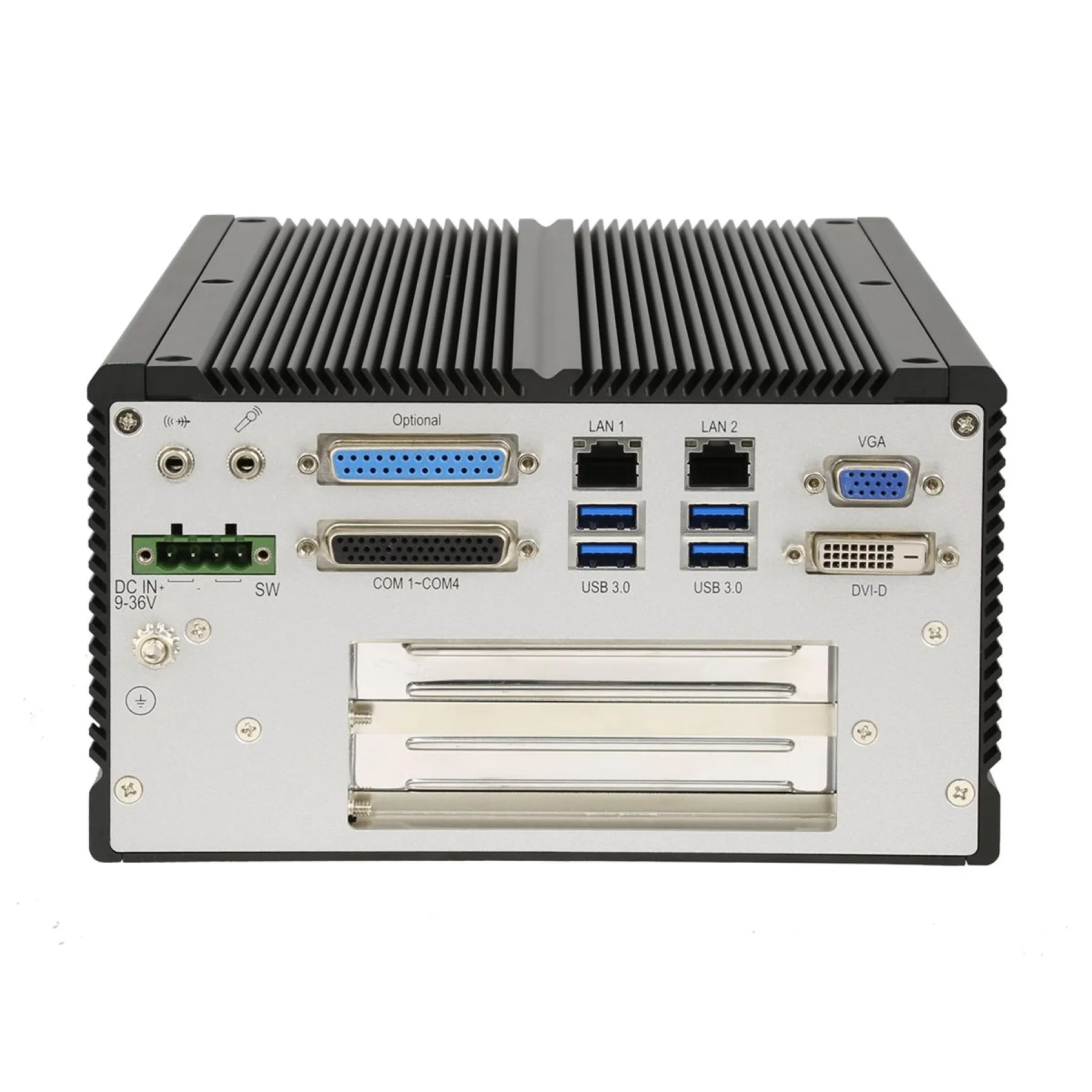

Arbor Technology FPC-7911/7912/7913 6/7th Gen Intel Core Robust Box PC with PCIe

FPC-7911/7912/7913

  • Fanless design
  • Wide range DC power input (9~36V)
  • Various video interfaces (VGA + DVI-D+HDMI) supported
  • TPM 2.0 support
  • Optional Wi-Fi or LTE wireless connectivity supported
  • Rugged design for shock / vibration protection
  • Memory support up to 32GB

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The Arbor Technology FPC-7911/7912/7913 is a Robust Box PC powered by Intel 6th and 7th Generation Core i9/i7/i5/i3 processor. The FPC-7911/7912/7913 provides rich I/O including: 4x Serial, 10x USB and 3x Ethernet ports, alongside supporting PCI and PCIe options for expansion.

Ordering Info

FPC-7911 Fanless system w/ 1x PCI + 1 x PCIe x 16
FPC-7912 Fanless system w/ 1x PCIe x 8 + 1 x PCIe x 16
FPC-7913 Fanless system w/ 2x PCI

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

CPU Intel 6th & 7th generation Core i9/i7/i5/i3 Processor in LGA1151 socket
Memory 2 x 260-pin DDR4 SO-DIMM sockets, supporting 2933 MHz SDRAM up to 32GB
Chipset Intel H110
Graphics Integrated Intel HD Graphics
ATA 2 x Serial ATA ports with 600MB/s HDD transfer rate
LAN Chipset 2 x Intel WGI211AT GbE controllers 1 x Intel WGI219LM GbE controller w/o iAMT
Watchdog Timer 1~255 levels reset
Serial Port 4 x RS-232 ports via one DB-44 female connector. (COM1 and COM2 are RS-232 / 422 / 485 configurable)
USB Port 6 x USB 2.0 ports (Front side)* 4 x USB 3.0 ports (Rear side)

Support internal USB dongle (Optional)

LAN 3 x RJ-45 ports for GbE
Video Port 1 x HDMI 1 x DB-15 female connector for Analog RGB 1 x DVI-D female connector for digital video output * Support 2 independent displays
Expansion Bus 1 x Mini-card socket interconnected with SIM card socket for optional Wi-Fi or LTE module(Full size) 1 x SIM socket/1 x CFast socket (outside accessible) 1 x PCIe x16 slot +1 x PCI slot (FPC-7911) 1 x PCIe x16 slot +1 x PCIe x 8 slot (via x 1 lanes) (FPC-7912) 2 x PCI (FPC-7913)
Selectable Port 1 x DB25 connector for DIO (8 in / 8 out) port or LPT port (either one, default is DIO)
Audio Mic-in / Line-out
Operating Temp. -20 ~ 55°C (-4 ~ 131°F), ambient w/ air flow, for 65W TDP CPU need to configure TDP to 35W via BIOS setting.
Storage Temp. -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity 10 ~ 95% @ 70°C (non-condensing)
Vibration 3 Grms / 5~500Hz / random operation w/ SSD
Shock Operating 40G (11ms), Non-operating 60G with SSD
System Windows 10 IOT (For 6th/7th Gen Intel CPU) Windows 7 / Windows8.1 (For 6th Gen Intel CPU) Linux (Kernel: 4.x)
Type 2 x 2.5” drive bays 1 x CFast socket, can be outside accessible
Certification CE, FCC Class A
Power Input DC 9 ~ 36V input (w/ 4-pin DC input terminal block,combining remote power on/off switch)
Ignition Switch 2-pin terminal block: IGN & GND
Power Consumption MAX. 65W (w/o I/O card)
Construction Aluminum Alloy
Mounting Wall-mount
Weight 5.8kg (12.78Ib)
Dimensions (W x D x H) 195 x 268 x 110 mm (7.68” x 10.55” x 4.33”)
Processor Type Intel Core, up to 4 Cores
Memory Capacity Up to 32GB
Cooling Type Fanless
Serial Ports (COM) 2x RS-232/422/485, 4x RS-232
USB Ports 4x USB 3.0, 6x USB 2.0
Ethernet Ports (LAN) 3x 1G
Wireless Cellular, Wi-Fi
Video Ports 1x DVI, 1x HDMI, 1x DB-15, DB-15
Digital I/O 16 DIO
Audio Yes
Storage Type 1x Cfast, 2x 2.5"
Expansion Type 3x PCI Express, 3x PCI
Input Voltage 9-36 VDC
Mounting Options Wall-mount
Operating Temperature Wide OT: -20°C to 55°C
Market Certifications CE/FCC
OS Support Linux, Windows 10, Windows 11, Windows 7
