ARES-1973C-48C8

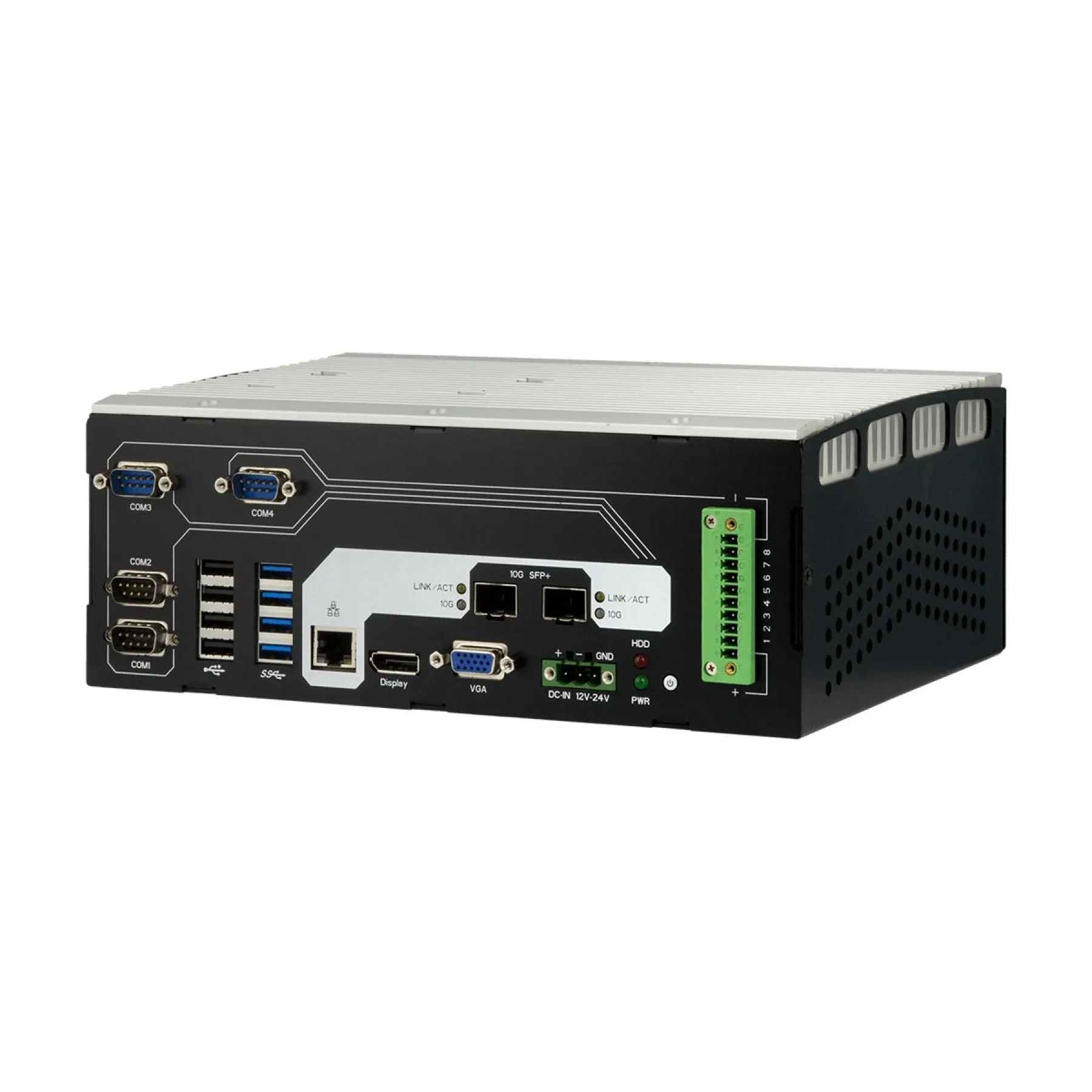

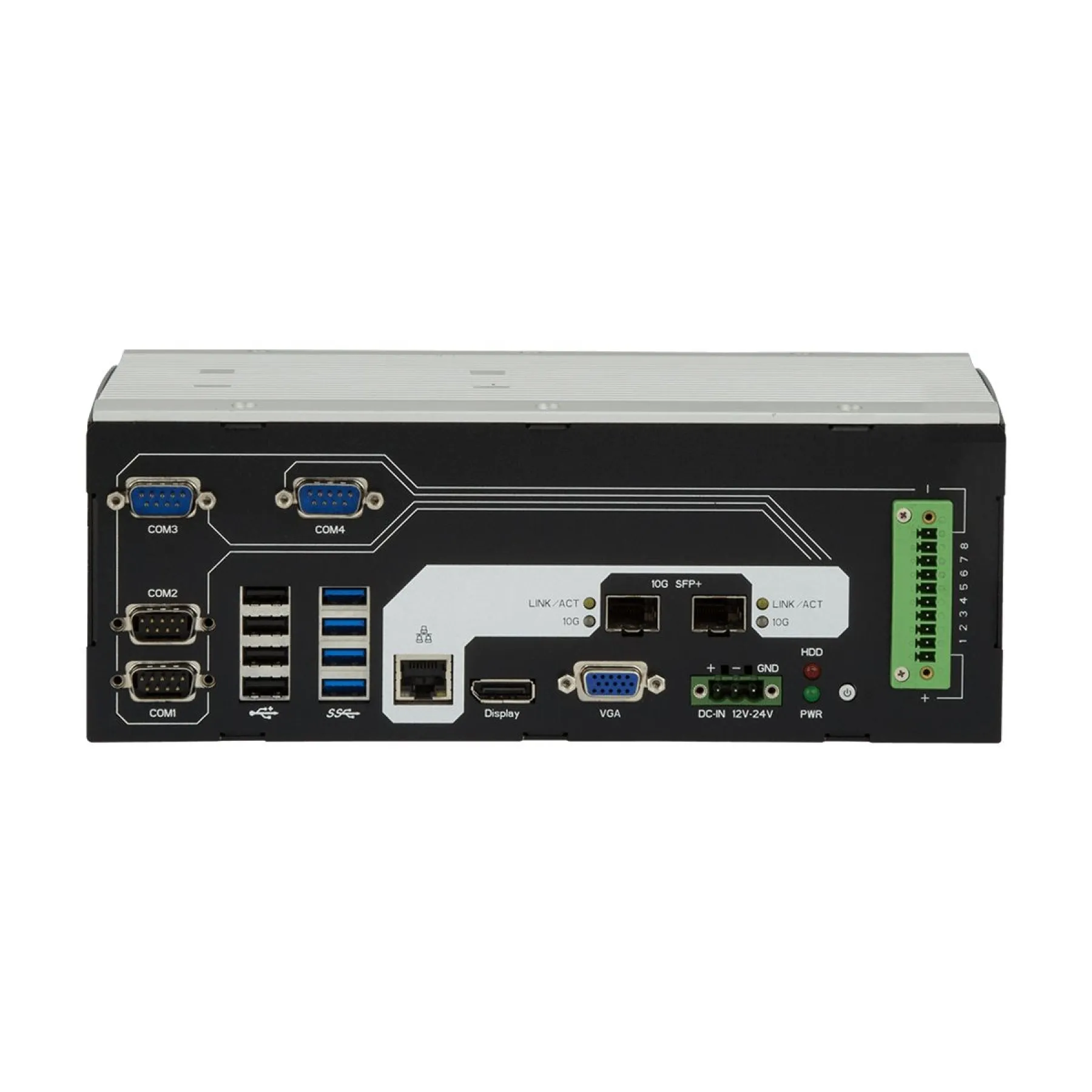

Arbor Technology ARES-1973C-48C8 Intel Core,i7/i5/i3 Celeron Embedded PC

ARES-1973C-48C8

  • Socket LGA1151 for Intel Core i7/i5/i3 Processor
  • 1 x GbE + 2 x SFP+ LANs Connectivity
  • 2 x SFP+ 10G LANs for 10G Cameras
  • Fanless Design
  • 4 x USB 3.0/2.0 combo + 4 x USB 2.0 ports
  • Supports dual-display for 1 x VGA and 1 x DisplayPort
  • Internal USB 2.0 Type-A Connector for USB Dongle
  • Supports RAID 0 / 1

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The Arbor Technology ARES-1973C-48C8 is a fanless embedded PC powered by 6/7th Gen Intel Core and i7/i5/i3 Celeron processors. This industrial PC provides Dual 10G+ Fiber LAN alongside 2x 260-pin DDR4 SO-DIMM sockets supporting 2133MHz SDRAM for up to 32GB of memory.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

CPU Socket LGA1151 for 6th / 7th Intel Core i7 / i5 / i3, Max.35W TDP
Memory 2 x 260-pin DDR4 SO-DIMM sockets, supporting 2133MHz SDRAM up to 32GB
Chipset Intel C236
Graphics Intel Gen. 9 Graphics DX 11/12, OGL4.3/4.4
LAN Chipset 1x Intel i219LM PCIe controller w/ iAMT 11.0 (except Core i3) 1x Intel X710-BM2 PCIe controller
Watchdog Timer 1~255 levels reset
Operating Temperature -20 ~ 50 °C (-4 ~ 122°F), ambient w/ air flow
Storage Temperature -30 ~ 80°C (-22 ~ 176°F)
Operating Humidity 10 ~ 95% @ 50°C (non-condensing)
Vibration 5~500Hz 3 Grms X,Y,Z axis w/ SSD, according to IEC 68-2-64
Shock & Crash 10G peak acceleration (11 m sec. duration), operation 30G peak acceleration (11 m sec. duration), nonoperation According to IEC 68-2-27
Certification CE, FCC Class A
Storage Type 1 x 2.5” internal drive bay for HDD/SDD 1 x M.2 M-key for SSD, 2242/2280
Serial Port 2 x RS232/422/485 DB-9 ports 2 x RS232 DB-9 ports
USB Port 4 x USB 3.0/ 2.0 Type A connectors 4 x USB 2.0 Type A connectors 1 x Vertical USB 2.0 (type A) internal
LAN 4 x RJ-45 ports for Giga LAN 2 x SFP+ port for 10 GbE LAN
Video Port 1 x DisplayPort 1.2, up to 4K (UHD) 1 x VGA
Expansion Bus 1 x M.2 M-key for SSD, 2242/2280 (PCIe x4+SATA3.0)
Digital I/O 8 bit DIO (Optional 32 bit DIO)
Storage 1 x SATA 3.0 Port and 1 x SATA Power connector 1 x M.2 M-key for SSD, 2242/2280 (PCIe x4+SATA3.0)
Construction Metal + Aluminum Alloy
Mounting Wall-mount/ DIN-rail
Weight 4.2Kg
Dimensions (W x H x D) 254 x 170 x 94 mm (10” x 6.7” x 3.7”)
Power Input DC 12 ~ 24V
Power Consumption Max. 80W (w/o I/O card)
System Windows 10 Iot
Processor Type Intel Core, up to 4 Cores
Memory Capacity Up to 32GB
Cooling Type Fanless
Serial Ports (COM) 2x RS-232/422/485, 2x RS-232
USB Ports 4x USB 3.0, 9x USB 2.0
Ethernet Ports (LAN) 1x 1G, 2x 10G
Video Ports 1x VGA, 1x DisplayPort
Digital I/O 8 DIO, 32 DIO
Storage Type 1x mSATA, 2x SATA
Expansion Type 1x M.2
Input Voltage 12-24 VDC
Mounting Options DIN-mount, Wall-mount
Operating Temperature Wide OT: -20°C to 50°C
Market Certifications CE/FCC
OS Support Windows 10, Windows 11
