AVS-302

Aplex Technology AVS-302 Intel Celeron J1900 Compact Fanless Industrial Vision System

AVS-302

  • Intel Celeron J1900 Processor (2M, Cache 2.00GHz)
  • 1 x SO-DIMM Socket, up to 8GB DDR3L support
  • 4 x LAN, 3 x USB2.0, 1 x USB3.0, 1 x USB2.0
  • 1 x mSATA for SSD storage, 1 x SATAII for HDD
  • Compound Mounting Design with wall mount kit
  • DC 9-36V wide voltage input
  • Rugged, Fan-less, Compact Design

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

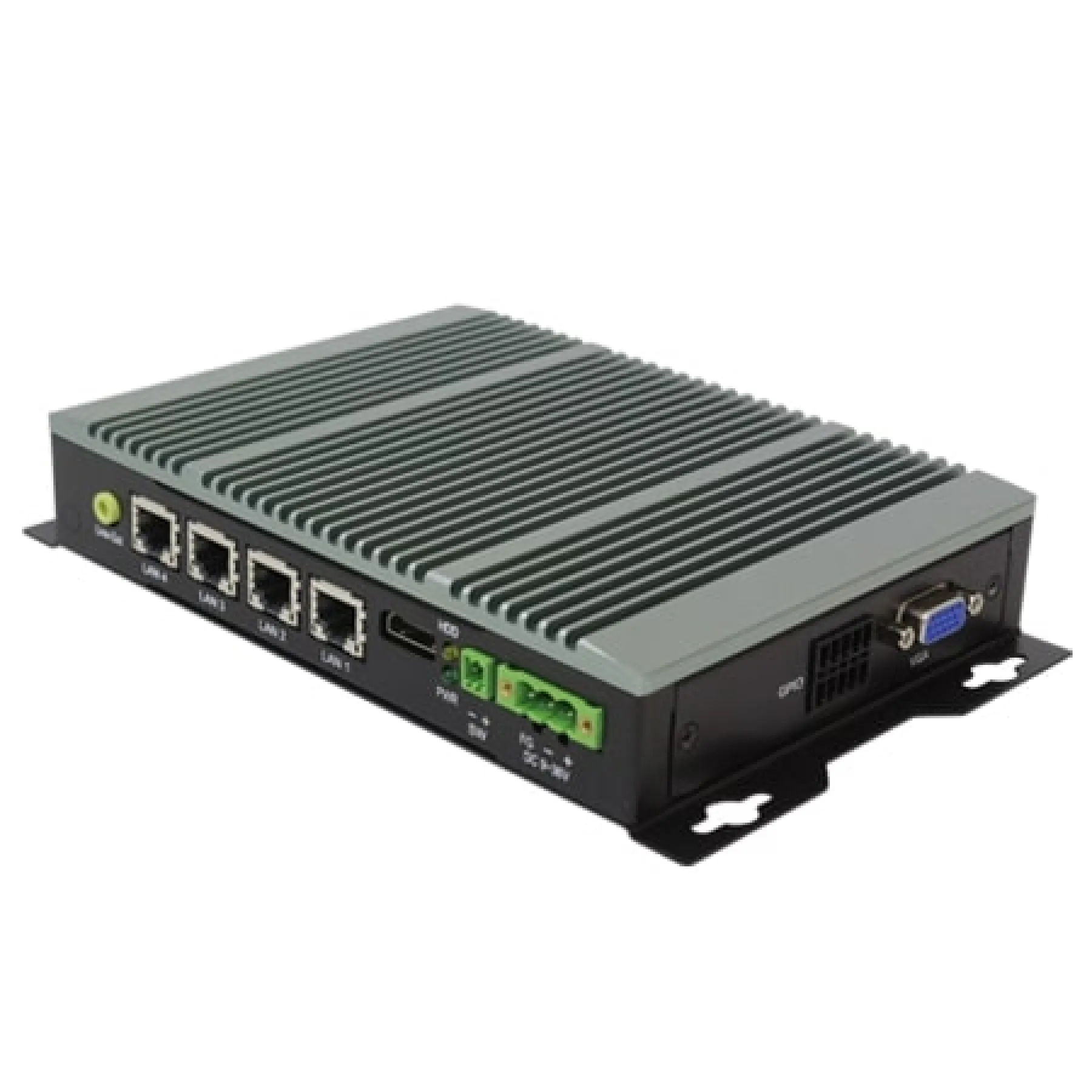

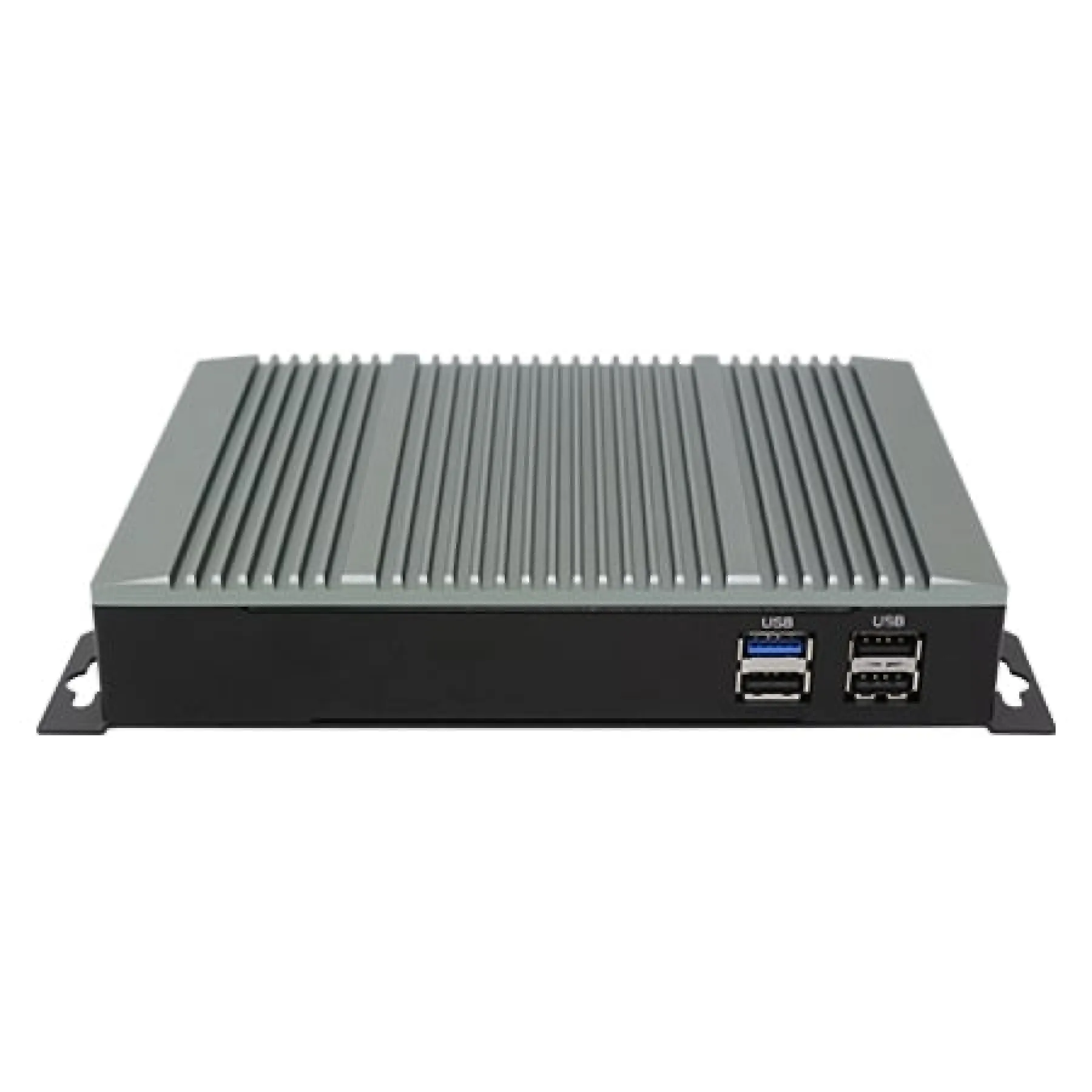

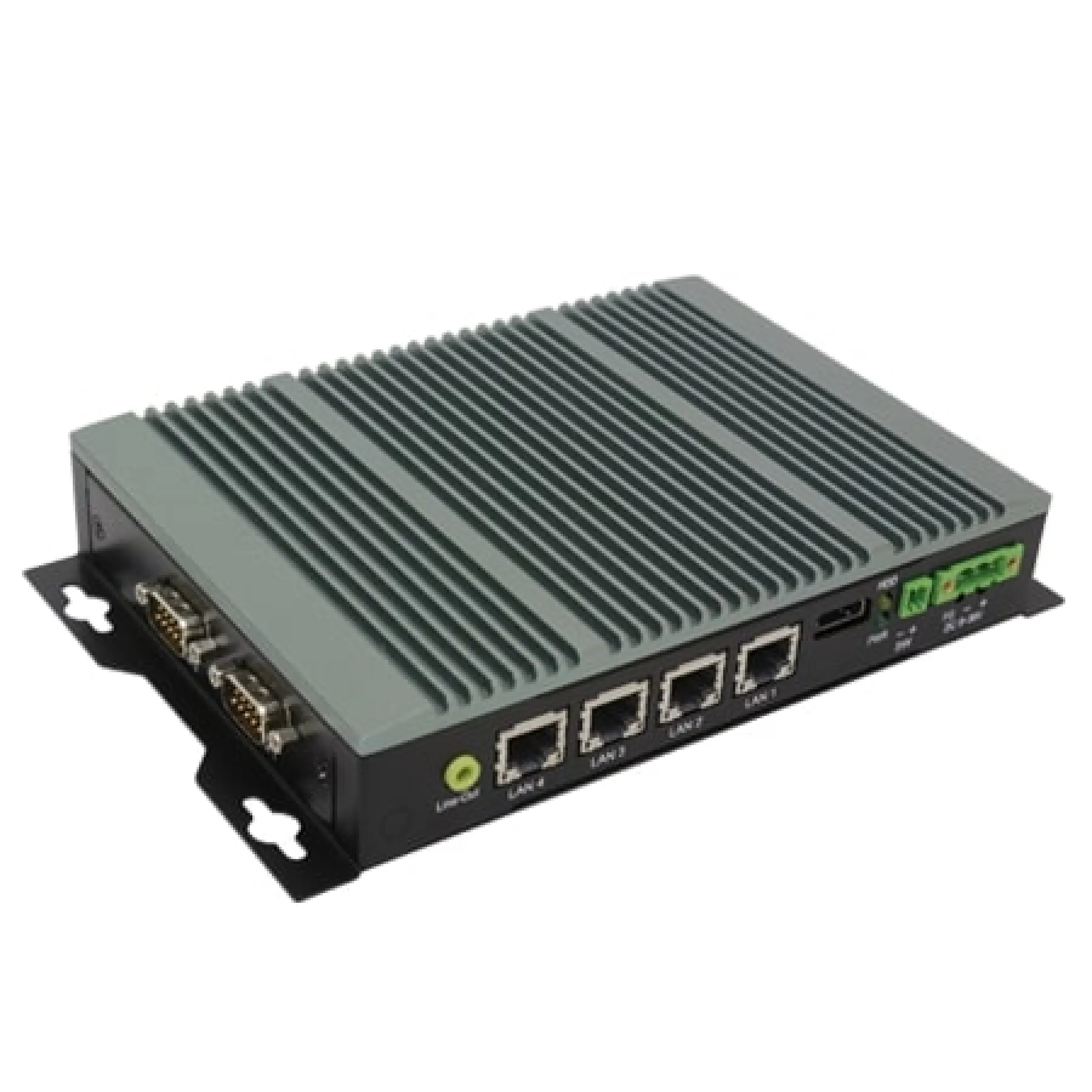

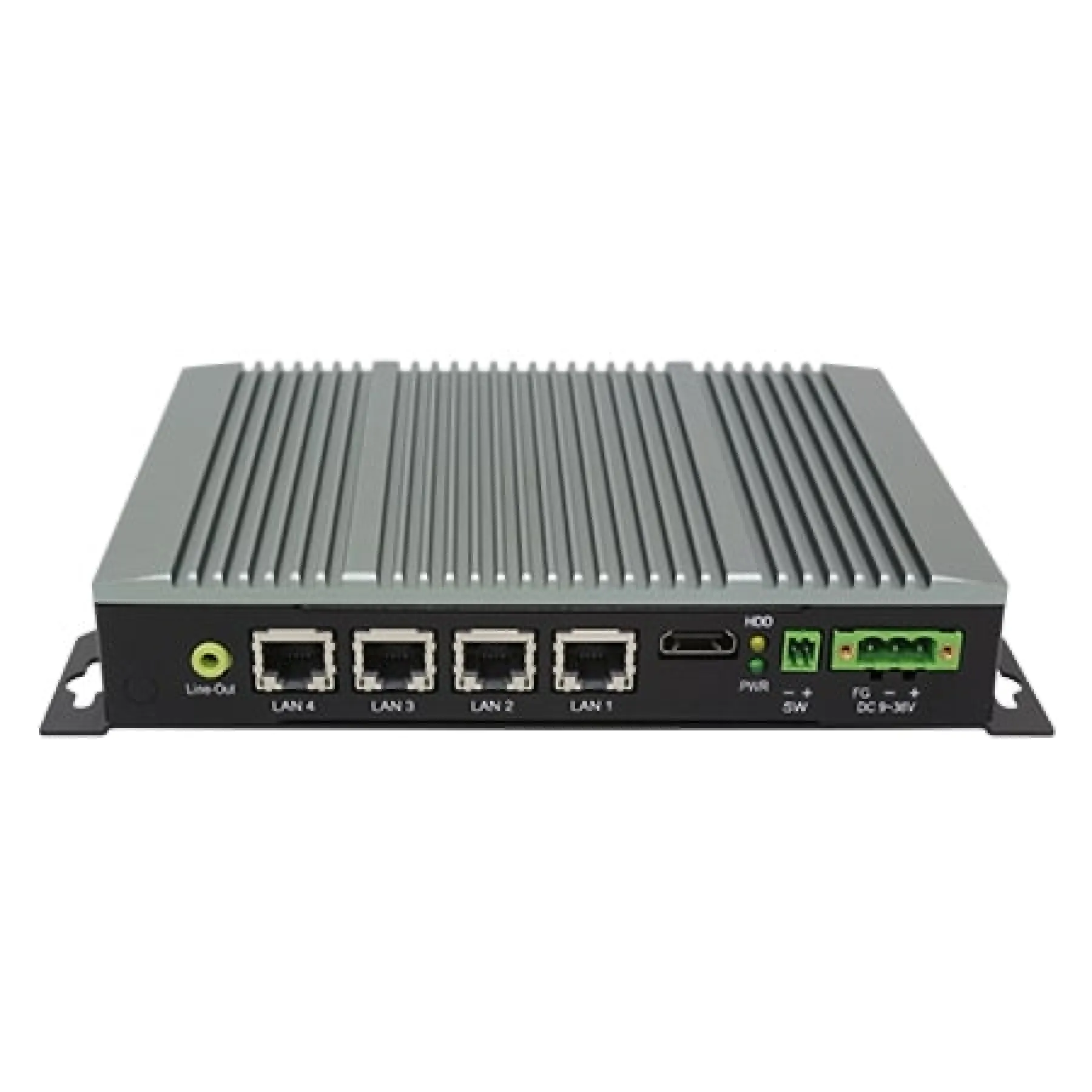

The Aplex Technology AVS-302 is a Compact Fanless Industrial Vision System powered by Intel Celeron J1900 processor. This Compact Fanless Industrial Vision System contains rich I/O including: 5x USB, 2x COM, 4x LAN alongside supporting double display by VGA and HDMI.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type Intel Celeron, up to 4 Cores
GPU Integrated GPU
Memory Capacity Up to 8GB
Cooling Type Fanless
Serial Ports (COM) 1x RS-232, 1x RS-232/422/485
USB Ports 1x USB 3.0, 4x USB 2.0
Ethernet Ports (LAN) 4x 1G
Video Ports 1x HDMI, 1x VGA
Digital I/O 8 DIO
Audio Yes
Storage Type 1x mSATA, 1x 2.5"
Expansion Type 1x Mini PCI Express
Input Voltage 9-36 VDC
Mounting Options Wall-mount
Operating Temperature Wide OT: -20°C to 70°C
Market Certifications CE/FCC
OS Support Linux, Windows 10

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

Aplex Technology: Warranty and Service Information

Founded in 2011, Assured Systems are a trusted supplier of Apex Technology, offering comprehensive 2 year warranties on all Apex Technology products supplied in the EMEA. Warranty extensions are also available upon request.
