LNX-0702C-SFP

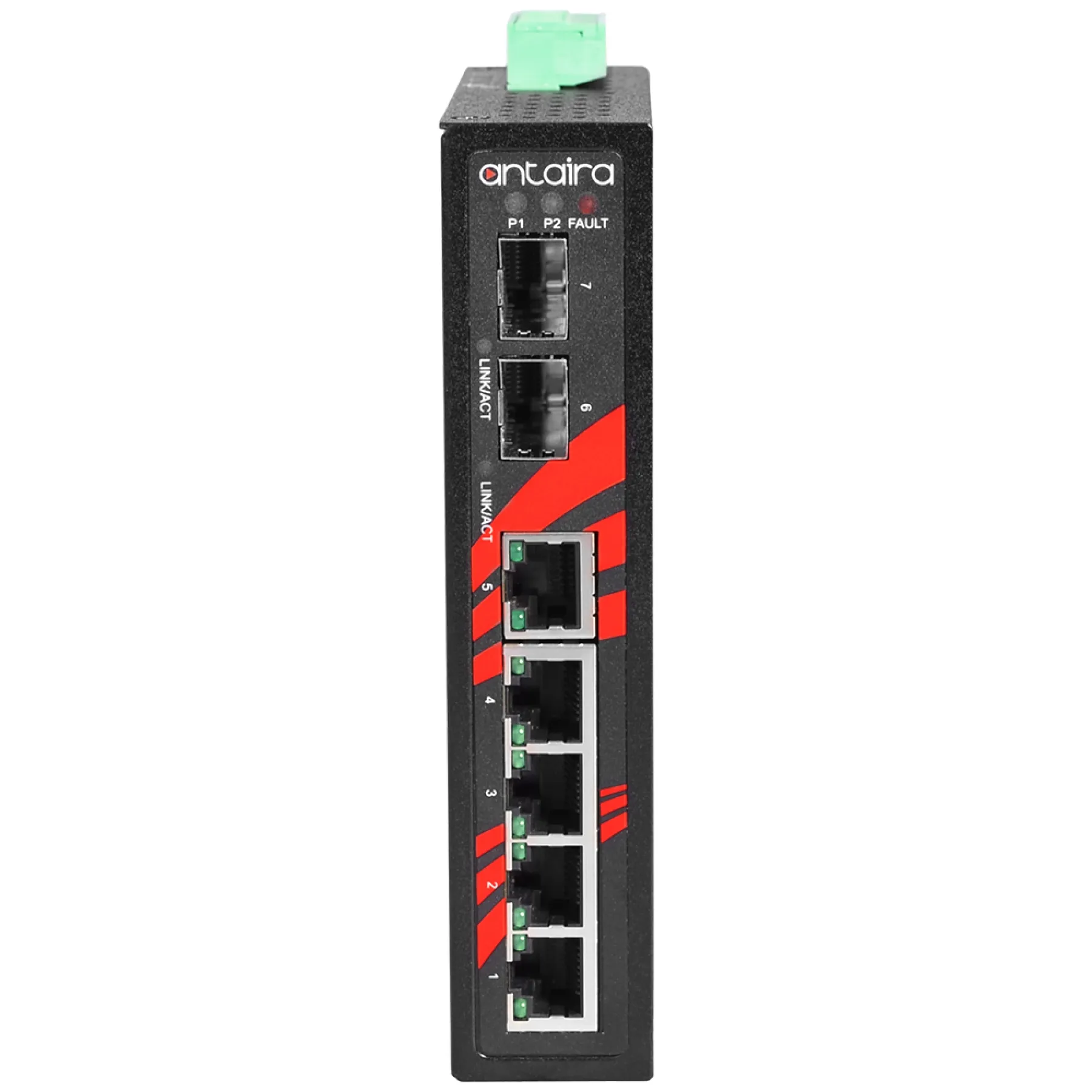

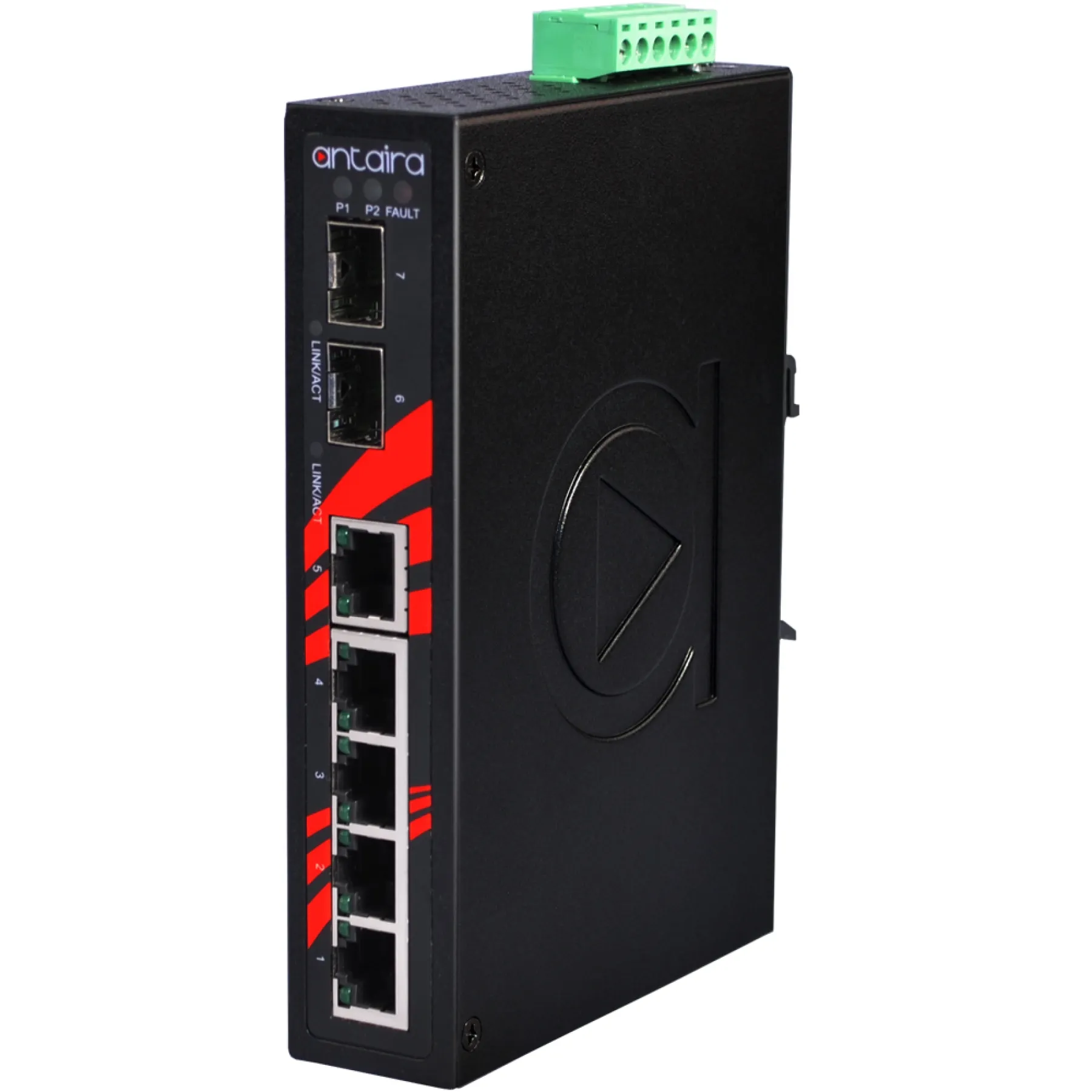

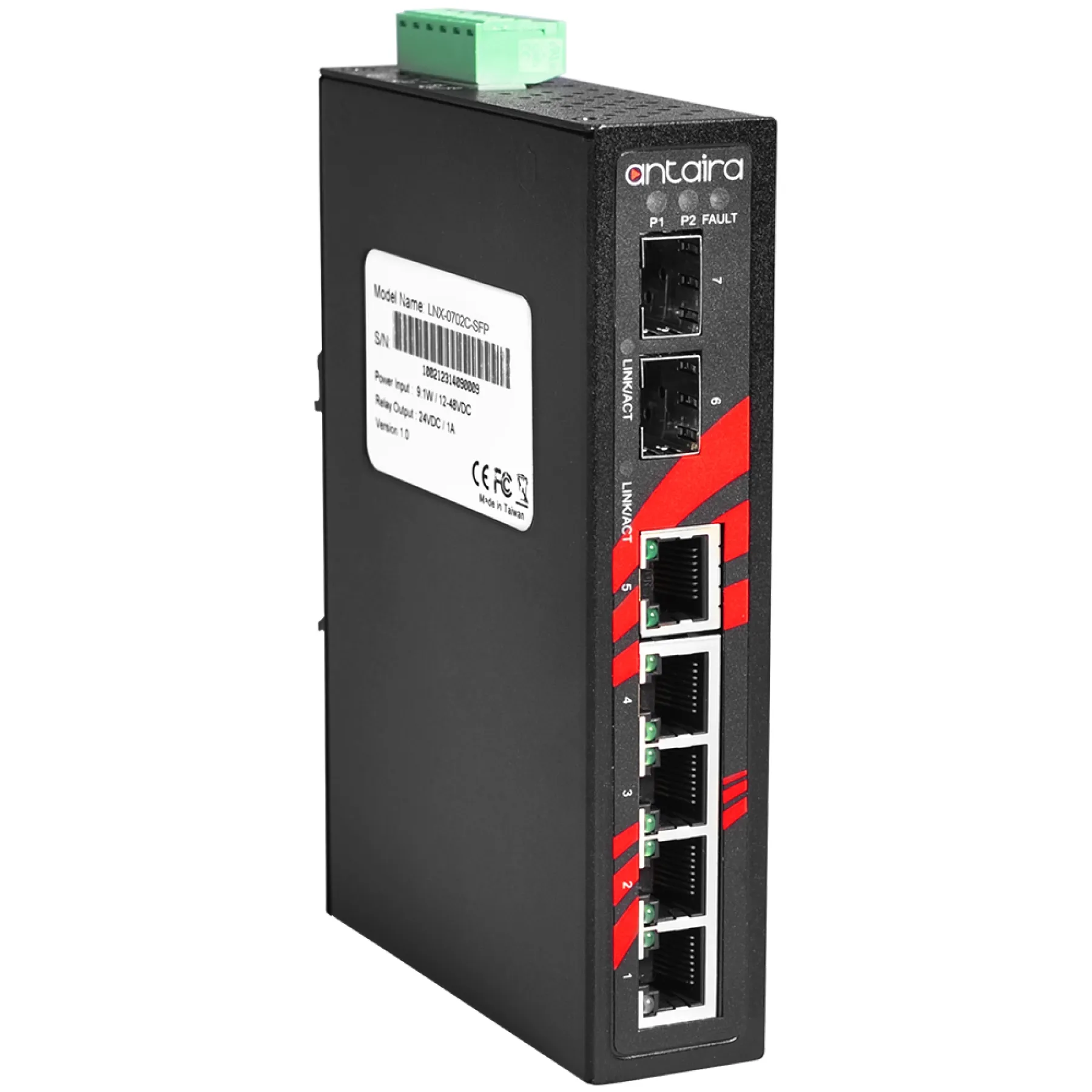

Antaira LNX-0702C-SFP 7-Port Industrial Unmanaged Ethernet Switch, with 5*10/100Tx and 2*100/1000 SFP Slots

LNX-0702C-SFP

  • Supports 5-Port 10/100Tx and 2-Port 100/1000 SFP Slots
  • Supports Auto MDI/MDI-X Function
  • Store-and-Forward Switching Architecture
  • 10Gbps Back-Plane (Switching Fabric)
  • 8K MAC Address Table
  • Surge Protection: 2,000 VDC Support
  • ESD Protection: 6,000 VDC Support
  • UL Class I, Division 2 Certified
  • Redundant Power Input Design: 12~48VDC
  • Built-in 1 Relay Output for Power Failure Warning
  • IP30 Rugged Metal Case Design

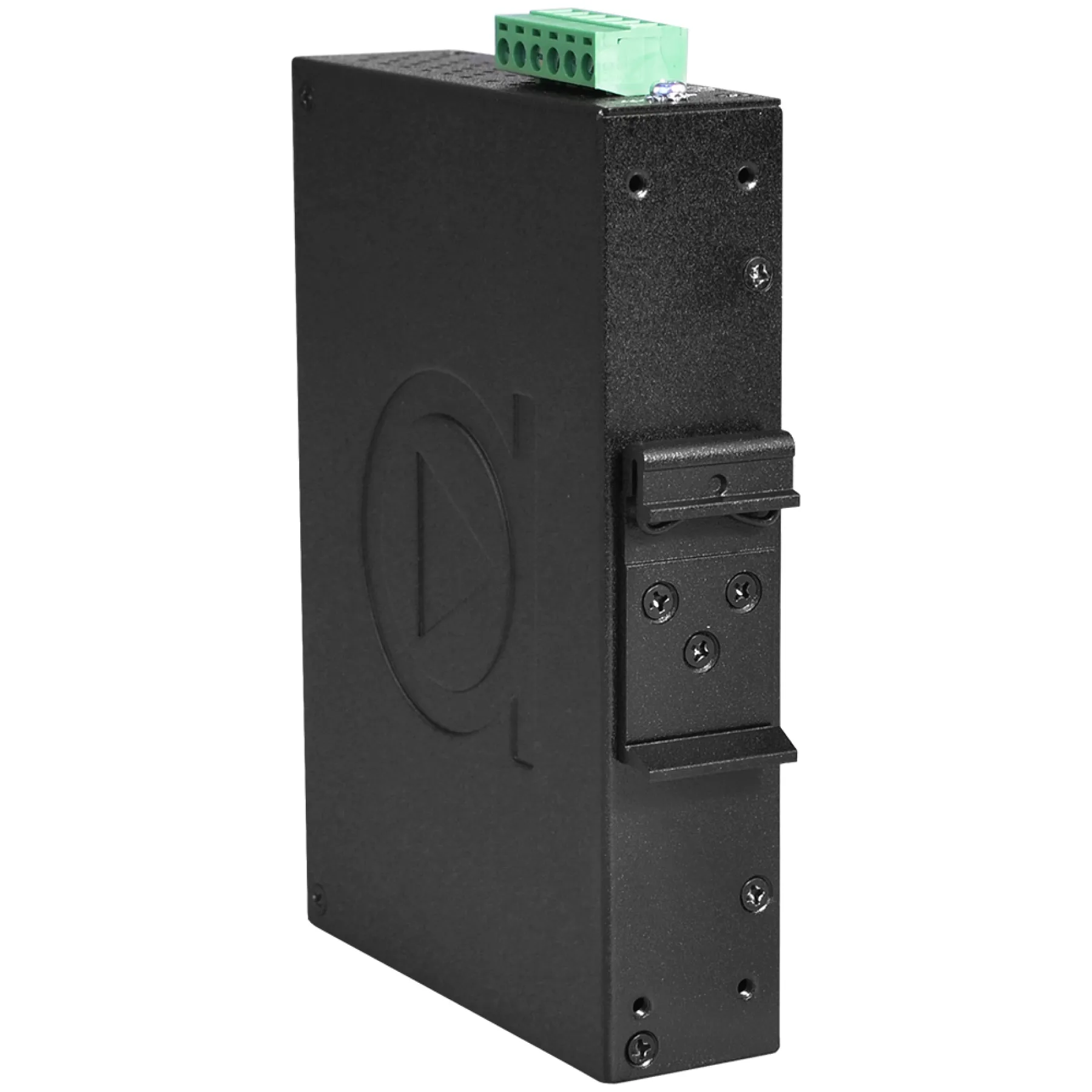

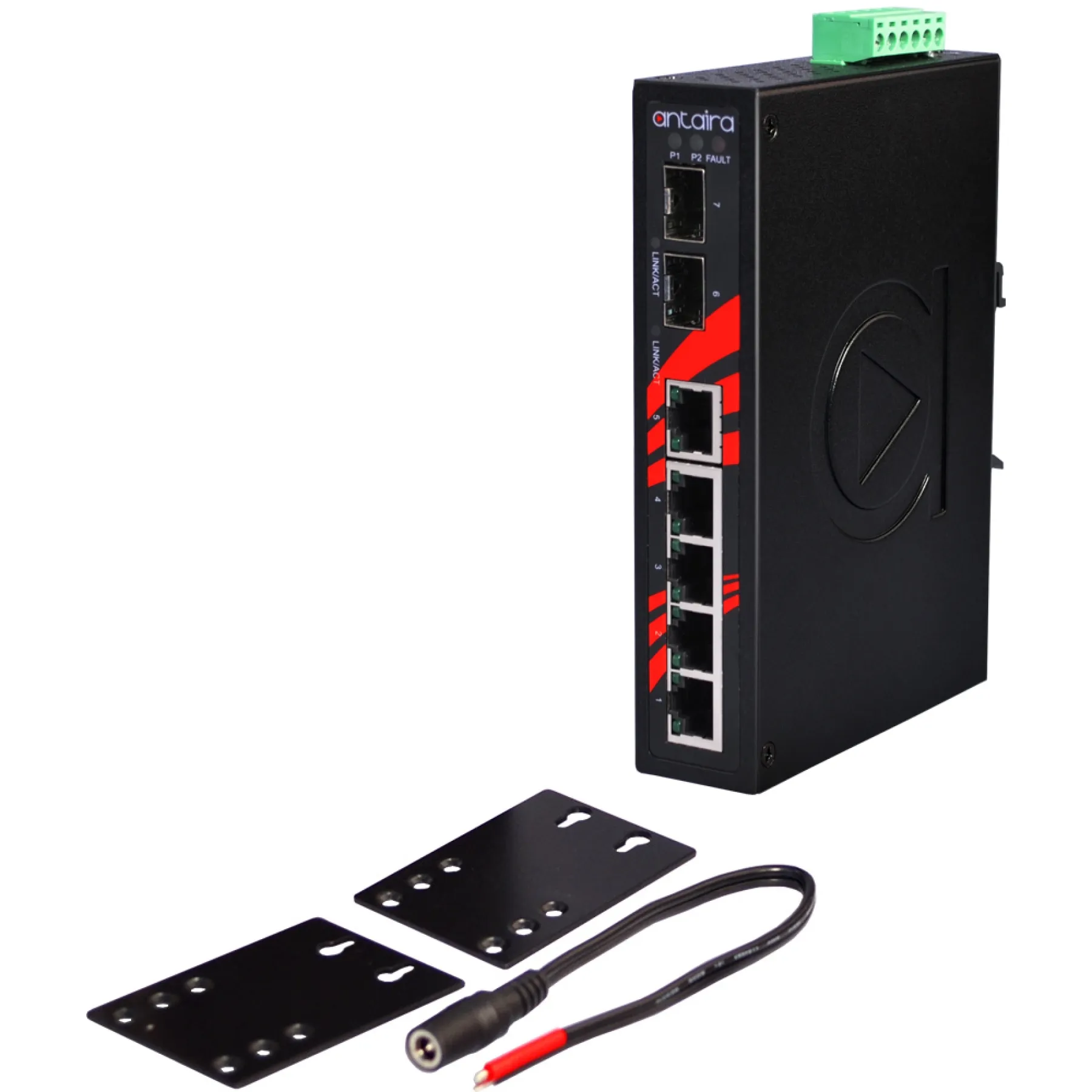

  • DIN-Rail and Wall Mount Support
  • Operating Temperature Range – STD: -10° to 70° C
  • 5-Year Warranty
-
+

Details

Antaira Technologies’ LNX-0702C-SFP series industrial gigabit unmanaged Ethernet switch features five 10/100Tx ports and two dual rate 100/1000Fx SFP slots. This product series supports a wide power input from 12 to 48VDC, and provides high EFT and ESD protection to protect against unregulated voltage. It also provides wide operating temperature models for either standard: – 10 to 70C or extended: - 40 to 75C. The LNP-0702C-SFP series is an ideal solution for harsh environments and industrial applications.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project
