LNP-1204G-10G-SFP-24

Antaira

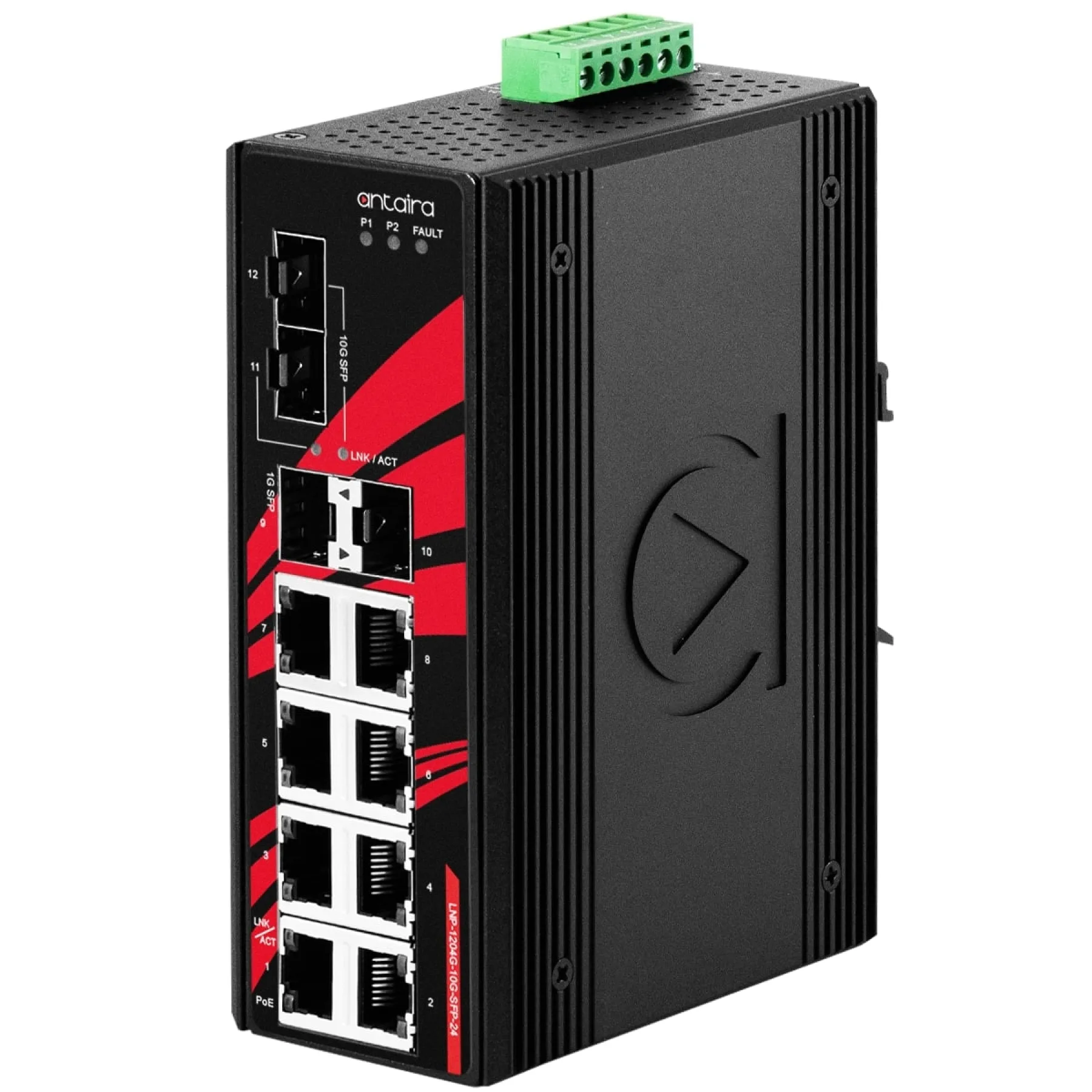

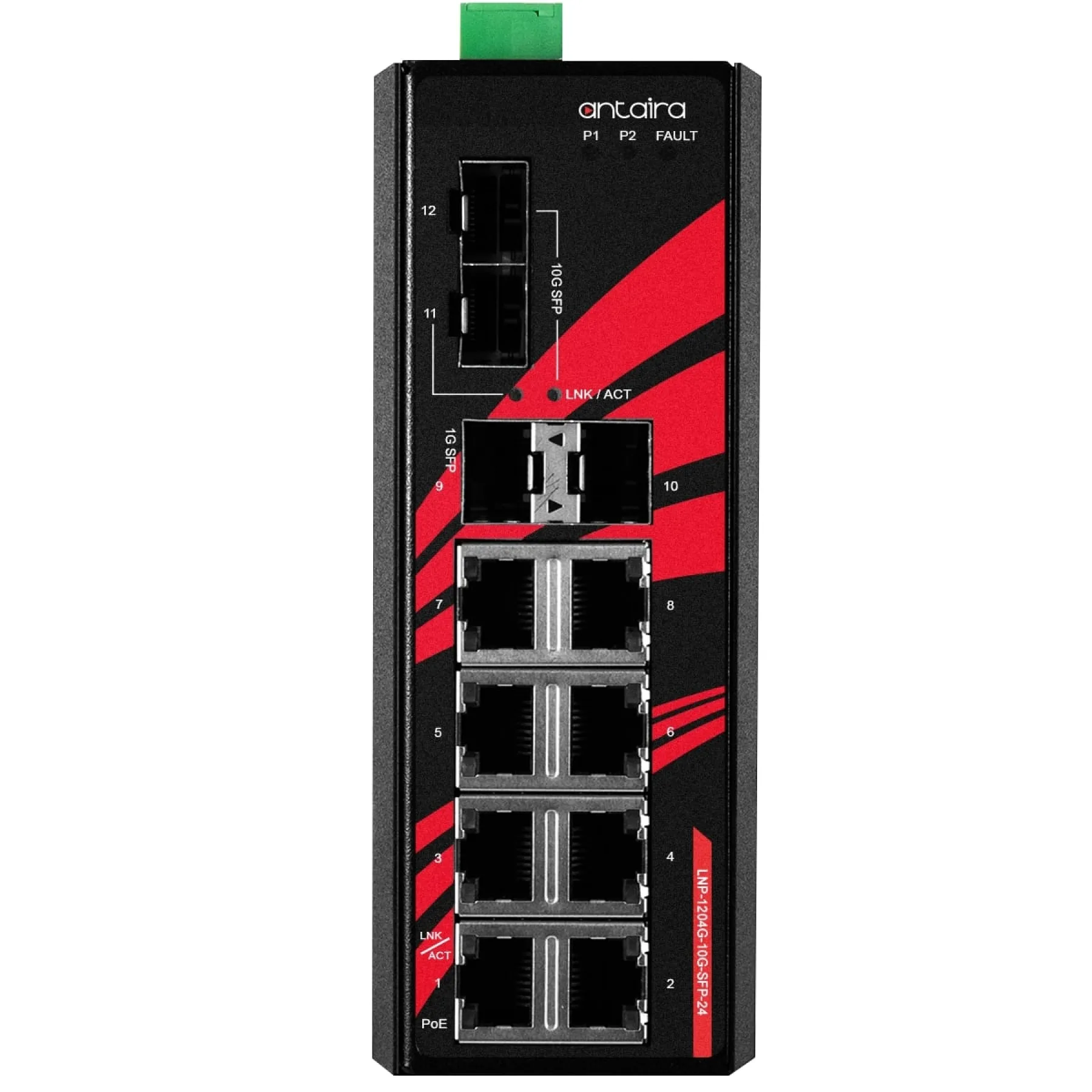

Antaira LNP-1204G-10G-SFP-24 12-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch with 8x 10/100/1000Tx (30W/Port), 2x 1G SFP Slots, and 2x10G SFP+ Slots; 12~55VDC Power Input

Supports 8*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port, 2*1G SFP Slots, and 2*10G SFP+ Slots
Store-and-Forward Switching Architecture
60Gbps Back-Plane (Switching Fabric)
16K MAC Address Table
10Kbytes Jumbo Frame Support
Redundant Power Input Design: 12~55VDC
Bult-in 1 Relay Output for Power Failure Warning
IP30 Rugged Metal Case Design

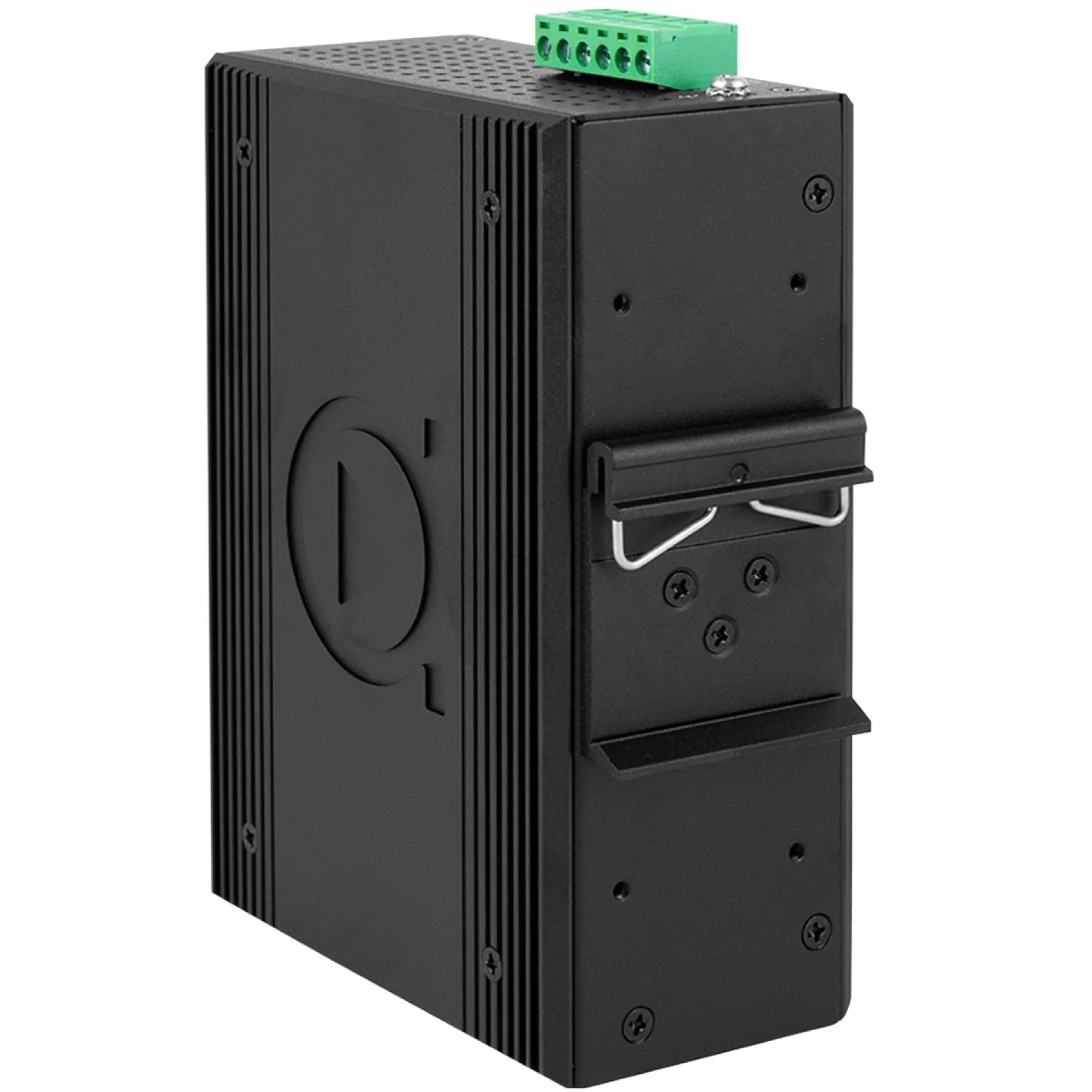

DIN-Rail and Wall Mount Support Included
Operating Temperature Range: -40°C~65°C
5-Year Warranty

Product Code: LNP-1204G-10G-SFP-24

Categories: Antaira, PoE, Unmanaged PoE Switches

Range: Antaira

Details

Antaira Technologies’ LNP-1204G-10G-SFP-24 are industrial gigabit PoE+ unmanaged Ethernet switches featuring 8*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3at for a maximum of 30W/port. The LNP-1204G-10G-SFP-24 has 2*1G SFP slots and 2*10G SFP+ slots which provide options for long-distance fiber connections. The Ethernet switches are designed with high EFT and ESD protection and support standard operating temperature from -40° to 65°C. The LNP-1204G-10G-SFP-24 are IP30 rated and DIN-rail mountable. These Ethernet switches are designed to be powered with low voltage input (12~55VDC) while still providing the higher voltages required by the PoE standards. Additionally, these industrial PoE Ethernet switches provide connectivity for outdoor or harsh industrial automation application environments, such as security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

Datasheet (LNP-1204G-10G-SFP-24) (PDF)

0.33MB
