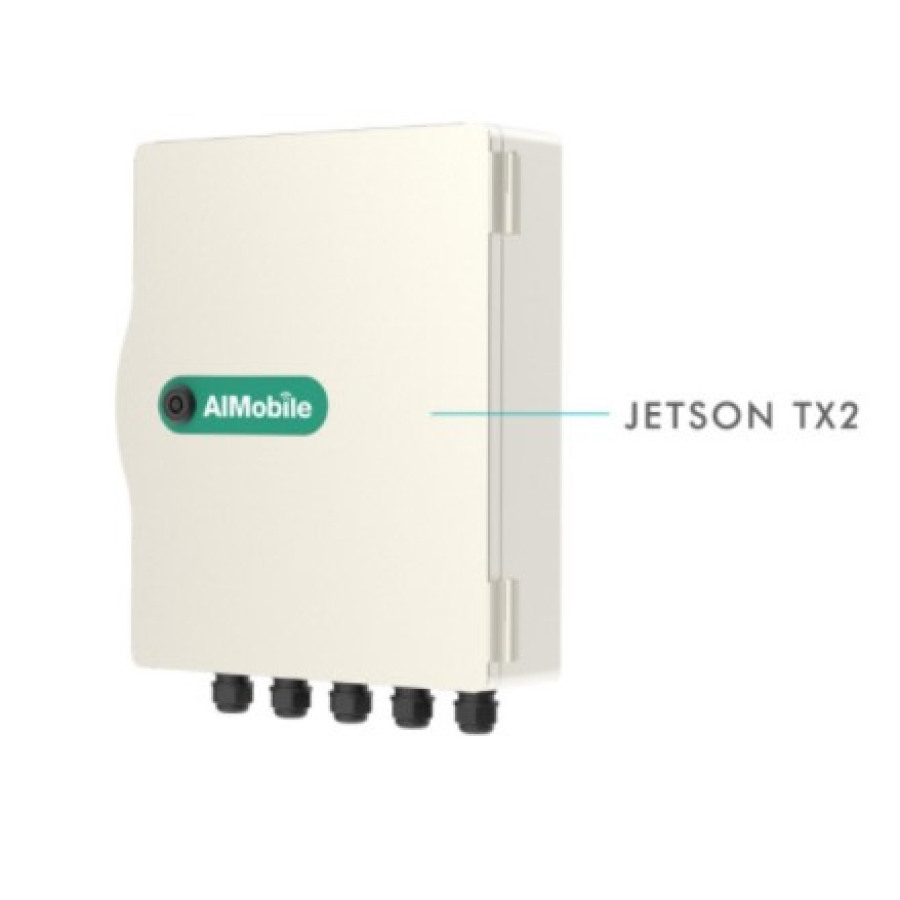

AIMobile M1-H2 NVIDIA Tegra X2, Waterproof Fanless AI Edge Box PC with 5x USB
M1-H2
NVIDIA Jetson TX2 AI Edge Fanless Box PC with 1x LAN (RJ45),2x LAN (PoE), 4x USB 3.0, 1x Micro-AB USB 2.0, 1x RS232 port, 6x DI/DO ports,19V DC-input and Wide Operating Temperature
- 2 IEEE 802.3af POE(PSE Out)
- Linux OS with BSP
- Support Deep Learning trained models
- Wide operating temperature
- AI Edge computing design
- Fanless design
- Nvidia Jetson Tegra X2
- Supports rich I/O
Details
The AIMobile M1-H2 is an ARM-based system that integrates the NVIDIA JetsonTM Tegra X2 system-level module processor providing 256 CUDA cores on the NVIDIA Pascal family GPU architecture. This fast power-efficient embedded AI computing device features 8GB LPDDR4 memory, 32GB eMMC, 4K video decoding/encoding, 4x USB 3.0 ports, 2x PoE and HDD mSATA supporting rich I/O with low power consumption. Additionally, brackets and the fanless design make it easy to install in harsh environments.Downloads
Assured Systems Datasheet (PDF)
A PDF edition of this page with supporting manufacturer datasheets
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| CPU | NVIDIA Tegra X2 |
| Storage/Memory | 32GB eMMC/ 8GB LPDDR4 |
| Operating System | Linux 4.4/ Ubuntu 16.04 |
| Temperature | -20~60°C (Operation) |
| Dimensions | 370(W) x 290(D) x 95(H) mm |
| Button/Key | Reset Button *1 Recovery Button *1 Power Button *1 |
| Communications | 802.11 a/b/g/n/ac + BT 4.0 (Antenna: none) |
| I/O | Gigabit Ethernet *1 (RJ45) Gigabit Ethernet *2 (POE: PSE Output) HDMI *1 Audio Jack *1 USB 3.0 Type-A *4 USB 2.0 Micro-AB *1 SATA *1 RS232 *1 DI/DO *6 AC-in (11~220V) |
