R08T200-MRT1

8.4″ Marine Monitor for Bridge Systems (800×600)

End of Life

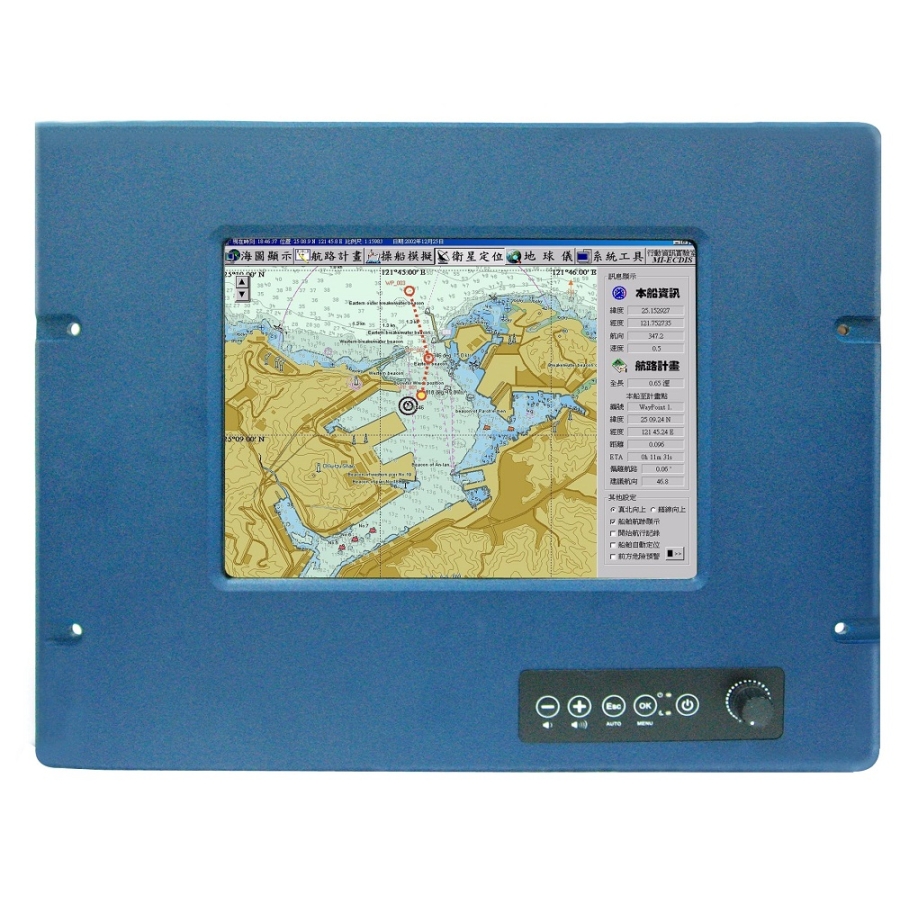

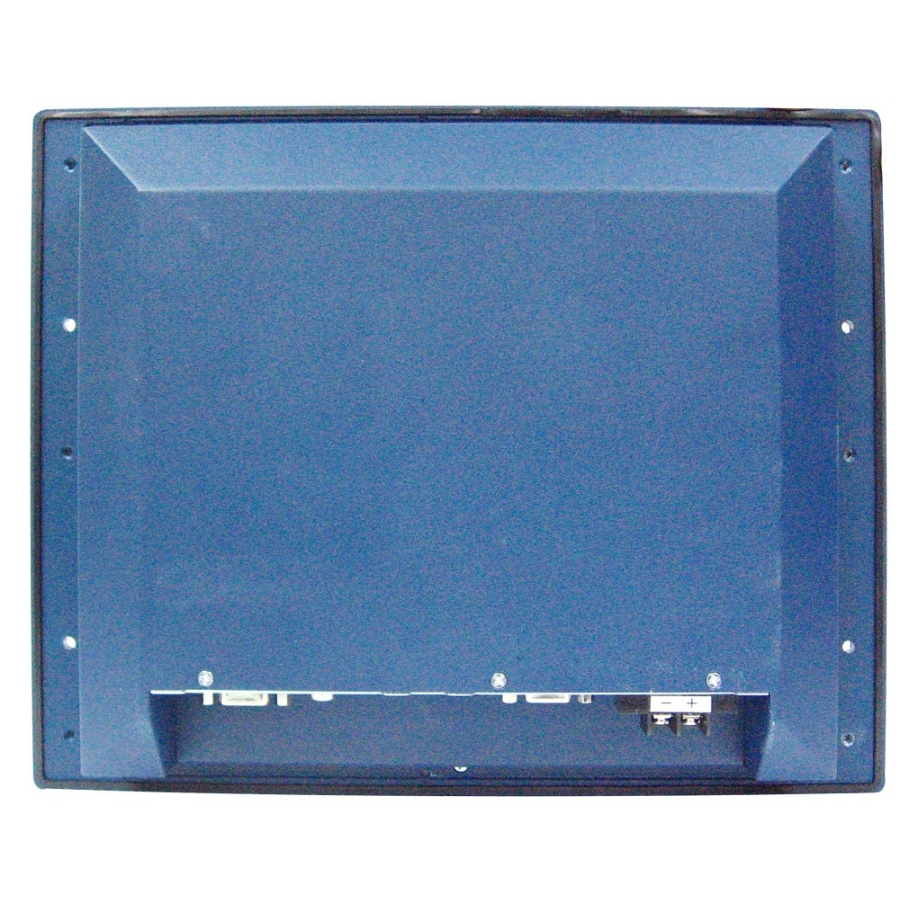

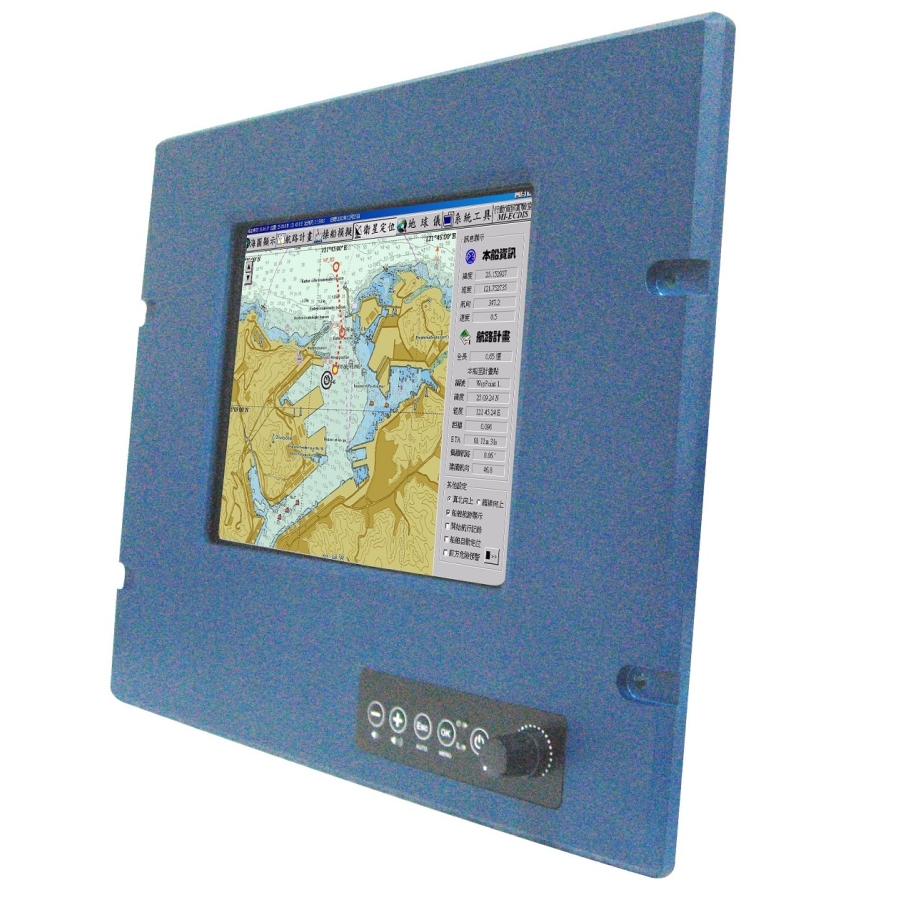

The R08T200-MRT1 from Winmate is a rugged 4:3 ratio, 8.4" Marine LCD Monitor designed for use in marine bridge control applications. The monitor features a dimming control knob which allows the user to adjust the brightness from zero to 100%. The sharp 800×600 resolution allows clear images of charts, maps and other critical information to be displayed at 450nits when on full brightness. The R08T200-MRT1 is made of powder coated aluminium for durability, and can be panel mounted or installed using an industry standard VESA arm, offering a flexible system where space is restricted. The monitor can be powered with 9~36V DC through terminal blocks. Standard inputs include VGA, composite, or S-Video and a range of touchscreens are available as options. This product is certified to standard CE and FCC Class B approvals.

  • Brand: Winmate
  • 800 x 600 resolution
  • 450 NITS brightness
  • Rugged, power coated aluminium housing with IP65 front bezel and IP54 rear side
  • Wide voltage input
  • Size: 284mm (W) x 250mm (H) x 72.9mm (D)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The R08T200-MRT1 from Winmate is a rugged 4:3 ratio, 8.4" Marine LCD Monitor designed for use in marine bridge control applications. The monitor features a dimming control knob which allows the user to adjust the brightness from zero to 100%. The sharp 800x600 resolution allows clear images of charts, maps and other critical information to be displayed at 450nits when on full brightness. The R08T200-MRT1 is made of powder coated aluminium for durability, and can be panel mounted or installed using an industry standard VESA arm, offering a flexible system where space is restricted. The monitor can be powered with 9~36V DC through terminal blocks. Standard inputs include VGA, composite, or S-Video and a range of touchscreens are available as options. This product is certified to standard CE and FCC Class B approvals.

Ordering Info

  • Please call our technical sales team on 01785 87 90 50 (UK) or 0864 421 6991 (US) for advice.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Housing: Rugged, power coated aluminium with IP65 front bezel and IP54 rear side
  • Display Size: 8.4″
  • Brightness: 450cd/m2
  • Resolution: 800×600
  • Viewing Angle: -75~75 (H); -75~75 (V)
  • Controls: On/Off, Brightness Control, Power Status, OSD Control

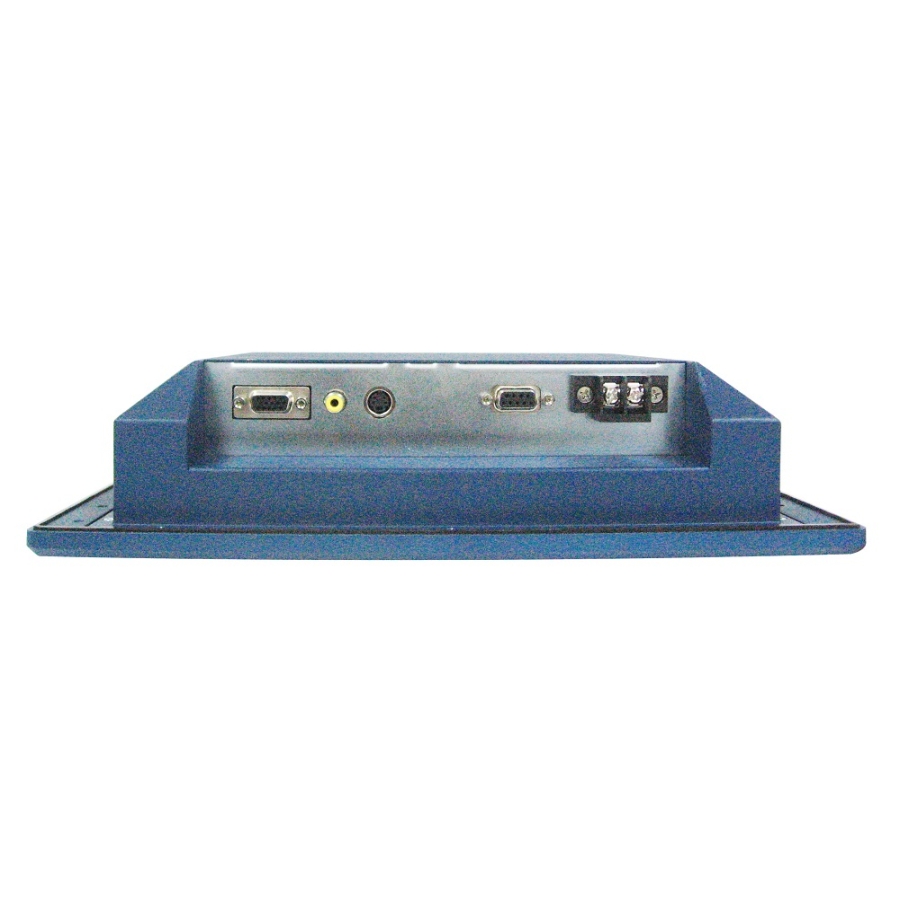

  • Video Inputs: VGA, S-Video, Composite
  • Touchscreen: Optional SAW, 5 Wire Resistive
  • Power Input: 9~36V DC via screw terminal
  • Operating Temperature: -10 to 55 deg.C (-20 to 60 deg.C for optional heating)
  • Vibration: 5Hz~500Hz / 1Grms/3 Axis
  • Shock: 15G, 11ms duration
  • Certification: CE, FCC Class B
Screen Size 1" to 10", 8.4"
