LX600W

60.1″ RadiForce Arm & VESA Mount DICOM Part 14 (3840×2160)

LX600W

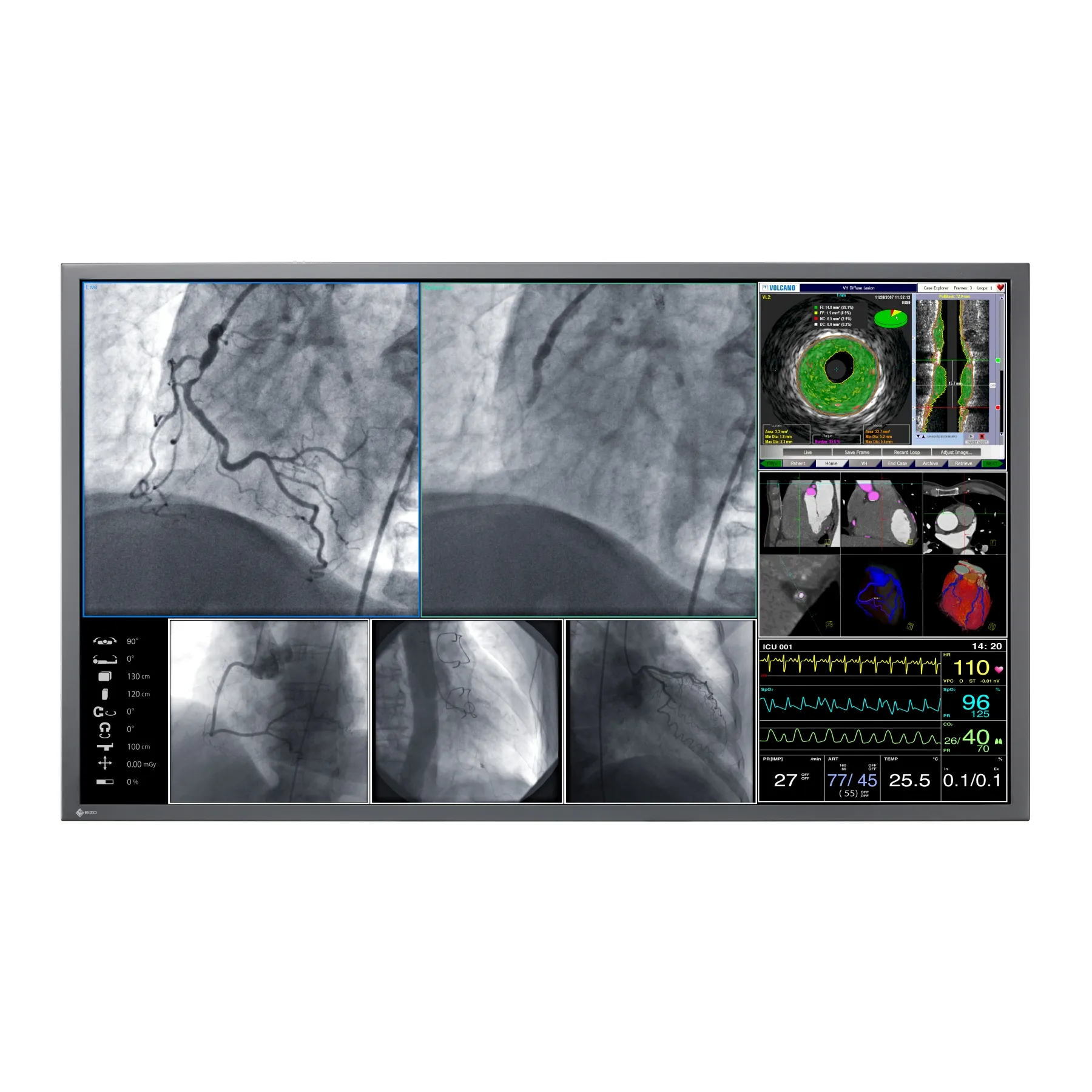

The RadiForce LX600W is a 60-inch LCD monitor, oozing flexibility, with the opportunity to clinically display different modality images on one screen. It is ideally suited for medical practices especially in the operating room

  • Brand: Eizo
  • 3840 x 2160 resolution
  • Fully compliant with DICOM Part 14
  • 520 NITS brightness
  • Size: 1390mm (W) x 800mm (H) x 143.7mm (D)
-
+

Details

The RadiForce LX600W is a 60.1 inch LCD monitor, oozing flexibility, with the opportunity to clinically display different modality images on one screen. It is ideally suited for medical practices especially in the operating room where this vast display can show crucial visuals to medical professionals with its longevity and reliability for long-term use. Compliance with DICOM Part 14 is calibrated to offer rendering consistency over its work-life, and LCD panel protector secures the screen from scratches, damages, and alleviates disinfecting the display. It is arm mountable and attaches to existing mounting accessories in operating rooms. It is a perfect installation for our health care application and fail-safe environments, for medical practice the monitor can be functioned to notify the X-ray system is conditions become critical or a component fails culminating in a vast, diverse and reliable display.

Ordering Info

  • LX600W – 60.1″ RadiForce Arm & VESA Mount DICOM Part 14 (3840×2160)

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Model Variations: LX600W: Without Panel Protector, LX600WP: With Panel Protector
  • Cabinet Color: Black
  • Type: Color (VA)
  • Backlight: LED
  • Size: 153 cm / 60.1″
  • Native Resolution: 3840 x 2160 (16:9 aspect ratio)
  • Viewable Image Size (H x V): 1330.0 x 748.0 mm
  • Pixel Pitch: 0.3465 x 0.3465 mm
  • Display Colors: 8-bit colors: 16.77 million colors
  • Viewing Angles (H / V, typical): 176° / 176°
  • Brightness (typical): 520 cd/m2
  • Recommended Brightness for Calibration: 300 cd/m2
  • Contrast Ratio (typical): 4000:1
  • Response Time (typical): 6 ms (midtone)
  • Input Terminals: DVI-D (dual link) x 2
  • Digital Scanning Frequency (H / V): 124 – 131.4 kHz / 59.7 – 60.3 Hz
  • Power Requirements: AC 100 – 240 V: 50 / 60 Hz
  • Maximum Power Consumption: 500 W
  • Power Save Mode: Less than 41 W
  • Power Management: DVI DMPM
  • Sensor: Backlight Sensor x 2
  • Net Weight (Without Stand): LX600W: 55 kg, LX600WP: 65 kg
  • Hole Spacing (VESA Standard): 400 x 400 mm, M8, depth 16 – 20 mm
  • Degree of Protection: IP20
  • Certifications & Standards: CE (Medical Device Directive), IEC/EN60601-1 (2nd edition), IEC/EN60601-1 (3rd edition), CAN/CSA C22.2 No. 601.1-M90, CAN/CSA C22.2 No. 60601-1-08, UL60601-1, FCC-B, RCM, RoHS, China RoHS, WEEE, CCC
  • Supplied Accessories: (May vary by country. Please contact EIZO for details.) AC power cord, dual link signal cable (DVI-D – DVI-D) x 2, Utility Disk (PDF Instructions for Use)
Video Ports >>> 1 Port
Screen Size 51" to 60", 60.1"
Ingress Protection IP20
Brightness 520nit, Standard

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

EIZO: Warranty and Service Information

Assured Systems are proud to be an official partner of EIZO providing a 2 year warranty on all products supplied within the EMEA, including products that have been customised. Extension options are also available for your convenience. Get the reliability you need with products and services from Assured Systems.
