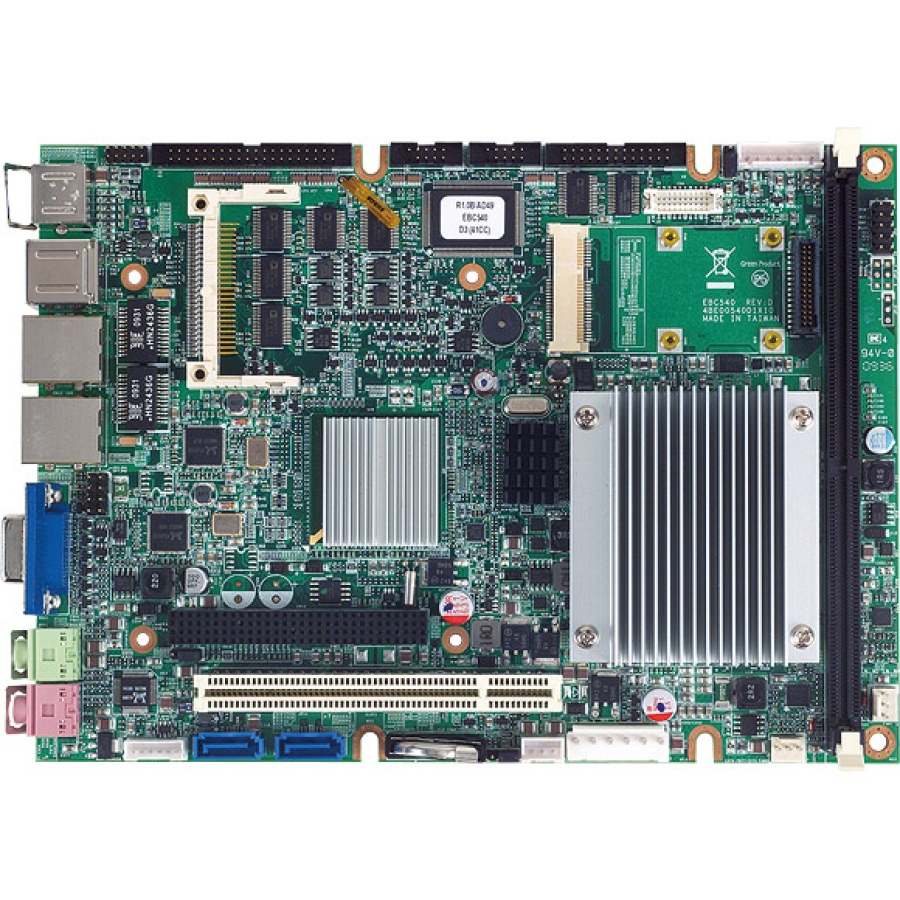

EBC 540

5.25″ On-board Intel Atom N270 1.6GHz CPU with Mini-PCIe

End of Life

The EBC 540 is a PCI 104 embedded board with an on-board Intel® Atom™ N270 1.6GHz processor with 512 KB L2 cache by 533 MHz FSB. The 5.25″ board, EBC 540 5.2″ board features Intel® 945GSE and ICH7-M chipsets, which supports DDR2 400/533 memory, along with integrated GMA950 graphics for large display application to support independent CRT and LVDS interface. The South Bridge ICH7-M provides a CompactFlash socket, six serial ports, four USB 2.0 ports, two PCI Express Gigabit Ethernet LAN ports, two SATA ports, one PCI 104 interface and one PCI slot for application. With PCI 104, the EBC 540 embedded board is a great solution featuring a low power consumption processor and small footprint with versatile displays and numerous I/O port support at industrial applications.

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The EBC 540 is a PCI 104 embedded board with an on-board Intel® Atom™ N270 1.6GHz processor with 512 KB L2 cache by 533 MHz FSB. The 5.25" board, EBC 540 5.2" board features Intel® 945GSE and ICH7-M chipsets, which supports DDR2 400/533 memory, along with integrated GMA950 graphics for large display application to support independent CRT and LVDS interface. The South Bridge ICH7-M provides a CompactFlash socket, six serial ports, four USB 2.0 ports, two PCI Express Gigabit Ethernet LAN ports, two SATA ports, one PCI 104 interface and one PCI slot for application. With PCI 104, the EBC 540 embedded board is a great solution featuring a low power consumption processor and small footprint with versatile displays and numerous I/O port support at industrial applications.

Ordering Info

  • EBC 540 5.25″ On-board Intel® Atom™ N270 1.6GHz CPU with Mini-PCIe

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Support Intel® Atom™ N270 1.6GHz processor with 533 MHz FSB
  • Intel® 945GSE integrated 3D graphics engine GMA950 chipset with CRT and LVDS display
  • 1 x 240-pin DDR2 DIMM socket, up to 2GB non-ECC 400/533 MHz
  • DDR2 memory
  • Realtek RTL8111C-GR PCI Express Gigabit Ethernet x 2
  • Realtek ALC888 Audio CODEC x 1
  • USB 2.0 x 4, Serial port x 6 and parallel port x 1
  • Mini-PCIe x 1/PCI 104 Interface x 1/PCI
