EBC 550

5.25″ Intel Core 2 Quad/ Core 2 Duo/ Celeron CPU Board, Dual GbE

End of Life

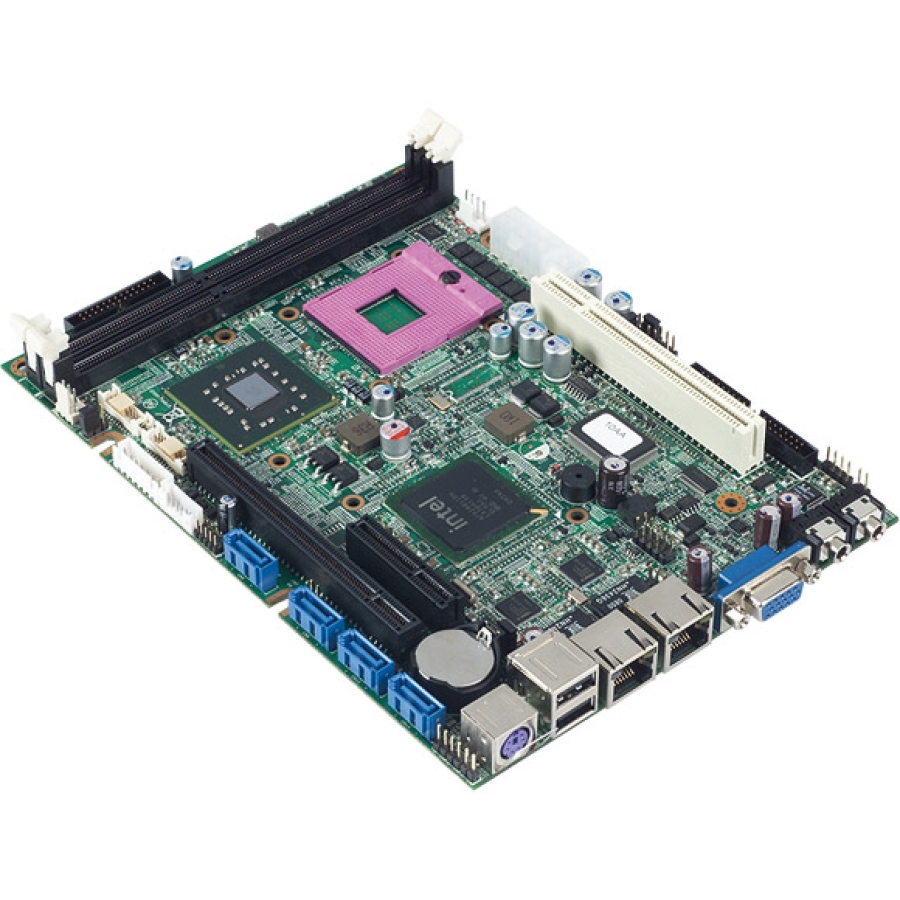

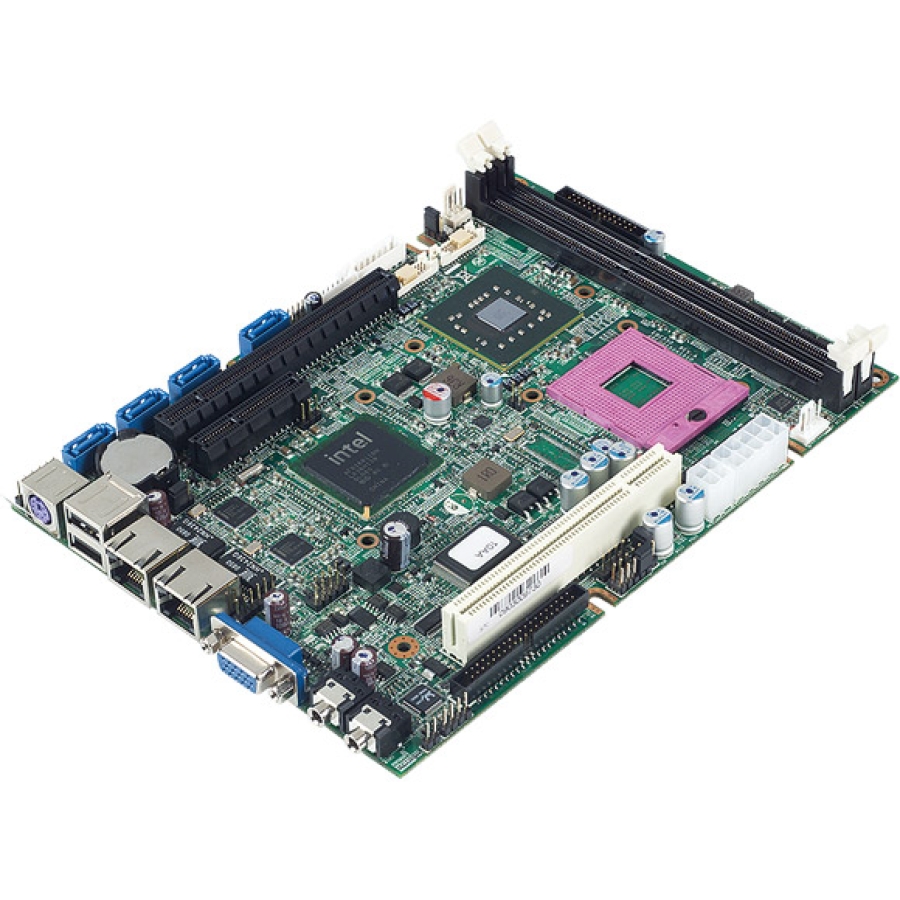

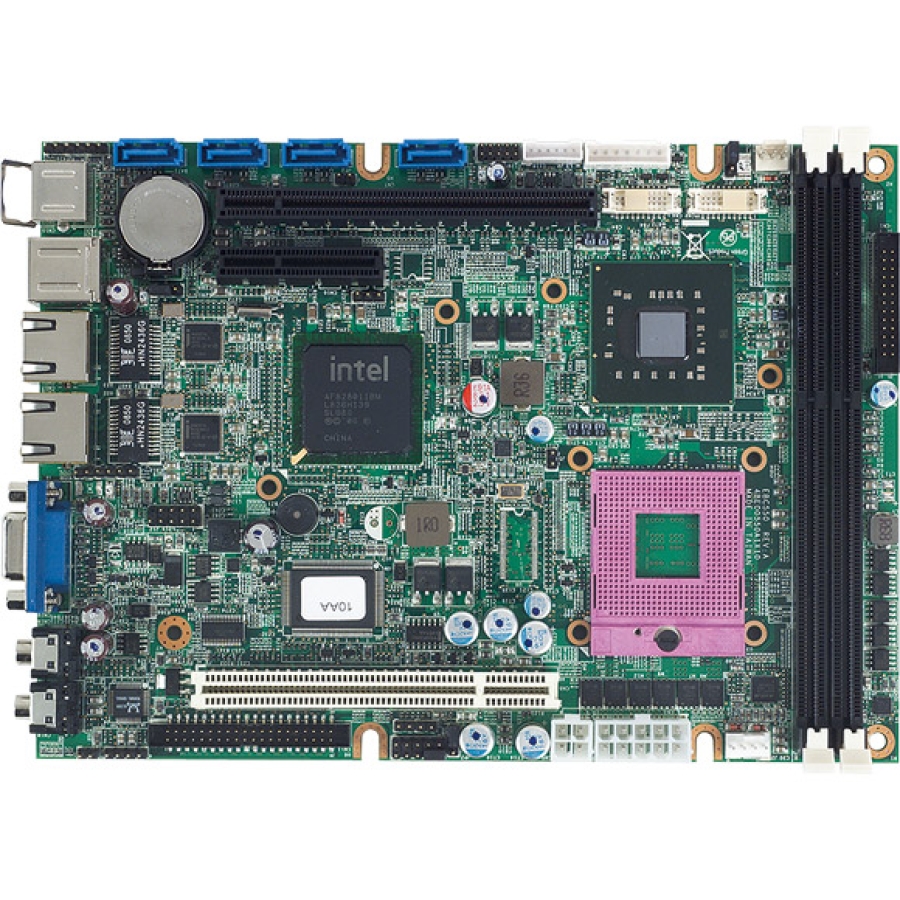

The EBC 550 5.25″ board is an embedded computer board utilizing Intel® Core™ 2 Quad, Core™ 2 Duo and Celeron® 575 Processor. The 5.25″ board, EBC 550 features Intel® GM45 and ICH9-M chipsets, which supports DDR3 1066 MHz DRAM. The multi expansion features via PCIe x16, PCIe x4 and PCI. The EBC 550 embedded board supports a variety of operating systems such as Windows XP embedded, Win CE and Linux.

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The EBC 550 5.25" board is an embedded computer board utilizing Intel® Core™ 2 Quad, Core™ 2 Duo and Celeron® 575 Processor. The 5.25" board, EBC 550 features Intel® GM45 and ICH9-M chipsets, which supports DDR3 1066 MHz DRAM. The multi expansion features via PCIe x16, PCIe x4 and PCI. The EBC 550 embedded board supports a variety of operating systems such as Windows XP embedded, Win CE and Linux.

Ordering Info

  • EBC 550 5.25″ Intel® Core™ 2 Quad/ Core™ 2 Duo/ Celeron® CPU Board, Dual GbE

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Support Intel® Core™ 2 Quad, Core™ 2 Duo, Celeron® Processor
  • Intel® GM45 with GMA4500MHD Graphic Engine
  • 2 x 240-pin DDR3 DIMM socket, up to 8GB non-ECC 1066 MHz DRAM
  • 2 x Intel® 82574L PCI Express Gigabit Ethernet
  • 1 x Realtek ALC888 HD CODEC
  • 6 x USB 2.0, 4 x Serial port , 4 x SATA and 1 x Parallel port
  • 1 x PCIe x16 Slot/1 x PCIe x4 Slot/1 x PCI slot
