CAPA848

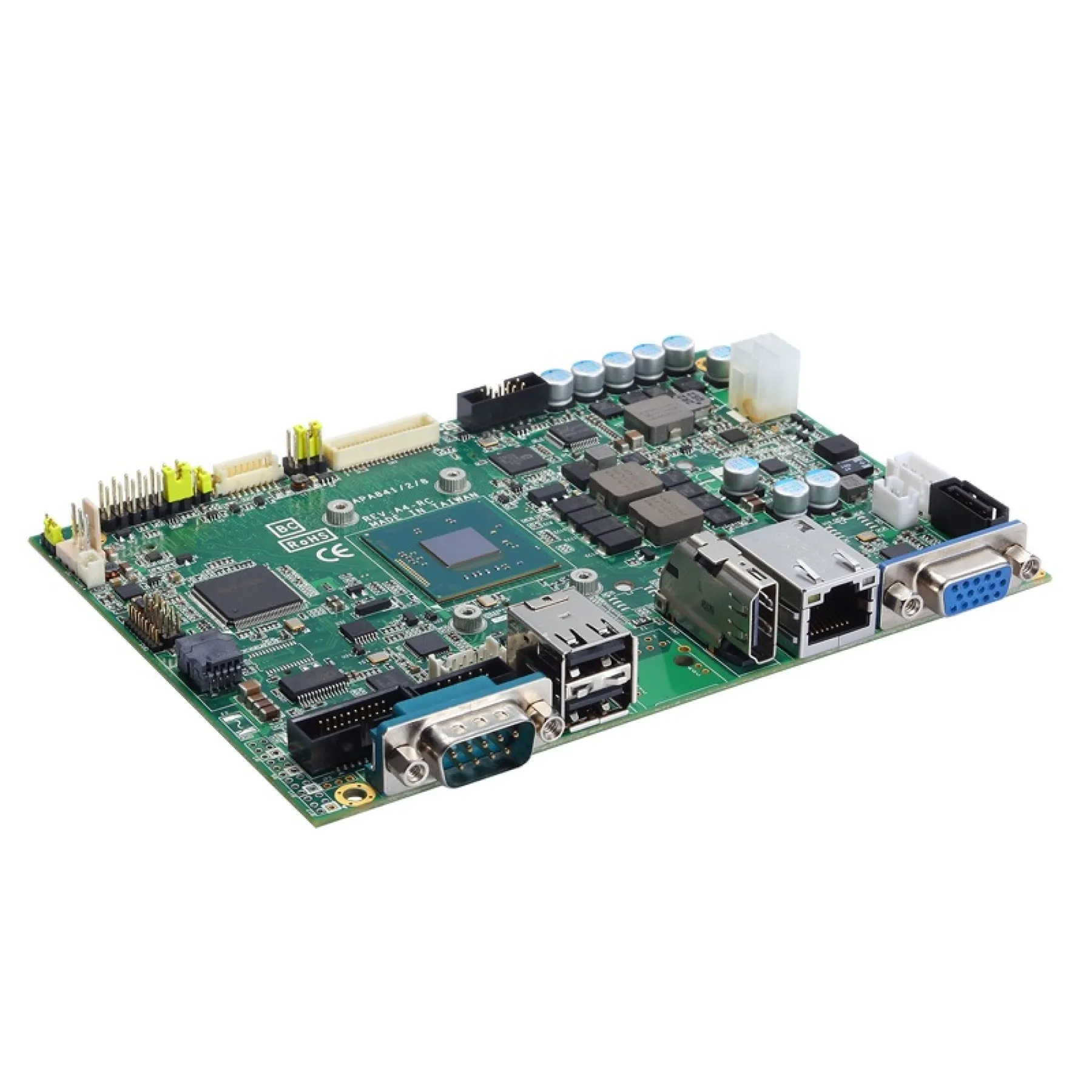

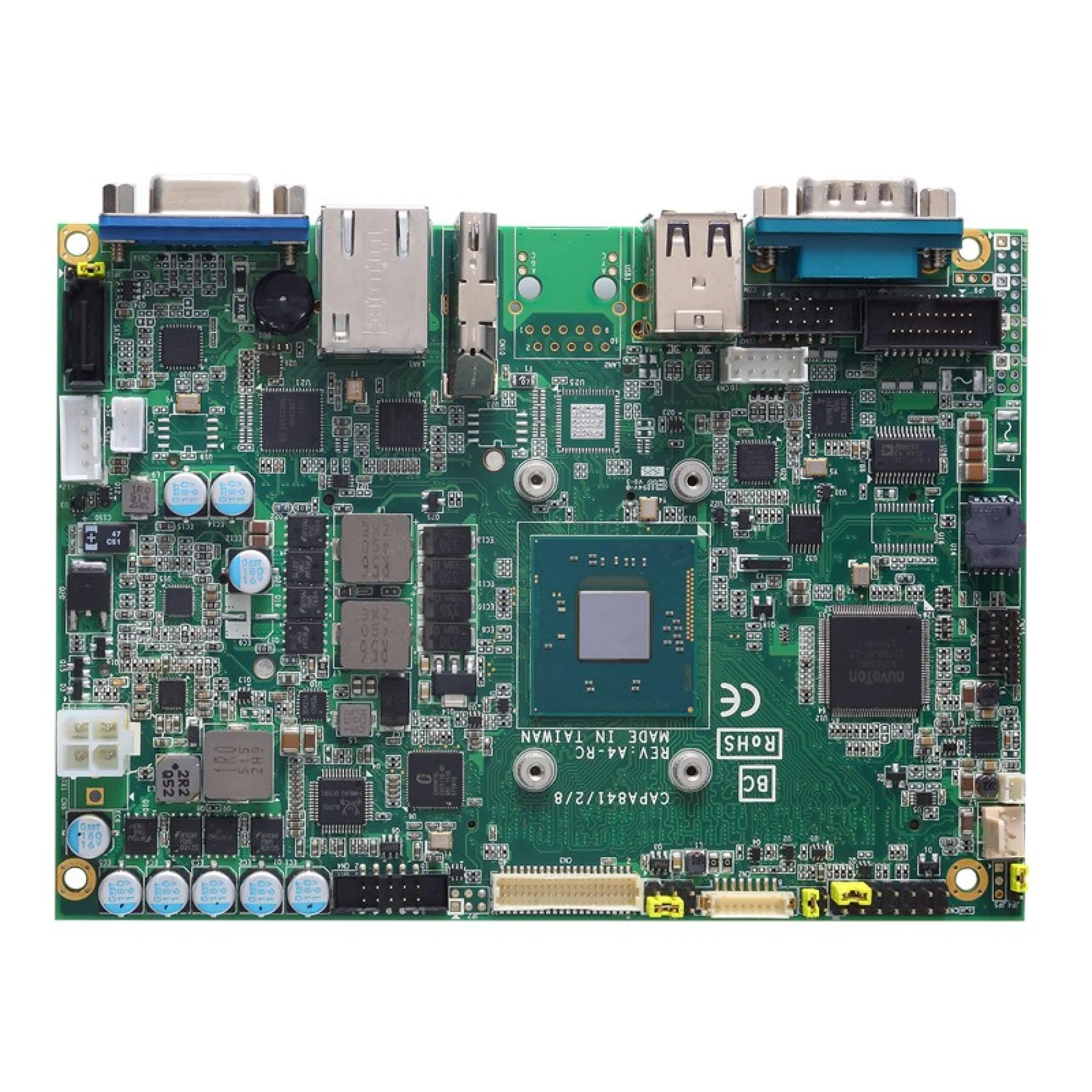

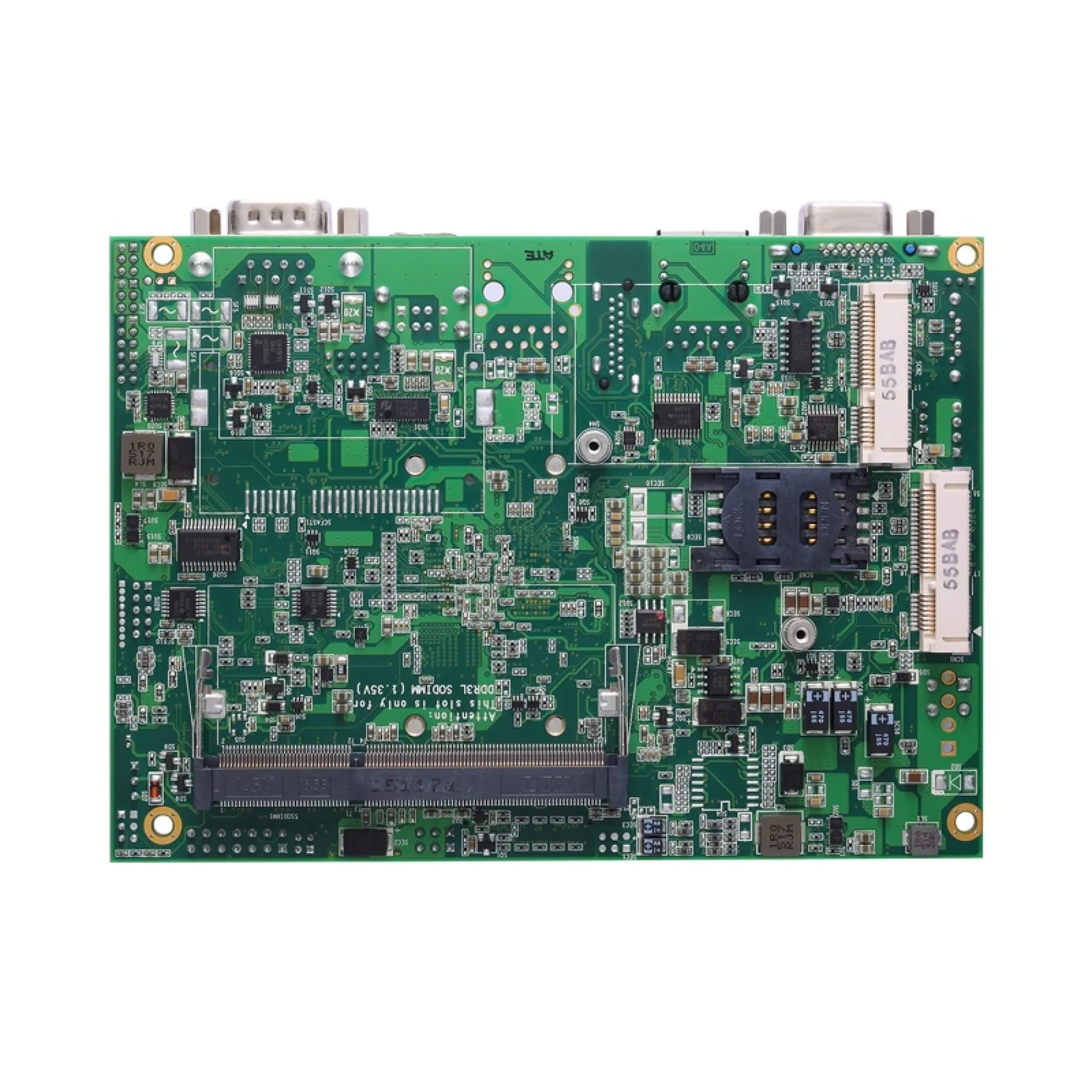

Axiomtek CAPA848 3.5″ Intel Celeron N2807 1.58GHz SBC with 1 LAN, 4 COM, DIO

CAPA848

New-in is the CAPA848 with SoC integrated it is an adaptable single board embedded system powered by the Intel Celeron N2807 1.58GHz dual-core on-board processor. 204-pin SO-DIMM DDR3L-1333 provide up to 8GB of storage whilst 4 COM ports- 2 x RS-232/422/485 and 2 x RS-232 present various connectivity solutions along with 4 USB 2.0 ports

  • Brand: Axiomtek
  • Intel Celeron N2807 1.58 GHz CPU
  • Wide operating temperature -20°C ~ +70°C
  • Size: 146mm x 104 mm

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The Axiomtek CAPA848 is an adaptable single board embedded system powered by the Intel Celeron N2807 1.58GHz dual-core on-board processor. 204-pin SO-DIMM DDR3L-1333 provide up to 8GB of storage whilst 4 COM ports- 2 x RS-232/422/485 and 2 x RS-232 present various connectivity solutions along with 4 USB 2.0 ports. Display is courtesy of single HDMI, VGA and LVDS ports, and expansion is via 1 full-size PCI Express Mini Card w/mSATA support, 1 half-size PCI Express Mini Card and 1 SIM slot offer plenty of potential to improve on this system. Display comes in the form of single VGA, LVDS and HDMI, a 3V Lithium battery and 255 level watchdog ensure that this single board embedded system maintains its performance.

Ordering Info

  • CAPA848VHGA-N2807 (P/N- E38E848100)3.5″ embedded SBC with Intel Celeron processor N2807 1.58 GHz, VGA/LVDS/HDMI, 1 GbE LAN and audio
  • 59382620000E1 x COM w/ bracket P=2.0 mm, L=300 mm
  • 59384500100EAudio cable w/ bracket P=2.0 mm, L=450 mm
  • 59382631000E2 x USB 2.0 wafer cable w/ bracket 180 mm
  • 59380000300E2 x COM w/bracket P=1.27 x 2.54 L=300 mm

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • CPU: Intel Celeron processor N2807 1.58 GHz dual-core onboard (Bay Trail)
  • Chipset: SoC Integrated
  • System Memory: 1 x 204-pin SO-DIMM DDR3L-1333 up to 8 GB
  • BIOS: AMI
  • COM: 2 x RS-232/422/485, 2 x RS-232
  • USB: 4 x USB 2.0
  • Ethernet: 1 x 10/100/1000Mbps (Intel i211AT)
  • Display: 1 x VGA, 1 x LVDS, 1 x HDMI
  • Digital I/O: 8-IN/OUT
  • Audio: MIC-in/Line-in/Line-out
  • Storage: 1 x SATA-300
  • Expansion: 1 x Full-Size PCI Express Mini Card w/mSATA supported, 1 x Half-Size PCI Express Mini Card, 1 x SIM slot
  • Others: SMBus
  • Battery: Lithium 3V/220mAH
  • Power Input: 2 x 2-pin connector, +12V DC-in only, AT Auto Power On function supported
  • Power Requirements: Intel Celeron N2807 1.58 GHz, 8GB DDR3L, Max. RMS. +12V 0.64A
  • Watchdog Timer: 255 levels, 1~255 sec.
  • Hardware Monitoring: Yes
  • Operating Temperature: -20°C ~ +70°C (-4°F ~ +158°F)
  • Relative Humidity: 10% ~ 95% relative humidity, non-condensing
  • Dimensions: 146 x 104 mm
  • Board Thickness: 1.6 mm
  • Certification: CE
Processor Type Intel Celeron: Up to 2 Cores
Memory Capacity Up to 8GB
Memory Type DDR3L
COM Ports 2x RS-232, 2x RS-232/422/485
LAN Ports 1x 1GB
USB Ports 4x USB 2.0
Video Ports 1x VGA, 1x LVDS, 1x HDMI
Storage 1x SATA
Operating Temperature -20°C to 70°C
