CH3205-WH35L0

32″ Widescreen Chassis Mount Touchscreen Monitor with LED B/L (1920×1080)

CH3205-WH35L0

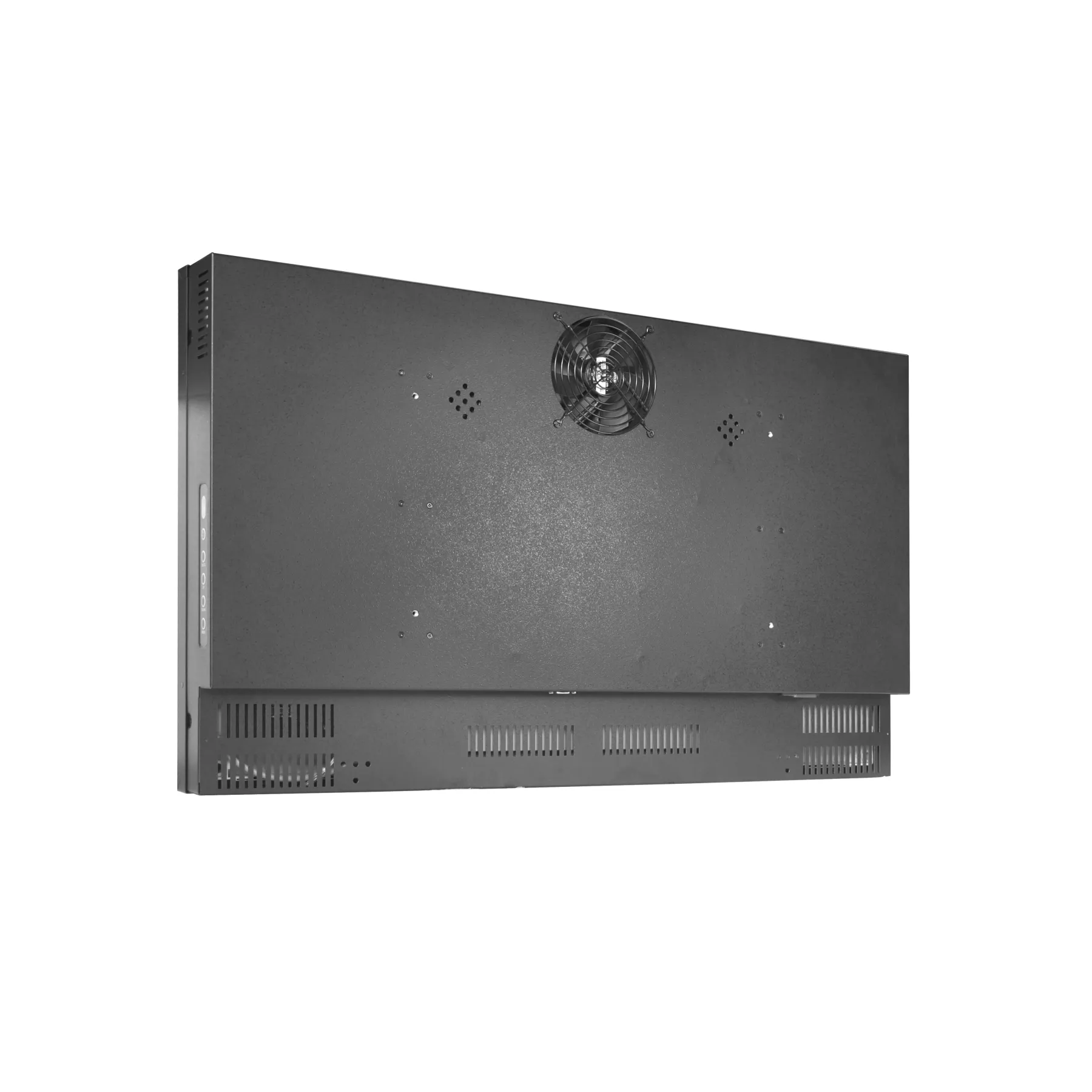

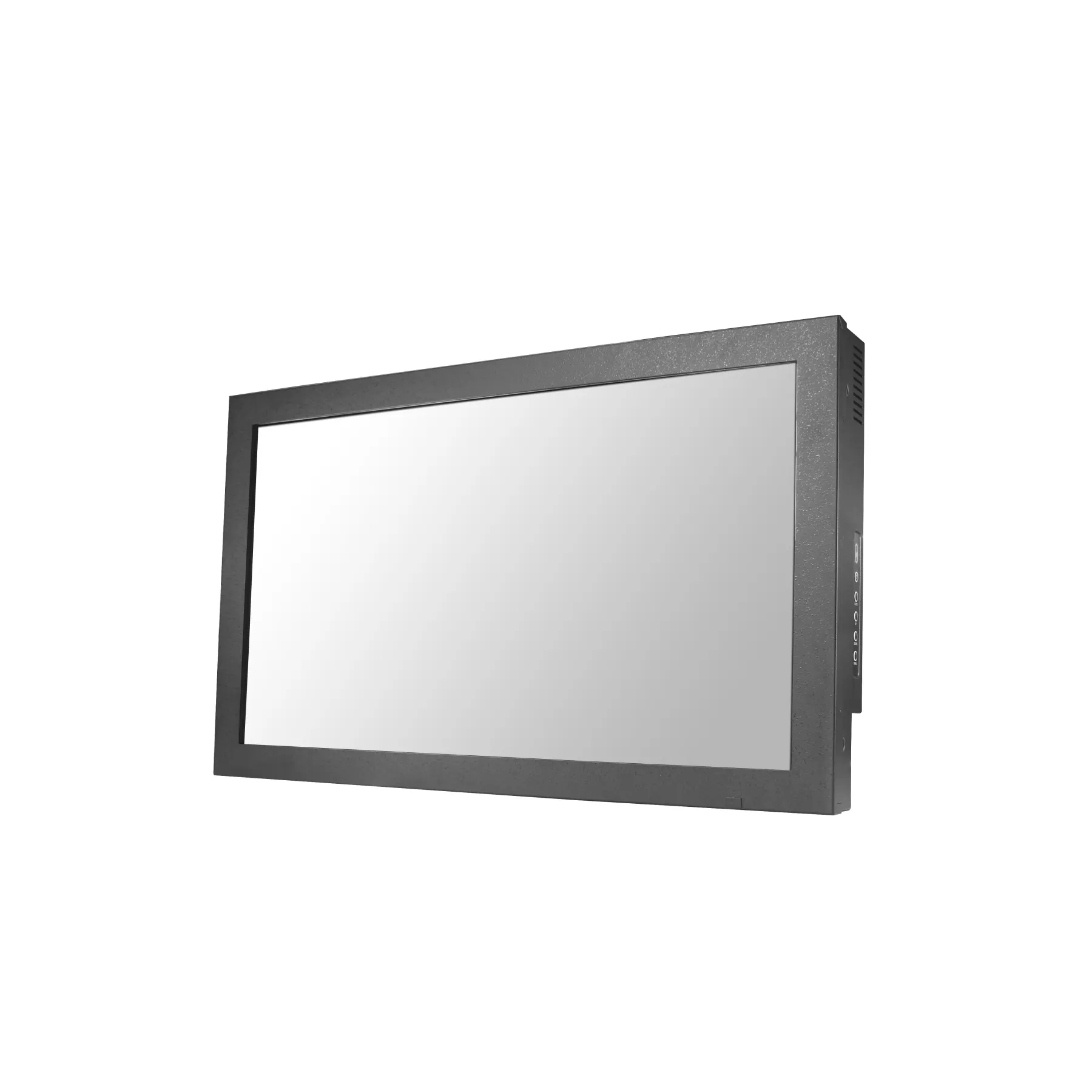

The CH3205S manufactured by Winsonic is a 32" widescreen chassis mount industrial LCD display. Packaged in a metal enclosure, it is designed to be mounted using the industry standard VESA fixings on the rear of chassis. By incorporating the latest LED backlight technology, it helps to increase the projected lifetime of the screen without compromising the quality or consistency of the image. The product is also available with optional touchscreen and a variety of video inputs

  • Brand: Winsonic
  • 32 inch LED backlit screen
  • 1920 x 1080 widescreen resolution
  • 350 NITS brightness
  • Resistive, Capacitive, SAW or Infrared touch options
  • S-Video, Composite, HDMI & DVI (On request)
  • Size: 783mm (W) x 475mm (H) x 93mm (D)
-
+

Details

The CH3205-WH35L0 manufactured by Winsonic is a 32" widescreen chassis mount industrial LCD display. Packaged in a metal enclosure, it is designed to be mounted using the industry standard VESA fixings on the rear of chassis. By incorporating the latest LED backlight technology, it helps to increase the projected lifetime of the screen without compromising the quality or consistency of the image. The product is also available with Resistive, Capacitive, SAW or Infrared touch options and a variety of video inputs

Ordering Info

  • CH3205-WH35L0: 32″ Widescreen Chassis Mount LCD Touch Monitor with VGA Input

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Viewable Image Size: 32″
  • Resolution: 1920×1080
  • Ratio: 16:9
  • Brightness: 350cd/m
  • Contrast: 3000:1
  • Viewing Angle: H (-89 +89), V (-89 +89)
  • Bezel: Powder Coated Steel
  • Backlight: LED
  • VGA: 1 x DB15
  • Video Inputs: S-Video, Composite, HDMI & DVI (On request)
  • Touchscreen: Resistive, Capacitive, SAW or Infrared touch options
  • Power: AC Auto-Sensing 90-260V through IEC cable, (DC Optional)
Screen Size 31" to 40", 32"
Touch Technology Infrared, Projected Capactive, Resistive
Brightness 350 nit, Standard
