PPC-212

Arestech PPC-212 21.5″ Fanless Panel PC Multi-touch with Intel Celeron J1900 CPU

PPC-212

  • Brand: Arestech
  • Intel Celeron J1900 Processor
  • 1920 x 1080 resolution
  • 250 NITS brightness
  • Projected capacitive touch technology
  • Size: 524.3mm (H) x 323.8mm (W) x 64.9mm (D)
-
+

Details

The PPC-212 from Arestech is a widescreen multi-touch panel pc, powered by the Intel Celeron J1900 processor. Featuring an 21.5" LED panel with a HD resolution of 1920 x 1080 and a brightness of 250 NITS, this panel pc is a budget friendly option for signage, kiosk, self serve and check-in applications.

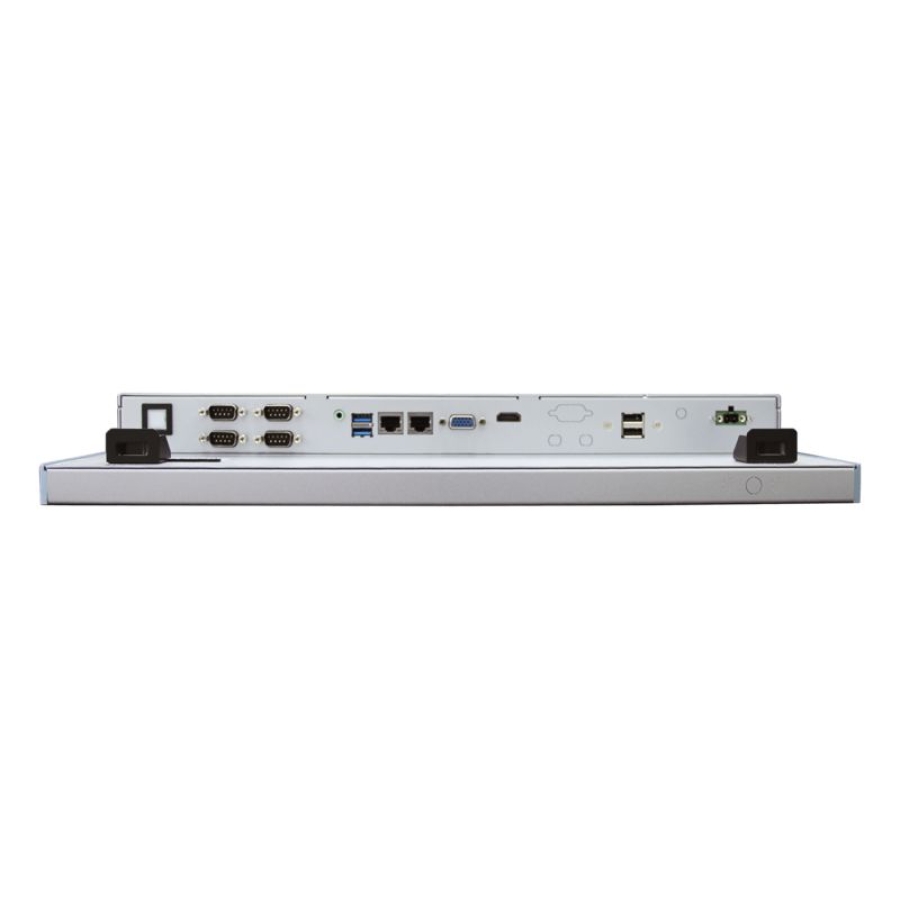

I/O on the PPC-212 includes 4 x USB, 4 x COM and 2 x LAN. Expansion is available through 2 x Mini PCIe.

Ordering Info

  • PPC-212 – 21.5″ Fanless Panel PC Multi-touch with Intel Celeron J1900 CPU

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

CPU:  Intel® Celeron® J1900 Processor, Quad-Core up to 2.0 GHz
L2 Cache:  2 MB
BIOS:  UEFI
Memory:  DDR3L 1333 MHz SDRAM
Socket:  1 x (204-pin SO-DIMM)
Display  Panel Size:  21.5” LED Panel
Resolution:  1920 x 1080 (FHD)
Viewing Angle:  85 x 85 (H) x 80 x 80 (V)
Brightness:  250 (cd/m2)
Color Support:  16.7M
Contrast Ratio:  1000:1
Response Time:  5 (msec)
HDMI:  1.4a up to 1920 x 1200
Dual Display:  LCD + HDMI
Touchscreen Type:  Projected Capacitive
Surface Hardness:  7 Mohs
Transparency:  90% (±3%)
USB:  2 x USB 3.0, 2 x USB 2.0, S
Serial Port:  4 COM (2 RS-232, 2 RS-232/422/485)
Digital I/O:  Optional 8-pin Digital I/O (DB-9 connector, Option)
Expansion:  2 Mini PCIe (1 full-size Mini PCIe or mSATA, selected by jumper setting; 1 half-size Mini PCIe)
Ethernet:  Dual GbE, 10/100/1000 Mbps (Realtek RTL8111G-CG)
Chipset:  Realtek ALC662 High Definition Audio (HD)
Connector:  Line out
Storage:  Supports either mSATA or full-size Mini PCIe, selected by jumper setting
SATA II:  1 Swappable 2.5” HDD/SSD
Power Supply Voltage:  9-36 V DC input(Phoenix Connector)
Connector Type:  2-Pin Terminal Block, Phoenix Connector
Power Consumption (Typical):  1.6 A @ 12 V (19.2 W)
Power Consumption (Max):  2.75 A @ 12 V (33 W)
Battery:  Lithium 3 V / 210 mAH
Operating Temperature:  0~50oC (32~122o F) w/ 2.5” SSD
Storage Temperature:  -40~85o C (-40~185o F)
Vibration:  5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
GeneralIP Protection:  IP54
Dimensions (L x W x H):  524.3 x 323.8 x 64.9 mm (20.63” x 12.75” x 2.55”)
Weight:  6.99 kg (15.41 lb)
Operating System:  Windows 7/8.1/10, WES7-E/P, WE8S
