WMP-227

Wincomm 21.5″ Fanless Medical Grade Panel PC with Intel Core CPU Options

End of Life

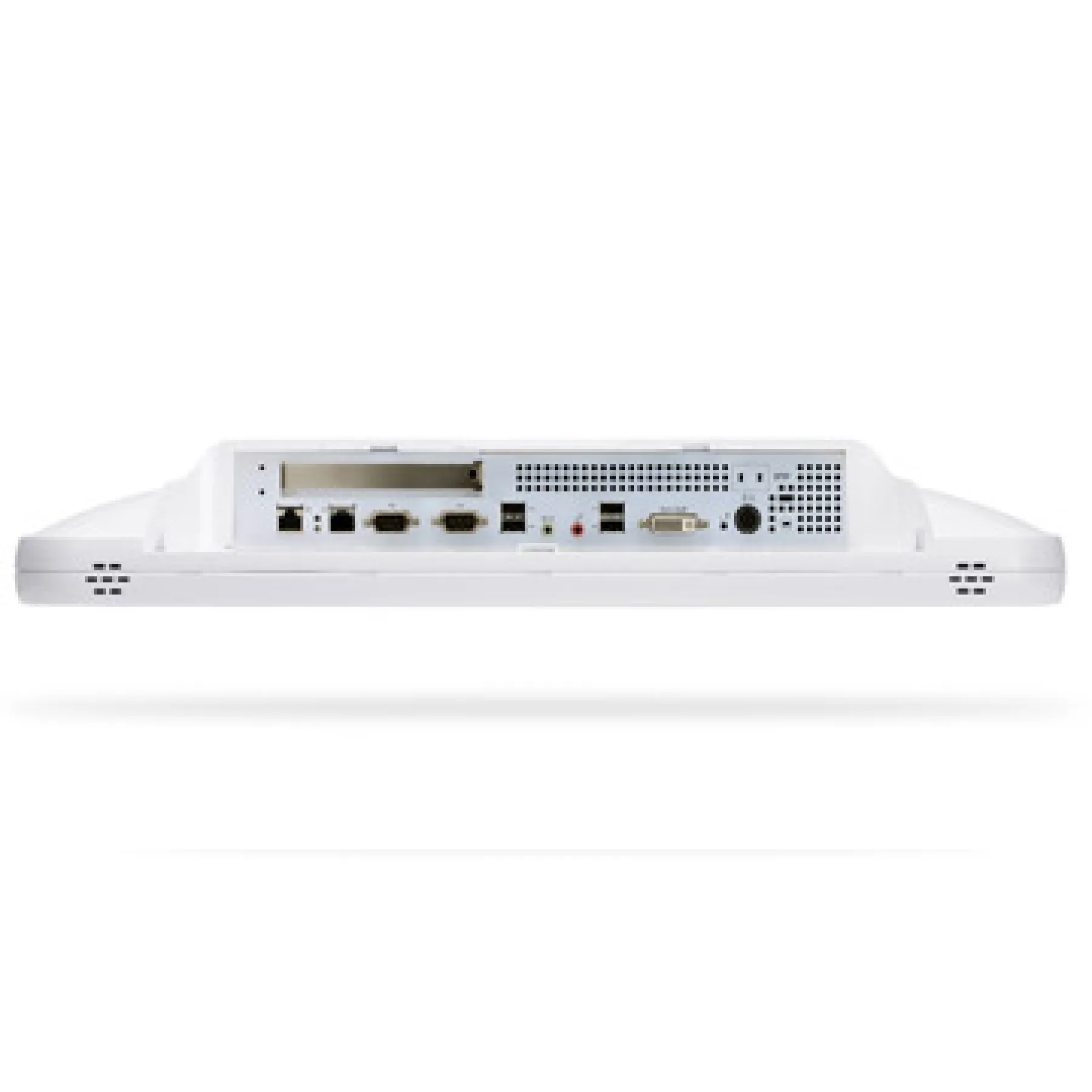

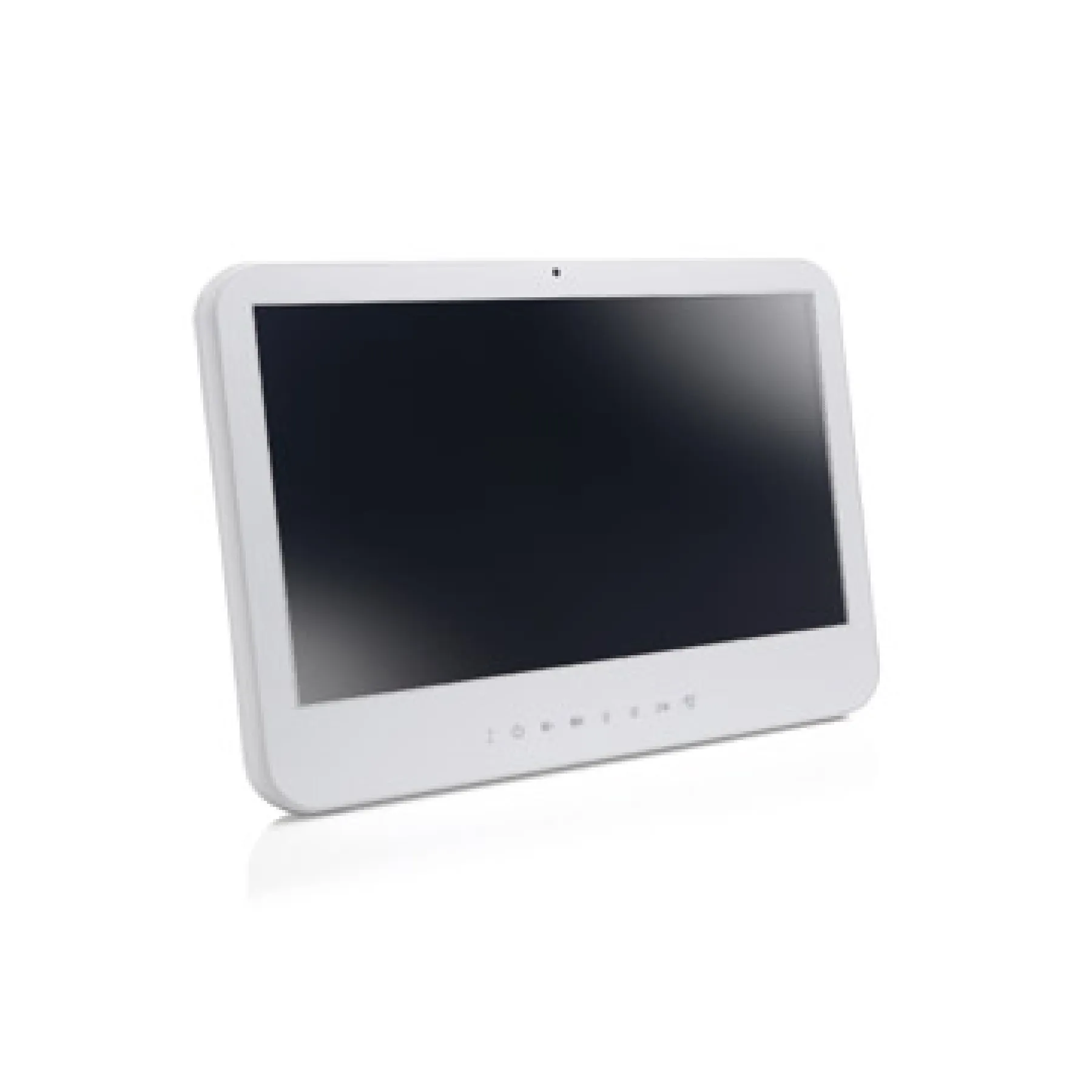

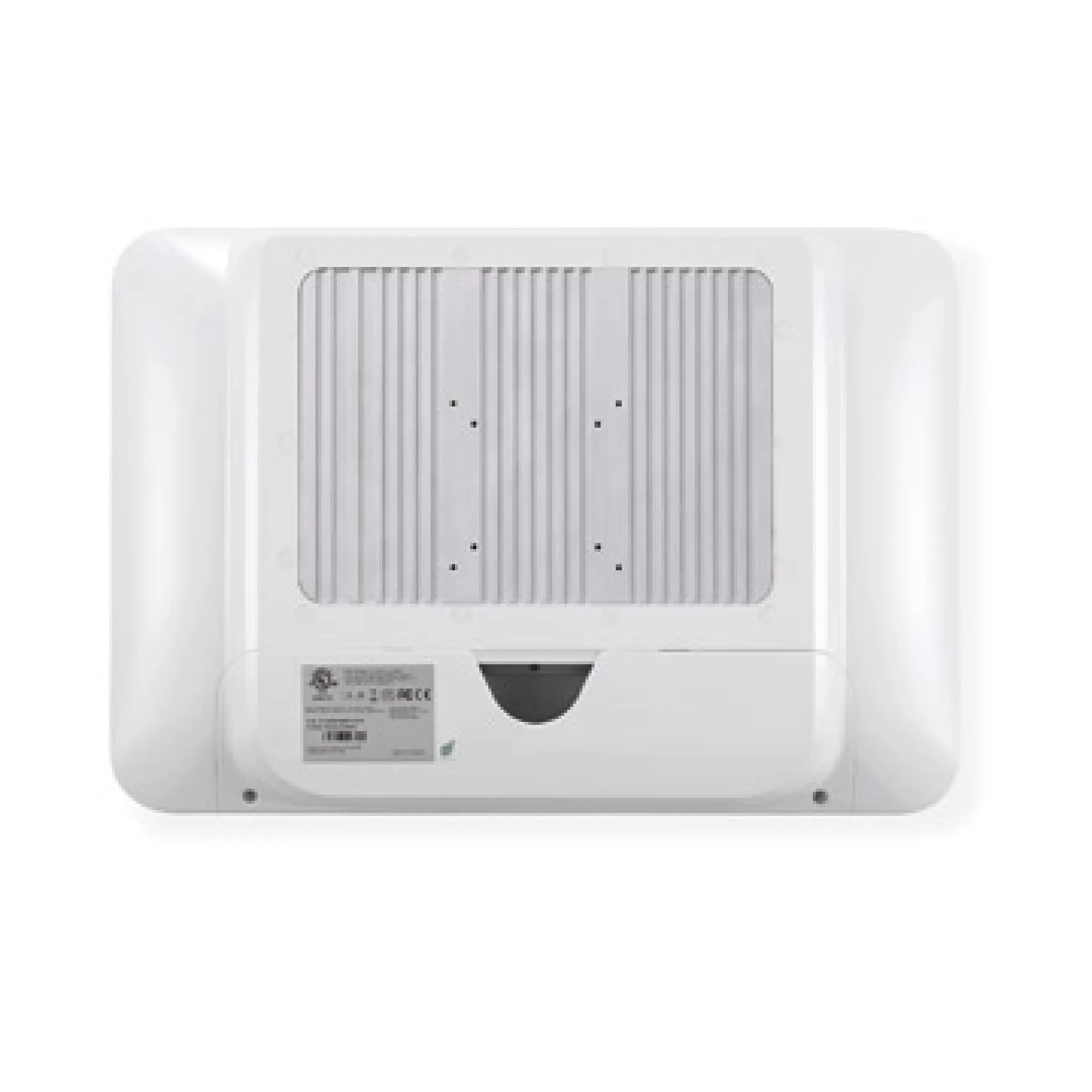

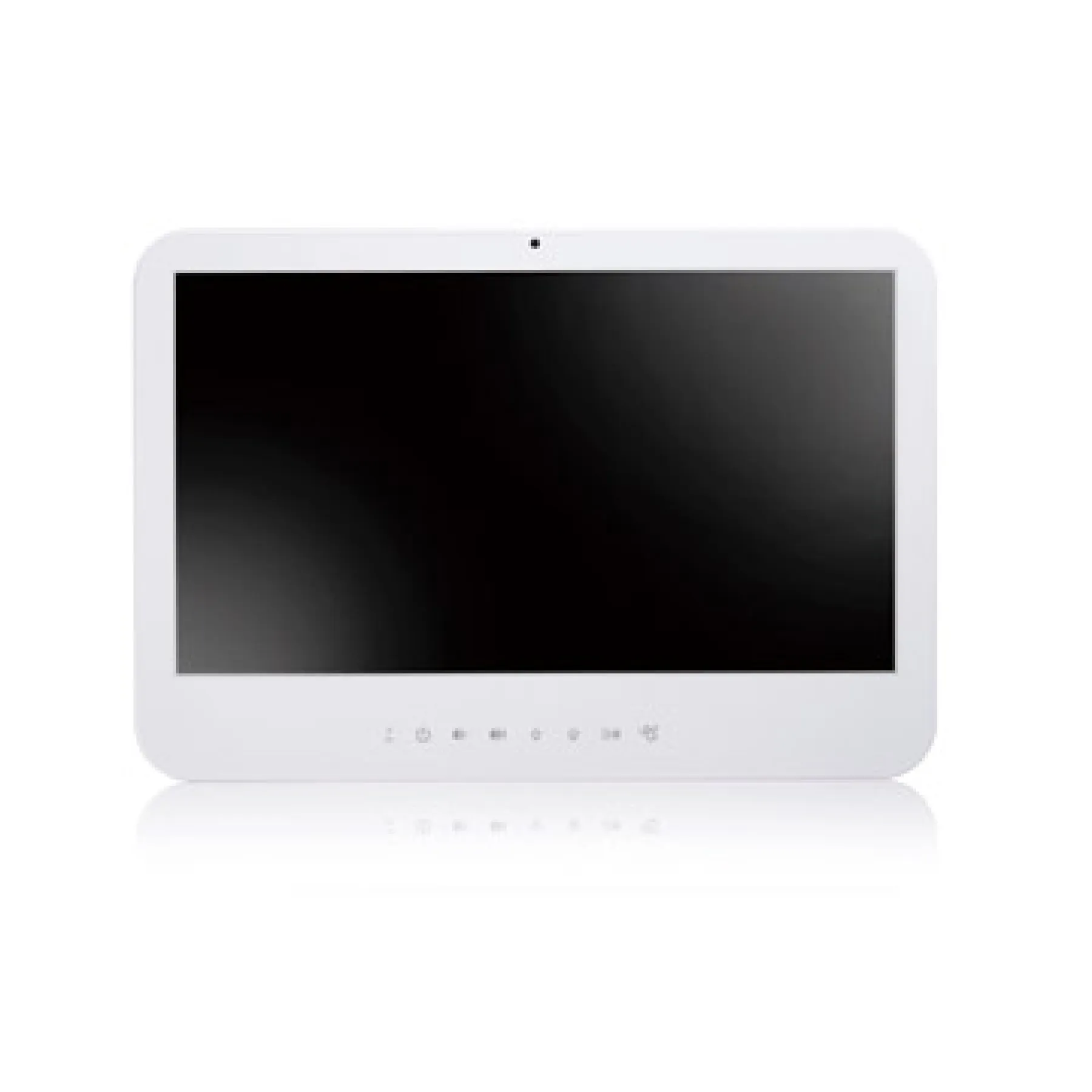

The WMP-227 is a 21.5” widescreen medical grade panel PC based around Intel’s powerful range of low power 2nd generation Core i processors, offering a fanless computing platform. The WMP-227 features a seamless flat resistive touch with IP65 protection, offering easy cleaning and anti-bacterial properties, and the LCD panel is LED backlit and offers full HD resolution of 1920 x 1080. Features also include a 2.5” drive bay, two LAN, four USB, and a DVI-I output to display content on an external display. Optional WiFi, Webcam, Bluetooth and RFID reader complete the spec. The system is housed in anti-bacterial plastic ideal for medical environments and also comes with medical 60601-1 3rd edition certification, and satisfies regulations FCC-B, cUL, CE, VCCI required for medical environments.

  • Brand: Wincomm
  • 2nd Gen Intel Core i7/i5/i3/ Celeron CPU options
  • Display: 21.5″ LED Backlit LCD Panel
  • Medical 60601-1 3rd edition compliance
  • 1920 x 1080 resolution
  • 250 NITS brightness
  • Size: 540mm (W) x 375mm (H) x 78mm (D)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The WMP-227 is a 21.5” widescreen medical grade panel PC based around Intel's powerful range of low power 2nd generation Core i processors, offering a fanless computing platform. The WMP-227 features a seamless flat resistive touch with IP65 protection, offering easy cleaning and anti-bacterial properties, and the LCD panel is LED backlit and offers full HD resolution of 1920 x 1080. Features also include a 2.5” drive bay, two LAN, four USB, and a DVI-I output to display content on an external display. Optional WiFi, Webcam, Bluetooth and RFID reader complete the spec. The system is housed in anti-bacterial plastic ideal for medical environments and also comes with medical 60601-1 3rd edition certification, and satisfies regulations FCC-B, cUL, CE, VCCI required for medical environments.

Ordering Info

  • WMP-227:
  • 21.5″ Fanless Medical Grade Panel PC with Low Power Intel Core CPU Options
  • Assured Systems will configure and test systems to your exacting requirements, please call our sales team on 01785 879050 to discuss your application in detail

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Display: 21.5″ LED Backlit LCD Panel 1920 x 1080
  • Brightness: 250 nits
  • CPU: 2nd Generation Intel Core i7/i5/i3/ Celeron processor
  • Chipset: Intel BD82HM65 PCH
  • Graphics: Intel HD Graphics
  • Memory: 8GB maximum, x 2 DDR3 SODIMM
  • Audio: Audio Line Out
  • USB: 2.0 x 4
  • Storage: 1 x 2.5″ SATA HDD
  • Expansion: PCI-E (x16) x 1 (or PCI x 1) and Mini PCIe x 2
  • Power: External 100 watts, 90~264V AC in, 12V DC out
  • Compliance: FCC-B, cUL, CE, VCCI
  • Medical Regulations: Medical 60601-1 3rd edition (EN 60601-1:2006, ANSI/AAMI ES60601-1:2005, CAN/CSA C22.2 No. 60601-1:08)
Touch Technology Resistive
Ingress Protection IP65
Brightness 250nit, Standard
Resolution 1920x1080, FHD
GPU Integrated GPU
Memory Capacity Up to 2GB, Up to 4GB, Up to 8GB
Cooling Type Fanless, Yes
Serial Ports (COM) 1 Port, 1 Port, 2 Ports, RS-232, RS-232/422/485
USB Ports 4 Ports, 4 Ports, USB 2.0
Ethernet Ports (LAN) 2 Ports, 2 Ports
Wireless Wi-Fi
Audio Yes
Video Ports 1x DVI
Storage Type 1, 2.5"
Expansion Type 1, 1, 2, 3, Any Expansion Type, Mini PCI Express, PCI, PCI Express
Input Voltage 12 VDC
Mounting Options VESA-mount
Operating Temperature 0°C to 40°C, Standard
Certifications CE/FCC, UL
