PM2005

20.1″ Panel Mount LCD Monitor (1600×1200)

End of Life

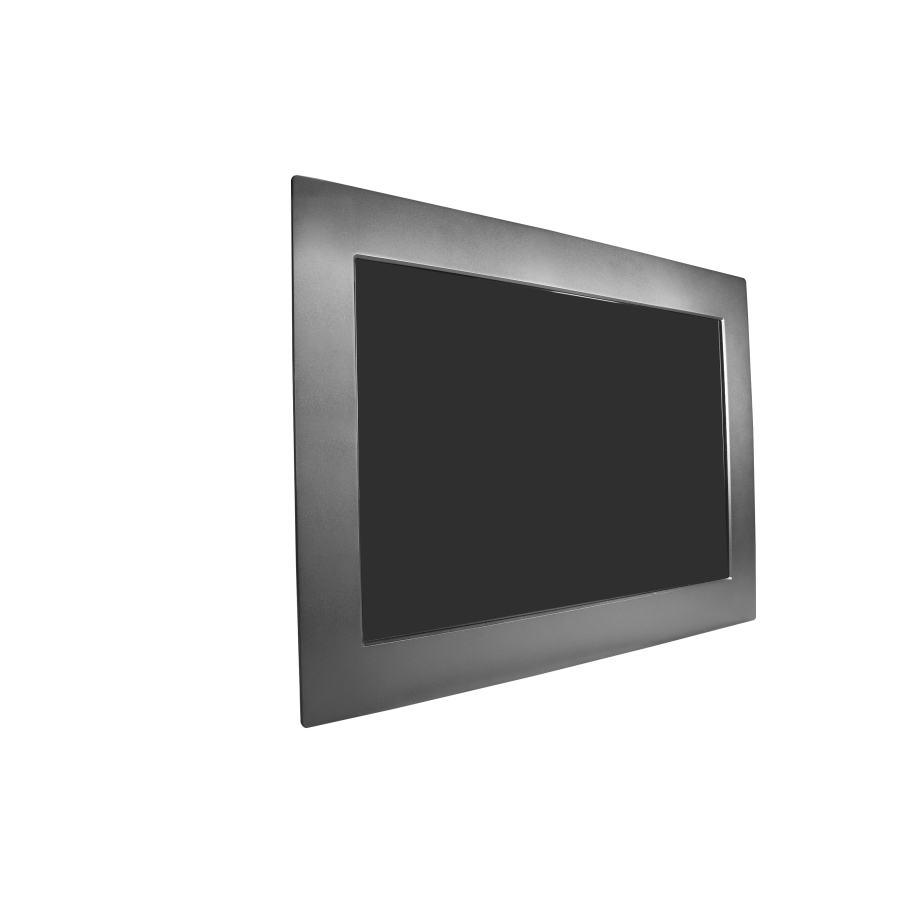

The PM2005 from manufacturer Winsonic is a 20.1" front panel mount LCD monitor. With its sleek mechanical design it provides flexible product configuration and easy maintenance. The PM2005 is CCFL Backlit and comes available with auto-brightness sensor. The product is available with optional touchscreen and a variety of video inputs, including a VGA connector with optional AV, SV and AV-Looping.

  • Brand: Winsonic
  • 20.1 inch LED backlit screen
  • 1600 x 1200 resolution
  • 300 NITS brightness
  • Optional touchscreen
  • Variety of video inputs
  • Size: 525mm (W) x 385mm (H) x 71mm (D)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The PM2005 from manufacturer Winsonic is a 20.1" front panel mount LCD monitor. With its sleek mechanical design it provides flexible product configuration and easy maintenance. The PM2005 is CCFL Backlit and comes available with auto-brightness sensor. The product is available with optional touchscreen and a variety of video inputs, including a VGA connector with optional AV, SV and AV-Looping.

Ordering Info

  • PM2005: 20.1″ Panel Mount LCD Monitor (1600×1200)

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Viewable Image Size: 20.1″
  • Resolution: (1600×1200)
  • Ratio: 4:3
  • Brightness: 300cd/m
  • Contrast: 1000:1
  • Viewing Angle: H (-80 +80), V (-80 +80)
  • Bezel: Powder Coated Steel
  • Backlight: CCFL
  • VGA: 1 x (15 Pin Female D-Sub)
  • Video Inputs: VGA
  • Touchscreen: Optional
  • Power: Auto-Sensing, AC 90 to 260v, 50/60 Hz
Screen Size 11" to 20", 20.1"
