WMP-197V

19″ Fanless Medical Grade Panel PC with Intel Core CPU Options

End of Life

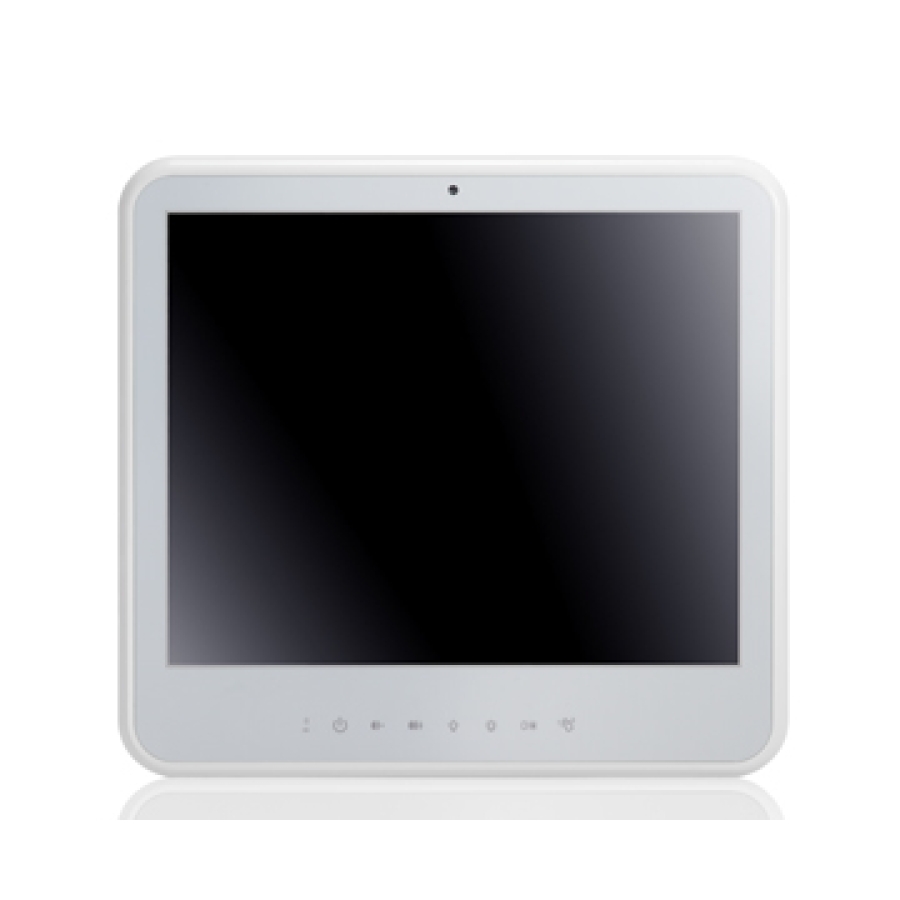

The WMP-197V is a fanless 19” widescreen medical grade panel PC based around Intel's powerful range of 2nd generation Core i processors. The WMP-197V features a seamless flat resistive touch with IP65 protection, offering easy cleaning and anti-bacterial properties, and the LCD panel is LED backlit and offers a resolution of 1280 x 1024. Features also include a 2.5” drive bay, two LAN, four USB, and a DVI-I output to display content on an external display. Optional WiFi, Webcam, Bluetooth and RFID reader complete the spec. The system is housed in anti-bacterial plastic ideal for medical environments and also comes with medical 60601-1 3rd edition certification, and satisfies regulations FCC-B, cUL, CE, VCCI required for medical environments

  • Brand: Wincomm
  • 2nd Generation Intel Core i7/i5/i3/ Celeron CPU options
  • Display: 19″ LED Backlit LCD Panel
  • Medical 60601-1 3rd edition compliance
  • 1280 x 1024 resolution
  • 350 NITS brightness
  • Size: 450mm (W) x 420mm (H) x 85.3mm (D)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The WMP-197V is a fanless 19” widescreen medical grade panel PC based around Intel's powerful range of 2nd generation Core i processors. The WMP-197V features a seamless flat resistive touch with IP65 protection, offering easy cleaning and anti-bacterial properties, and the LCD panel is LED backlit and offers a resolution of 1280 x 1024. Features also include a 2.5” drive bay, two LAN, four USB, and a DVI-I output to display content on an external display. Optional WiFi, Webcam, Bluetooth and RFID reader complete the spec. The system is housed in anti-bacterial plastic ideal for medical environments and also comes with medical 60601-1 3rd edition certification, and satisfies regulations FCC-B, cUL, CE, VCCI required for medical environments

Ordering Info

  • WMP-197V: 19″ Fanless Medical Grade Panel PC with Intel Core CPU Options
  • Assured Systems will configure and test systems to your exacting requirements, please call our sales team on 01785 879050 to discuss your application in detail

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Display: 19″ LED Backlit LCD Panel 1280 x 1024
  • Brightness: 350 nits
  • CPU: 2nd Generation Intel Core i7/i5/i3/ Celeron processor options
  • Chipset: Intel BD82HM65 PCH
  • Graphics: Intel HD Graphics
  • Memory: 8GB maximum, x 2 DDR3 SODIMM
  • Audio: Audio Line Out
  • USB: 2.0 x 4
  • Storage: 1 x 2.5″ SATA HDD
  • Expansion: PCI-E (x16) x 1 (or PCI x 1) and Mini PCIe x 2
  • Power: External 100 watts, 90~264V AC in, 12V DC out
  • Compliance: FCC-B, cUL, CE, VCCI
  • Medical Regulations: Medical 60601-1 3rd edition (EN 60601-1:2006, ANSI/AAMI ES60601-1:2005, CAN/CSA C22.2 No. 60601-1:

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

Wincomm: Warranty and Service Information

All Wincomm products purchased within EMEA regions from Assured Systems come with a 2 year warranty as standard, including products which have been customised by Assured Systems. Additional extended warranty options are also available if required.
