ISPM1705-EN30C0

17″ IP65 Panel Mount Monitor w/ Stainless Steel Bezel (1280×1024)

End of Life

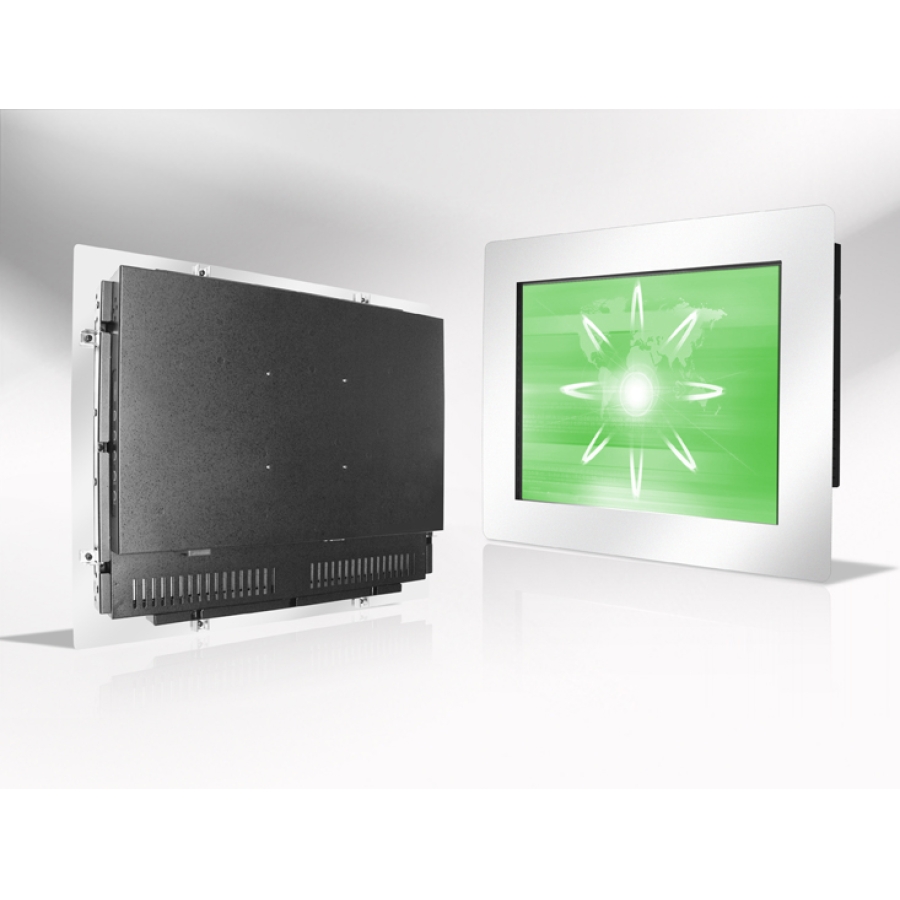

The ISPM1705-EN30C0 is a 17" IP65 rated industrial front panel mount monitor with a stainless steel bezel. Designed with a stainless steel bezel which offers protection against water and dust ingress once sealed into an aperture, this product is ideal in food, pharmaceutical, and other applications where a non-corrosive steel alloy is required for health and safety purposes. The product is available with optional sunlight readable LCD, and a variety of touchscreens and video inputs.

  • Brand: Winsonic
  • 300 NITS brightness
  • 1280 x 1024 resolution
  • Optional touchscreen
  • Size: 440mm (W) x 380mm (H) x 61mm (D)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The ISPM1705-EN30C0 is a 17" IP65 rated industrial front panel mount monitor with a stainless steel bezel. Designed with a stainless steel bezel which offers protection against water and dust ingress once sealed into an aperture, this product is ideal in food, pharmaceutical, and other applications where a non-corrosive steel alloy is required for health and safety purposes. The product is available with optional sunlight readable LCD, and a variety of touchscreens and video inputs.

Ordering Info

  • ISPM1705-EN30C0: 17″ IP65 Panel Mount LCD Monitor with Stainless Steel Bezel & VGA Input

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Viewable Image Size: 17″
  • Resolution: 1280×1024
  • Ratio: 5:4
  • Brightness: 300cd/m
  • Contrast: 800:1
  • Viewing Angle: H (-80 +80), V (-80 +80)
  • Bezel: Stainless Steel
  • Backlight: CCFL
  • VGA: 1 x DB15
  • Video Inputs: S-Video, Composite, HDMI & DVI (On request)
  • Touchscreen: Optional
  • Power: AC Auto-Sensing 90-260V, 50/60 Hz through IEC cable, (DC Optional)
Screen Size 11" to 20", 17"
