OPC-1560

15.6″ Intel Atom D2550 Widescreen Open Frame Panel PC

End of Life

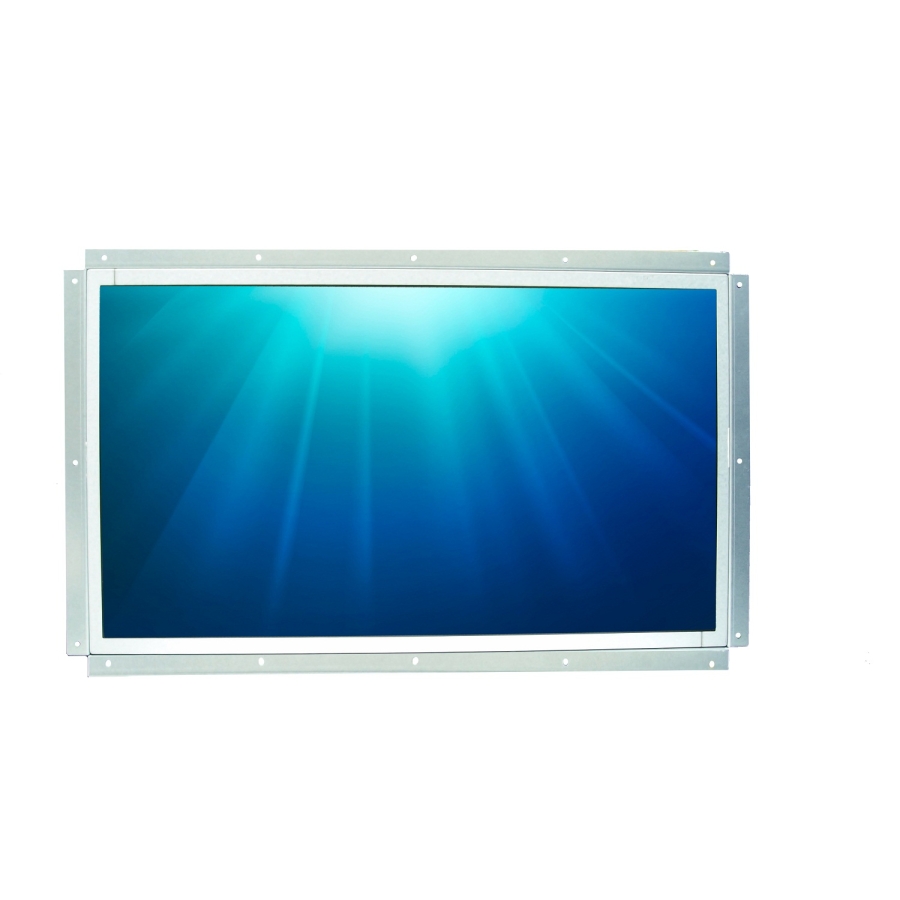

The OPC-1560 is a 15.6" fanless widescreen open frame panel PC powered by the Intel Atom Dual Core D2550 1.86GHz CPU & Intel GMA 3650 GPU.

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

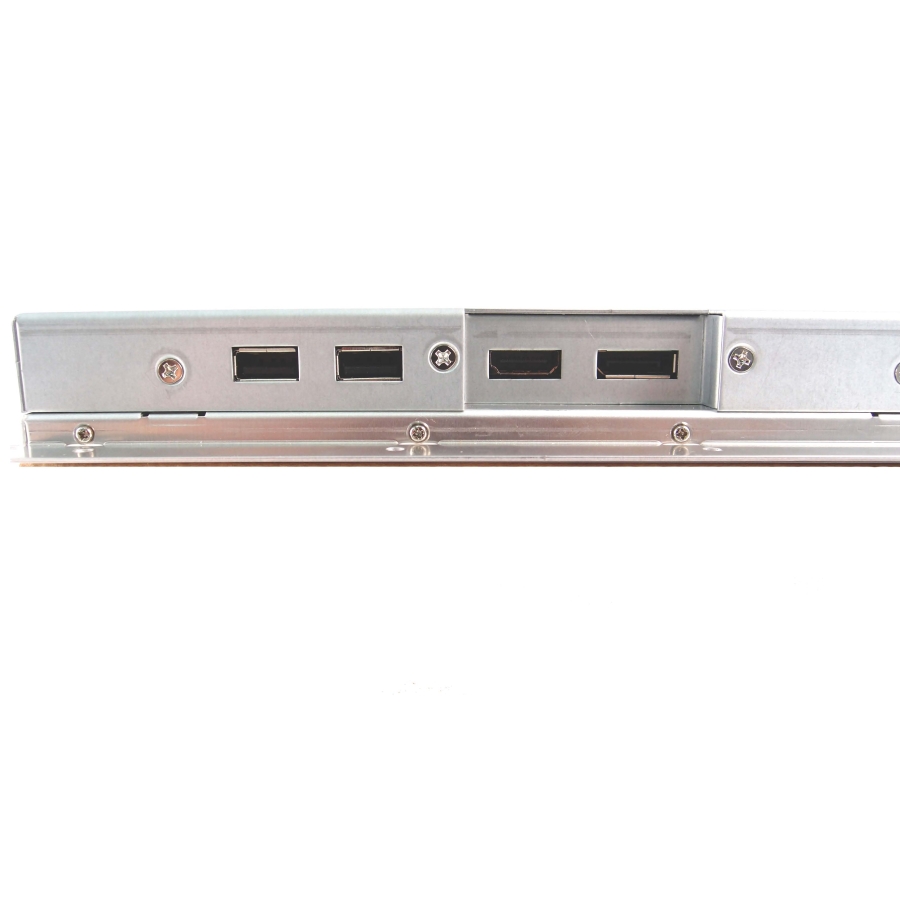

The OPC-1560 is a 15.6" fanless widescreen open frame panel PC powered by the Intel Atom Dual Core D2550 1.86GHz CPU & Intel GMA 3650 GPU. The integrated LED backlit display with optional touchscreen helps to keep the mechanical housing to a super slim 29mm depth, making installation into OEM designs straight forward and flexible, whilst promoting low power consumption and reliability. The screen offers resolutions to 1366 x 768 in the increasingly popular 16:9 aspect ratio, satisfying demand in areas such as kiosk manufacture and multimedia, whilst providing a modern twist to more traditional industrial areas such as automation. Full specification includes 1 Display Port , HDMI, VGA, 2 Gigabit Ethernet, 1 SATA, 1 Mini PCIe slot for optional Wi-Fi, 4 USB and 1 COM port.

Ordering Info

  • OPC-1560; 15.6″ Fanless Open Frame Panel PC with Dual Core Atom D2550 1.86GHz CPU, 12VDC
  • OPC-1560-RT; 15.6″ Fanless Open Frame Panel PC with Dual Core Atom D2550 1.86GHz CPU & Resistive Touchscreen, 12VDC

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Bezel: Open Frame Design
  • Display Size: 15.6″ TFT LCD
  • Resolution: 1366×768
  • Touchscreen: Optional Resistive 5-wire
  • CPU: Intel Atom D2550 1.86GHz DUal Core
  • Chipset: Intel NM10
  • Memory: Maximum 2GB DDR3 SODIMM
  • Graphics: Integrated Intel Graphics GMA 3650 with VGA, DP, HDMI
  • Audio: Line-in, Line-out, Mic-in
  • Serial: 1 x RS-232/422/485
  • USB: 4 x USB
  • Ethernet: 2 x 10/100/1000
  • Wi-Fi: Optional
  • Storage: 2.5″ SATA HDD,
  • Expansion: 1 x Mini-PCIe
  • Operating Temperature: 0 to 50 Degrees Centigrade (fanless)
  • Power Input: 12V DC
  • Compliance: CE, FCC
