OPPC 1520T

15.1″ Intel Atom D525 1.8GHz Fanless Open Frame Panel PC

End of Life

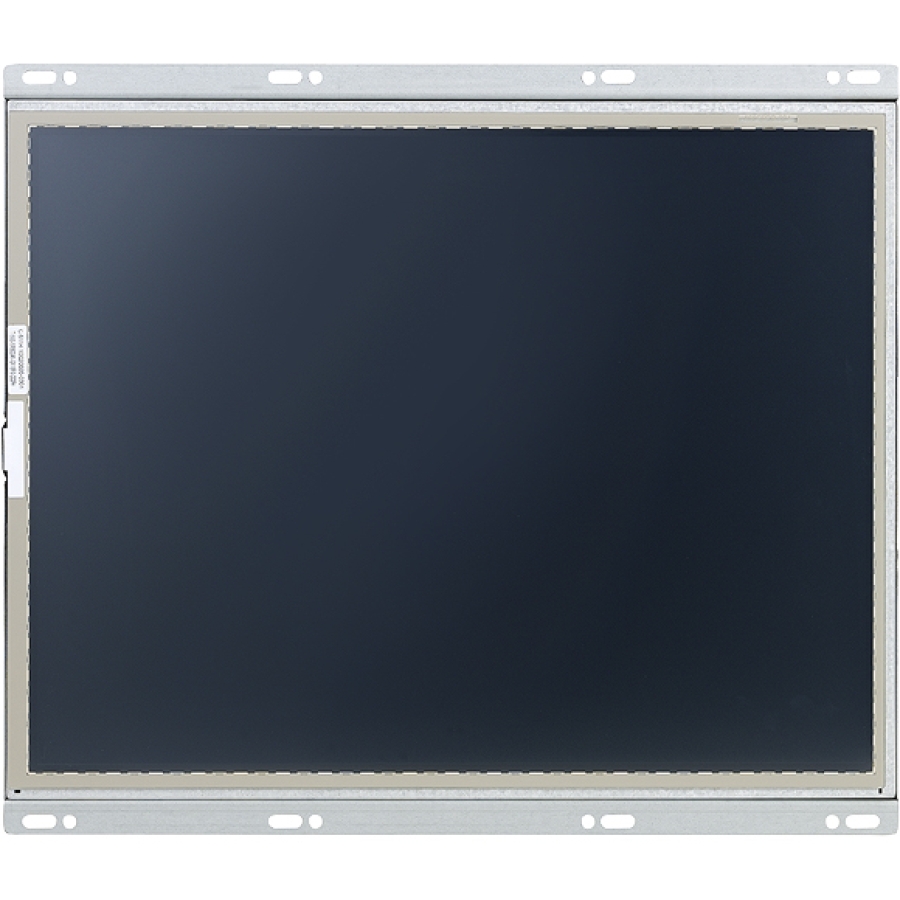

The OPPC 1520T fanless open frame Panel PC is based around Intel's acclaimed Atom D525 processor with Intel ICH8M chipset, supporting super fast DDR3 memory. The OPPC 1520T incorporates an LED backlit 15” 4:3 touch screen LCD panel with resolutions up to 1024×768 (XGA) and 400 nits brightness.

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

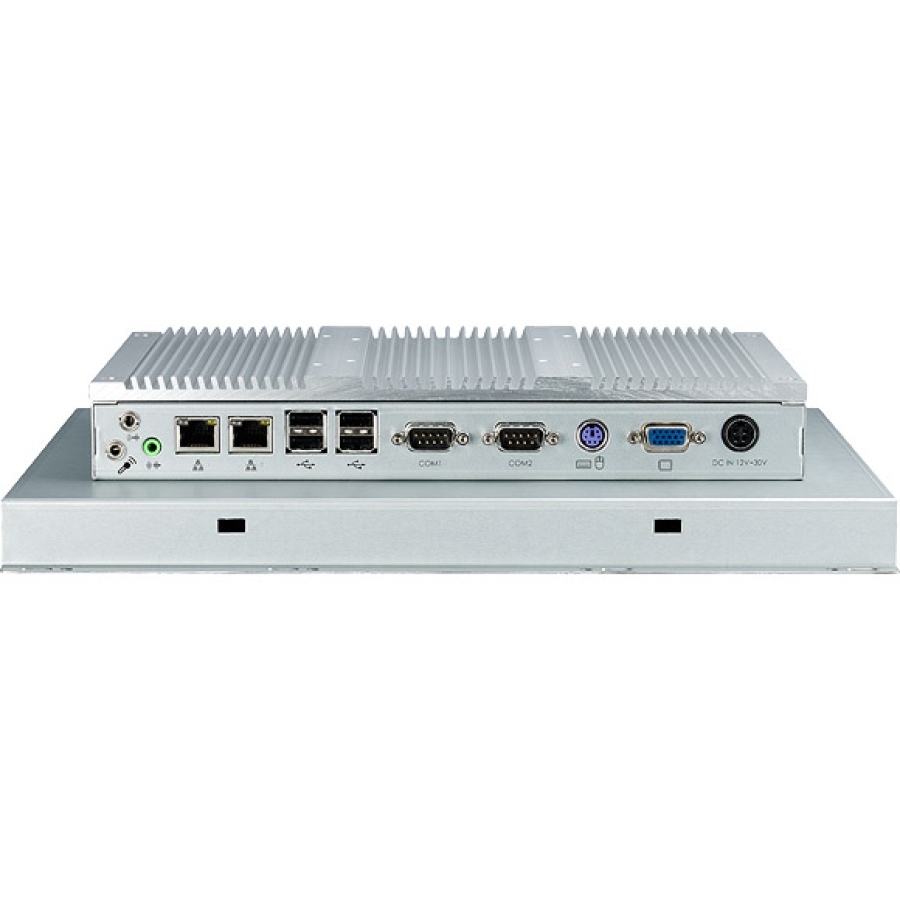

The OPPC 1520T fanless open frame Panel PC is based around Intel's acclaimed Atom D525 processor with Intel ICH8M chipset, supporting super fast DDR3 memory. The OPPC 1520T incorporates an LED backlit 15” 4:3 touch screen LCD panel with resolutions up to 1024x768 (XGA) and 400 nits brightness. The spec includes dual gigabit Ethernet, 4 x USB 2.0, 2 x COM ports, a second VGA output, optional Wi-FI and a wide 12 to 30VDC power input. The open frame design allows customers the flexibility to design the product into their OEM housing quickly and easily. All our products are designed with a focus on reliability and long-term availability, allowing you total confidence when choosing Assured Systems for your product design.

Ordering Info

  • OPPC 1520T: 15.1″ Intel Atom D525 1.8GHz Fanless Open Frame Panel PC
  • 7400060002X00: 12V, 60W AC/DC power adapter

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Bezel: Open Frame Design
  • Display Size: 15.1″ TFT LCD
  • Resolution: 1024×768
  • Touchscreen: Resistive 5-wire
  • CPU: Intel Atom D525 1.8GHz DUal Core
  • Chipset: Intel ICH8M
  • Memory: Maximum 2GB DDR3 SODIMM
  • Graphics: Integrated Intel Graphics with VGA output
  • Audio: Line-in, Line-out, Mic-in
  • Serial: 1 x RS-232, 1 x RS-232/422/485
  • USB: 4 x USB
  • Ethernet: 2 x 10/100/1000
  • Wi-Fi: Optional
  • Storage: 2.5″ SATA HDD, Compact Flash,
  • Expansion: 2 x Mini-PCIe
  • Operating Temperature: -5 to 50 Degrees Centigrade (fanless)
  • Power Input: 12V to 30V DC
  • Compliance: CE, FCC

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

Nexcom: Warranty and Service Information

All Nexcom products purchased from Assured Systems in the EMEA come with a 2 year warranty as standard, with additional extension options available upon request. As an official Nexcom partner, we are proud to provide customers with peace of mind and the highest quality products, including any systems which have been configured to meet individual specifications.
