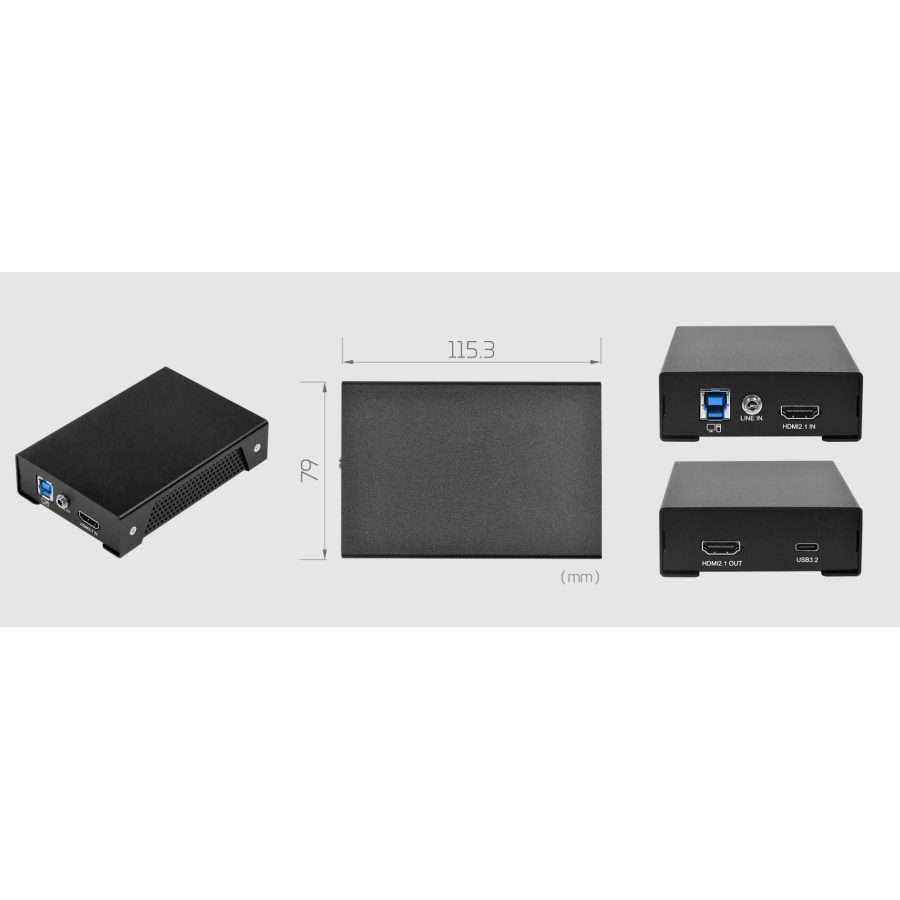

FR UB700G HDMI2.1 HDR HID+
YUAN UB700G HDMI2.1 HDR HID+ 1CH 8K60 HDMI2.1 USB 3.0 Capture
UB700G HDMI2.1 HDR HID+
Available
Specification
| Main | |
| Max. Input Resolution | 7680×4320@60/50fps |
| 3840×2160p@120/100fps | |
| Video Input | 1 × HDMI2.1 |
| Dimension | N/A |
| Interface | USB3.2 Type C (SuperSpeed) UVC |
| USB2.0 for Keyboard/Mouse Signal Transfer to Target PC | |
| Feature | N/A |
| Video | |
| Video Input Detail | 1 × HDMI2.1 |
| Video Output | 1 × HDMI2.1 ( Loop-through ) |
| Color Format | YUY2, P010 ( Support on outputs below 1080P60 ) |
| NV12, I420, MJPEG ( Supports on all outputs. ) | |
| Build-in Hardware Encode | N/A |
| Video Processing | N/A |
| Video Resolutions | All resolution below |
| 7680×4320@60fps | |
| 3840×2160p@144fps | |
| 3840×2160p@120fps | |
| 1920×1080p@240fps | |
| ( 422 10Bit HDR, 444 8Bit HDR ) | |
| UVC Video Output Resolution | USB3.2 Support Resolution |
| MJPEG | |
| 3840×2160@144/120fps | |
| 2560×1440@144fps | |
| NV12, I420, MJPEG | |
| 3840×2160@60fps | |
| 2560×1440@120fps | |
| 1920×1080@240/144fps | |
| YUY2, NV12, I420, MJPEG | |
| 3840×2160@50fps | |
| YUY2, NV12, I420, MJPEG, P010 | |
| 3840×2160@30/25fps | |
| YUY2, NV12, I420, MJPEG, P010, | |
| RGB24 | |
| 2560×1440@60/50/30/25fps | |
| 1920×1080@120/60/50/30/25fps | |
| 1280×720@120/60/50/30/25fps | |
| 720×576@50/25fps | |
| 720×480@60/30fps | |
| 640×480@60/30fps | |
| USB3.0 Support Resolution | |
| MJPEG | |
| 3840×2160@144/120/60/50fps | |
| 2560×1440@144/120fps | |
| 1920×1080@240/144fps | |
| NV12, I420, MJPEG | |
| 3840×2160@30/25fps | |
| 1920×1080@120fps | |
| YUY2, NV12, I420, MJPEG | |
| 2560×1440@60/50fps | |
| YUY2, NV12, I420, MJPEG, P010, | |
| RGB24 | |
| 2560×1440@30/25fps | |
| 1920×1080@60/50/30/25fps | |
| 1280×720@120/60/50/30/25fps | |
| 720×576@50/25fps | |
| 720×480@60/30fps | |
| 640×480@60/30fps | |
| USB2.0 Support Resolution | |
| NV12, I420, MJPEG | |
| 1280×720p@30fps | |
| YUY2, NV12, I420, MJPEG | |
| 720×576p@50fps | |
| 720×480p@60fps | |
| 640×480p@60fps | |
| Audio | |
| Audio Input | HDMI Embedded Audio |
| 3.5mm Analog Stereo Audio | |
| Audio Format | Stereo / 16-bit / 48000Hz |
| Misc | |
| GPIO | N/C |
| WatchDog | N/C |
| Software | |
| OS Support | Windows 10 / Windows 11 ( 32-bit and 64-bit ) |
| Linux / MAC OS | |
