UB575G HDMI2.1 HDR HID+

YUAN

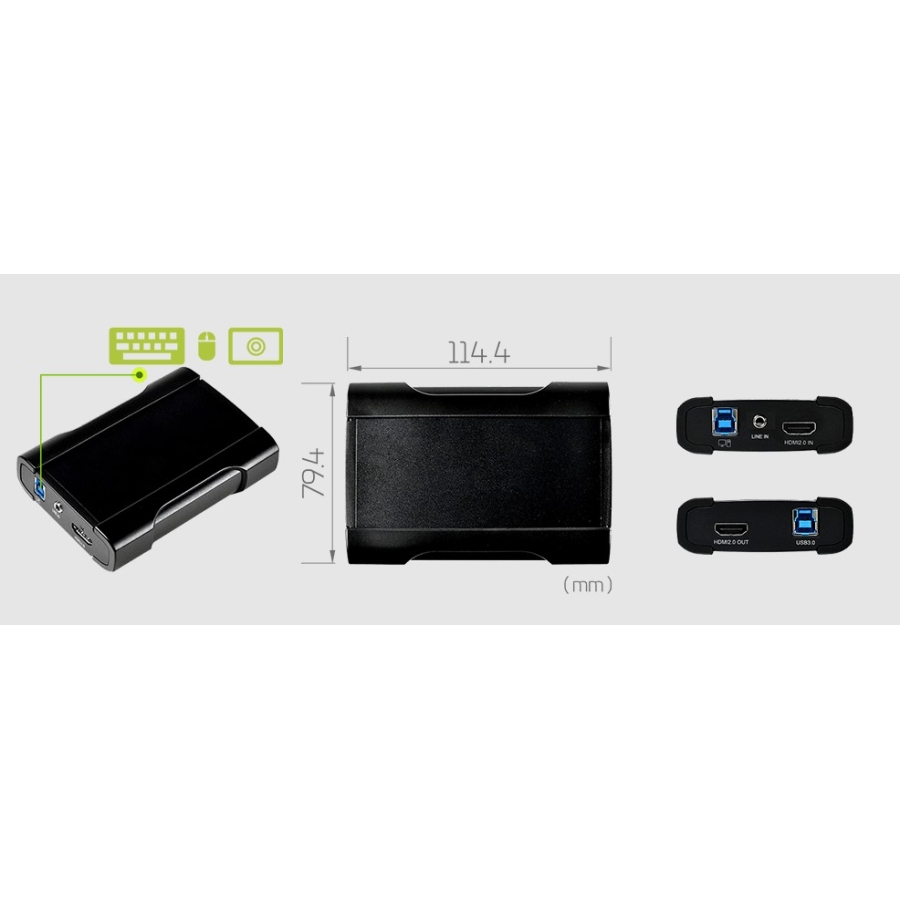

YUAN UB575G HDMI2.1 HDR HID+ 1CH 8K60 HDMI2.1 USB 3.0 Capture

Available

Product Code: UB575G HDMI2.1 HDR HID+

Categories: YUAN USB3.0 Capture Solution

Range: YUAN

Specification

Main
Max. Input Resolution	7680×4320@60/50fps
Max. Input Resolution	3840×2160p@120/100fps
Video Input	1 × HDMI2.1
Dimension	N/A
Interface	USB3.0 Type B (SuperSpeed) UVC
Interface	USB2.0 for Keyboard/Mouse Signal Transfer to Target PC
Feature	N/A
Video
Video Input Detail	1 × HDMI2.1
Video Output	1 × HDMI2.1 ( Loop-through )
Color Format	YUY2, P010, NV12 (USB 3.0)
Color Format	YUY2, NV12 (USB 2.0)
Build-in Hardware Encode	N/A
Video Processing	N/A
Video Resolutions	All resolution below
	7680×4320@60fps
	3840×2160p@120fps
	1920×1080p@240fps
	( 422 10Bit HDR, 444 8Bit HDR )
UVC Video Output Resolution	USB3.0 Support Resolution
	NV12
	3840×2160p@30/25fps
	1920×1080p@120/100fps
	2560×1440p@60/50/30/25fps

	NV12,YUY2,P010
	1920×1080p@60/50/30/25fps
	1280×720p@60/50/30/25fps

	NV12,YUY2
	720×576p@60/50/30/25fps
	720×480p@60/50/30/25fps
	640×480p@60/50/30/25fps

	USB2.0 Support Resolution
	NV12
	1280×720p@30fps

	NV12,YUY2
	720×576p@50fps
	720×480p@60fps
	640×480p@60fps
Audio
Audio Input	HDMI Embedded Audio
Audio Input	3.5mm Analog Stereo Audio
Audio Format	Stereo / 16-bit / 48000Hz
Misc
GPIO	N/A
WatchDog	N/A
Software
OS Support	Windows 7 / Windows 8 / Windows 8.1 / Windows 10 ( 32-bit and 64-bit )
OS Support	Linux / MAC OS
