UB570G PRO HDMI2.0 HDR HID+

YUAN

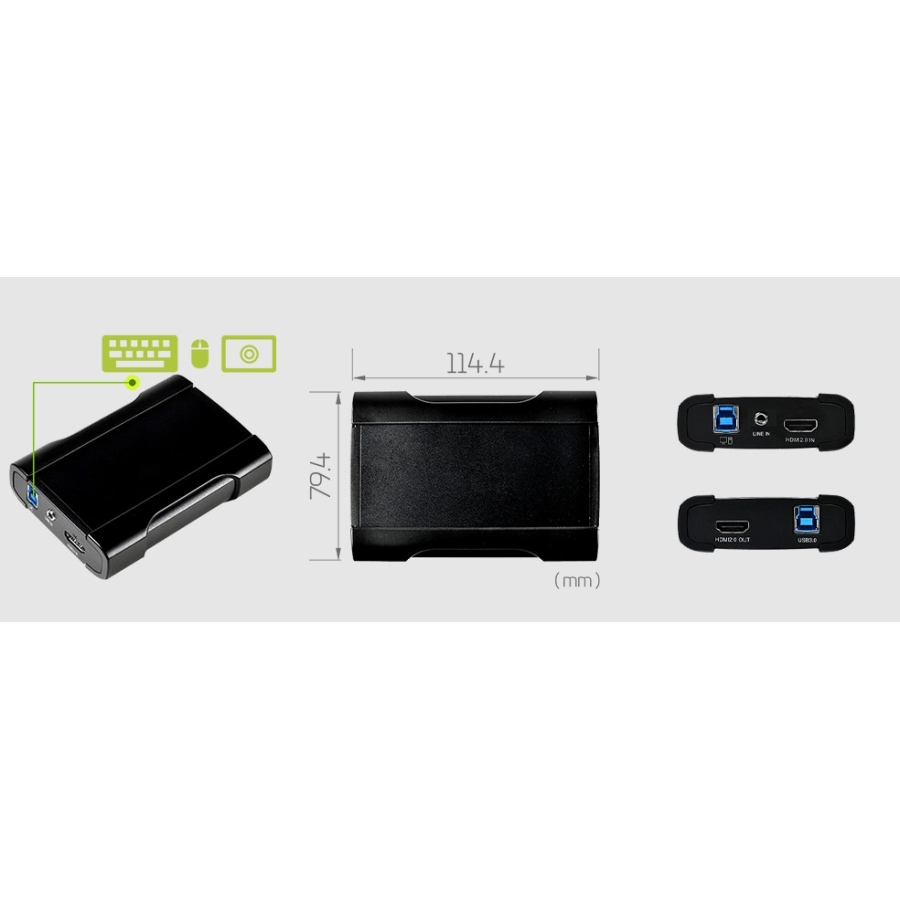

YUAN UB570G PRO HDMI2.0 HDR HID+ 1CH 4K60 HDMI2.0 with ProAV Scaler

Available

Product Code: UB570G PRO HDMI2.0 HDR HID+

Categories: YUAN USB3.0 Capture Solution

Range: YUAN

Specification

Main
Max. Input Resolution	4096×2160p@60/50fps
Max. Input Resolution	1920×1080p@240/200fps
Video Input	1 × HDMI2.0
Dimension	N/A
Interface	USB3.0 Type B ( SuperSpeed ) UVC
Interface	USB2.0 for Keyboard / Mouse Signal Transfer to Target PC
Feature	N/A
Video
Video Input Detail	1 × HDMI2.0
Video Output	1 × HDMI2.0 ( Loop-through )
Color Format	YUY2, P010, NV12, I420 (USB 3.0)
Color Format	YUY2, P010, NV12, I420 (USB 2.0)
Build-in Hardware Encode	N/A
Video Processing	N/A
Video Resolutions	All resolution below
	4096×2160p@60fps
	1920×1080p@240fps
	( 422 10Bit HDR, 444 8Bit HDR )
UVC Video Output Resolution	USB3.0 Support Resolution

	4096×2160p@60/50fps, 3840×2160p@60/50fps and 1920×1080p@240/200fps inputs will transfer to 3840×2160p@30fps ( NV12, I420 ) or 1920×1080p@60fps ( YUY2, P010 )

	For all inputs below 3840×2160p@30fps(
	1920×1080p@120/100fps), PD570C PRO HDMI2.0 HDR outputs will be the same

	USB2.0 Support Resolution

	All inputs will transfer to
	640×480p@30/25 fps
	720×576p@25 fps
	720×480p@25 fps
Audio
Audio Input	HDMI Embedded Audio
Audio Input	3.5mm Analog Stereo Audio
Audio Format	Stereo / 16-bit / 48000Hz
Misc
GPIO	N/A
WatchDog	N/A
Software
OS Support	Windows 7 / Windows 8 / Windows 8.1 / Windows 10 ( 32-bit and 64-bit )
OS Support	Linux / MAC OS
