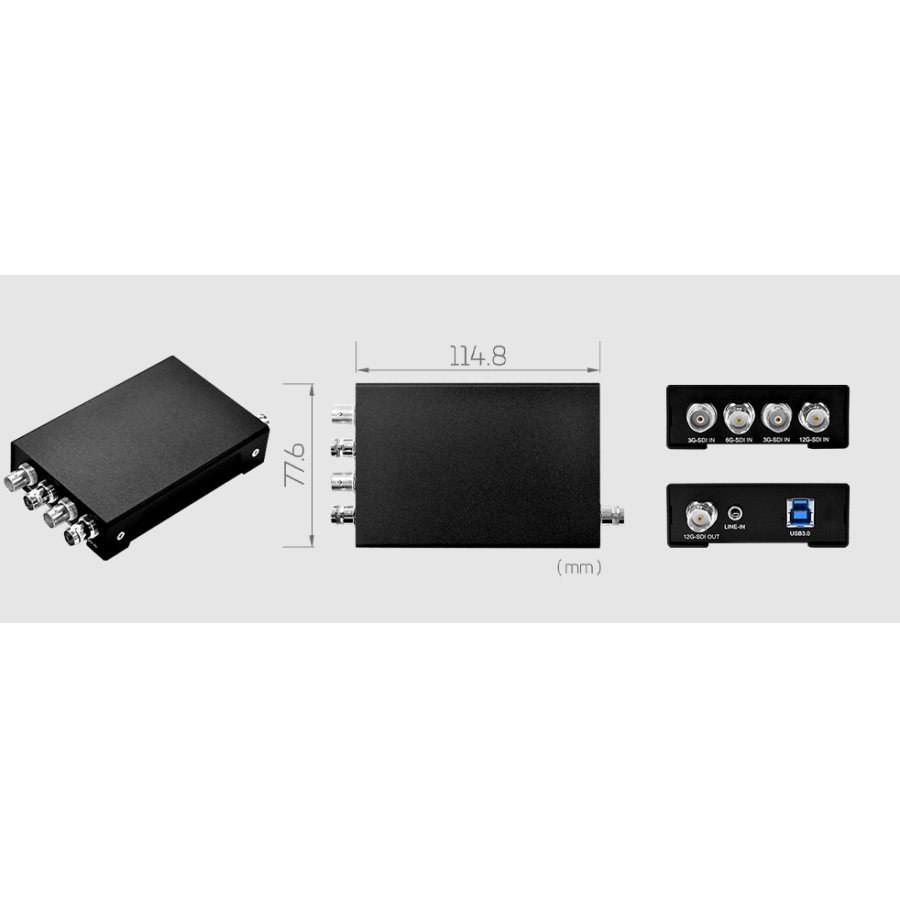

UB570G PRO 12G-SDI

YUAN

YUAN UB570G PRO 12G-SDI 1CH 4K60 12G-SDI/QuadLink 3G-SDI with ProAV Scaler

UB570G PRO 12G-SDI

Available

Product Code: UB570G PRO 12G-SDI

Categories: YUAN USB3.0 Capture Solution

Range: YUAN

Specification

Main
Max. Input Resolution	4096×2160p @ 60/50fps
Video Input	Single Link 12G-SDI or Quad Link 3G-SDI
Dimension	N/A
Interface	USB3.0 Type B (SuperSpeed) UVC
Feature	N/A
Video
Video Input Detail	Single Link 12G-SDI or Quad Link 3G-SDI ( Option: Dual Link 6G-SDI )
Video Output	1×12G-SDI ( Option: Loop-through, For Single Link 12G-SDI )
Color Format	YUY2, P010, NV12, I420 (USB 3.0)
Build-in Hardware Encode	N/A
Video Processing	N/A
Video Resolutions	USB3.0 Support Resolution
	All resolution below
	4096×2160p@60fps
	( Option: 422/420 10Bit HDR )
UVC Video Output Resolution	USB3.0 Support Resolution

	4096×2160p@60/50fps and 3840×2160p@60/50fps inputs will transfer to 3840×2160p@30fps ( NV12, I420 ) or 1920×1080p@60fps ( YUY2, P010 )

	For all inputs below 3840×2160p@30fps,UB570G PRO 12G-SDI HDR outputs will be the same
Audio
Audio Input	SDI Embedded Audio
Audio Input	3.5mm Analog Stereo Audio
Audio Format	Stereo / 16-bit / 48000Hz
Misc
GPIO	N/A
WatchDog	N/A
Software
OS Support	Windows 7 / Windows 8 / Windows 8.1 / Windows 10 ( 32-bit and 64-bit )
OS Support	Linux / MAC OS
