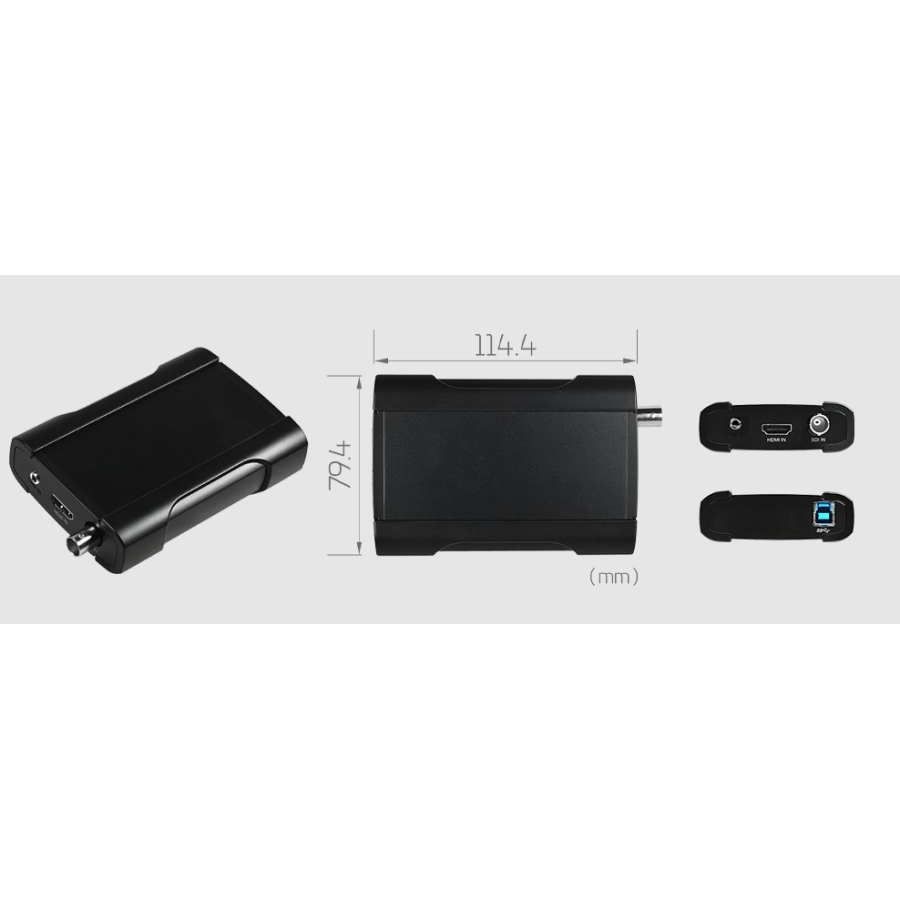

UB570 PRO SDI+HDMI

YUAN

YUAN UB570 PRO SDI+HDMI 1CH 1080P60 SDI/HDMI with ProAV Scaler

UB570 PRO SDI+HDMI

Available

Product Code: UB570 PRO SDI+HDMI

Categories: YUAN USB3.0 Capture Solution

Range: YUAN

Specification

Main
Max. Input Resolution	1920x1200p @ 60/50fps
Video Input	1 × SDI , 1 × HDMI
Dimension	N/A
Interface	USB3.0 Type B (SuperSpeed) UVC / USB2.0 Type B (High-Speed) UVC
Feature	N/A
Video
Video Input Detail	1 × SDI , 1 × HDMI
Video Output	N/A
Color Format	YUY2 (USB2.0/3.0)
Build-in Hardware Encode	N/A
Video Processing	N/A
Video Resolutions	USB2.0/3.0 Support Resolution
	All resolution below
	1920×1200p@60fps
UVC Video Output Resolution	USB3.0 Support Resolution
	1920×1200p@60/50/30/25/24fps
	1920×1080p@60/50/30/25/24fps
	1280×1024p@60/50/30/25/24fps
	1280×720p@60/50/30/25/24fps
	1024×768p@60/50/30/25/24fps
	800×600p@60/50/30/25/24fps
	640×480p@60/50/30/25/24fps
	720×576p@60/50/30/25/24fps
	720×480p@60/50/30/25/24fps

	USB2.0 Support Resolution
	640×480p@30/25/24fps
	720×576p@25/24fps
	720×480p@25/24fps
Audio
Audio Input	SDI Embedded Audio
	HDMI Embedded Audio
	3.5mm Analog Stereo Audio ( Option )
Audio Format	Stereo / 16-bit / 48000Hz
Misc
GPIO	N/A
WatchDog	N/A
Software
OS Support	Windows 7 / Windows 8 / Windows 8.1 / Windows 10 ( 32-bit and 64-bit )
OS Support	Linux / MAC OS
