YUAN SC750N1O1-L 12G-SDI 1CH 4K60 12G-SDI PCIe Capture Card

SC750N1O1-L 12G-SDI

Available

Product Code: SC750N1O1-L 12G-SDI

Categories: Boards & Modules, PCIe Capture Cards, Video Capture Cards and Encoders, YUAN, YUAN Capture Cards, YUAN PCIe Capture Cards

Range: YUAN

Specification

Main
Max. Input Resolution	3840×2160@60/50fps in → 3840×2160@60/50fps out
Video Input	1×12G-SDI

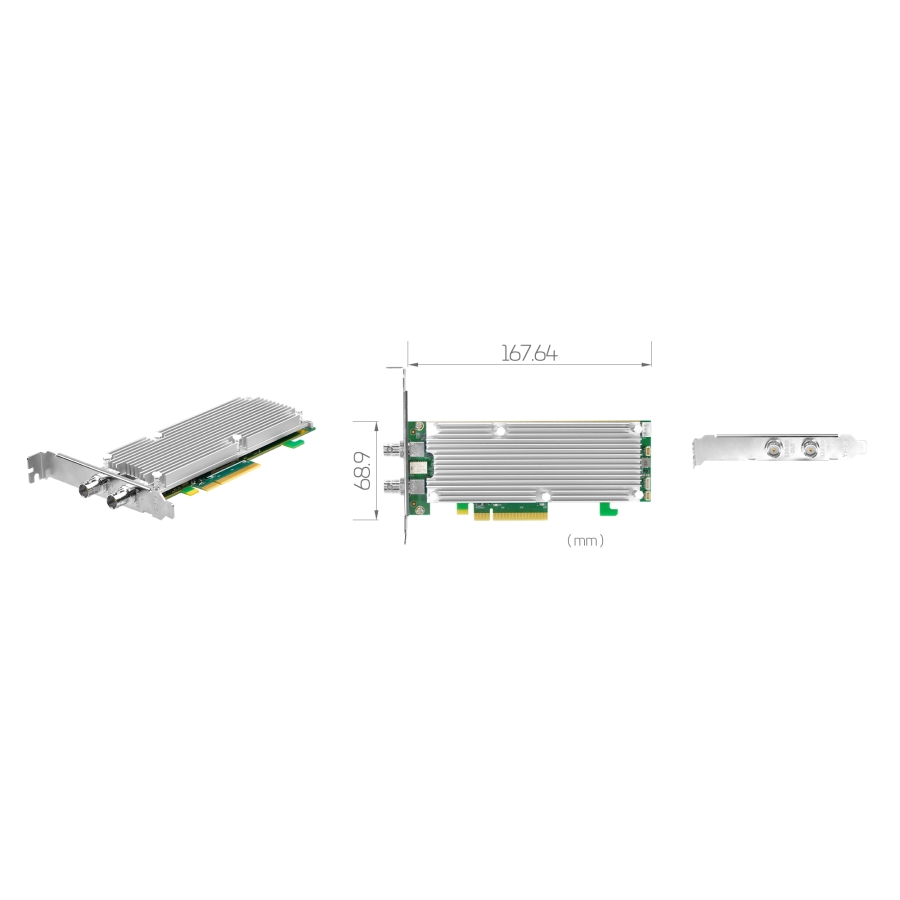

Dimension	167.64×68.9 ( mm )
Dimension	PCIe Low Profile
Interface	PCIe×4 ( Gen3 )
Feature	N/A
Video
Video Input Detail	12G-SDI
Video Output	1×12G-SDI
Video Output	( 3G-SDI Passive Bypass Supported )
Color Format	3840×2160@60fps: YUV422 10-Bit, YUV420 10-Bit
Color Format	3840×2160@30fps: RGB444, YUV444, YUV422 12-Bit
Build-in Hardware Encode	N/A
Video Processing	OSD Overlay
	Background Blurring
	Chroma Key
	PIP
Video Resolutions	4096×2160@60/50/48/30/25/24fps
	3840×2160@60/50/30/25/24fps
	2048×1080@60/50/48/30/25/24fps
	1920×1080p@60/50/30/25/24fps
	1920×1080i@60/50fps
	1280×720p@60/50/30/25/24fps
Audio
Audio Input	1×12G-SDI Embedded Audio
Audio Format	Stereo / 16-bit / 48000Hz
Misc
GPIO	N/A
WatchDog	N/A
Software
OS Support	Windows 10 / Windows 11
OS Support	Linux 4.8 or Higher ( 32-bit and 64-bit )
