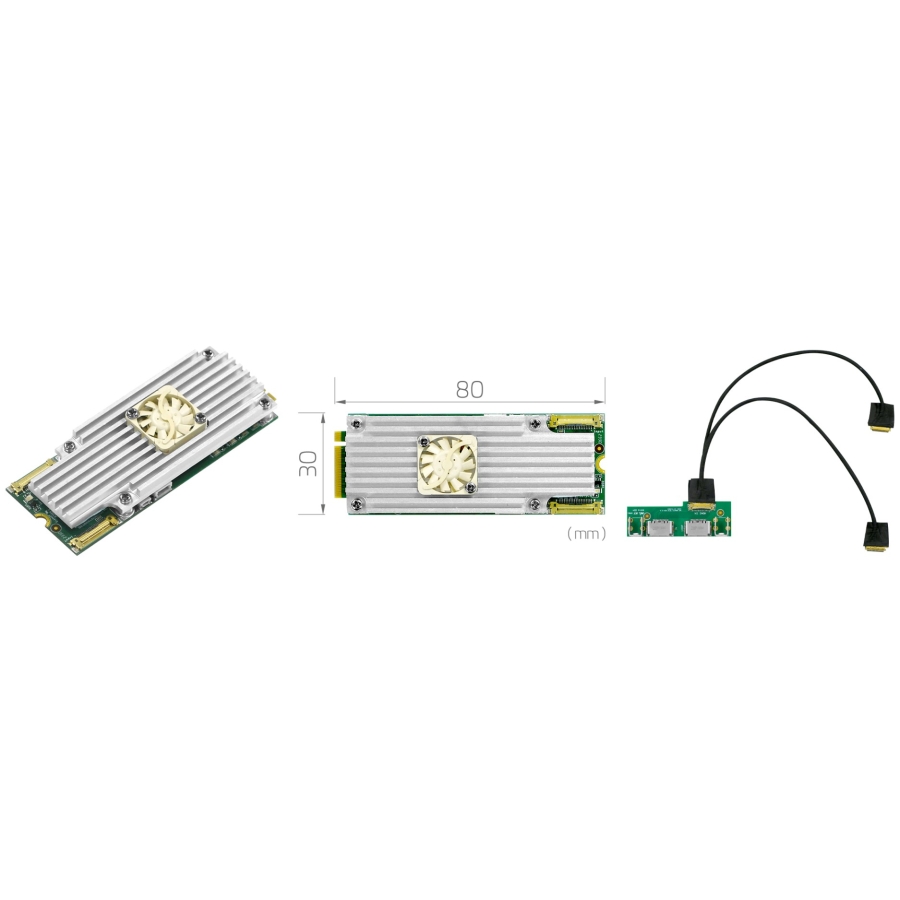

YUAN SC750N1 M2 HDMI2.1 1CH HDMI2.1 8K60 M.2 Capture Card
SC750N1 M2 HDMI2.1
Available
SC750N1 M2 HDMI2.1
Boards & Modules, M.2 Capture Cards, Video Capture Cards and Encoders, YUAN, YUAN Capture Cards, YUAN M.2 Capture Cards
Specification
| Main | |
| Max. Input Resolution | 7680×4320@60/50fps |
| Video Input | 1×HDMI2.1 |
| Dimension | 30×80 ( mm ) |
| M.2 Type M | |
| Interface | M.2 ( PCIe×4 ) |
| Feature | HDR10/HLG |
| HDMI 1.4B 3D | |
| Multi Instances | |
| Multi Devices | |
| Video | |
| Video Input Detail | Single-Link HDMI 2.1 |
| Video Output | HDMI2.1 |
| ( Loop-Through ) | |
| Color Format | Capture/Preview : |
| 4:4:4 8Bit RGB24 | |
| 4:4:4 8Bit RGB32 | |
| 4:2:2 8Bit YUY2 | |
| 4:2:0 8Bit YV12, NV12 | |
| 4:2:0 10Bit P010 | |
| Build-in Hardware Encode | N/A |
| Video Processing | Video Cropping and Scaling |
| Auto Signal Detection | |
| Deinterlace Engine | |
| Multi Instances | |
| Video Resolutions | HDMI2.1 |
| 7680×4320@60/50fps | |
| 4096×2160@60/50/30/25/24fps | |
| 3840×2160@60/50/30/25/24fps | |
| 2560×1440p@144fps | |
| 1920×1080p@240/144/120/100fps | |
| 1920×1080p@60/50fps | |
| 1920×1080p@30/25/24fps | |
| 1920×1080i@60/50fps | |
| 1280×720p@60/50fps | |
| 1280×1024p@60fps | |
| 1280×960p@60fps | |
| 1024×768p@60fps | |
| 800×600p@60fps | |
| 640×480p@60fps | |
| 720×480p@60fps | |
| 720×576p@50fps | |
| 720×480i@60fps | |
| 720×576i@50fps | |
| ※More resolution supported by SDK | |
| Audio | |
| Audio Input | 1×Stereo Embedded Audio |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
| Misc | |
| GPIO | N/A |
| WatchDog | N/A |
| Software | |
| OS Support | Windows 7 / Windows 8 / Windows 8.1 / Windows 10 |
| Linux 4.8 or Higher ( 32-bit and 64-bit ) | |
