SC740N2 MP HDMI1.4

YUAN

YUAN SC740N2 MP HDMI1.4 2CH 4K30 HDMI MIPI Capture Card

SC740N2 MP HDMI1.4

Available

Product Code: SC740N2 MP HDMI1.4

Categories: YUAN MIPI Capture Cards

Range: YUAN

Specification

Main
Max. Input Resolution	3840×2160p@60/50fps in → 3840×2160p@60/50fps out
Video Input	1×HDMI2.0 or 2×HDMI1.4

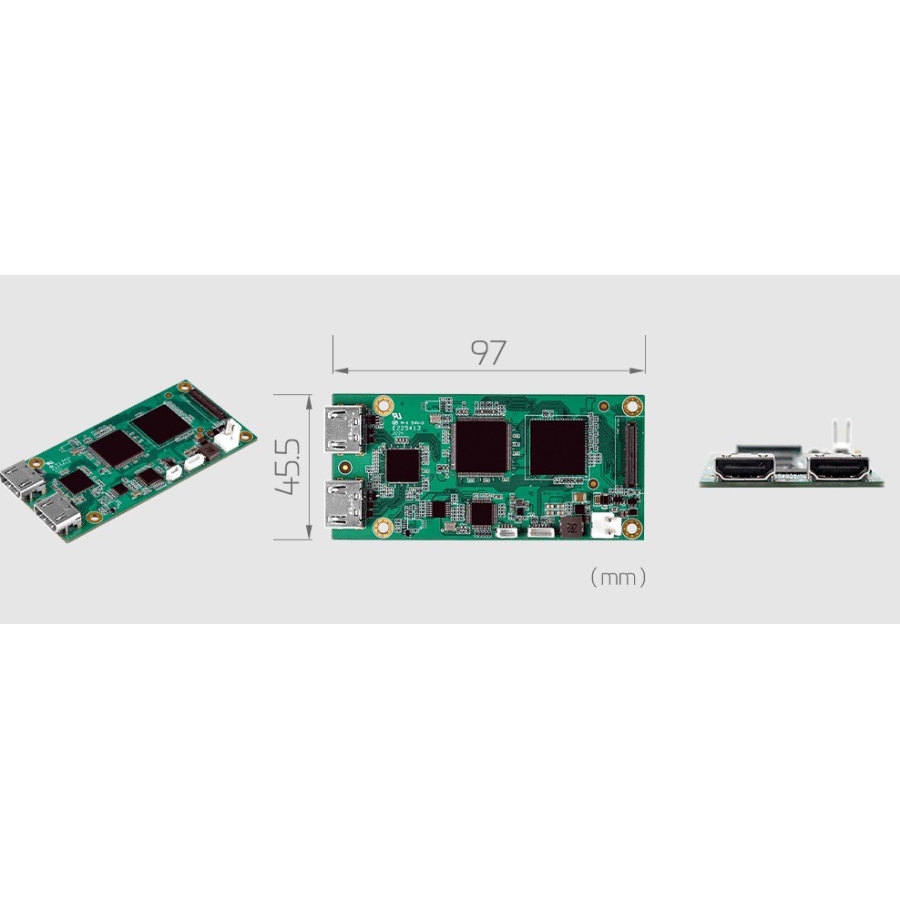

Dimension	97×45.5 ( mm )
Interface	MIPI CSI-2, 2CH, 4 Data Lanes
Feature	Multi Instances
Feature	Multi Devices
Video
Video Input Detail	1×HDMI2.0 or 2×HDMI1.4
Video Output	N/A
Color Format	YUV420, Legacy YUV420
Build-in Hardware Encode	N/A
Video Processing	N/A
Video Resolutions	HDMI 2.0
	3840×2160@60/50/30/25/24fps
	2560×1440p@144fps
	1920×1080p@240/144/120/100fps
	1920×1080p@60/50fps
	1920×1080p@30/25/24fps
	1920×1080i@60/50fps
	1280×720p@60/50fps
	1280×1024p@60fps
	1280×960p@60fps
	1024×768p@60fps
	800×600p@60fps
	640×480p@60fps
	720×480p@60fps
	720×576p@50fps
	720×480i@60fps
	720×576i@50fps

	HDMI1.4
	3840×2160@30/25/24fps
	1920×1080p@120/100fps
	1920×1080p@60/50fps
	1920×1080p@30/25/24fps
	1920×1080i@60/50fps
	1280×720p@60/50fps
	1280×1024p@60fps
	1280×960p@60fps
	1024×768p@60fps
	800×600p@60fps
	640×480p@60fps
	720×480p@60fps
	720×576p@50fps
	720×480i@60fps
	720×576i@50fps
Audio
Audio Input	2×HDMI Embedded Audio
Audio Format	Stereo / 16bit / 44100Hz, 48000Hz
Misc
GPIO	N/A
WatchDog	N/A
Software
SDK	Support API : DirectShow, V4L2, FFmpeg, Gstreamer
SDK	Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
