SC740N1 MP 12G-SDI

YUAN

YUAN SC740N1 MP 12G-SDI 1CH 4K60 12G-SDI MIPI Capture Card

SC740N1 MP 12G-SDI

Available

Product Code: SC740N1 MP 12G-SDI

Categories: YUAN MIPI Capture Cards

Range: YUAN

Specification

Main
Max. Input Resolution	3840×2160p@60/50fps in → 3840×2160p@60/50fps out
Video Input	1×12G-SDI

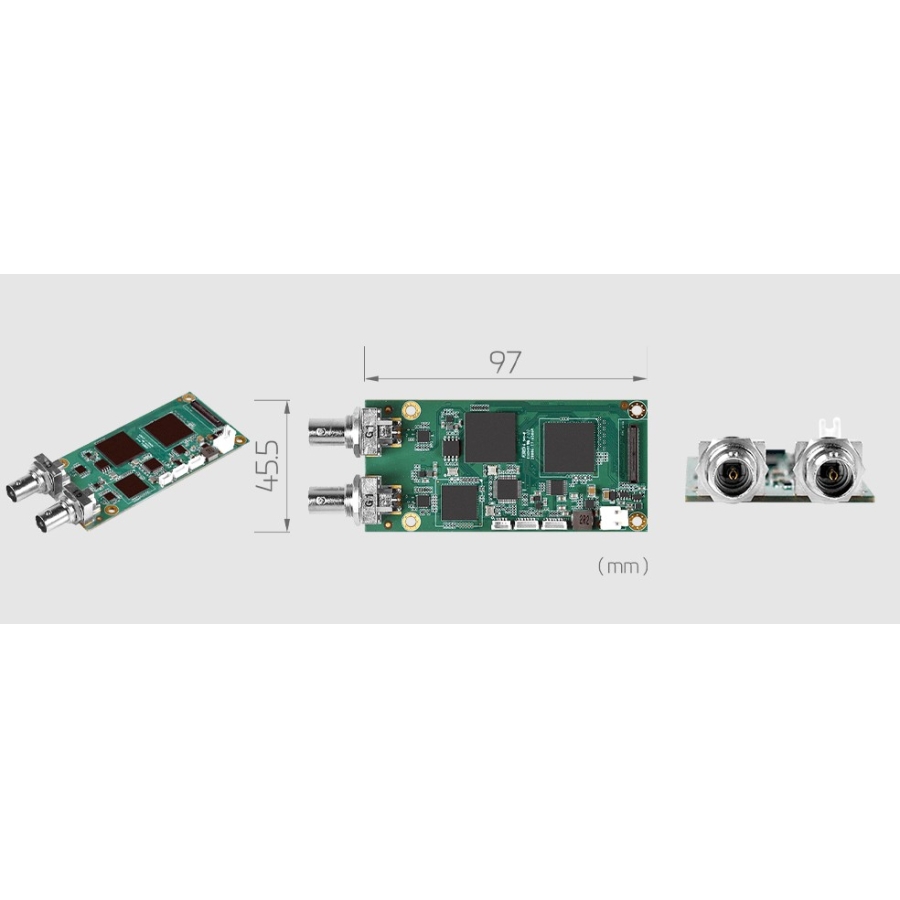

Dimension	97×45.5 ( mm )
Interface	MIPI CSI-2, 4 Data Lanes
Feature	Multi Instances
Feature	Multi Devices
Video
Video Input Detail	1×12G-SDI
Video Output	1×12G-SDI
Video Output	( Loop Through )
Color Format	YUV420, Legacy YUV420
Build-in Hardware Encode	N/A
Video Processing	N/A
Video Resolutions	6G-SDI
	3840×2160@30/25/24fps

	3G-SDI
	1920×1080p@60/50fps

	HD-SDI
	1920×1080p@30/25/24fps
	1920×1080i@60/50fps
	1280×720p@60/50fps

	SD-SDI
	720×480i@60fps
	720×576i@50fps
Audio
Audio Input	1×SDI Embedded Audio
Audio Format	Stereo / 16bit / 44100Hz, 48000Hz
Misc
GPIO	N/A
WatchDog	N/A
Software
SDK	Support API : DirectShow, V4L2, FFmpeg, Gstreamer
SDK	Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
