SC710N4T HDMI2.0

YUAN

YUAN SC710N4T HDMI2.0 4CH 4K60 HDMI2.0 PCIe Capture Card

SC710N4T HDMI2.0

Available

Product Code: SC710N4T HDMI2.0

Categories: Boards & Modules, PCIe Capture Cards, Video Capture Cards and Encoders, YUAN, YUAN Capture Cards, YUAN PCIe Capture Cards

Range: YUAN

Specification

Main
Max. Input Resolution	3840×2160p@60/50fps in
Video Input	4×HDMI 2.0

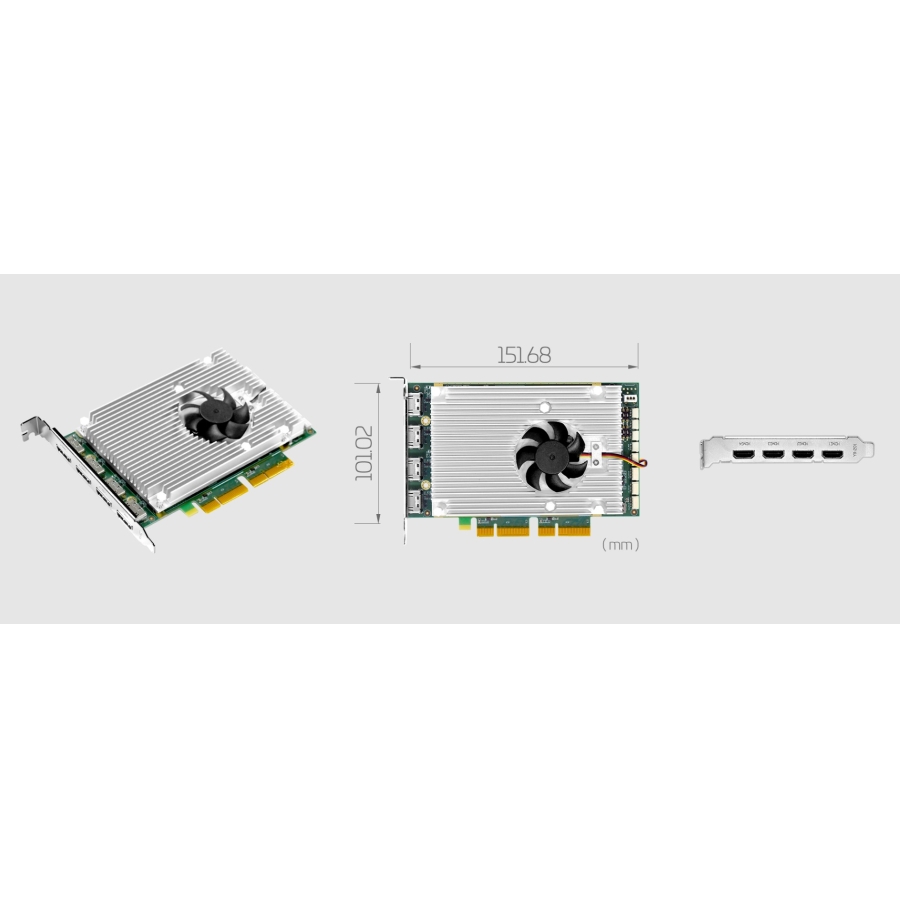

Dimension	151.68×101.02 ( mm )
Dimension	PCIe Full Height
Interface	PCIe×4 (Gen2) + PCIe×4 (Gen2)
Feature	N/A
Video
Video Input Detail	N/A
Video Output	3840×2160p@60/50fps out
Color Format	YV12, NV12, YUY2, RGB24, RGB32, V410, Y410, P010, P210
Build-in Hardware Encode	N/A
Video Processing	N/A
Video Resolutions	HDMI 2.0
	3840×2160@60/50/30/25/24fps
	2560×1440p@144fps
	1920×1080p@240/144/120/100fps
	1920×1080p@60/50fps
	1920×1080p@30/25/24fps
	1920×1080i@60/50fps
	1280×720p@60/50fps
	1280×1024p@60fps
	1280×960p@60fps
	1024×768p@60fps
	800×600p@60fps
	640×480p@60fps
	720×480p@60fps
	720× 576p@50fps
	720×480i@60fps
	720×480i@60fps 720×576i@50fps720×576i@50fps
Audio
Audio Input	4×HDMI Embedded Audio
Audio Format	Stereo / 16-bit / 32000 ~ 48000Hz
Misc
GPIO	N/A
WatchDog	N/A
Software
Supported Software Applications	vMix
	OBS
	ZOOM
	Skype
	Teams
	Discord
	Slack
	Cisco Webex
	GoToMeeting

	※DirectShow/V4L2 Compatable Software Supported
SDK	Windows and Linux SDK
OS Support	Windows 7 / Windows 8 / Windows 8.1 / Windows 10
	Linux 2.6.14 or Higher ( 32
	bit and 64 bit )
