YUAN SC710N2-L HDMI2.0 2CH 4K60 HDMI2.0 PCIe Capture Card
SC710N2-L HDMI2.0
Available
SC710N2-L HDMI2.0
Boards & Modules, PCIe Capture Cards, Video Capture Cards and Encoders, YUAN, YUAN Capture Cards, YUAN PCIe Capture Cards
Specification
| Main | |
| Max. Input Resolution | 4096×2160p@60/50fps |
| Video Input | 2×HDMI 2.0 |

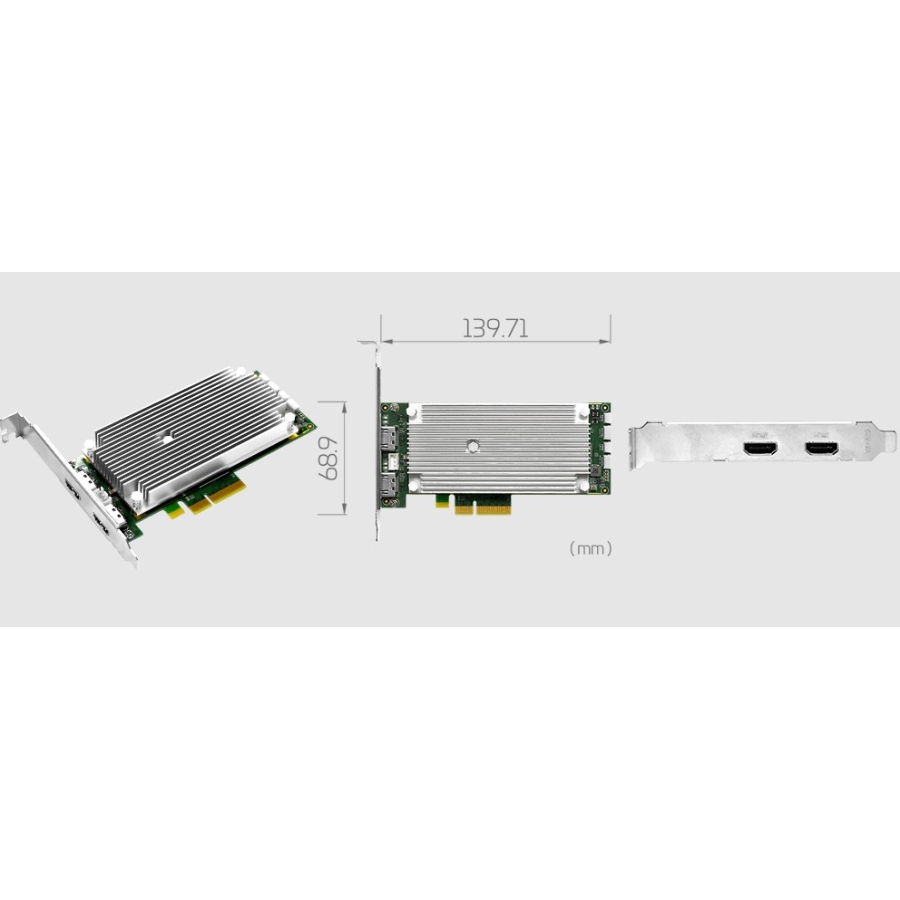

| Dimension | 139.71×68.9 ( mm ) |
| PCIe Low Profile | |
| Interface | PCIe×4 ( Gen2 ) |
| Feature | 8K30 Dual-Link HDMI 2.0 |
| Multi Instances | |
| Multi Devices | |
| Video | |
| Video Input Detail | Single-Link HDMI 2.0 |
| Dual-Link HDMI 2.0 | |
| Video Output | N/A |
| Color Format | Capture/Preview : |
| 4:4:4 8Bit RGB24 | |
| 4:4:4 8Bit RGB32 | |
| 4:2:2 8Bit YUY2 | |
| 4:2:0 8Bit YV12, NV12 | |
| 4:2:0 10Bit P010 | |
| Build-in Hardware Encode | N/A |
| Video Processing | Video Cropping and Scaling |
| Auto Signal Detection | |
| Deinterlace Engine | |
| Multi Instances | |
| Video Resolutions | HDMI 2.0 |
| 4096×2160@60/50/30/25/24fps | |
| 3840×2160@60/50/30/25/24fps | |
| 2560×1440p@144fps | |
| 1920×1080p@240/144/120/100fps | |
| 1920×1080p@60/50fps | |
| 1920×1080p@30/25/24fps | |
| 1920×1080i@60/50fps | |
| 1280×720p@60/50fps | |
| 1280×1024p@60fps | |
| 1280×960p@60fps | |
| 1024×768p@60fps | |
| 800×600p@60fps | |
| 640×480p@60fps | |
| 720×480p@60fps | |
| 720×576p@50fps | |
| 720×480i@60fps | |
| 720×576i@50fps | |
| ※More resolution supported by SDK | |
| Audio | |
| Audio Input | 2×Stereo Embedded Audio |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
| Misc | |
| GPIO | N/A |
| WatchDog | N/A |
| Software | |
| Supported Software Applications | vMix |
| OBS | |
| ZOOM | |
| Skype | |
| Teams | |
| Discord | |
| Slack | |
| Cisco Webex | |
| GoToMeeting | |
| ※DirectShow/V4L2 Compatable Software Supported | |
| SDK | Windows and Linux SDK |
| OS Support | Windows 7/Windows 8/Windows 8.1/Windows 10 |
| Linux 4.8 or Higher ( 32-bit and 64-bit ) | |
| Linux ARM | |
| nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX | |
