YUAN SC440N4 MP GMSL2 4CH 1080P60 GMSL2 MIPI Capture Card
SC440N4 MP GMSL2
Available
Specification
| Main | |
| Max. Input Resolution | 1920×1080p@60/45/30fps in → 1920×1080p@60/45/30fps out |
| Video Input | 4×GMSL2 |

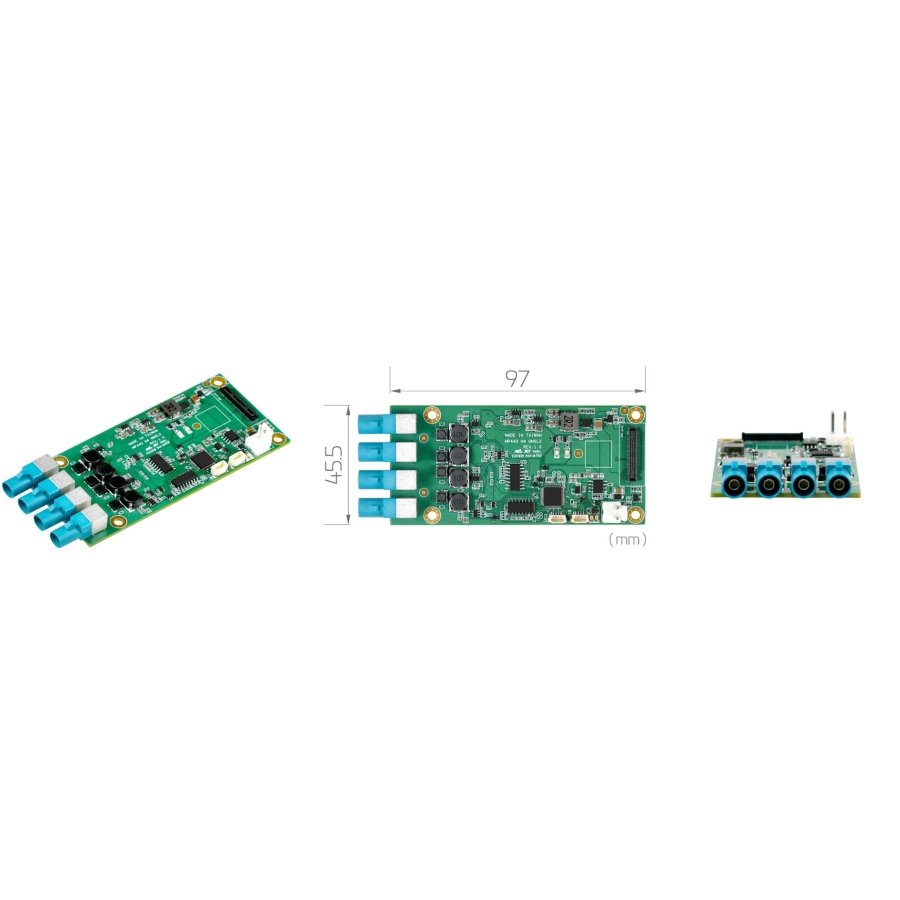

| Dimension | 97×45.5 ( mm ) |
| Interface | MIPI CSI-2, 4CH, 2 /4 Data Lanes |
| Feature | Multi Instances |
| Multi Devices | |
| Video | |
| Video Input Detail | 4×GMSL2 |
| Video Output | N/A |
| Color Format | YUV422 |
| Build-in Hardware Encode | N/A |
| Video Processing | N/A |
| Video Resolutions | GMSL2 |
| 1920×1080p@60/45/30fps | |
| Audio | |
| Audio Input | N/A |
| Audio Format | N/A |
| Misc | |
| GPIO | N/A |
| WatchDog | N/A |
| Software | |
| SDK | Support API : V4L2, Gstreamer |
| Platform Support | JETSON AGX ORIN |
| JETSON XAVIER AGX | |
| Support Camera | NileCAM25 ( 1080P60 ) |
| STURDeCAM20 ( 1080P30 ) | |
