PD575 SDI

YUAN

YUAN PD575 SDI 1CH 1080P60 SDI USB 3.0 Capture

PD575 SDI

Available

Product Code: PD575 SDI

Categories: YUAN USB3.0 Capture Solution

Range: YUAN

Specification

Main
Max. Input Resolution	1920x1080p @ 60/50fps
Video Input	1 × SDI

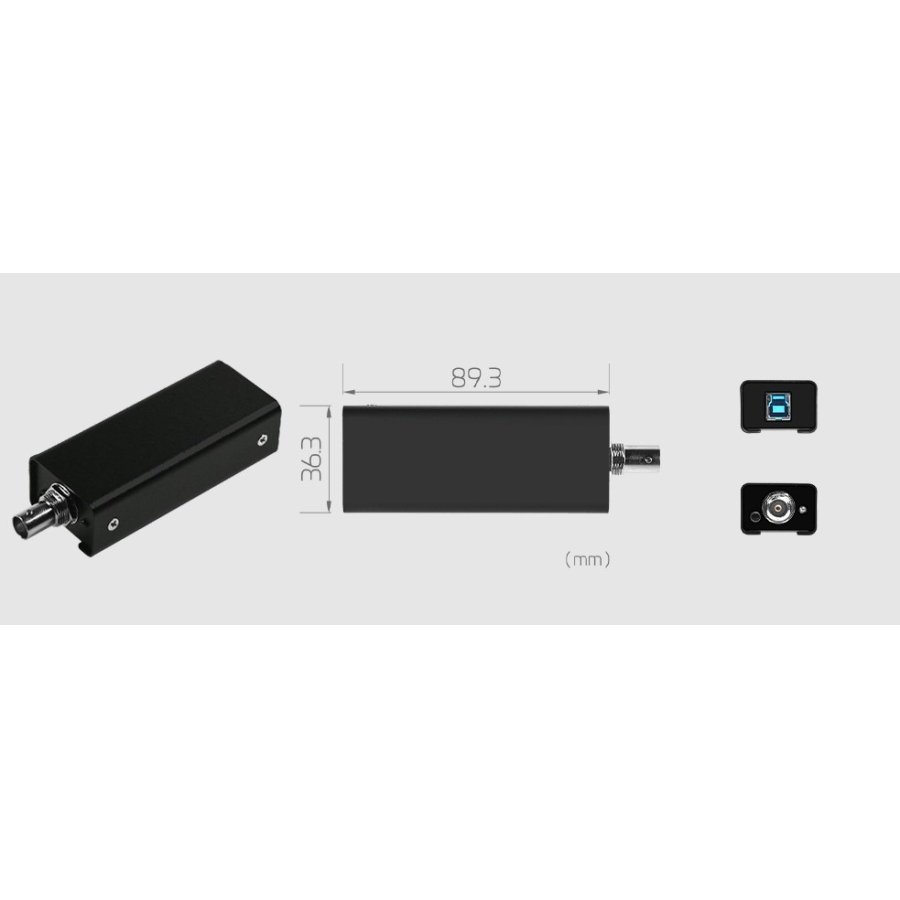

Dimension	N/A
Interface	USB3.0 Type B (SuperSpeed) UVC
Feature	N/A
Video
Video Input Detail	1 × SDI
Video Output	N/A
Color Format	YUY2, NV12
Build-in Hardware Encode	N/A
Video Processing	N/A
Video Resolutions	USB3.0 Support Resolution
	1920×1080p@60/50fps
	1920×1080p@30/25/24fps
	1920×1080i@60/50fps
	1280×720p@60/50fps
	720×480i@60fps
	720×576i@50fps
UVC Video Output Resolution	USB3.0 Support Resolution
	NV12,YUY2
	1920×1080p@60/50/30/25fps
	1280×720p@60/50/30/25fps
	720×576p@60/50/30/25fps
	720×480p@60/50/30/25fps
	640×480p@60/50/30/25fps

	USB2.0 Support Resolution
	NV12
	1280×720p@30fps

	NV12,YUY2
	720×576p@50fps
	720×480p@60fps
	640×480p@60fps
Audio
Audio Input	SDI Embedded Audio
Audio Input	3.5mm Analog Stereo Audio
Audio Format	Stereo / 16-bit / 48000Hz
Misc
GPIO	N/A
WatchDog	N/A
Software
OS Support	Windows 7 / Windows 8 / Windows 8.1 / Windows 10 ( 32-bit and 64-bit )
OS Support	Linux / MAC OS
