PD575 HDMI2.0 HDR

YUAN

YUAN PD575 HDMI2.0 HDR 1CH 4K60 HDMI2.0 USB 3.0 Capture

PD575 HDMI2.0 HDR

Available

Product Code: PD575 HDMI2.0 HDR

Categories: YUAN USB3.0 Capture Solution

Range: YUAN

Specification

Main
Max. Input Resolution	3840×2160p @ 60/50fps
Max. Input Resolution	1920×1080p@240/200fps
Video Input	1 × HDMI2.0

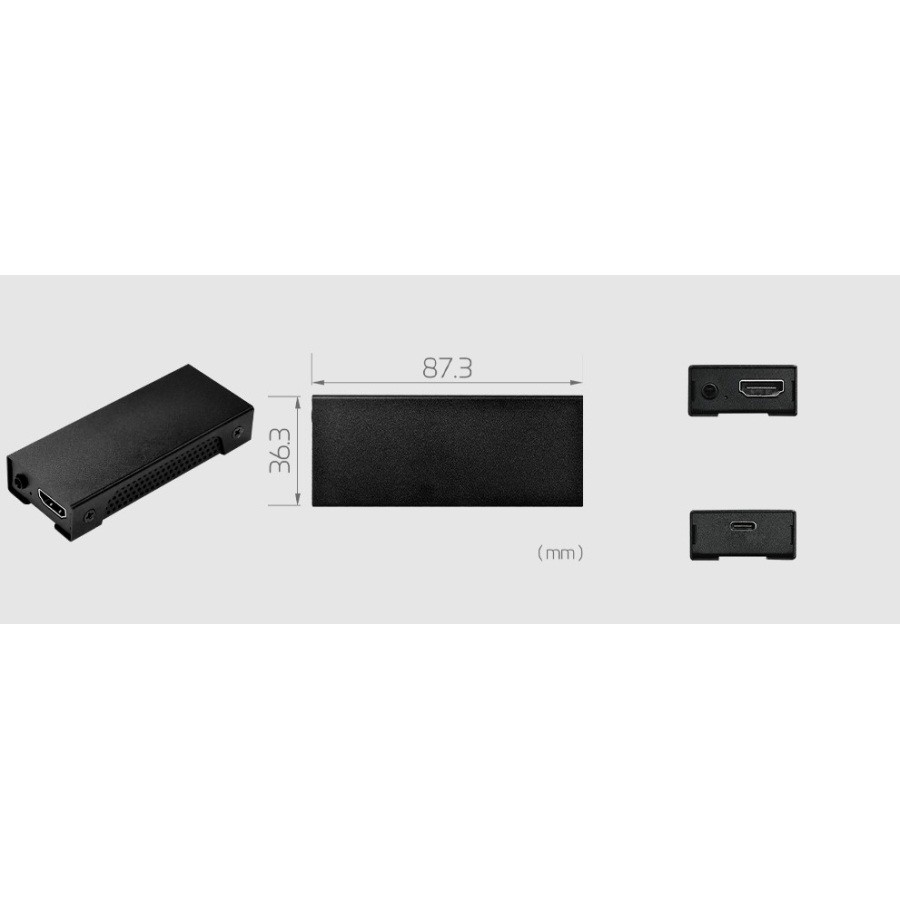

Dimension	N/A
Interface	USB3.0 Type C (SuperSpeed) UVC
Feature	N/A
Video
Video Input Detail	1 × HDMI2.0
Video Output	N/A
Color Format	YUY2, P010, NV12, RGB24 (USB 3.0)
Color Format	YUY2, NV12 (USB 2.0)
Build-in Hardware Encode	N/A
Video Processing	N/A
Video Resolutions	USB3.0 Support Resolution
	All resolution below
	3840×2160p@60fps
	1920×1080p@240fps
	( 422 10Bit HDR, 444 8Bit HDR )
UVC Video Output Resolution	USB3.0 Support Resolution
	NV12
	3840×2160p@30/25fps
	1920×1080p@120/100fps
	2560×1440p@60/50/30/25fps

	NV12,YUY2,P010,RGB24
	1920×1080p@60/50/30/25fps
	1280×720p@60/50/30/25fps

	NV12,YUY2,RGB24
	720×576p@60/50/30/25fps
	720×480p@60/50/30/25fps
	640×480p@60/50/30/25fps

	USB2.0 Support Resolution
	NV12
	1280×720p@30fps

	NV12,YUY2
	720×576p@50fps
	720×480p@60fps
	640×480p@60fps
Audio
Audio Input	HDMI Embedded Audio
Audio Input	3.5mm Analog Stereo Audio
Audio Format	Stereo / 16-bit / 48000Hz
Misc
GPIO	N/A
WatchDog	N/A
Software
OS Support	Windows 7 / Windows 8 / Windows 8.1 / Windows 10 ( 32-bit and 64-bit )
OS Support	Linux / MAC OS
