ECX-2071

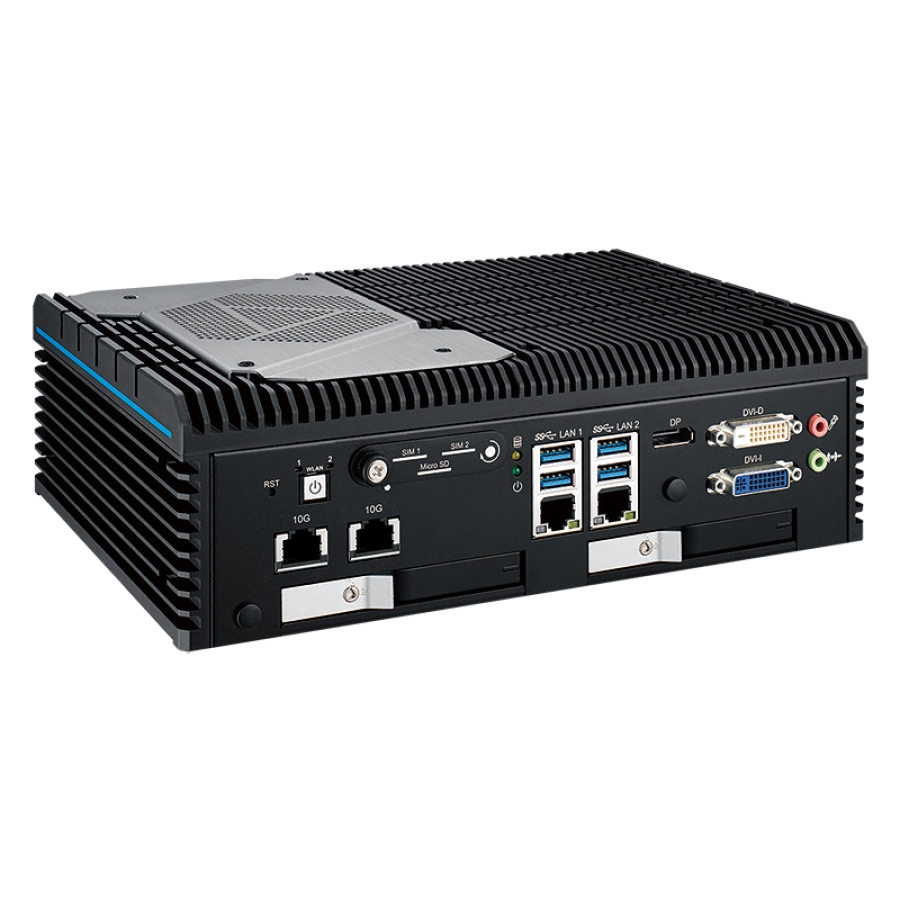

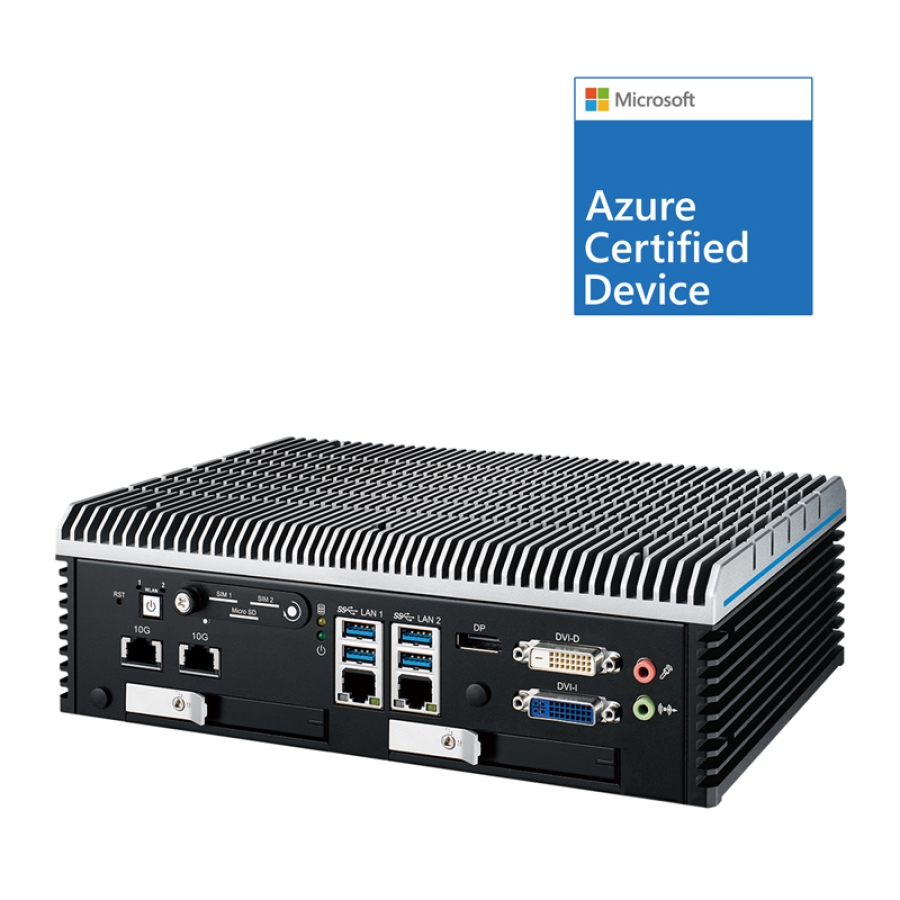

Vecow ECX-2071 10th Gen Intel Xeon/Core Workstation Grade Fanless Embedded System with 2-port 10G SFP+

ECX-2071

10-core 10th Gen Intel Core i9/i7/i5/i3 Processor (Comet Lake)
2 DDR4 2933MHz Memory supports up to 64GB, optional with ECC
9V to 50V wide range DC Power Input with 80V Surge Protection
2-port 10G SFP+ supports up to 10Gbps data delivery
6 Independent GigE LAN with 4 IEEE 802.3at PoE+
Nano SIM Sockets for 5G/WiFi 6/4G/3G/LTE/GPRS/UMTS
Expansion : 1 M.2 Key B, 1 M.2 Key E, 1 Mini PCIe
6-port USB 3.2 supports up to 10Gbps data transfer

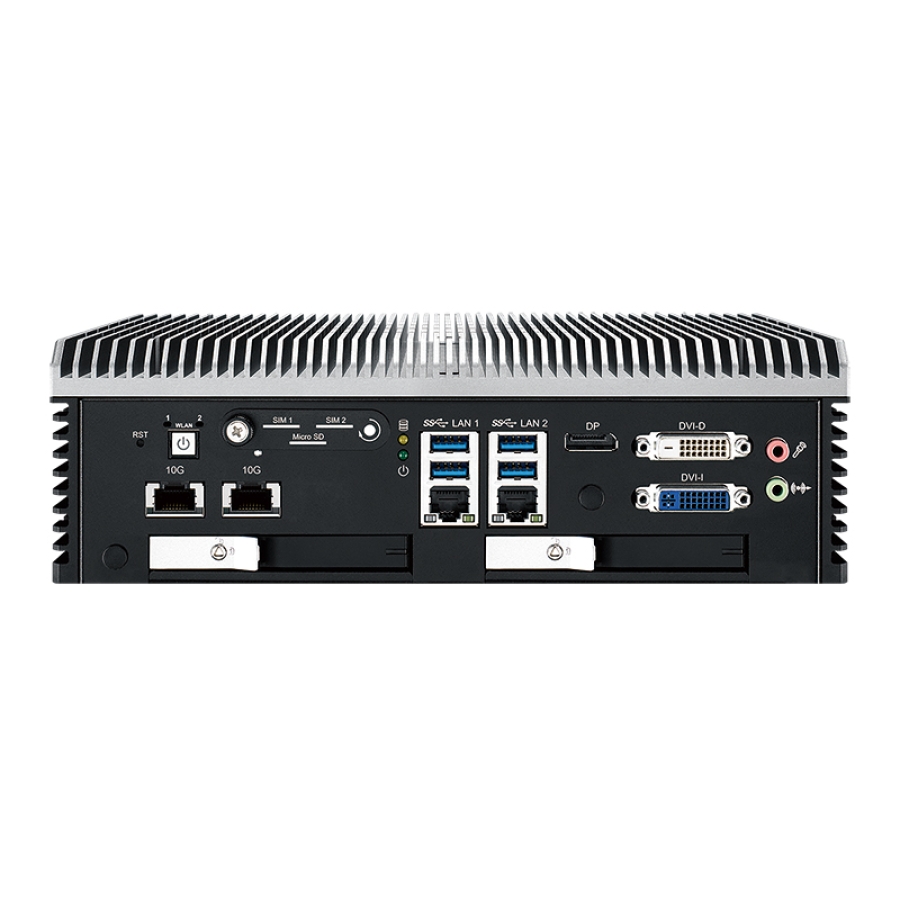

Front Access : 2 2.5″ SSD Tray, 2 Nano SIM Socket, 1 Micro SD Card
Supports Configurable Software Ignition Power Control and TPM 2.0
Fanless -40°C to 55°C Operating Temperature
Optimized user-friendly design for easier system maintenance
Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications

Available

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: ECX-2071

Categories: Embedded Box PCs, Embedded Computers, Fanless Embedded PCs, Vecow, Vecow 10GigE Embedded Systems

Range: Vecow

Details

New Generation Workstation-grade

The latest 10th Gen Intel Workstation-grade Platform : 10-core Intel Core i9/i7/i5/i3 processor running with Intel PCH (CML-S), max 95W CPU supported
Max 20% CPU performance enhancement and 10% graphics performance improvement over the former 9th Generation Intel Coffee Lake (CFL-S R) processors
Intel UHD 630 graphics engine supports max 4K resolution, DirectX 12, OpenGL 4.5, and OpenCL 2.1
High-speed data transfer : USB 3.2 Gen 2 (10G), 10GigE LAN (10G), 10G SFP+ (10G), PCIe 3.0 (8GT/s), SATA III (6G), 2.5GigE LAN (2.5G), GigE LAN (1G)

Leading Integration

DisplayPort, DVI-D and DVI-I triple independent display, up to 4K resolution
Max 9 GigE LAN with 4 IEEE 802.3at PoE+ (25.5W/48V)

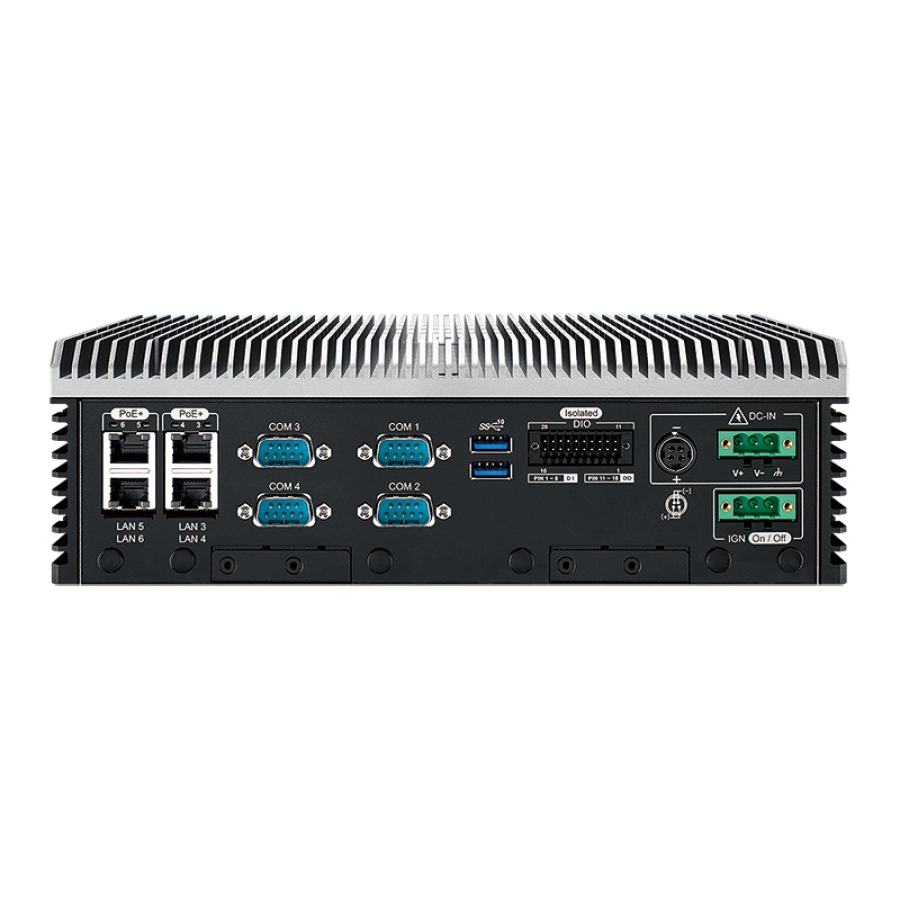

Max 6 10G USB 3.2 Gen 2, 4 COM RS-232/422/485, 2 SIM Socket, Isolated DIO
M,2 Key B, M.2 Key E, M.2 Key M
Wireless Connections : 5G/WiFi/4G/3G/LTE/GPRS/UMTS
Flexible Configurations : 10G LAN/10G SFP+/2.5G LAN/1G PoE+/1G SFP
OpenVINO for AI Computing

Rugged Reliability

Fanless -40°C to 75°C operation
Always-on wireless communication supports seamless data delivery
9V to 50V DC Power Input with 80V Surge Protection
Ignition Power Control for in-vehicle applications
EN50155 & EN50121-3-2
Anti-shock, Anti-vibration

Smarter System Manageability

User-friendly chassis design supports easier system maintenance
Considerate tool-less SIM/SD socket cover
Front-access & lockable SSD trays, RAID 0, 1 supported
Remote Power Switch
Smart System Management : TPM 2.0, iAMT 14.0, vPro, PXE, Wake on LAN, Watchdog Timer
