ECX-2000 Series

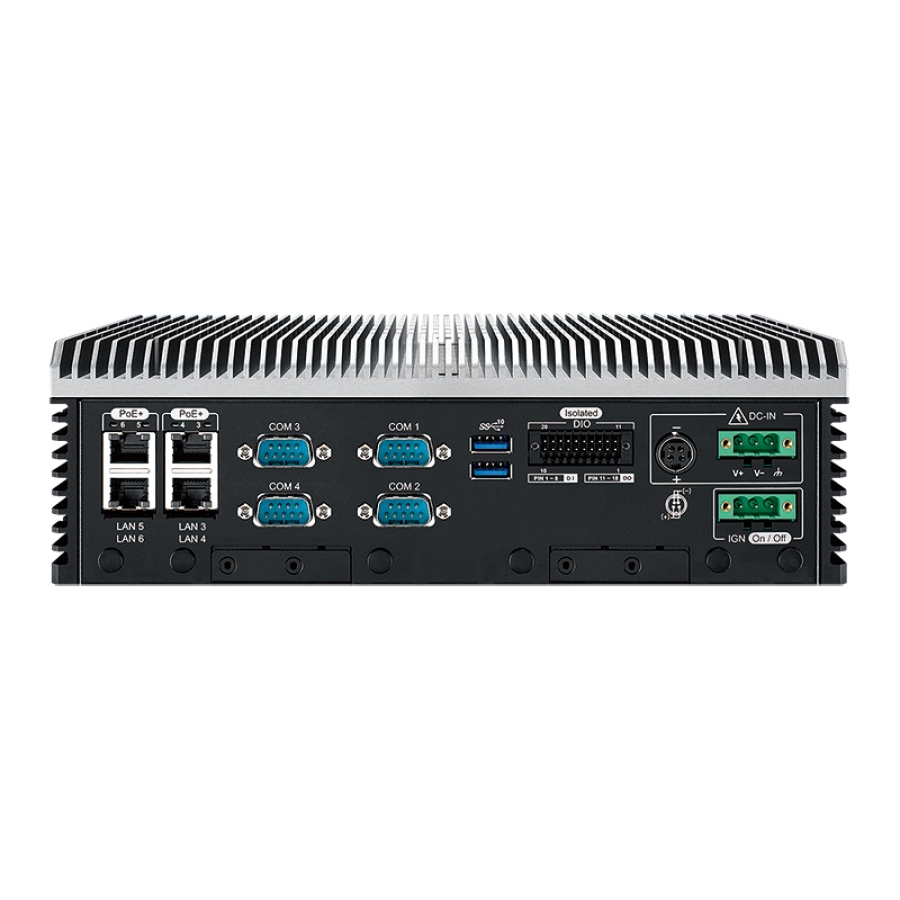

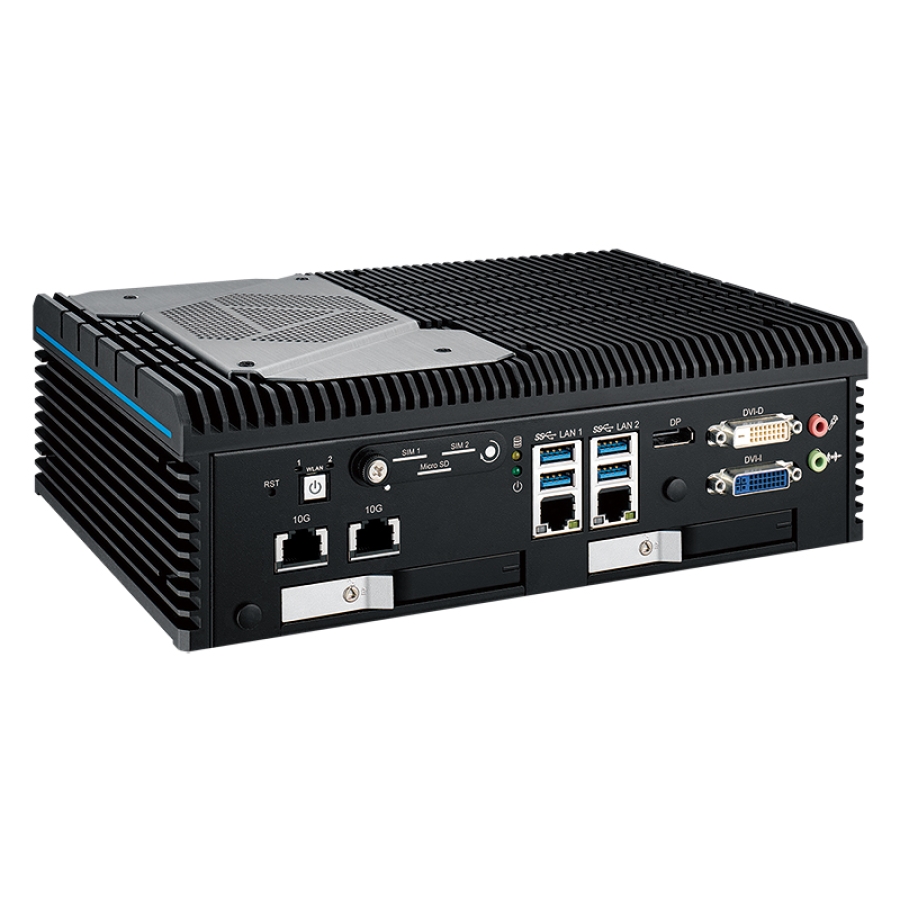

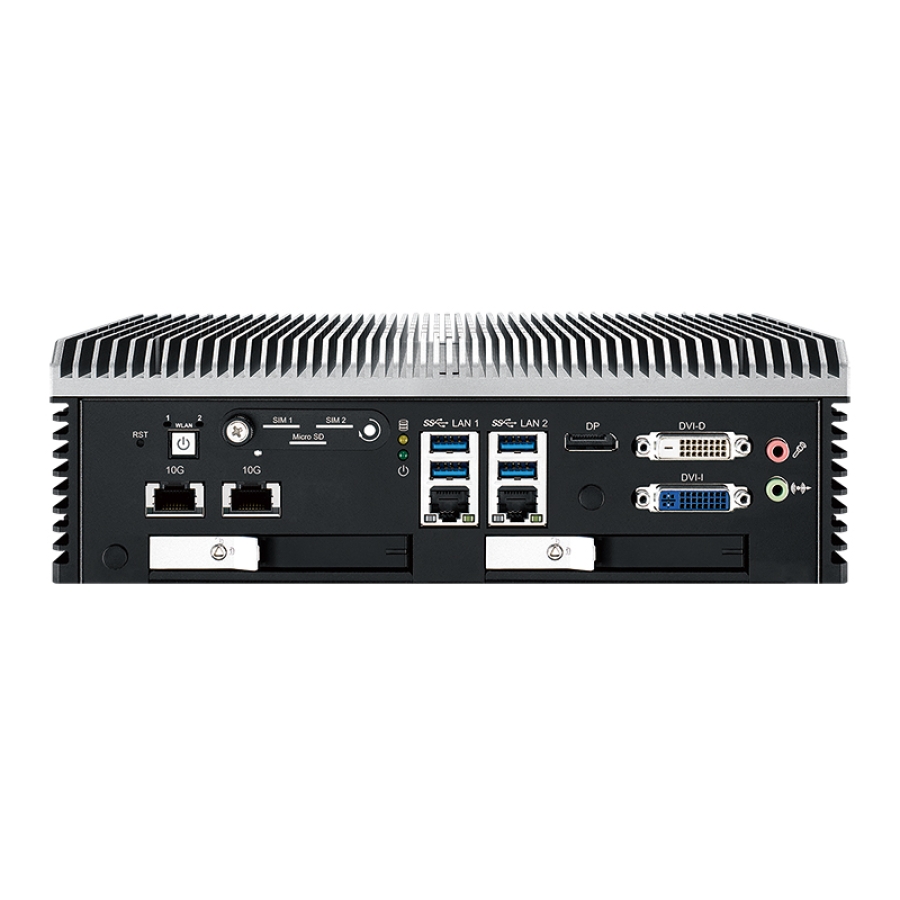

Vecow ECX-2000 10th Gen Intel Xeon/Core (Comet Lake) Workstation Grade Embedded System

ECX-2000 Series

Workstation-grade Platform: 10-core 10th Gen Intel Xeon/Core i9/i7/i5/i3 Processor (CML-S) running with Intel W480E chipset supports max 95W TDP CPU
2 DDR4 2933MHz Memory supports up to 64GB, optional with ECC
9V to 50V wide range DC Power Input with 80V Surge Protection
2-port 10GigE LAN supports up to 10Gbps high-spped data delivery
6 Independent GigE LAN with 4 IEEE 802.3at PoE+
Nano SIM Sockets for 5G/WiFi 6/4G/3G/LTE/GPRS/UMTS
Expansion : 1 M.2 Key B, 1 M.2 Key E, 1 Mini PCIe
6-port USB 3.2 supports up to 10Gbps data transfer
Front Access : 2 2.5″ SSD Tray, 2 Nano SIM Socket, 1 Micro SD Card
Supports Configurable Software Ignition Power Control and TPM 2.0
Optimized user-friendly design for easier system maintenance
Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications

Available

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: ECX-2000 Series

Categories: Embedded Box PCs, Embedded Computers, Vecow, Vecow Ultra-Compact Embedded Systems

Range: Vecow

Details

Powered by 10th Gen Intel Xeon/Core i9/i7/i5/i3 processor (Comet Lake), running with Intel W480E Chipset, with multiple 2.5GigE/10GigE RJ45/SFP+ Fiber LAN, max 6 USB 3.2 connections, Vecow ECX-2000 provides advanced performance at the edge. Featuring seamless communications, 9V to 50V power input with 80V surge protection, ignition power control, fanless -40°C to 55°C operating temperature, Vecow ECX-2000 Series Fanless Embedded System is a good fit for Factory Automation, Intelligent Vending, Intelligent Transportation Systems (ITS), Robotic Control, AMR/AGV, Deep Learning, any Artificial Intelligent oriented AIoT or Industry 4.0 applications. The Vecow ECX-2000 Series has been pre-tested and verified to run with Microsoft Azure to help accelerate your IoT projects.

Downloads

Datasheet (ECX-2000 Series) (PDF)

0.99MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Orders placed by EMEA customers will be delivered by DHL from Assured Systems UK.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

Accepted payment options for EMEA customers include VISA, Mastercard or bank transfer in GBP.

Vecow: Warranty and Service Information

As standard, we offer a 2 year warranty on all Vecow products sold and distributed within EMEA (including the UK) and US regions when purchased directly from Assured Systems. We are proud to be an official Vecow partner and can supply products with secure and certified delivery directly from our UK and USA headquarters. Warranties can also be extended if required, please contact our sales team for options.
